2018/12/09 19:00:32 61.420 -149.837 41.2 4.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2018/12/09 19:00:32:0  61.42 -149.84  41.2 4.7 Alaska

 Stations used:
   AK.BRLK AK.CNP AK.DHY AK.FID AK.FIRE AK.GLI AK.KNK AK.PWL
   AK.RC01 AK.RND AK.SAW AK.SCM AK.SKN AK.SLK AK.SSN AK.SWD
   AT.PMR AV.ILSW AV.STLK TA.M22K

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 1.11e+23 dyne-cm
  Mw = 4.63
  Z  = 48 km
  Plane   Strike  Dip  Rake
   NP1      165    60   -85
   NP2      335    30   -99
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.11e+23     15     251
    N   0.00e+00      4     342
    P  -1.11e+23     74      88

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.06e+22
       Mxy     3.12e+22
       Mxz    -9.63e+21
       Myy     8.51e+22
       Myz    -5.46e+22
       Mzz    -9.57e+22




                     -#############
                 ####--------##########
              #######------------#########
             #######---------------########
           #########-----------------########
          #########--------------------#######
         ##########---------------------#######
        ###########----------------------#######
        ###########-----------------------######
       #############-----------   ---------######
       #############----------- P ---------######
       #############-----------   ---------######
       ##############----------------------######
        ##   ########----------------------#####
        ## T #########---------------------#####
         #   ##########--------------------####
          ##############------------------####
           ##############-----------------###
             #############---------------##
              ##############------------##
                 #############--------#
                     ###########---



 Global CMT Convention Moment Tensor:
      R          T          P
 -9.57e+22  -9.63e+21   5.46e+22
 -9.63e+21   1.06e+22  -3.12e+22
  5.46e+22  -3.12e+22   8.51e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20181209190032/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 165
      DIP = 60
     RAKE = -85
       MW = 4.63
       HS = 48.0

The NDK file is 20181209190032.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

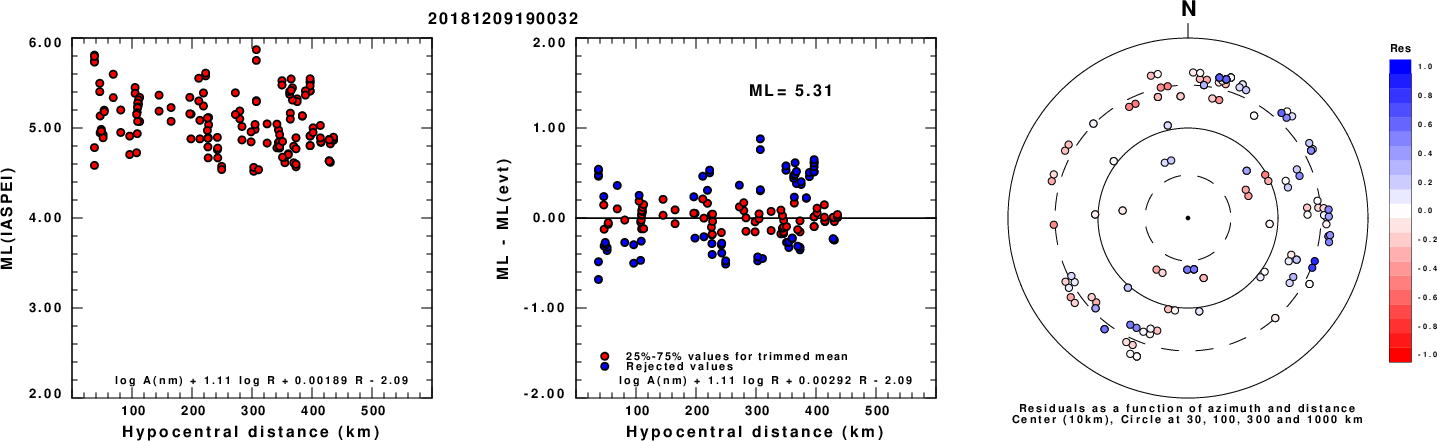

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

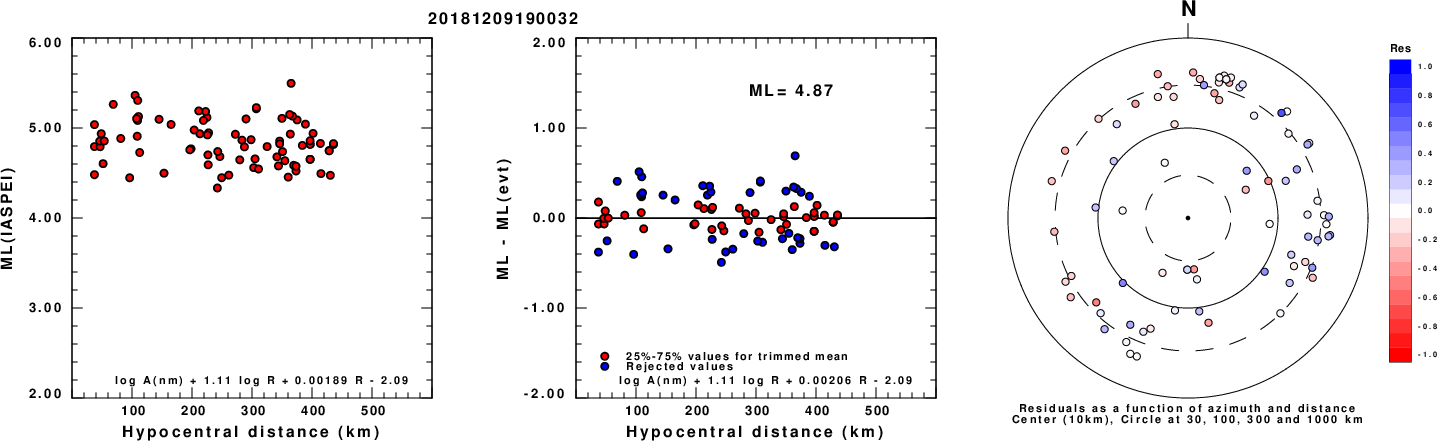

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   345    45    90   3.81 0.1753
WVFGRD96    2.0   350    40    90   3.95 0.2282
WVFGRD96    3.0   165    50    80   4.00 0.2077
WVFGRD96    4.0   315    80    65   4.01 0.2119
WVFGRD96    5.0   310    85    70   4.03 0.2465
WVFGRD96    6.0   305    85    70   4.04 0.2784
WVFGRD96    7.0   305    85    70   4.05 0.3036
WVFGRD96    8.0   310    75    85   4.14 0.3239
WVFGRD96    9.0   310    75    85   4.15 0.3473
WVFGRD96   10.0   140    15   100   4.16 0.3677
WVFGRD96   11.0   145    20   105   4.17 0.3859
WVFGRD96   12.0   310    70    85   4.19 0.4019
WVFGRD96   13.0   310    70    90   4.20 0.4158
WVFGRD96   14.0   140    20   100   4.21 0.4274
WVFGRD96   15.0   135    20    95   4.22 0.4363
WVFGRD96   16.0   125    20    80   4.23 0.4438
WVFGRD96   17.0   120    20    75   4.24 0.4492
WVFGRD96   18.0   100    20    55   4.24 0.4535
WVFGRD96   19.0    85    25    35   4.25 0.4572
WVFGRD96   20.0    85    25    35   4.26 0.4604
WVFGRD96   21.0    90    20    40   4.28 0.4629
WVFGRD96   22.0    90    20    40   4.29 0.4633
WVFGRD96   23.0    90    20    40   4.30 0.4631
WVFGRD96   24.0    90    20    40   4.31 0.4613
WVFGRD96   25.0    95    15    45   4.32 0.4596
WVFGRD96   26.0   320    80    85   4.33 0.4583
WVFGRD96   27.0   105    10    55   4.33 0.4548
WVFGRD96   28.0   100    10    50   4.34 0.4513
WVFGRD96   29.0    80    15    25   4.34 0.4465
WVFGRD96   30.0    75    15    20   4.35 0.4420
WVFGRD96   31.0    35    50   -45   4.36 0.4438
WVFGRD96   32.0   350    25   -85   4.37 0.4679
WVFGRD96   33.0   165    65   -90   4.38 0.4931
WVFGRD96   34.0   340    30   -95   4.40 0.5203
WVFGRD96   35.0   165    60   -90   4.41 0.5439
WVFGRD96   36.0   340    30   -95   4.42 0.5647
WVFGRD96   37.0   165    60   -85   4.43 0.5831
WVFGRD96   38.0   165    60   -85   4.44 0.5980
WVFGRD96   39.0   165    55   -85   4.46 0.6097
WVFGRD96   40.0   165    60   -85   4.56 0.6194
WVFGRD96   41.0   165    60   -85   4.57 0.6299
WVFGRD96   42.0   165    60   -85   4.58 0.6388
WVFGRD96   43.0   165    60   -85   4.59 0.6454
WVFGRD96   44.0   165    60   -85   4.60 0.6509
WVFGRD96   45.0   165    60   -85   4.61 0.6547
WVFGRD96   46.0   165    60   -85   4.61 0.6570
WVFGRD96   47.0   165    60   -85   4.62 0.6582
WVFGRD96   48.0   165    60   -85   4.63 0.6587
WVFGRD96   49.0   165    60   -85   4.63 0.6570
WVFGRD96   50.0   165    60   -85   4.64 0.6557
WVFGRD96   51.0   170    60   -80   4.64 0.6522
WVFGRD96   52.0   165    60   -85   4.64 0.6488
WVFGRD96   53.0   165    60   -80   4.65 0.6444
WVFGRD96   54.0   165    60   -80   4.65 0.6399
WVFGRD96   55.0   165    60   -80   4.65 0.6342
WVFGRD96   56.0   165    60   -80   4.66 0.6289
WVFGRD96   57.0   165    60   -80   4.66 0.6225
WVFGRD96   58.0   165    60   -80   4.66 0.6157
WVFGRD96   59.0   165    60   -80   4.66 0.6093

The best solution is

WVFGRD96   48.0   165    60   -85   4.63 0.6587

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

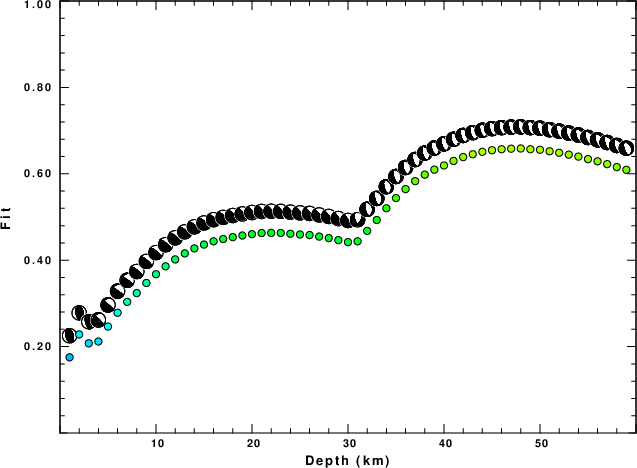

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

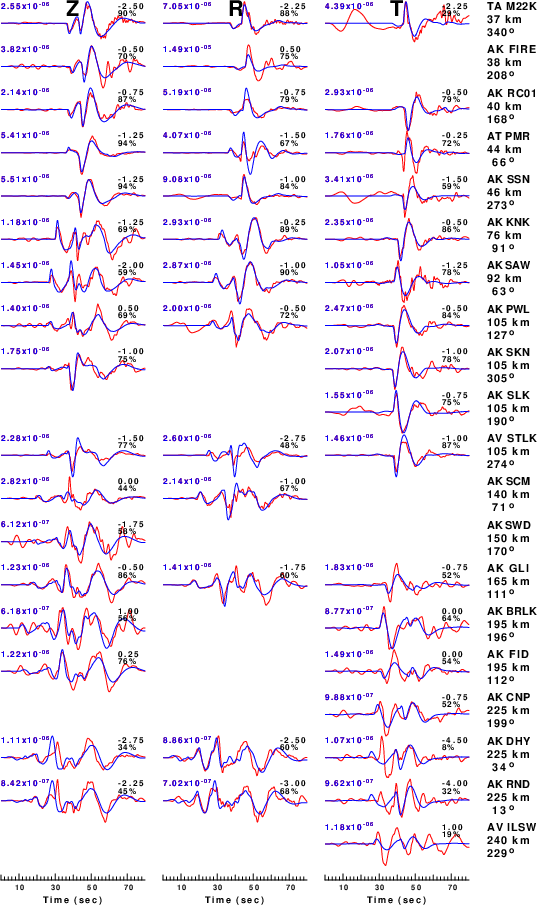

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

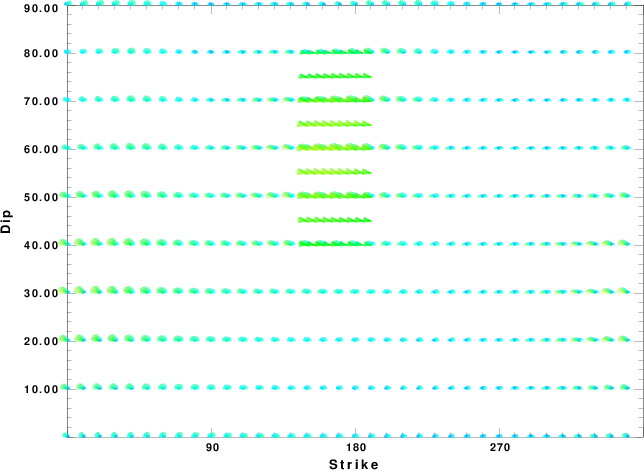

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

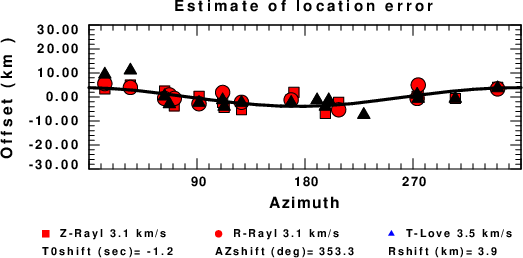

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
