2018/12/04 16:02:28 61.394 -150.076 38.3 4.5 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2018/12/04 16:02:28:0  61.39 -150.08  38.3 4.5 Alaska

 Stations used:
   AK.CNP AK.CUT AK.FID AK.GHO AK.GLI AK.KNK AK.PWL AK.RC01
   AK.SAW AK.SCM AK.SKN AK.SSN AT.PMR AV.ILSW AV.STLK TA.M22K

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +70
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 6.84e+22 dyne-cm
  Mw = 4.49
  Z  = 47 km
  Plane   Strike  Dip  Rake
   NP1      185    60   -60
   NP2      316    41   -131
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.84e+22     10     254
    N   0.00e+00     26     349
    P  -6.84e+22     62     144

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -4.75e+21
       Mxy     2.47e+22
       Mxz     1.96e+22
       Myy     5.60e+22
       Myz    -2.80e+22
       Mzz    -5.13e+22




                     -------#######
                 ----------############
              ---######--#################
             ###########-----##############
           ############---------#############
          #############------------###########
         #############---------------##########
        #############-----------------##########
        #############-------------------########
       ##############--------------------########
       #############----------------------#######
       #############-----------------------######
       #   #########-----------------------######
         T #########-----------   ---------#####
           #########----------- P ----------####
         ############----------   ----------###
          ###########-----------------------##
           ##########----------------------##
             #########---------------------
              #########-------------------
                 #######---------------
                     ####----------



 Global CMT Convention Moment Tensor:
      R          T          P
 -5.13e+22   1.96e+22   2.80e+22
  1.96e+22  -4.75e+21  -2.47e+22
  2.80e+22  -2.47e+22   5.60e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20181204160228/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 185
      DIP = 60
     RAKE = -60
       MW = 4.49
       HS = 47.0

The NDK file is 20181204160228.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

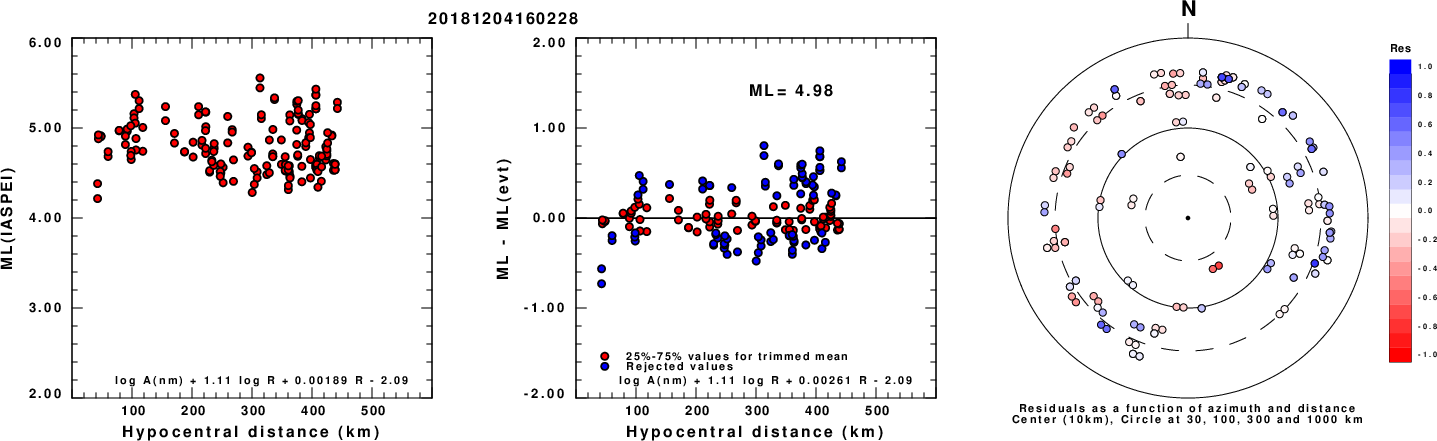

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

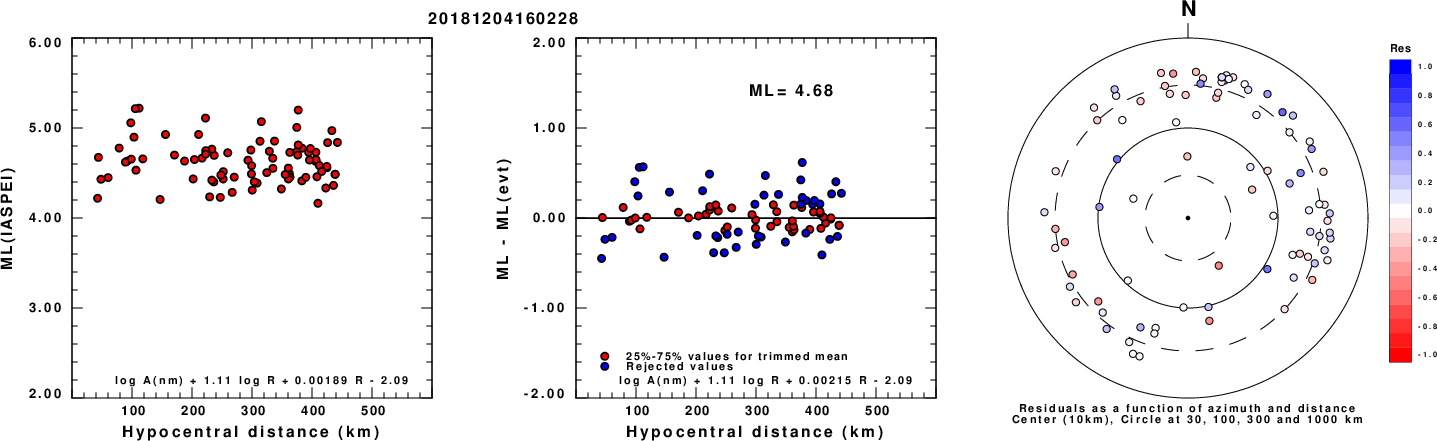

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

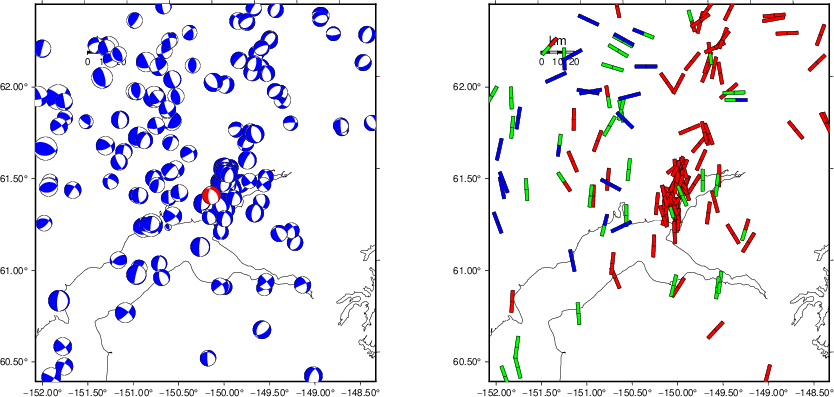

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

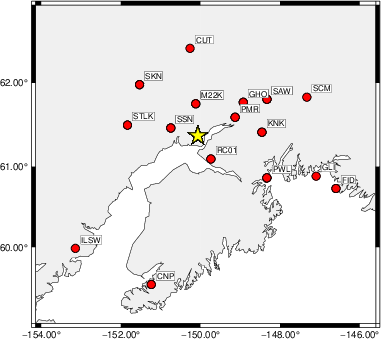

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   335    40    75   3.61 0.1839
WVFGRD96    2.0   330    45    70   3.77 0.2549
WVFGRD96    3.0   315    40    45   3.82 0.2686
WVFGRD96    4.0   300    50    10   3.81 0.2827
WVFGRD96    5.0   295    50   -10   3.84 0.3003
WVFGRD96    6.0   295    50   -10   3.86 0.3180
WVFGRD96    7.0   115    65   -25   3.90 0.3337
WVFGRD96    8.0   110    60   -35   3.97 0.3433
WVFGRD96    9.0   110    55   -30   3.98 0.3550
WVFGRD96   10.0   110    55   -30   4.01 0.3657
WVFGRD96   11.0   110    55   -30   4.02 0.3735
WVFGRD96   12.0    25    90    40   4.02 0.3768
WVFGRD96   13.0    25    90    40   4.03 0.3857
WVFGRD96   14.0    30    80    40   4.05 0.3932
WVFGRD96   15.0    30    80    40   4.07 0.4006
WVFGRD96   16.0    30    80    40   4.09 0.4075
WVFGRD96   17.0    30    80    40   4.10 0.4136
WVFGRD96   18.0    25    90    40   4.11 0.4204
WVFGRD96   19.0    25    90    40   4.12 0.4271
WVFGRD96   20.0    25    90    40   4.13 0.4338
WVFGRD96   21.0    25    90    45   4.15 0.4412
WVFGRD96   22.0    25    90    45   4.16 0.4497
WVFGRD96   23.0    25    90    45   4.17 0.4582
WVFGRD96   24.0    25    90    45   4.19 0.4689
WVFGRD96   25.0    25    90    45   4.20 0.4818
WVFGRD96   26.0   205    85   -45   4.21 0.4933
WVFGRD96   27.0   205    85   -45   4.22 0.5085
WVFGRD96   28.0   200    80   -45   4.23 0.5202
WVFGRD96   29.0   200    80   -50   4.24 0.5367
WVFGRD96   30.0   200    80   -50   4.26 0.5525
WVFGRD96   31.0   200    75   -45   4.26 0.5711
WVFGRD96   32.0   195    70   -50   4.28 0.5887
WVFGRD96   33.0   195    70   -50   4.28 0.6065
WVFGRD96   34.0   195    70   -50   4.29 0.6191
WVFGRD96   35.0   195    70   -50   4.30 0.6285
WVFGRD96   36.0   195    65   -45   4.31 0.6385
WVFGRD96   37.0   195    65   -45   4.32 0.6449
WVFGRD96   38.0   195    65   -45   4.33 0.6522
WVFGRD96   39.0   195    65   -45   4.34 0.6572
WVFGRD96   40.0   190    65   -55   4.42 0.6448
WVFGRD96   41.0   190    65   -55   4.43 0.6535
WVFGRD96   42.0   185    60   -60   4.44 0.6604
WVFGRD96   43.0   185    60   -60   4.45 0.6662
WVFGRD96   44.0   185    60   -60   4.46 0.6720
WVFGRD96   45.0   185    60   -60   4.47 0.6750
WVFGRD96   46.0   185    60   -60   4.48 0.6766
WVFGRD96   47.0   185    60   -60   4.49 0.6776
WVFGRD96   48.0   185    60   -60   4.49 0.6759
WVFGRD96   49.0   185    60   -60   4.50 0.6748
WVFGRD96   50.0   185    60   -60   4.50 0.6706
WVFGRD96   51.0   185    60   -60   4.50 0.6674
WVFGRD96   52.0   185    60   -60   4.51 0.6637
WVFGRD96   53.0   185    60   -60   4.51 0.6590
WVFGRD96   54.0   185    60   -60   4.51 0.6543
WVFGRD96   55.0   185    60   -60   4.52 0.6482
WVFGRD96   56.0   185    60   -60   4.52 0.6412
WVFGRD96   57.0   180    60   -65   4.53 0.6360
WVFGRD96   58.0   180    60   -65   4.53 0.6280
WVFGRD96   59.0   180    60   -65   4.53 0.6209

The best solution is

WVFGRD96   47.0   185    60   -60   4.49 0.6776

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

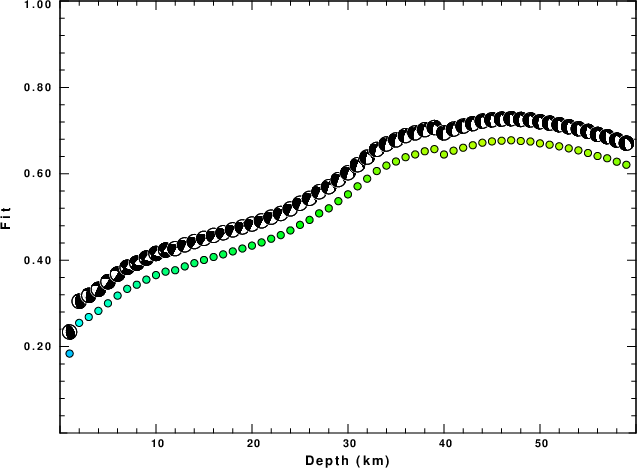

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

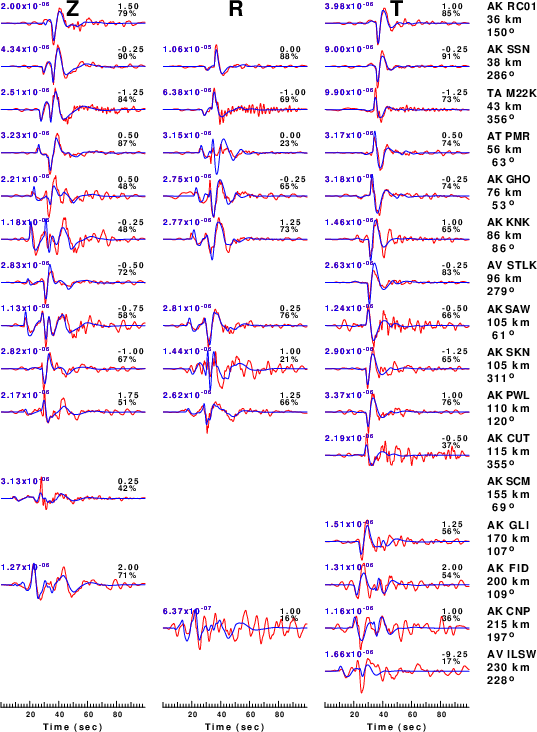

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

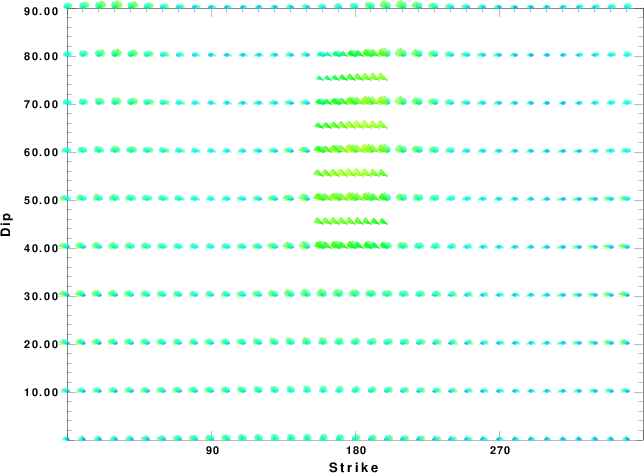

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

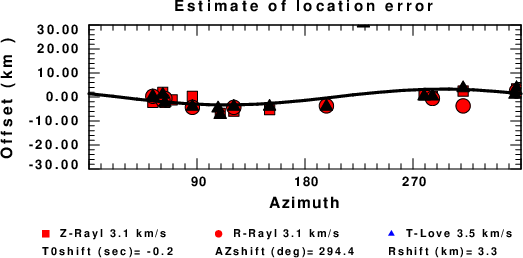

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
