2018/12/01 16:04:59 61.542 -149.852 47.6 3.9 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2018/12/01 16:04:59:0  61.54 -149.85  47.6 3.9 Alaska

 Stations used:
   AK.GHO AK.GLI AK.KNK AK.PWL AK.SAW AK.SKN AK.SSN AV.STLK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.60e+22 dyne-cm
  Mw = 4.07
  Z  = 58 km
  Plane   Strike  Dip  Rake
   NP1      180    60   -65
   NP2      317    38   -126
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.60e+22     12     252
    N   0.00e+00     21     347
    P  -1.60e+22     65     136

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.03e+15
       Mxy     5.87e+21
       Mxz     3.39e+21
       Myy     1.26e+22
       Myz    -7.27e+21
       Mzz    -1.26e+22




                     ------########
                 --------##############
              -#########--################
             ##########--------############
           ###########------------###########
          ############--------------##########
         ############-----------------#########
        #############------------------#########
        #############-------------------########
       #############----------------------#######
       #############----------------------#######
       #############-----------------------######
       #############-----------   ---------######
        #   #########---------- P ----------####
        # T #########----------   ----------####
            #########-----------------------###
          ############----------------------##
           ###########---------------------##
             ##########--------------------
              ##########------------------
                 ########--------------
                     ######--------



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.26e+22   3.39e+21   7.27e+21
  3.39e+21  -1.03e+15  -5.87e+21
  7.27e+21  -5.87e+21   1.26e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20181201160459/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 180
      DIP = 60
     RAKE = -65
       MW = 4.07
       HS = 58.0

The NDK file is 20181201160459.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

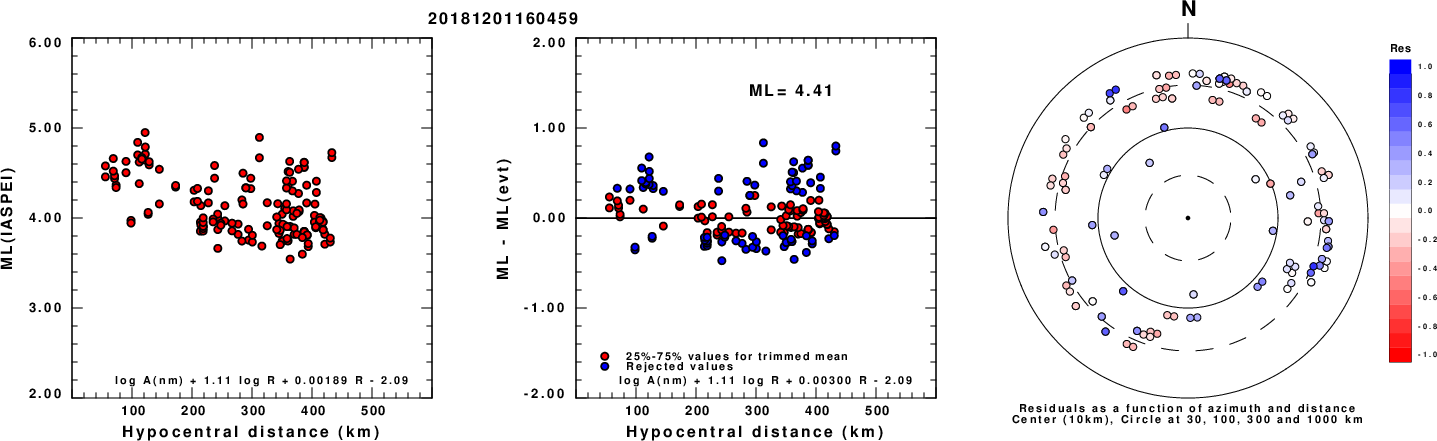

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

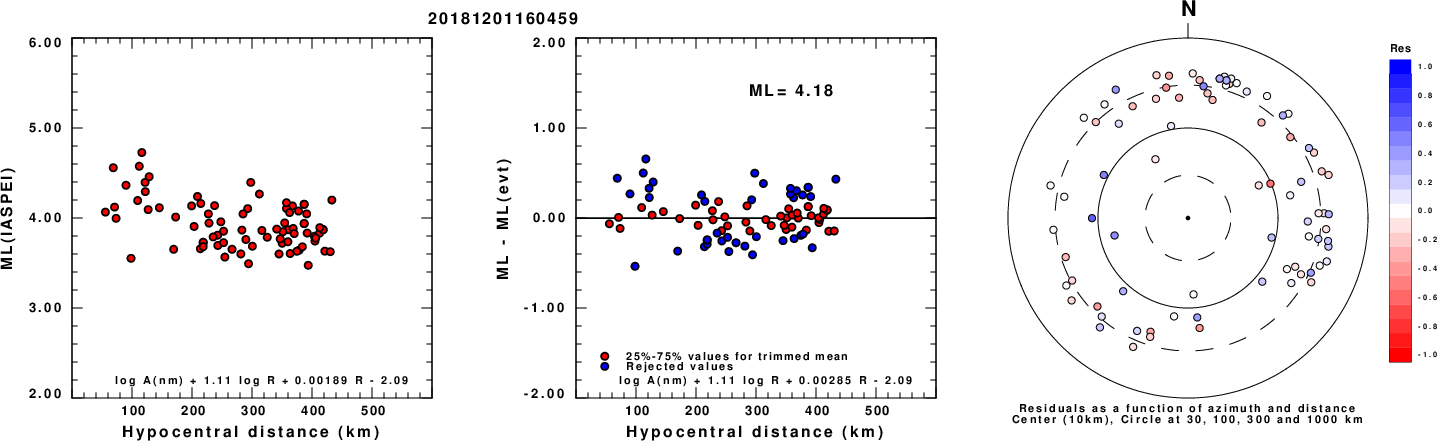

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

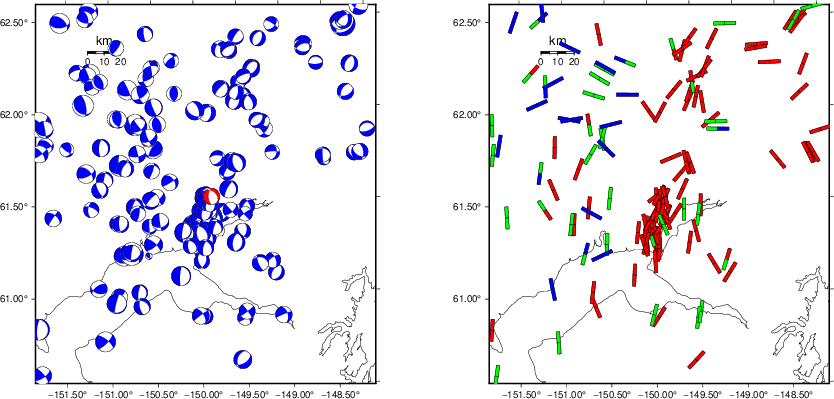

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

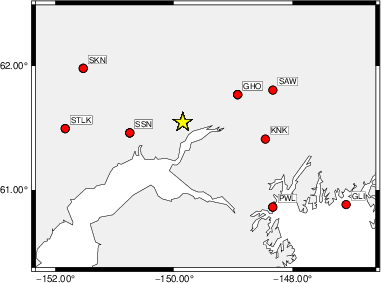

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   170    45    80   3.21 0.2332
WVFGRD96    2.0   170    55   100   3.37 0.3107
WVFGRD96    3.0   320    30    50   3.42 0.3018
WVFGRD96    4.0   300    25    20   3.43 0.3126
WVFGRD96    5.0   290    30     0   3.44 0.3369
WVFGRD96    6.0   130    80   -60   3.47 0.3674
WVFGRD96    7.0   130    80   -60   3.49 0.3923
WVFGRD96    8.0   320    90    60   3.55 0.4042
WVFGRD96    9.0   320    90    60   3.57 0.4164
WVFGRD96   10.0   140    90   -60   3.58 0.4224
WVFGRD96   11.0   290    85    75   3.68 0.4327
WVFGRD96   12.0   290    80    75   3.70 0.4387
WVFGRD96   13.0   290    80    75   3.72 0.4421
WVFGRD96   14.0   290    80    75   3.74 0.4420
WVFGRD96   15.0   290    80    75   3.75 0.4398
WVFGRD96   16.0   290    80    75   3.76 0.4360
WVFGRD96   17.0   290    80    75   3.77 0.4314
WVFGRD96   18.0   290    75    75   3.78 0.4305
WVFGRD96   19.0   290    75    75   3.79 0.4295
WVFGRD96   20.0   110    20    75   3.76 0.4235
WVFGRD96   21.0   100    25    60   3.77 0.4254
WVFGRD96   22.0   105    25    65   3.78 0.4251
WVFGRD96   23.0   120    25    70   3.77 0.4221
WVFGRD96   24.0   125    25    75   3.78 0.4190
WVFGRD96   25.0   120    25    70   3.79 0.4138
WVFGRD96   26.0   115    30    60   3.78 0.4065
WVFGRD96   27.0   170    90   -60   3.75 0.3989
WVFGRD96   28.0   355    85    60   3.76 0.3992
WVFGRD96   29.0    35    75    65   3.83 0.4005
WVFGRD96   30.0    35    75    65   3.84 0.4067
WVFGRD96   31.0    35    75    65   3.85 0.4111
WVFGRD96   32.0    30    80    65   3.85 0.4138
WVFGRD96   33.0    30    80    60   3.85 0.4166
WVFGRD96   34.0    25    90    55   3.84 0.4224
WVFGRD96   35.0    25    90    55   3.84 0.4347
WVFGRD96   36.0   195    75   -50   3.84 0.4444
WVFGRD96   37.0   195    70   -50   3.86 0.4667
WVFGRD96   38.0   190    65   -50   3.87 0.4907
WVFGRD96   39.0   190    65   -50   3.88 0.5139
WVFGRD96   40.0   185    65   -60   3.97 0.5319
WVFGRD96   41.0   185    60   -60   3.98 0.5432
WVFGRD96   42.0   185    60   -60   3.99 0.5514
WVFGRD96   43.0   185    60   -60   4.00 0.5621
WVFGRD96   44.0   185    60   -60   4.01 0.5697
WVFGRD96   45.0   185    60   -60   4.02 0.5776
WVFGRD96   46.0   180    60   -65   4.03 0.5856
WVFGRD96   47.0   185    60   -60   4.03 0.5928
WVFGRD96   48.0   180    60   -65   4.04 0.5989
WVFGRD96   49.0   185    60   -60   4.04 0.6047
WVFGRD96   50.0   180    60   -65   4.05 0.6102
WVFGRD96   51.0   180    60   -65   4.05 0.6160
WVFGRD96   52.0   180    60   -65   4.06 0.6205
WVFGRD96   53.0   180    60   -65   4.06 0.6245
WVFGRD96   54.0   180    60   -65   4.06 0.6289
WVFGRD96   55.0   180    60   -65   4.07 0.6309
WVFGRD96   56.0   180    60   -65   4.07 0.6349
WVFGRD96   57.0   180    60   -65   4.07 0.6358
WVFGRD96   58.0   180    60   -65   4.07 0.6387
WVFGRD96   59.0   180    60   -65   4.08 0.6382

The best solution is

WVFGRD96   58.0   180    60   -65   4.07 0.6387

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

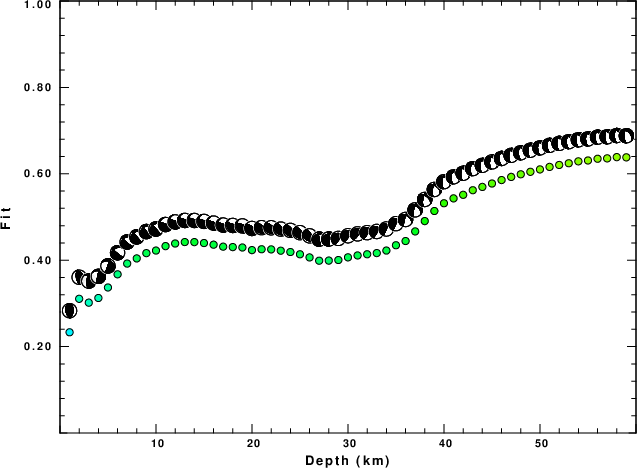

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

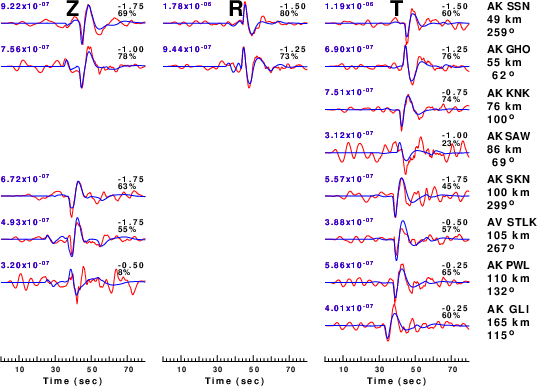

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

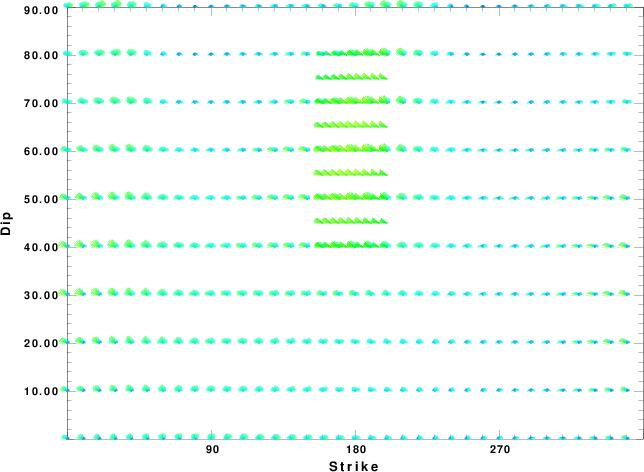

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

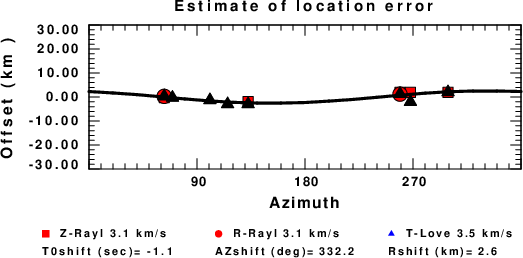

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
