The ANSS event ID is uw61504942 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/uw61504942/executive.
2018/11/19 11:09:13 47.698 -123.552 39.3 4.07 Washington
USGS/SLU Moment Tensor Solution ENS 2018/11/19 11:09:13:0 47.70 -123.55 39.3 4.1 Washington Stations used: CC.JRO CN.CBB CN.CLRS CN.OZB CN.PGC UO.MARQ US.NLWA UW.CCRK UW.FORK UW.GNW UW.LON UW.OMAK UW.STOR Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 1.17e+22 dyne-cm Mw = 3.98 Z = 40 km Plane Strike Dip Rake NP1 342 50 -113 NP2 195 45 -65 Principal Axes: Axis Value Plunge Azimuth T 1.17e+22 3 88 N 0.00e+00 17 357 P -1.17e+22 72 186 Moment Tensor: (dyne-cm) Component Value Mxx -1.04e+21 Mxy 3.79e+20 Mxz 3.39e+21 Myy 1.17e+22 Myz 9.09e+20 Mzz -1.06e+22 ##--------#### ###################### ###########----############# ##########--------############ ##########------------############ ##########--------------############ ##########----------------############ ##########------------------############ ##########-------------------########### ##########---------------------######### ##########---------------------######### T #########-----------------------######## #########---------- ----------########## ########---------- P ----------######### ########---------- ----------######### ########----------------------######## #######----------------------####### ######---------------------####### #####--------------------##### #####------------------##### ###----------------### #------------- Global CMT Convention Moment Tensor: R T P -1.06e+22 3.39e+21 -9.09e+20 3.39e+21 -1.04e+21 -3.79e+20 -9.09e+20 -3.79e+20 1.17e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20181119110913/index.html |
STK = 195 DIP = 45 RAKE = -65 MW = 3.98 HS = 40.0

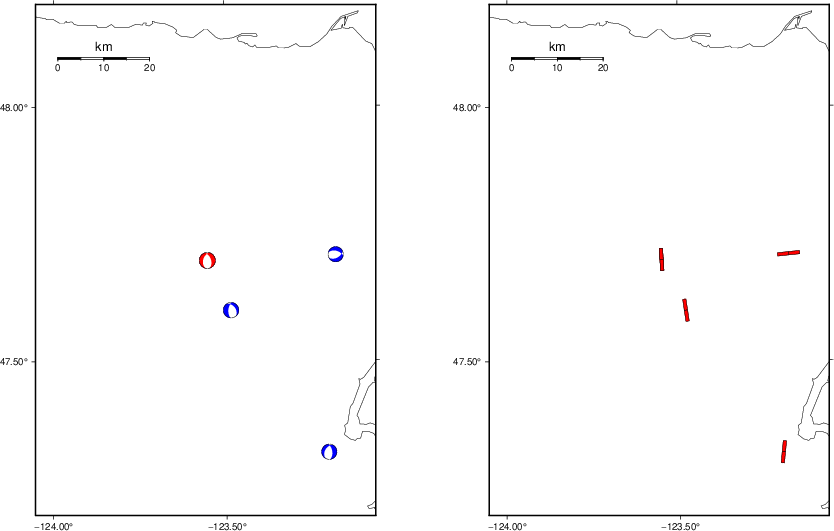

The NDK file is 20181119110913.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

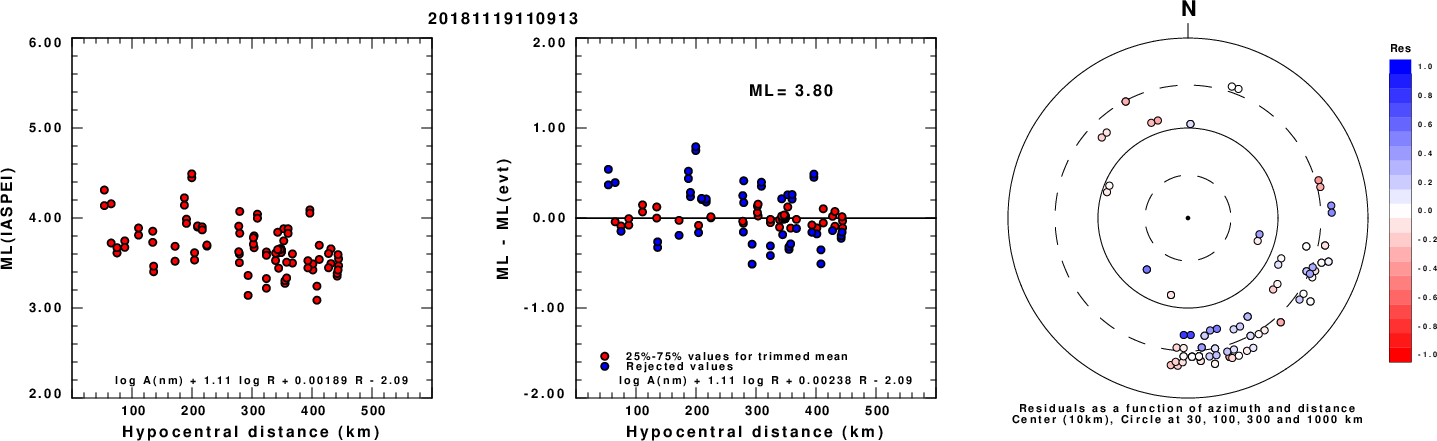

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

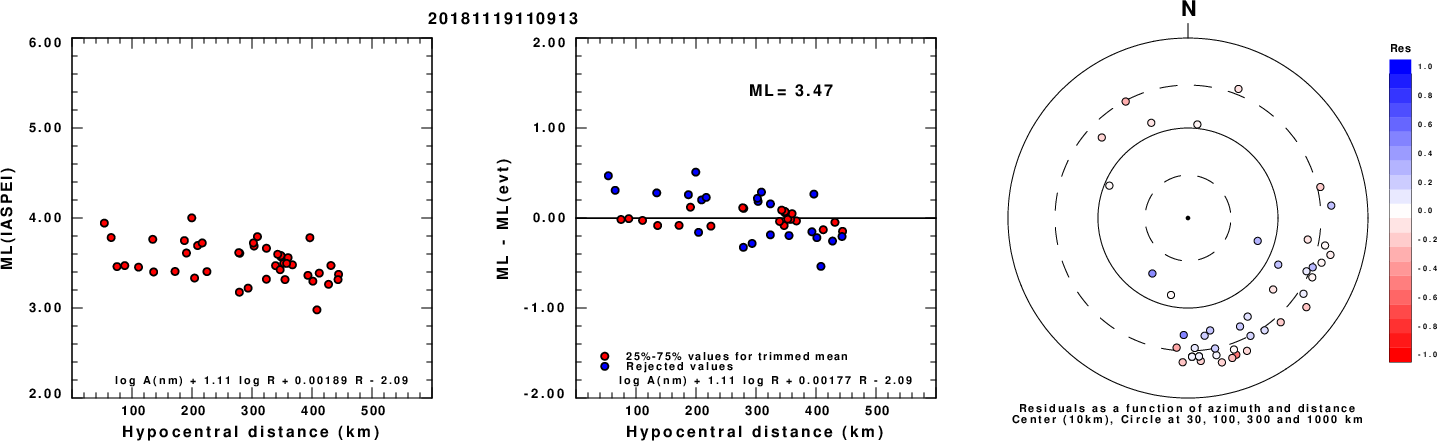

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

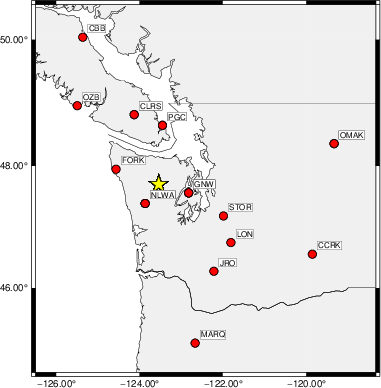

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 2.0 0 45 90 3.40 0.4815 WVFGRD96 4.0 335 40 55 3.45 0.3550 WVFGRD96 6.0 120 25 15 3.48 0.4781 WVFGRD96 8.0 130 20 30 3.55 0.5203 WVFGRD96 10.0 125 25 25 3.54 0.5348 WVFGRD96 12.0 125 25 20 3.54 0.5347 WVFGRD96 14.0 125 30 20 3.55 0.5322 WVFGRD96 16.0 130 30 25 3.57 0.5286 WVFGRD96 18.0 130 30 30 3.58 0.5213 WVFGRD96 20.0 135 30 35 3.60 0.5120 WVFGRD96 22.0 140 30 40 3.63 0.5013 WVFGRD96 24.0 15 60 -65 3.66 0.5012 WVFGRD96 26.0 0 50 -80 3.69 0.5129 WVFGRD96 28.0 0 50 -80 3.72 0.5247 WVFGRD96 30.0 175 40 -90 3.75 0.5340 WVFGRD96 32.0 180 40 -85 3.78 0.5462 WVFGRD96 34.0 180 40 -85 3.81 0.5652 WVFGRD96 36.0 185 40 -80 3.84 0.5796 WVFGRD96 38.0 185 40 -80 3.86 0.5979 WVFGRD96 40.0 195 45 -65 3.98 0.6441 WVFGRD96 42.0 195 45 -65 4.00 0.6270 WVFGRD96 44.0 195 45 -65 4.01 0.6000 WVFGRD96 46.0 180 35 -85 3.98 0.5740 WVFGRD96 48.0 175 30 -90 3.97 0.5646 WVFGRD96 50.0 215 35 -55 4.00 0.5608 WVFGRD96 52.0 215 30 -55 3.99 0.5581 WVFGRD96 54.0 215 30 -50 4.00 0.5559 WVFGRD96 56.0 215 30 -50 4.01 0.5525 WVFGRD96 58.0 215 30 -50 4.01 0.5465 WVFGRD96 60.0 215 30 -45 4.02 0.5393 WVFGRD96 62.0 215 30 -45 4.02 0.5302 WVFGRD96 64.0 215 30 -40 4.03 0.5218 WVFGRD96 66.0 215 30 -40 4.03 0.5113 WVFGRD96 68.0 25 60 -65 3.98 0.5073 WVFGRD96 70.0 25 60 -65 3.98 0.5077 WVFGRD96 72.0 25 60 -65 3.99 0.5063 WVFGRD96 74.0 30 60 -60 4.00 0.5041 WVFGRD96 76.0 30 60 -60 4.00 0.5030 WVFGRD96 78.0 30 60 -60 4.01 0.4997
The best solution is
WVFGRD96 40.0 195 45 -65 3.98 0.6441
The mechanism corresponding to the best fit is
![]() |
|

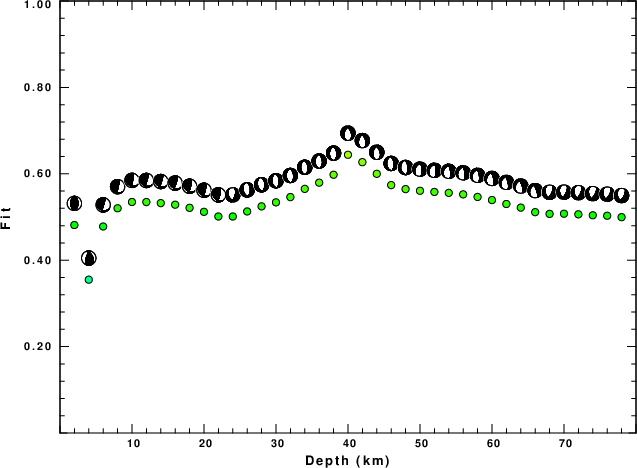

The best fit as a function of depth is given in the following figure:
![]() |
|

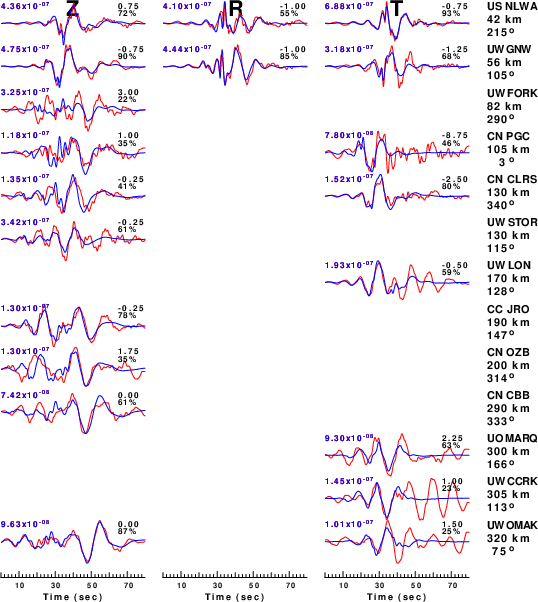

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

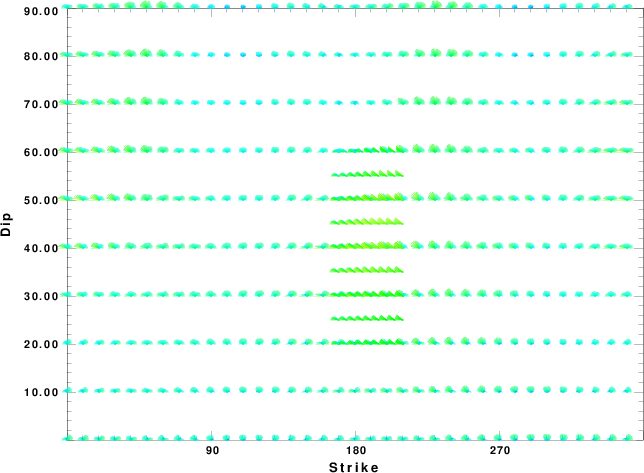

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

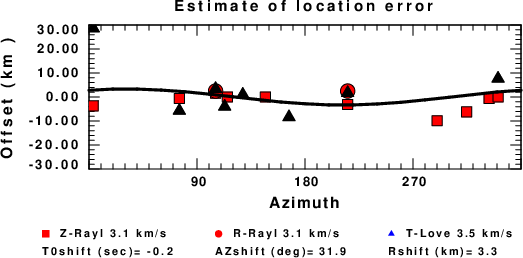

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
