Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is ak018dqqxwcf and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak018dqqxwcf/executive.
2018/10/26 15:54:25 65.585 -166.717 9.0 3.8 Alaska

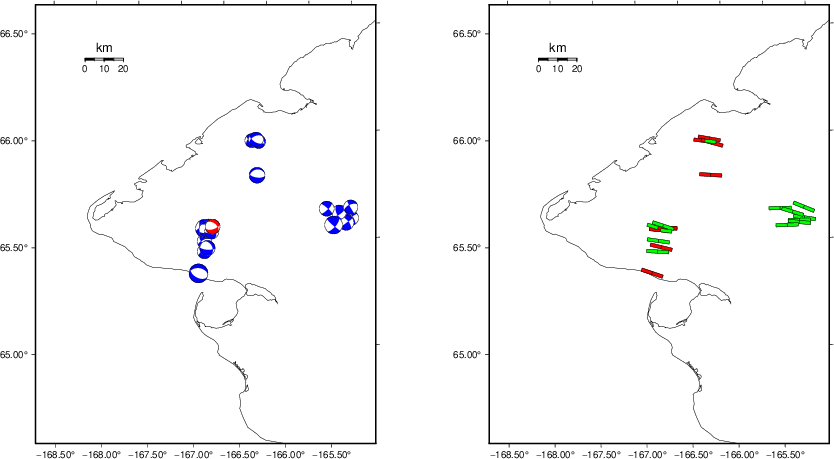

USGS/SLU Moment Tensor Solution
ENS 2018/10/26 15:54:25:0 65.58 -166.72 9.0 3.8 Alaska
Stations used:
AK.ANM AK.RDOG AK.TNA TA.C16K TA.C18K TA.D19K TA.E18K
TA.E19K TA.F15K TA.F17K TA.F19K TA.F20K TA.G18K TA.G19K
TA.H17K TA.H18K TA.H19K TA.I17K TA.I20K TA.J14K TA.J16K
TA.J17K TA.J18K TA.K15K TA.K17K TA.L14K TA.L16K
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Best Fitting Double Couple
Mo = 4.03e+21 dyne-cm
Mw = 3.67
Z = 14 km
Plane Strike Dip Rake
NP1 75 60 -125
NP2 310 45 -45
Principal Axes:
Axis Value Plunge Azimuth
T 4.03e+21 8 190
N 0.00e+00 30 95
P -4.03e+21 59 294
Moment Tensor: (dyne-cm)
Component Value
Mxx 3.65e+21
Mxy 1.05e+21
Mxz -1.29e+21
Myy -8.06e+20
Myz 1.54e+21
Mzz -2.85e+21
##############
######################
############################
-------------#################
-------------------###############
-----------------------#############
---------------------------###########
-----------------------------###########
----------- -----------------#########
------------ P ------------------#######--
------------ --------------------###----
------------------------------------------
---------------------------------###------
-----------------------------#######----
##-----------------------###########----
#######---------###################---
##################################--
#################################-
##############################
############################
###### #############
## T #########
Global CMT Convention Moment Tensor:
R T P
-2.85e+21 -1.29e+21 -1.54e+21
-1.29e+21 3.65e+21 -1.05e+21
-1.54e+21 -1.05e+21 -8.06e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20181026155425/index.html
|
STK = 310
DIP = 45
RAKE = -45
MW = 3.67
HS = 14.0
The NDK file is 20181026155425.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

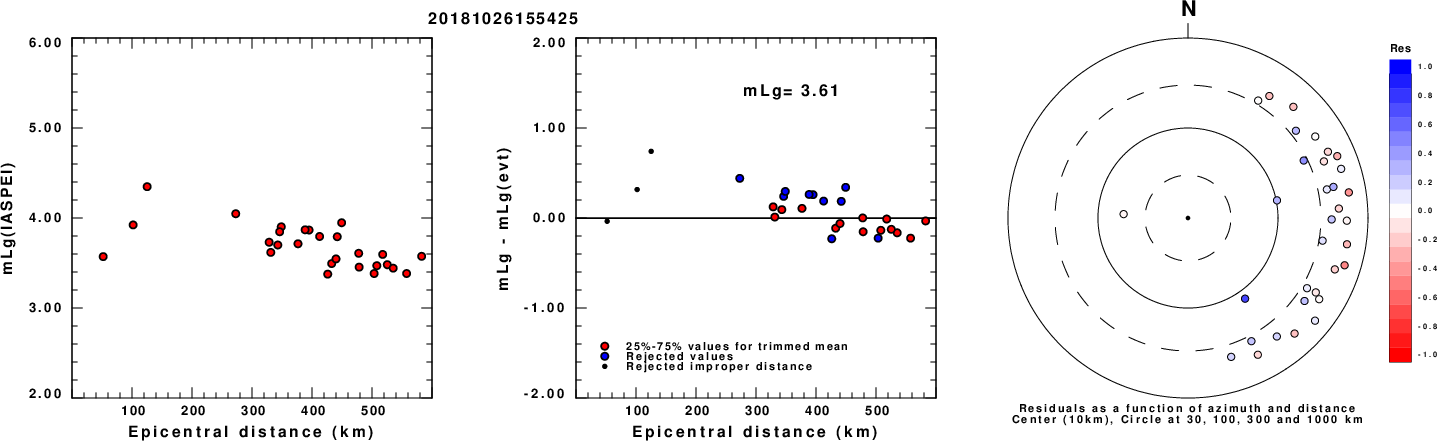

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.

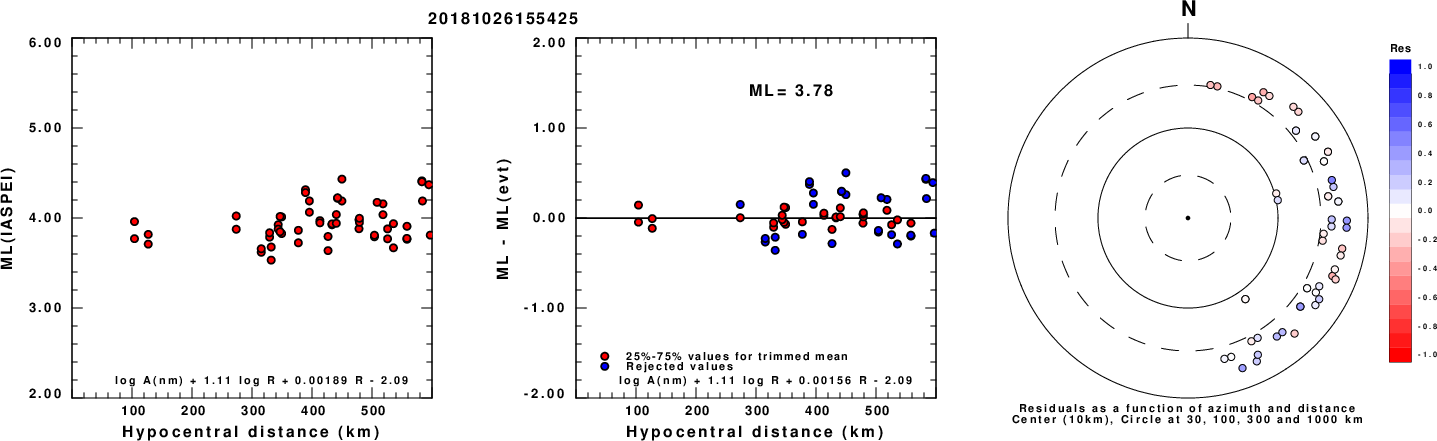

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

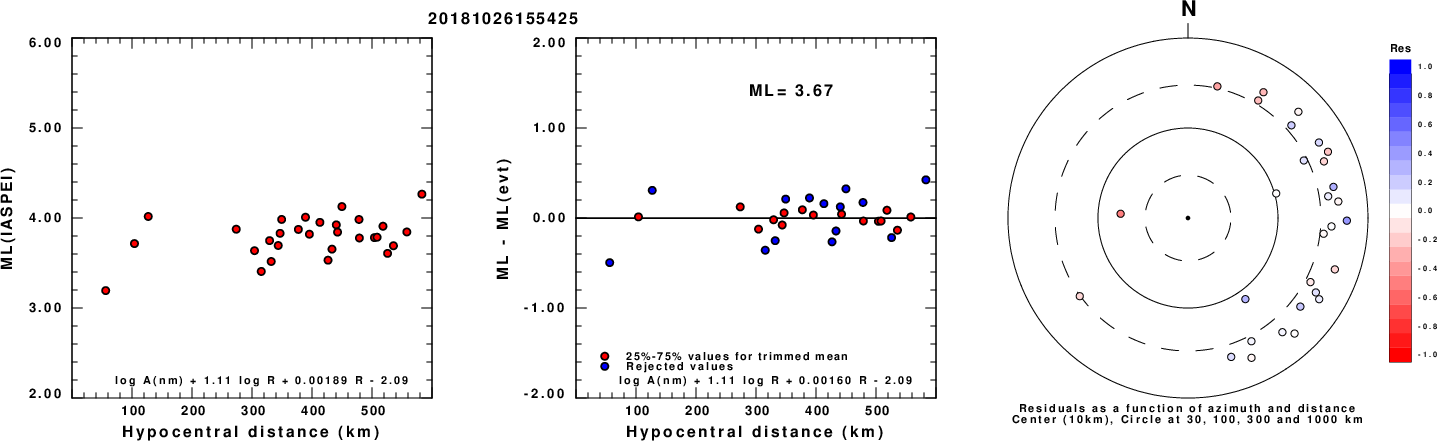

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

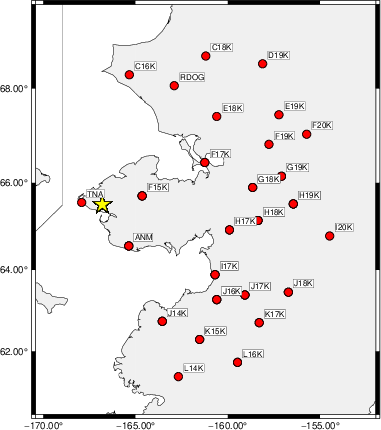

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 115 90 0 3.34 0.3809
WVFGRD96 2.0 115 85 -5 3.44 0.4531
WVFGRD96 3.0 115 90 -10 3.50 0.4499
WVFGRD96 4.0 135 45 -5 3.50 0.4527
WVFGRD96 5.0 310 30 -25 3.57 0.5210
WVFGRD96 6.0 310 35 -25 3.57 0.5758
WVFGRD96 7.0 310 35 -30 3.58 0.6077
WVFGRD96 8.0 305 35 -35 3.64 0.6232
WVFGRD96 9.0 305 35 -40 3.65 0.6412
WVFGRD96 10.0 305 40 -45 3.65 0.6550
WVFGRD96 11.0 305 40 -45 3.66 0.6621
WVFGRD96 12.0 310 45 -40 3.65 0.6659
WVFGRD96 13.0 310 45 -45 3.66 0.6680
WVFGRD96 14.0 310 45 -45 3.67 0.6683
WVFGRD96 15.0 315 45 -35 3.68 0.6667
WVFGRD96 16.0 315 45 -35 3.69 0.6644
WVFGRD96 17.0 315 45 -35 3.70 0.6610
WVFGRD96 18.0 315 45 -35 3.71 0.6564
WVFGRD96 19.0 315 45 -40 3.72 0.6507
WVFGRD96 20.0 315 45 -40 3.73 0.6442
WVFGRD96 21.0 315 45 -40 3.75 0.6382
WVFGRD96 22.0 315 45 -40 3.76 0.6285
WVFGRD96 23.0 315 45 -35 3.76 0.6179
WVFGRD96 24.0 315 45 -35 3.77 0.6055
WVFGRD96 25.0 315 45 -35 3.78 0.5924
WVFGRD96 26.0 315 45 -35 3.79 0.5777
WVFGRD96 27.0 315 45 -35 3.80 0.5620
WVFGRD96 28.0 315 45 -35 3.80 0.5452
WVFGRD96 29.0 330 45 10 3.78 0.5268
The best solution is
WVFGRD96 14.0 310 45 -45 3.67 0.6683
The mechanism corresponding to the best fit is
|
|
|

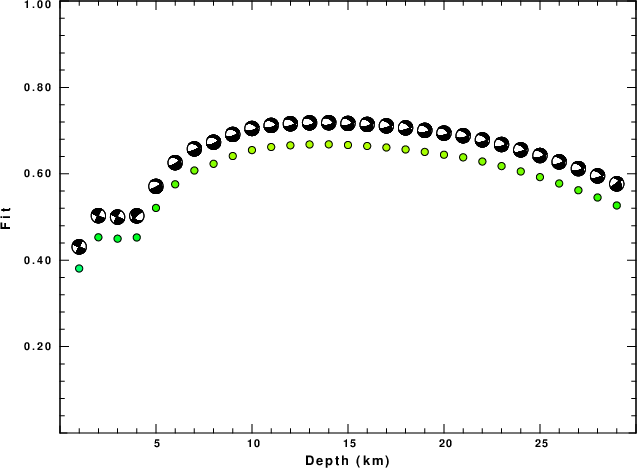

The best fit as a function of depth is given in the following figure:
|
|
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2
|

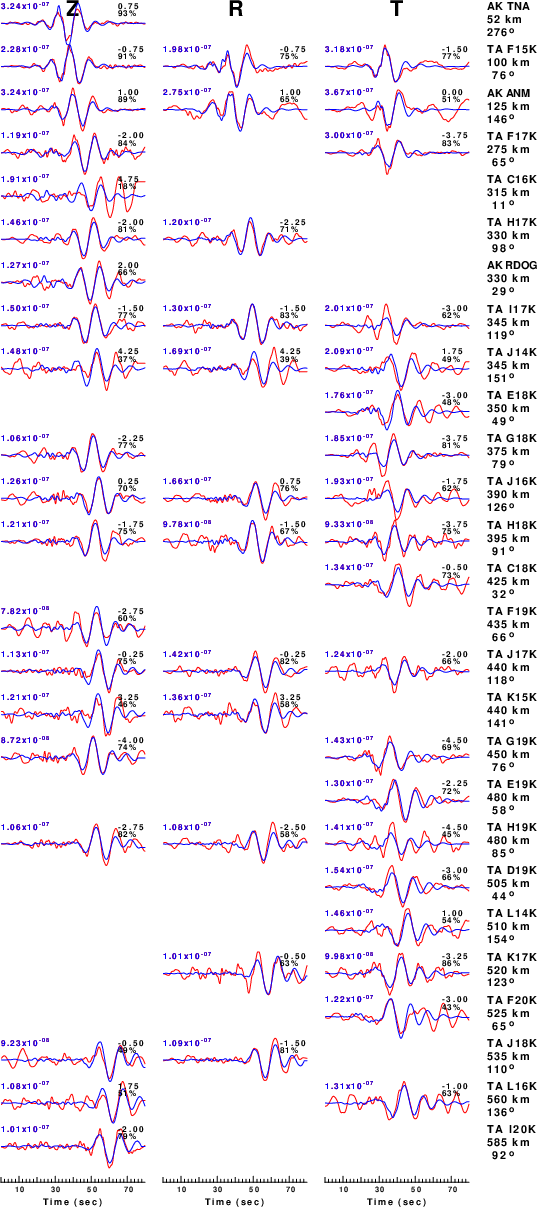

| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

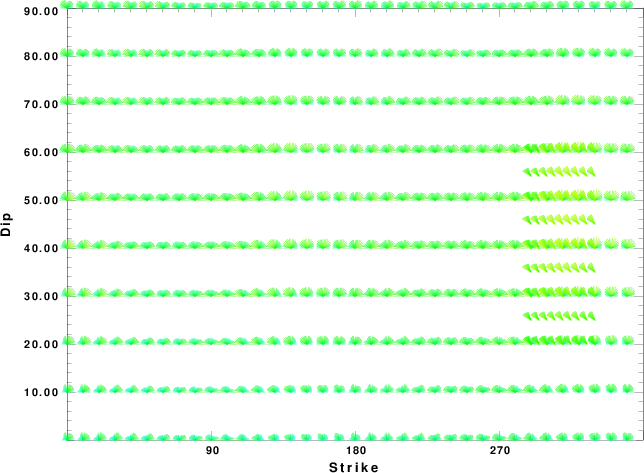

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

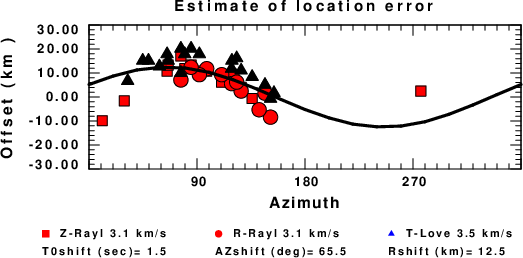

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
