Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is ak018b13lw5m and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak018b13lw5m/executive.
2018/08/28 11:13:21 69.560 -144.896 18.2 4.1 Alaska
USGS/SLU Moment Tensor Solution
ENS 2018/08/28 11:13:21:0 69.56 -144.90 18.2 4.1 Alaska
Stations used:
AK.CCB AK.FYU AK.HDA AK.MDM AK.MLY AK.NEA2 AK.PPD CN.INK
IU.COLA TA.C23K TA.C26K TA.C27K TA.D23K TA.D25K TA.D27M
TA.D28M TA.E23K TA.E24K TA.E27K TA.E28M TA.E29M TA.EPYK
TA.F20K TA.F21K TA.F24K TA.F25K TA.F26K TA.F28M TA.G23K
TA.G24K TA.G27K TA.G29M TA.G30M TA.G31M TA.H21K TA.H24K
TA.H29M TA.I23K TA.I28M TA.I29M TA.J25K TA.J26L TA.POKR
TA.TOLK
Filtering commands used:
cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 8.61e+21 dyne-cm
Mw = 3.89
Z = 13 km
Plane Strike Dip Rake
NP1 10 75 -25
NP2 107 66 -164
Principal Axes:
Axis Value Plunge Azimuth
T 8.61e+21 6 60
N 0.00e+00 61 161
P -8.61e+21 28 327
Moment Tensor: (dyne-cm)
Component Value
Mxx -2.52e+21
Mxy 6.77e+21
Mxz -2.54e+21
Myy 4.34e+21
Myz 2.75e+21
Mzz -1.82e+21
-----------###
---------------#######
-------------------#########
----- ------------##########
------- P ------------##########
-------- ------------########## T
------------------------########## #
-------------------------###############
#------------------------###############
####---------------------#################
######-------------------#################
########-----------------#################
############------------##################
###############--------#################
####################---################-
#####################-----------------
###################-----------------
##################----------------
###############---------------
#############---------------
#########-------------
####----------
Global CMT Convention Moment Tensor:
R T P
-1.82e+21 -2.54e+21 -2.75e+21
-2.54e+21 -2.52e+21 -6.77e+21
-2.75e+21 -6.77e+21 4.34e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20180828111321/index.html
|
STK = 10
DIP = 75
RAKE = -25
MW = 3.89
HS = 13.0
The NDK file is 20180828111321.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

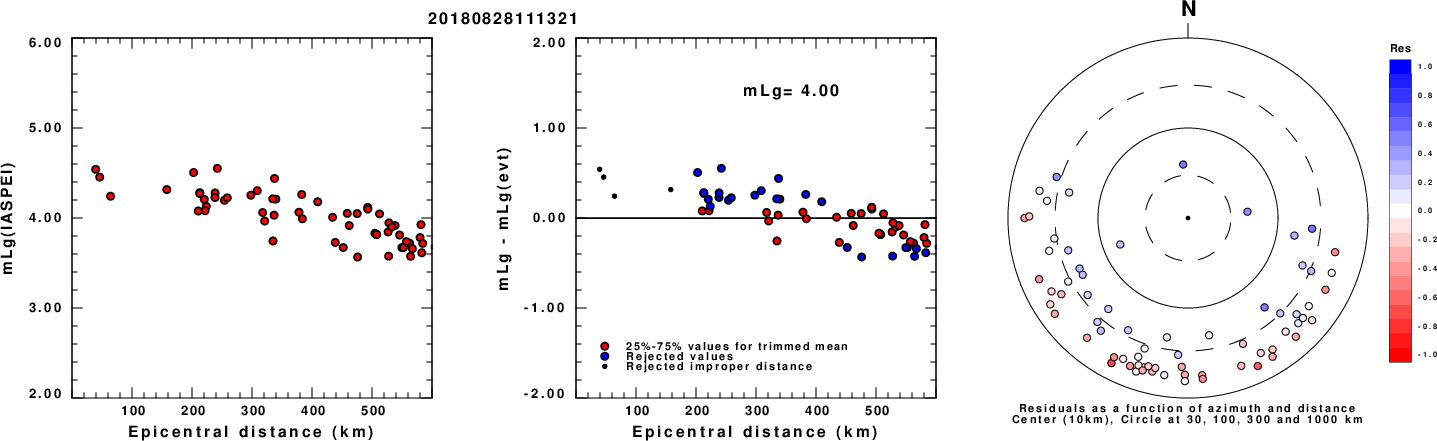

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.

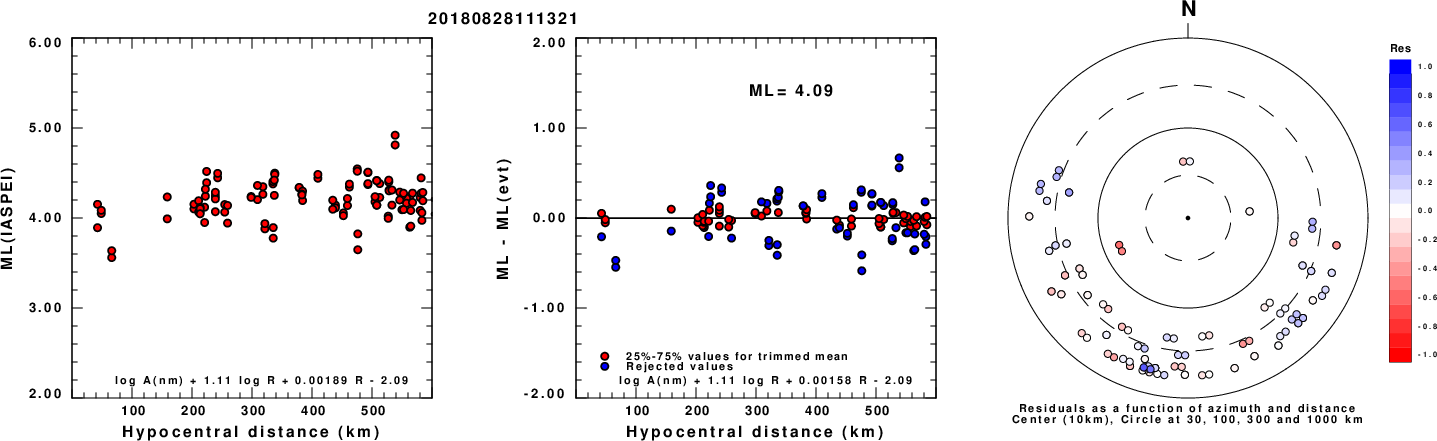

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

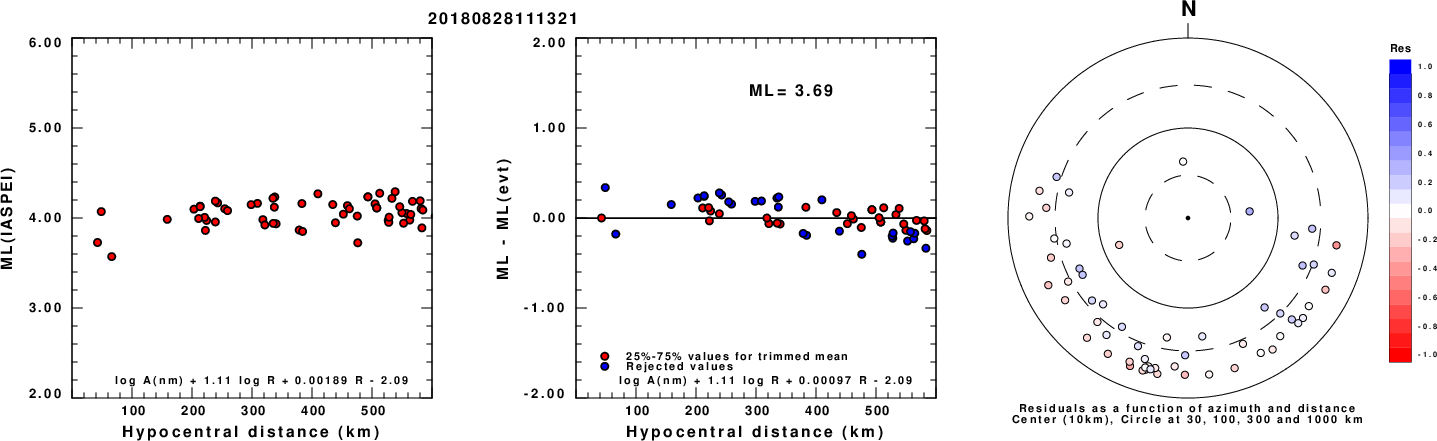

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

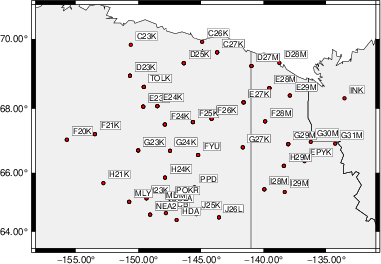

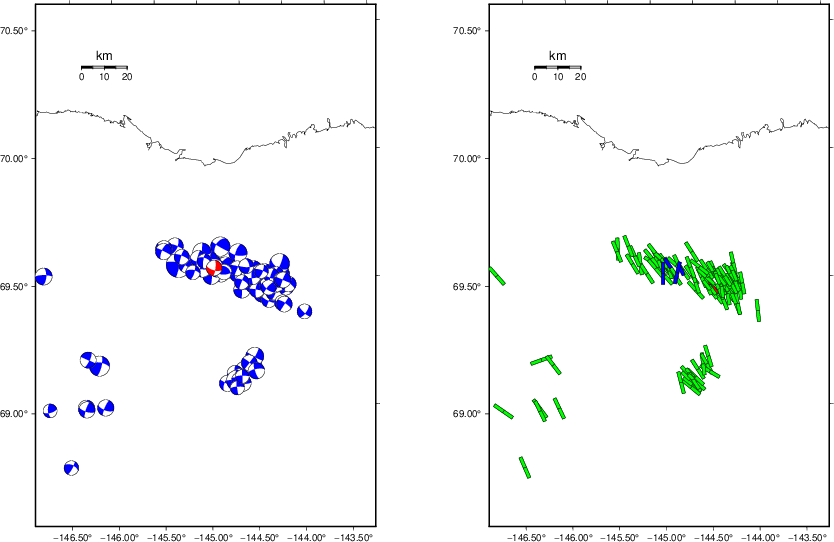

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 25 90 0 3.42 0.2579
WVFGRD96 2.0 195 75 -15 3.53 0.3111
WVFGRD96 3.0 200 65 20 3.61 0.3296
WVFGRD96 4.0 200 60 25 3.65 0.3677
WVFGRD96 5.0 200 65 25 3.68 0.4017
WVFGRD96 6.0 200 65 25 3.71 0.4309
WVFGRD96 7.0 195 70 20 3.73 0.4571
WVFGRD96 8.0 200 65 25 3.80 0.4839
WVFGRD96 9.0 200 65 20 3.82 0.4993
WVFGRD96 10.0 200 70 20 3.84 0.5102
WVFGRD96 11.0 195 75 15 3.86 0.5179
WVFGRD96 12.0 10 75 -25 3.87 0.5256
WVFGRD96 13.0 10 75 -25 3.89 0.5282
WVFGRD96 14.0 10 75 -20 3.90 0.5268
WVFGRD96 15.0 10 75 -20 3.91 0.5233
WVFGRD96 16.0 10 75 -20 3.92 0.5180
WVFGRD96 17.0 10 70 -20 3.93 0.5112
WVFGRD96 18.0 10 70 -20 3.94 0.5037
WVFGRD96 19.0 10 70 -15 3.95 0.4962
WVFGRD96 20.0 10 65 -15 3.96 0.4895
WVFGRD96 21.0 10 60 -15 3.97 0.4828
WVFGRD96 22.0 10 60 -15 3.97 0.4758
WVFGRD96 23.0 10 60 -15 3.98 0.4679
WVFGRD96 24.0 10 60 -15 3.99 0.4583
WVFGRD96 25.0 10 60 -15 3.99 0.4476
WVFGRD96 26.0 15 70 -10 4.00 0.4359
WVFGRD96 27.0 15 70 -5 4.00 0.4294
WVFGRD96 28.0 15 70 -5 4.01 0.4215
WVFGRD96 29.0 15 75 -10 4.02 0.4156
The best solution is
WVFGRD96 13.0 10 75 -25 3.89 0.5282
The mechanism corresponding to the best fit is
|
|
|

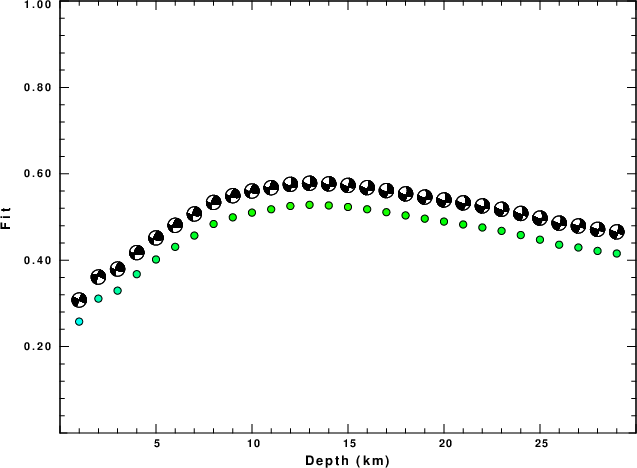

The best fit as a function of depth is given in the following figure:
|
|
|

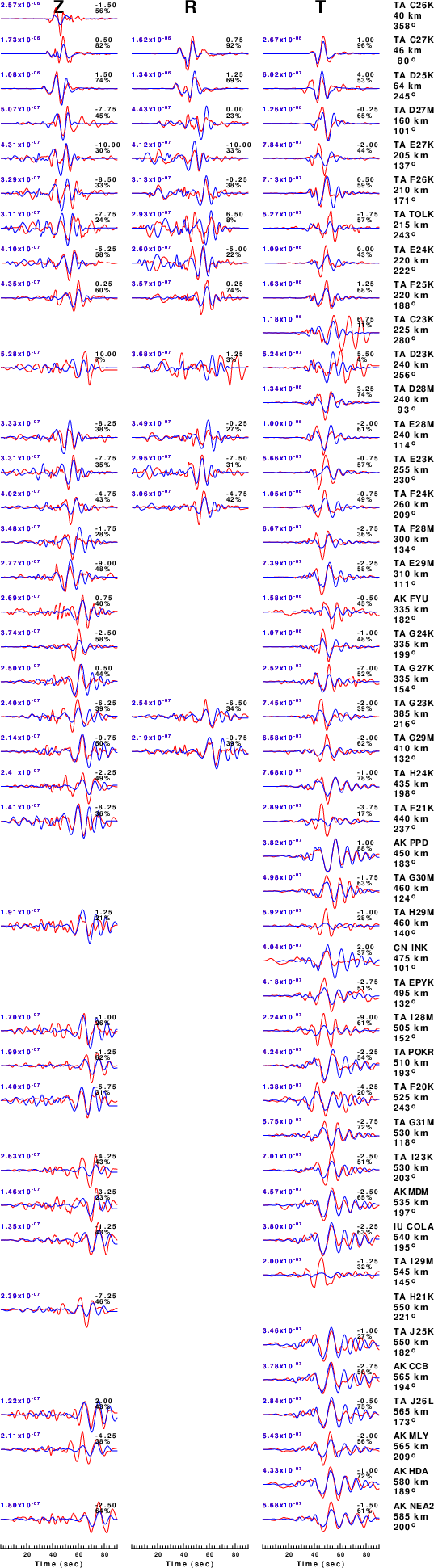

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

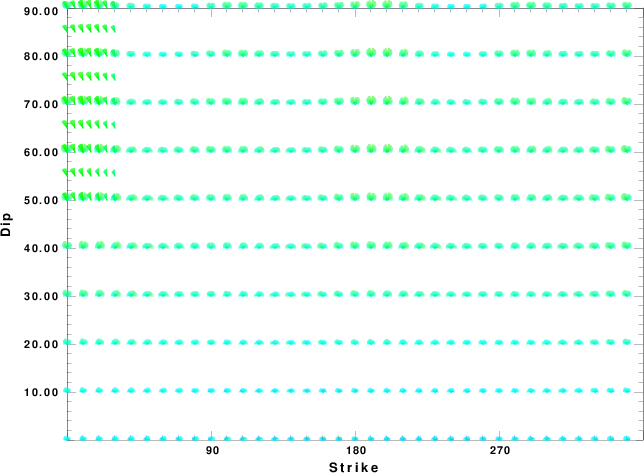

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

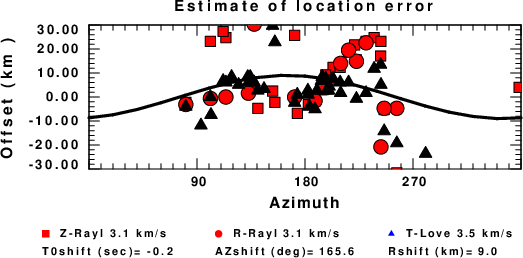

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 CUS Model with Q from simple gamma values ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00 9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00 10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00 20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00 0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
