Location

Location ANSS

The ANSS event ID is ak018afourf2 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak018afourf2/executive.

2018/08/15 16:56:20 62.125 -149.705 49.7 4.2 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2018/08/15 16:56:20:0  62.12 -149.71  49.7 4.2 Alaska

 Stations used:
   AK.CUT AK.DHY AK.DIV AK.GHO AK.GLI AK.KLU AK.KNK AK.MCK
   AK.PAX AK.PWL AK.RC01 AK.RND AK.SAW AK.SCM AK.SKN AK.SWD
   AT.PMR AV.SPU TA.L19K TA.M19K TA.M20K TA.M22K TA.M24K
   TA.O22K

 Filtering commands used:
   cut o DIST/3.4 -30 o DIST/3.4 +60
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 2.43e+22 dyne-cm
  Mw = 4.19
  Z  = 58 km
  Plane   Strike  Dip  Rake
   NP1      225    75   -75
   NP2      359    21   -134
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.43e+22     28     303
    N   0.00e+00     14      41
    P  -2.43e+22     57     155

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.07e+20
       Mxy    -5.86e+21
       Mxz     1.55e+22
       Myy     1.19e+22
       Myz    -1.32e+22
       Mzz    -1.17e+22




                     ###########---
                 ##################----
              ########################----
             ##############################
           ##########################----####
          ####   #################--------####
         ##### T ###############-----------####
        ######   ############---------------####
        ###################-----------------####
       ##################-------------------#####
       #################---------------------####
       ###############-----------------------####
       #############------------------------#####
        ###########-------------------------####
        ##########------------   -----------####
         #######-------------- P ----------####
          #####---------------   ---------####
           ###---------------------------####
             #--------------------------###
              ------------------------####
                 -------------------###
                     -----------###



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.17e+22   1.55e+22   1.32e+22
  1.55e+22  -2.07e+20   5.86e+21
  1.32e+22   5.86e+21   1.19e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20180815165620/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 225
      DIP = 75
     RAKE = -75
       MW = 4.19
       HS = 58.0

The NDK file is 20180815165620.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

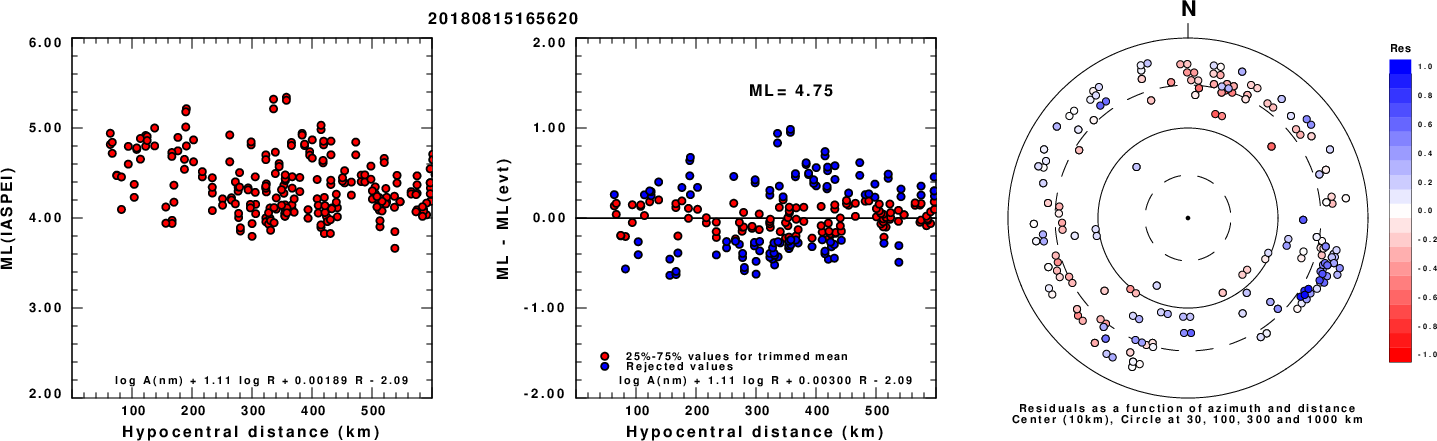

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

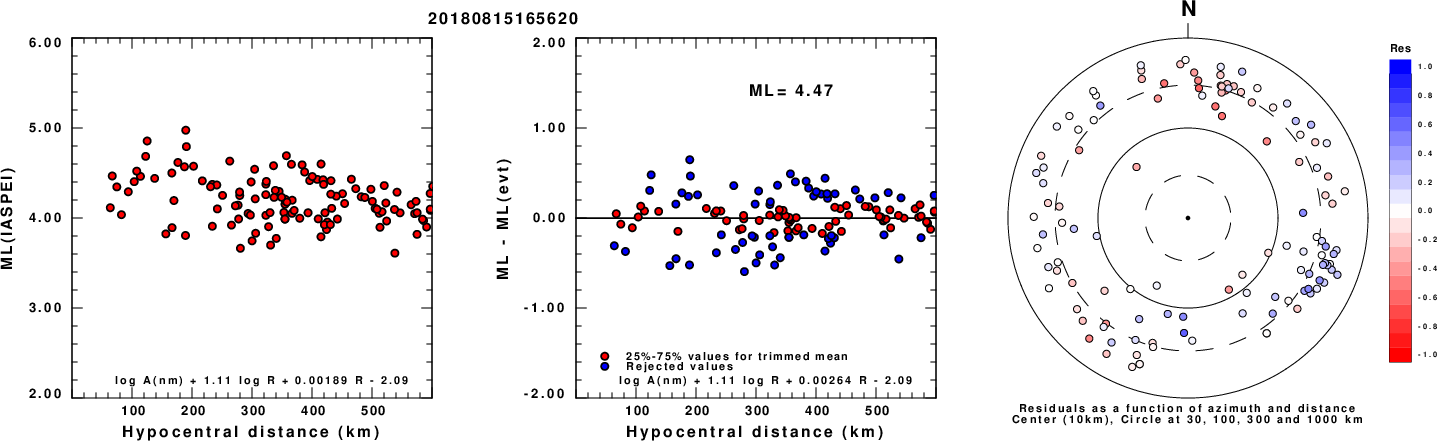

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

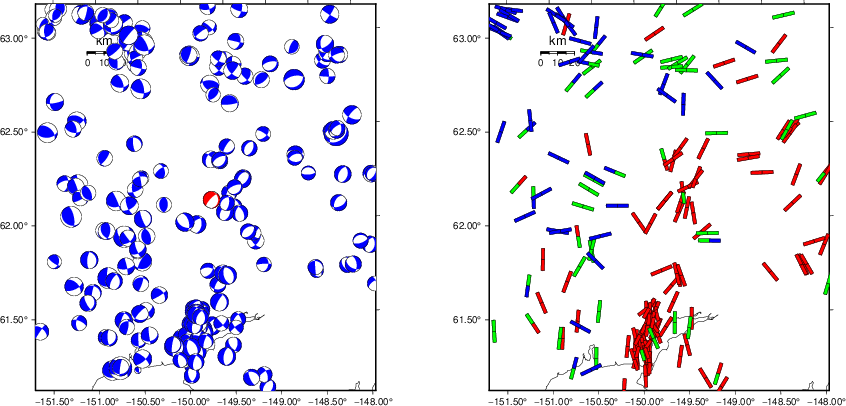

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

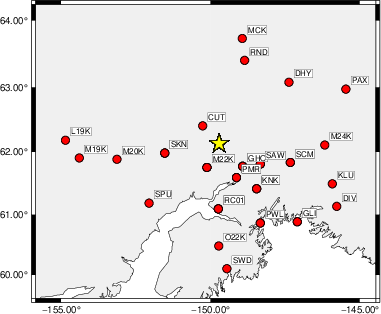

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.4 -30 o DIST/3.4 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   240    50   -85   3.37 0.2030
WVFGRD96    4.0   285    35    10   3.42 0.1973
WVFGRD96    6.0   290    40    20   3.46 0.2404
WVFGRD96    8.0   305    40    30   3.55 0.2646
WVFGRD96   10.0   315    40    45   3.59 0.2838
WVFGRD96   12.0   320    45    50   3.63 0.2940
WVFGRD96   14.0   120    55    20   3.65 0.3002
WVFGRD96   16.0   125    50    25   3.67 0.3092
WVFGRD96   18.0   125    50    25   3.70 0.3163
WVFGRD96   20.0   125    50    25   3.73 0.3196
WVFGRD96   22.0   130    45    30   3.75 0.3166
WVFGRD96   24.0   125    45    25   3.77 0.3091
WVFGRD96   26.0   105    55    10   3.79 0.3085
WVFGRD96   28.0   100    45   -15   3.79 0.3171
WVFGRD96   30.0    95    40   -20   3.81 0.3355
WVFGRD96   32.0    90    35   -30   3.83 0.3589
WVFGRD96   34.0    90    30   -30   3.85 0.3803
WVFGRD96   36.0   215    70   -85   3.88 0.4082
WVFGRD96   38.0   220    70   -80   3.90 0.4398
WVFGRD96   40.0   225    75   -80   4.04 0.4698
WVFGRD96   42.0   225    70   -80   4.06 0.4934
WVFGRD96   44.0   225    70   -80   4.08 0.5127
WVFGRD96   46.0   225    70   -80   4.10 0.5283
WVFGRD96   48.0   225    70   -80   4.12 0.5407
WVFGRD96   50.0   225    70   -75   4.14 0.5511
WVFGRD96   52.0   225    70   -75   4.15 0.5585
WVFGRD96   54.0   225    75   -75   4.16 0.5636
WVFGRD96   56.0   225    75   -75   4.18 0.5683
WVFGRD96   58.0   225    75   -75   4.19 0.5708
WVFGRD96   60.0   225    75   -75   4.20 0.5697
WVFGRD96   62.0   225    75   -75   4.21 0.5671
WVFGRD96   64.0   225    80   -75   4.21 0.5643
WVFGRD96   66.0   225    80   -75   4.22 0.5633
WVFGRD96   68.0   225    80   -75   4.22 0.5636
WVFGRD96   70.0   225    80   -75   4.23 0.5612
WVFGRD96   72.0   225    80   -75   4.23 0.5554
WVFGRD96   74.0   225    85   -75   4.23 0.5546
WVFGRD96   76.0   225    85   -75   4.24 0.5533
WVFGRD96   78.0   225    85   -75   4.24 0.5500
WVFGRD96   80.0    45    90    75   4.23 0.5309
WVFGRD96   82.0   225    85   -75   4.25 0.5393
WVFGRD96   84.0    45    90    75   4.24 0.5255
WVFGRD96   86.0    45    90    75   4.25 0.5207
WVFGRD96   88.0    40    90    75   4.25 0.5147
WVFGRD96   90.0   220    85   -75   4.25 0.5111
WVFGRD96   92.0   220    85   -75   4.25 0.5029
WVFGRD96   94.0    45    90    70   4.26 0.4924
WVFGRD96   96.0    45    90    70   4.26 0.4847
WVFGRD96   98.0   225    90   -70   4.26 0.4765

The best solution is

WVFGRD96   58.0   225    75   -75   4.19 0.5708

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

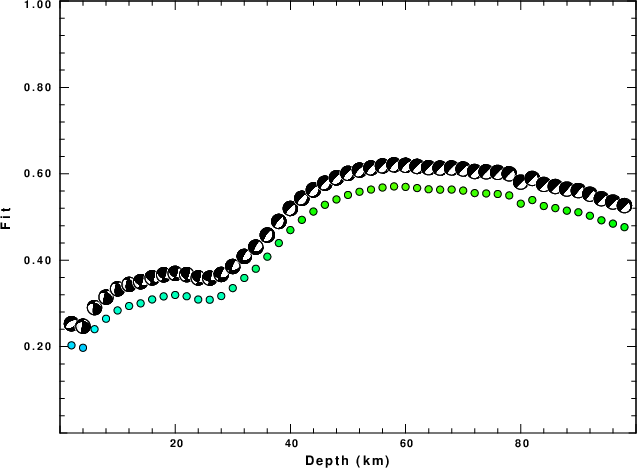

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

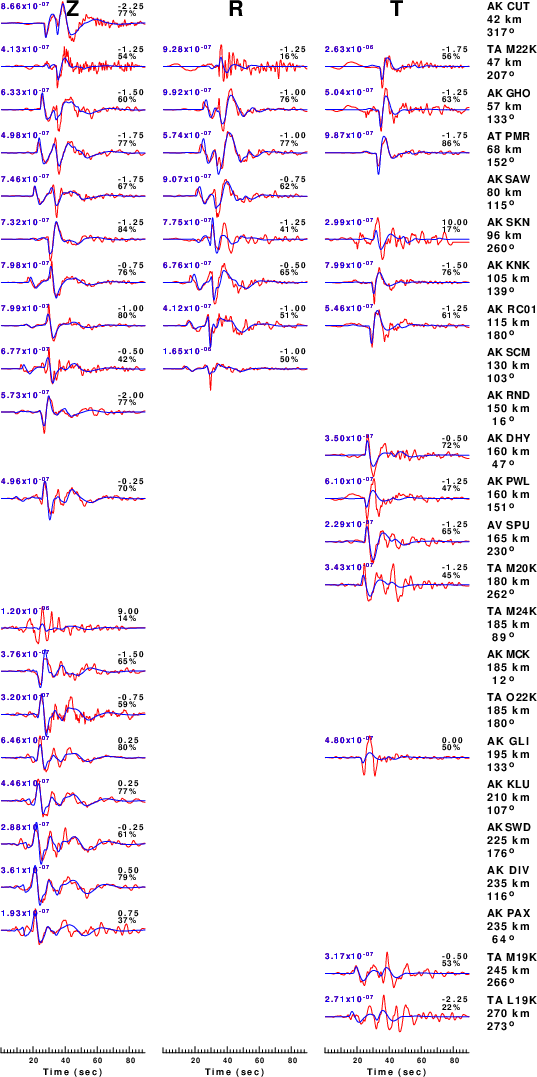

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.4 -30 o DIST/3.4 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

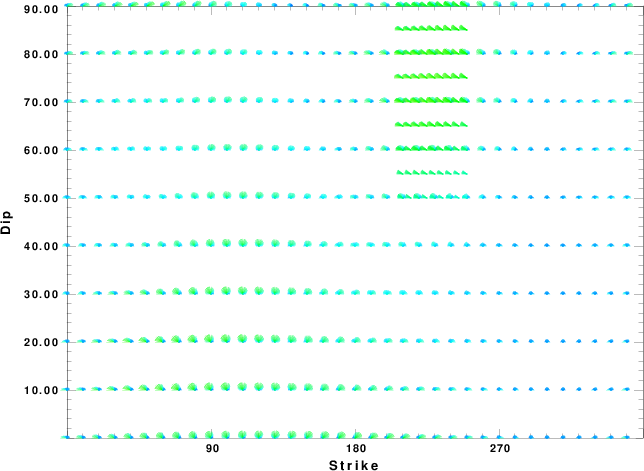

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

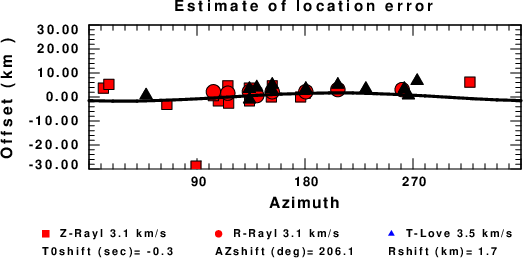

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
Last Changed Fri Apr 26 01:23:08 AM CDT 2024
