The ANSS event ID is ak018acfg224 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak018acfg224/executive.

2018/08/13 19:36:09 69.547 -144.459 17.3 4.9 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2018/08/13 19:36:09:0  69.55 -144.46  17.3 4.9 Alaska

 Stations used:
   AK.CCB AK.COLD AK.HDA AK.MDM AK.MLY AK.NEA2 AK.PPD AK.WRH
   CN.INK IU.COLA TA.B22K TA.C26K TA.D24K TA.D25K TA.D27M
   TA.D28M TA.E23K TA.E24K TA.E27K TA.E28M TA.E29M TA.EPYK
   TA.F20K TA.F24K TA.F25K TA.F26K TA.F28M TA.F31M TA.G23K
   TA.G24K TA.G27K TA.G29M TA.G30M TA.H21K TA.H23K TA.H24K
   TA.I23K TA.I28M TA.J25K TA.J26L TA.POKR TA.TOLK US.EGAK

 Filtering commands used:
   cut o DIST/3.3 -20 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.04e+23 dyne-cm
  Mw = 4.61
  Z  = 14 km
  Plane   Strike  Dip  Rake
   NP1       99    76   154
   NP2      195    65    15
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.04e+23     28      55
    N   0.00e+00     61     253
    P  -1.04e+23      8     149

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -4.67e+22
       Mxy     8.36e+22
       Mxz     3.64e+22
       Myy     2.62e+22
       Myz     2.76e+22
       Mzz     2.05e+22




                     -----------###
                 -------------#########
              ---------------#############
             --------------################
           ---------------###################
          ---------------##############   ####
         ---------------############### T #####
        ---------------################   ######
        ---------------#########################
       #--------------###########################
       ####-----------###########################
       #########-----############################
       ##############---#########################
        #############---------------------------
        ############----------------------------
         ###########---------------------------
          ##########--------------------------
           #########-------------------------
             ########----------------   ---
              #######---------------- P --
                 #####---------------
                     #-------------



 Global CMT Convention Moment Tensor:
      R          T          P
  2.05e+22   3.64e+22  -2.76e+22
  3.64e+22  -4.67e+22  -8.36e+22
 -2.76e+22  -8.36e+22   2.62e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20180813193609/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 195
      DIP = 65
     RAKE = 15
       MW = 4.61
       HS = 14.0

The NDK file is 20180813193609.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

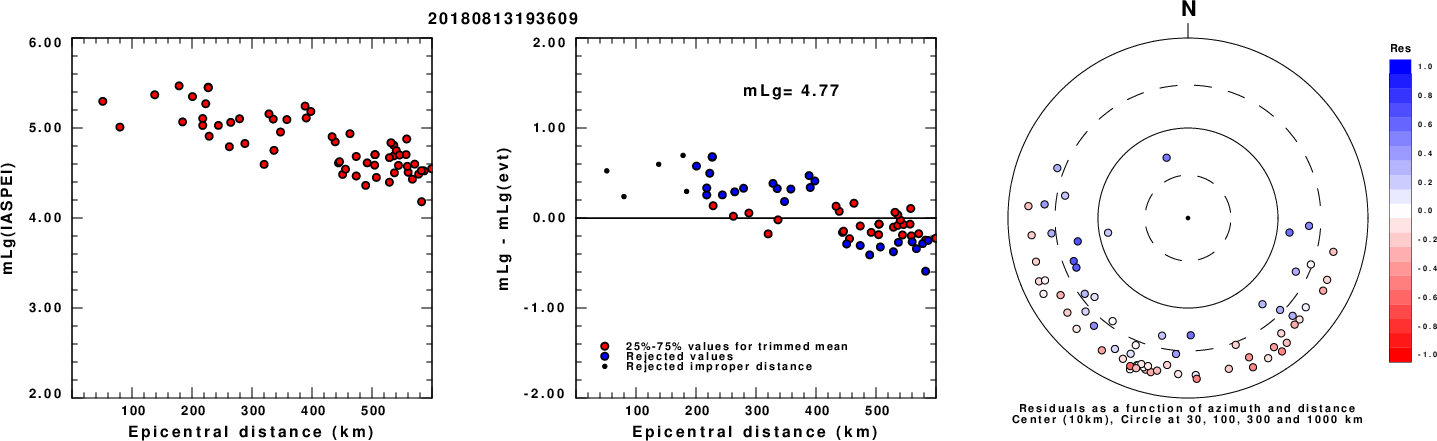

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

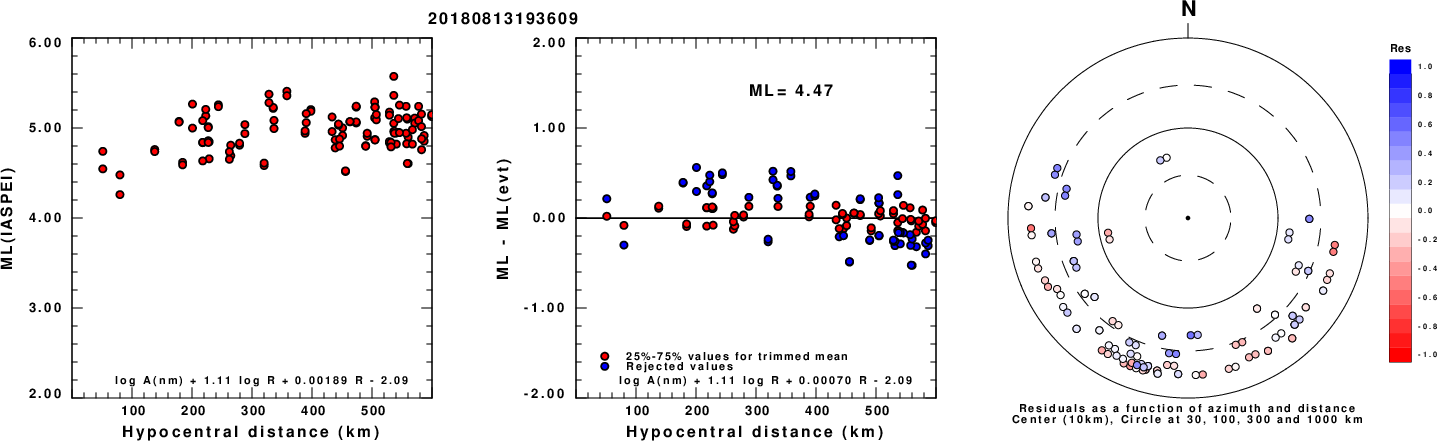

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

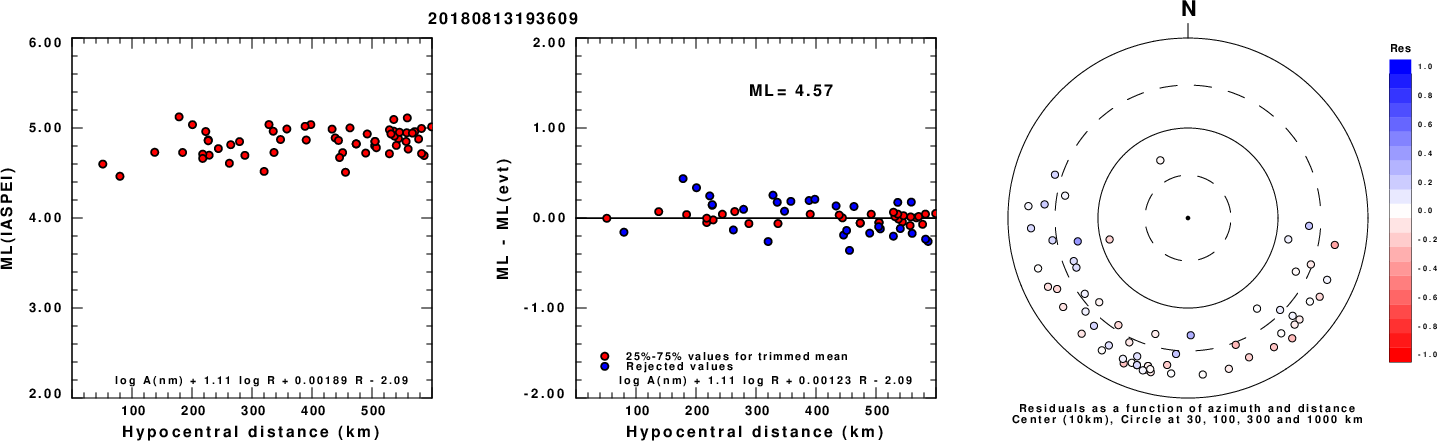

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

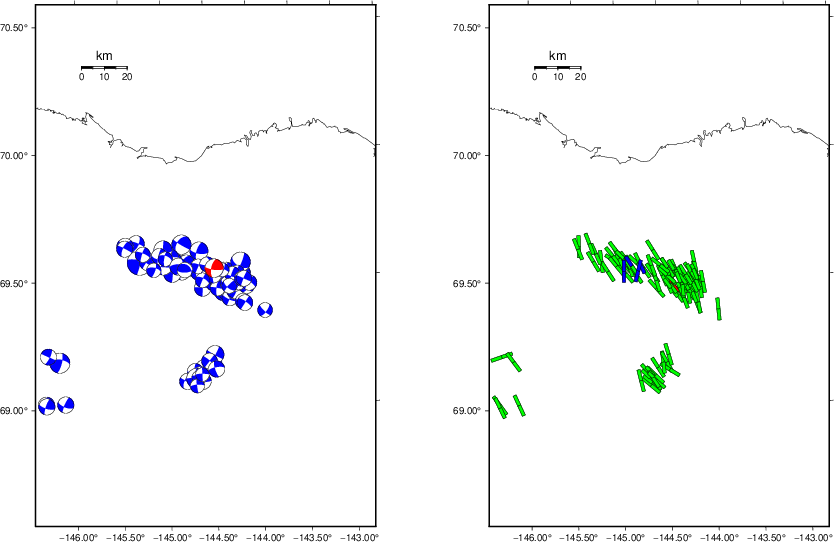

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

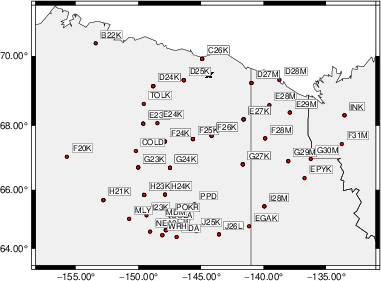

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   105    90    10   4.10 0.2582
WVFGRD96    2.0   245    55   -80   4.33 0.3242
WVFGRD96    3.0   100    60   -15   4.30 0.3454
WVFGRD96    4.0   100    60   -10   4.33 0.3653
WVFGRD96    5.0   285    75    50   4.38 0.3941
WVFGRD96    6.0    25    50    40   4.42 0.4320
WVFGRD96    7.0   195    55    20   4.43 0.4735
WVFGRD96    8.0    35    45    60   4.54 0.5211
WVFGRD96    9.0   200    55    30   4.53 0.5523
WVFGRD96   10.0   195    60    20   4.54 0.5772
WVFGRD96   11.0   195    60    20   4.56 0.5948
WVFGRD96   12.0   195    65    15   4.58 0.6060
WVFGRD96   13.0   195    65    15   4.60 0.6116
WVFGRD96   14.0   195    65    15   4.61 0.6127
WVFGRD96   15.0   190    70    10   4.62 0.6108
WVFGRD96   16.0   190    70     5   4.63 0.6072
WVFGRD96   17.0   190    70     5   4.65 0.6015
WVFGRD96   18.0   190    70     5   4.65 0.5937
WVFGRD96   19.0   190    70     5   4.66 0.5847
WVFGRD96   20.0   190    70     5   4.67 0.5746
WVFGRD96   21.0   190    70     5   4.68 0.5638
WVFGRD96   22.0   190    65     5   4.69 0.5546
WVFGRD96   23.0   190    65     5   4.69 0.5445
WVFGRD96   24.0   190    65     5   4.70 0.5338
WVFGRD96   25.0   190    65     5   4.71 0.5217
WVFGRD96   26.0   190    65     5   4.71 0.5103
WVFGRD96   27.0   190    60     5   4.72 0.4986
WVFGRD96   28.0   190    60     5   4.72 0.4874
WVFGRD96   29.0   185    55    -5   4.72 0.4773

The best solution is

WVFGRD96   14.0   195    65    15   4.61 0.6127

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

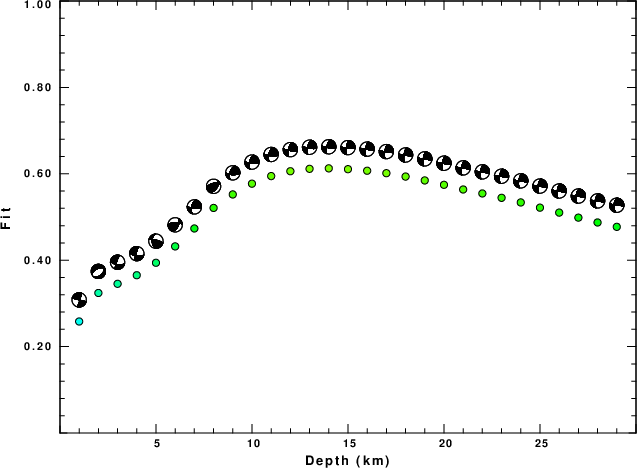

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

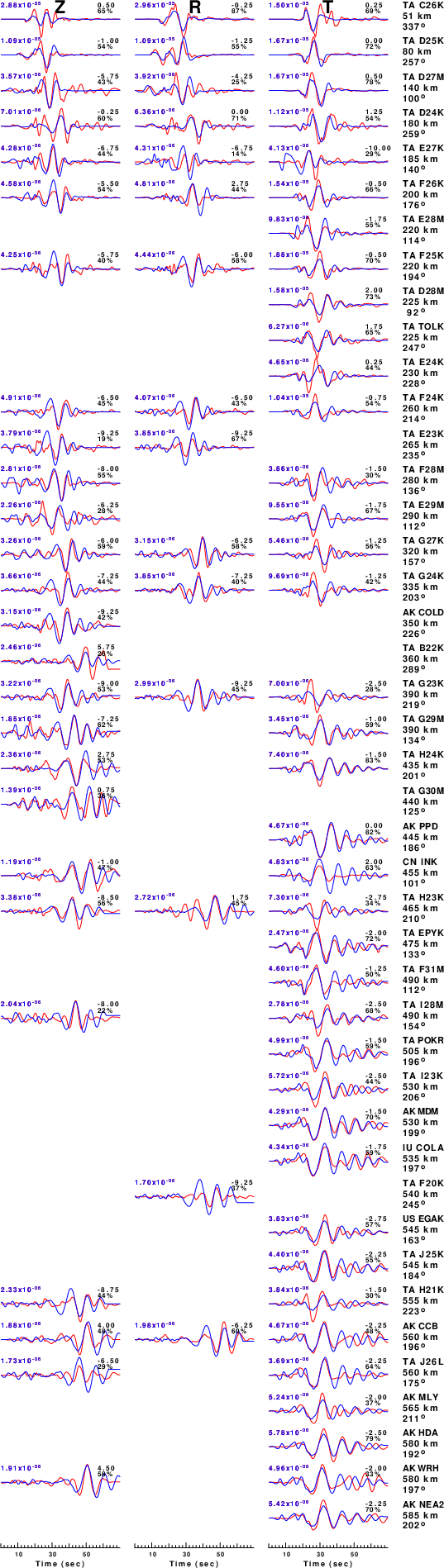

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

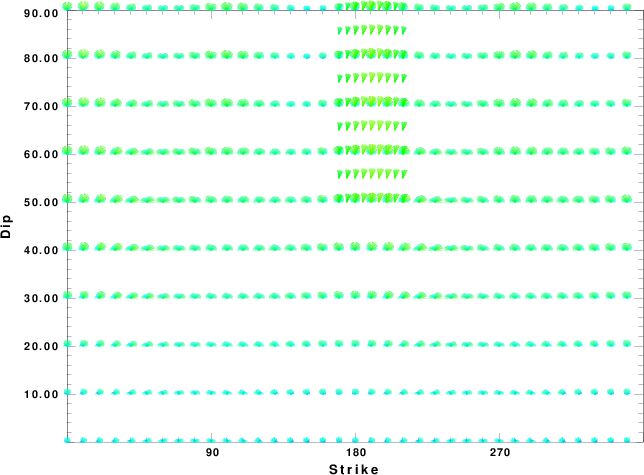

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

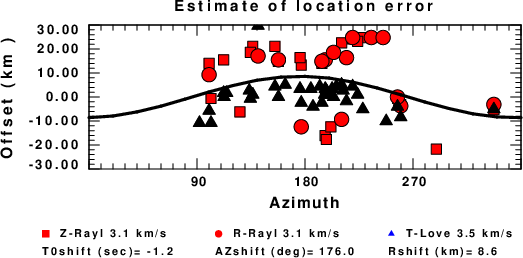

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
