The ANSS event ID is ak01881pylyd and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak01881pylyd/executive.

2018/06/24 18:33:00 60.033 -151.434 75.4 4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2018/06/24 18:33:00:0  60.03 -151.43  75.4 4.0 Alaska

 Stations used:
   AK.BRLK AK.CAPN AK.CNP AK.GHO AK.GLI AK.KLU AK.KNK AK.RC01
   AT.PMR TA.K20K TA.M20K TA.N17K TA.N19K TA.N25K TA.O18K
   TA.O22K TA.P19K TA.Q19K TA.Q20K

 Filtering commands used:
   cut o DIST/3.5 -30 o DIST/3.5 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.91e+22 dyne-cm
  Mw = 4.12
  Z  = 84 km
  Plane   Strike  Dip  Rake
   NP1      260    65    45
   NP2      147    50   147
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.91e+22     49     121
    N   0.00e+00     40     283
    P  -1.91e+22      9      20

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.42e+22
       Mxy    -9.71e+21
       Mxz    -7.54e+21
       Myy     3.87e+21
       Myz     7.11e+21
       Mzz     1.03e+22




                     ------------
                 ---------------- P ---
              ##-----------------   ------
             ##----------------------------
           ####------------------------------
          #####-------------------------------
         ######--------------------------------
        #######-------------#############-------
        #######-----###########################-
       ##########################################
       ######---#################################
       ###-------################################
       #----------#################   ###########
        -----------################ T ##########
        ------------###############   ##########
         -------------#########################
          -------------#######################
           --------------####################
             ---------------###############
              -----------------###########
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  1.03e+22  -7.54e+21  -7.11e+21
 -7.54e+21  -1.42e+22   9.71e+21
 -7.11e+21   9.71e+21   3.87e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20180624183300/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 260
      DIP = 65
     RAKE = 45
       MW = 4.12
       HS = 84.0

The NDK file is 20180624183300.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

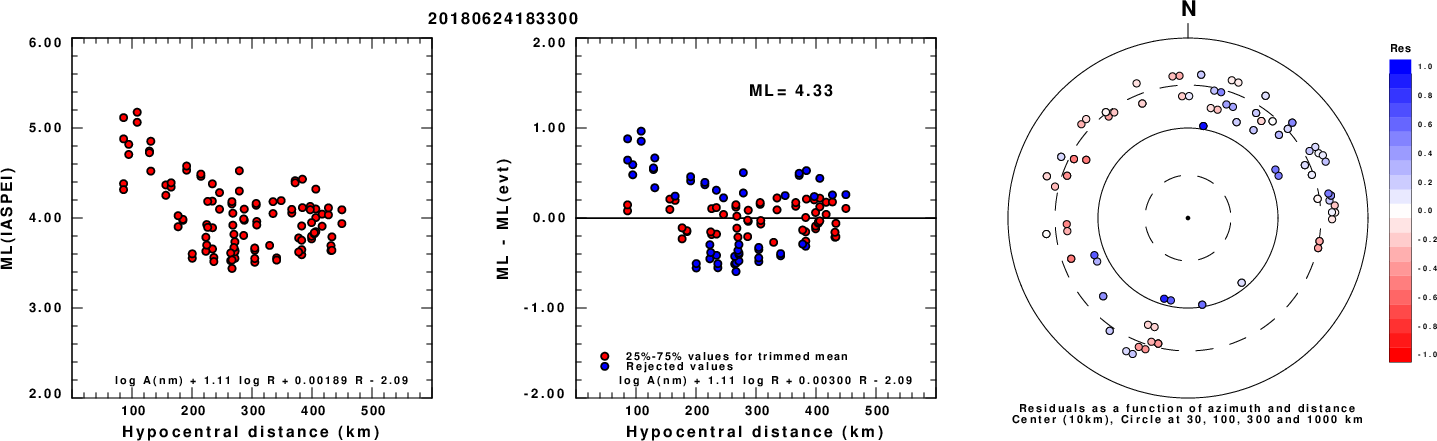

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

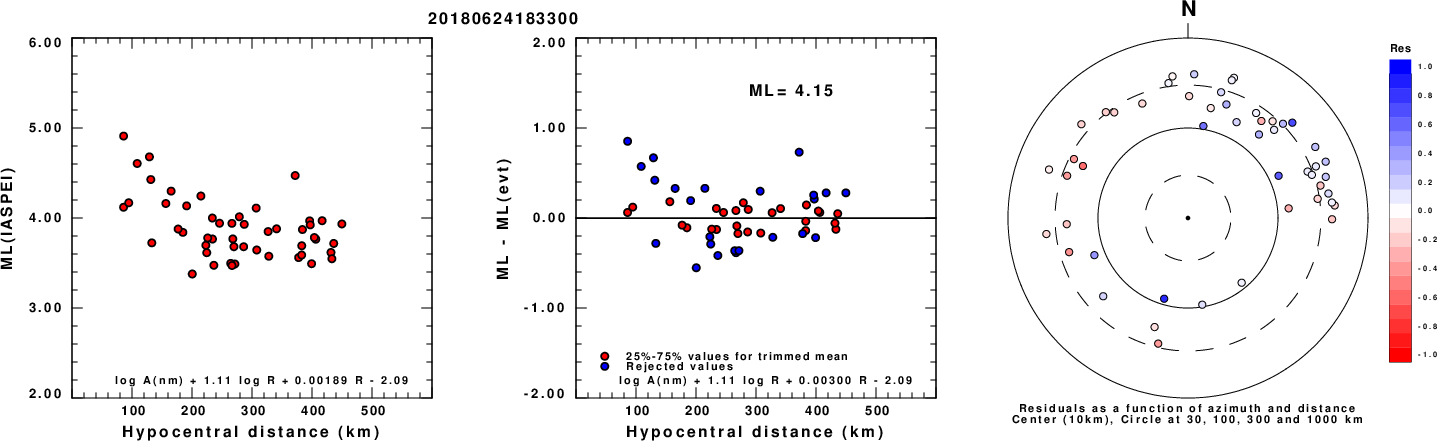

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.5 -30 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   110    45   -90   3.29 0.2305
WVFGRD96    4.0   150    25   -35   3.35 0.2218
WVFGRD96    6.0   160    30   -25   3.38 0.2574
WVFGRD96    8.0   345    20   -25   3.47 0.2820
WVFGRD96   10.0    85    90   -50   3.52 0.3012
WVFGRD96   12.0    85    90   -50   3.55 0.3140
WVFGRD96   14.0    80    85   -45   3.59 0.3156
WVFGRD96   16.0    80    85   -45   3.61 0.3072
WVFGRD96   18.0    80    80   -45   3.64 0.2908
WVFGRD96   20.0   270    60    55   3.62 0.2771
WVFGRD96   22.0    75    45    40   3.64 0.2716
WVFGRD96   24.0   235    70   -40   3.65 0.2675
WVFGRD96   26.0    75    75    40   3.66 0.2779
WVFGRD96   28.0    70    75    40   3.68 0.2916
WVFGRD96   30.0    70    75    40   3.69 0.3003
WVFGRD96   32.0    80    65    50   3.72 0.3065
WVFGRD96   34.0    80    65    50   3.73 0.3072
WVFGRD96   36.0   245    50    25   3.80 0.3055
WVFGRD96   38.0   235    70   -15   3.80 0.3141
WVFGRD96   40.0   255    40    45   3.92 0.3551
WVFGRD96   42.0   255    40    45   3.95 0.3561
WVFGRD96   44.0   250    45    40   3.96 0.3494
WVFGRD96   46.0   255    45    45   3.98 0.3407
WVFGRD96   48.0   255    50    45   3.99 0.3352
WVFGRD96   50.0   265    55    60   4.00 0.3448
WVFGRD96   52.0   270    55    65   4.01 0.3722
WVFGRD96   54.0   265    60    60   4.03 0.3984
WVFGRD96   56.0   265    60    60   4.04 0.4253
WVFGRD96   58.0   265    60    55   4.06 0.4501
WVFGRD96   60.0   265    60    55   4.07 0.4721
WVFGRD96   62.0   265    60    55   4.08 0.4908
WVFGRD96   64.0   265    60    55   4.08 0.5051
WVFGRD96   66.0   265    60    55   4.09 0.5164
WVFGRD96   68.0   260    65    50   4.10 0.5262
WVFGRD96   70.0   260    65    50   4.10 0.5348
WVFGRD96   72.0   260    65    50   4.10 0.5401
WVFGRD96   74.0   260    65    50   4.11 0.5450
WVFGRD96   76.0   260    65    50   4.11 0.5479
WVFGRD96   78.0   260    65    45   4.12 0.5494
WVFGRD96   80.0   260    65    45   4.12 0.5508
WVFGRD96   82.0   260    65    45   4.12 0.5512
WVFGRD96   84.0   260    65    45   4.12 0.5517
WVFGRD96   86.0   260    65    45   4.13 0.5509
WVFGRD96   88.0   260    65    45   4.13 0.5485
WVFGRD96   90.0   260    65    40   4.14 0.5454
WVFGRD96   92.0   260    65    40   4.14 0.5422
WVFGRD96   94.0   260    65    40   4.14 0.5370
WVFGRD96   96.0   260    65    40   4.14 0.5345
WVFGRD96   98.0   260    65    40   4.14 0.5310
WVFGRD96  100.0   255    65    35   4.15 0.5271
WVFGRD96  102.0   255    65    35   4.15 0.5227
WVFGRD96  104.0   255    65    35   4.15 0.5178
WVFGRD96  106.0   255    65    35   4.15 0.5152
WVFGRD96  108.0   255    65    35   4.16 0.5105

The best solution is

WVFGRD96   84.0   260    65    45   4.12 0.5517

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

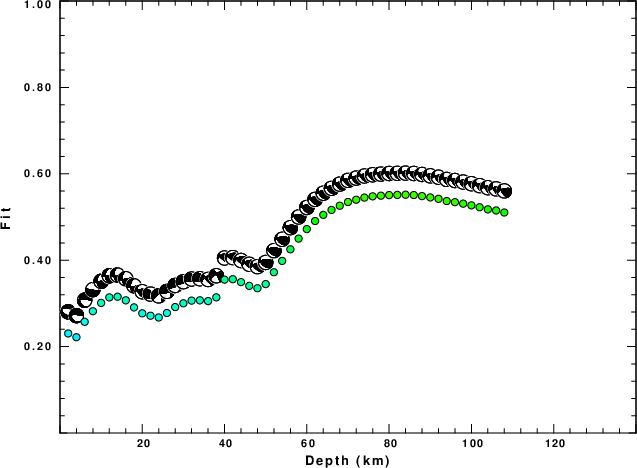

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

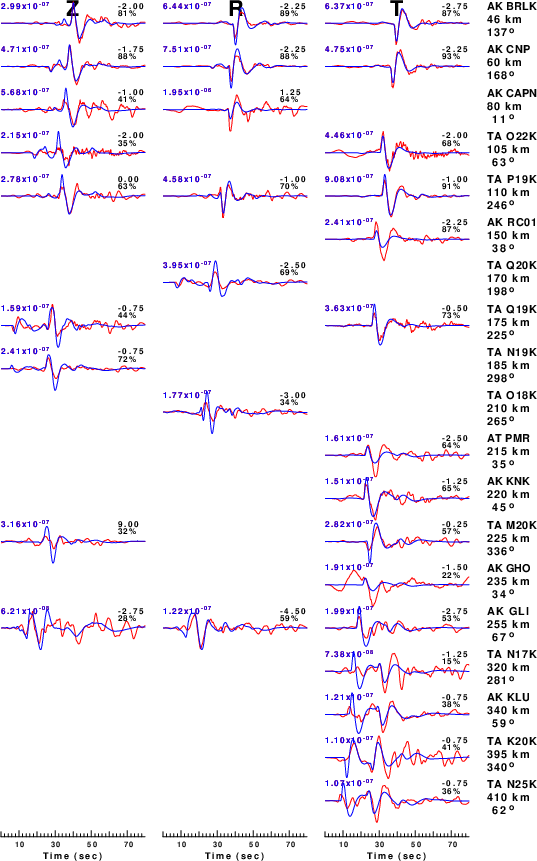

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.5 -30 o DIST/3.5 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

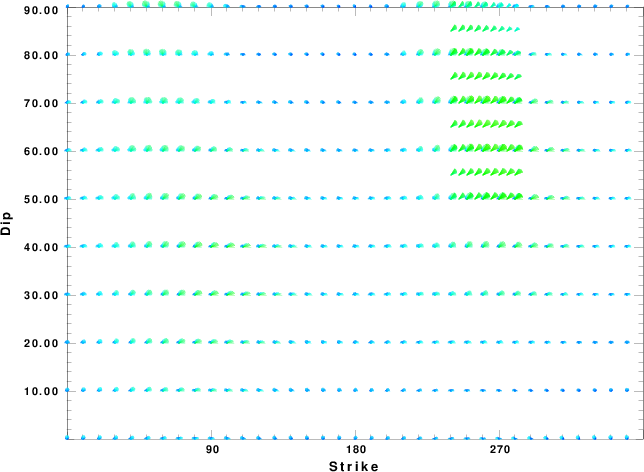

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

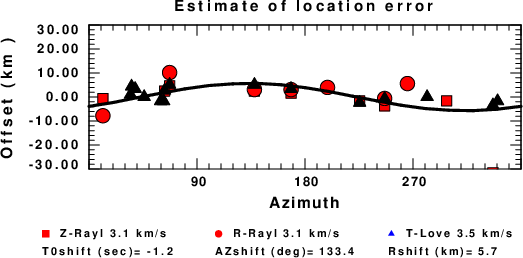

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Thu Apr 25 11:45:13 PM CDT 2024
