The ANSS event ID is us1000eif9 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us1000eif9/executive.

2018/06/04 11:23:57 36.697 -97.684 6.8 3.2 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2018/06/04 11:23:57:0  36.70  -97.68   6.8 3.2 Oklahoma

 Stations used:
   GM.IWM01 GS.KAN08 GS.KAN14 GS.KAN17 GS.OK029 GS.OK031
   GS.OK035 GS.OK038 GS.OK048 N4.R32B O2.ARCA O2.CRES O2.PERK
   O2.PERY OK.CROK OK.U32A TA.TUL3

 Filtering commands used:
   cut o DIST/3.3 -20 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 7.94e+20 dyne-cm
  Mw = 3.20
  Z  = 3 km
  Plane   Strike  Dip  Rake
   NP1      242    80   -170
   NP2      150    80   -10
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.94e+20      0      16
    N   0.00e+00     76     285
    P  -7.94e+20     14     106

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     6.79e+20
       Mxy     4.06e+20
       Mxz     5.28e+19
       Myy    -6.32e+20
       Myz    -1.80e+20
       Mzz    -4.72e+19




                     ########### T
                 -##############   ####
              ----########################
             ------########################
           --------##########################
          ----------##########################
         ------------####################------
        --------------##############------------
        ---------------#########----------------
       -----------------####---------------------
       -----------------#------------------------
       --------------#####-----------------------
       -----------#########-----------------   --
        --------############---------------- P -
        -----################---------------   -
         --###################-----------------
          ######################--------------
           ######################------------
             #####################---------
              ######################------
                 #####################-
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -4.72e+19   5.28e+19   1.80e+20
  5.28e+19   6.79e+20  -4.06e+20
  1.80e+20  -4.06e+20  -6.32e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20180604112357/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 150
      DIP = 80
     RAKE = -10
       MW = 3.20
       HS = 3.0

The NDK file is 20180604112357.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

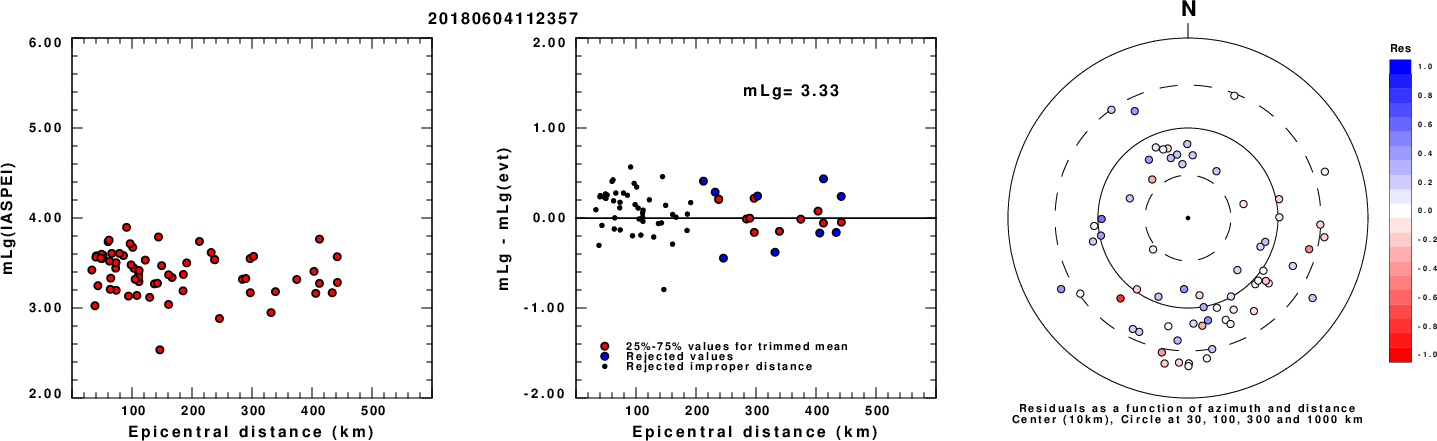

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

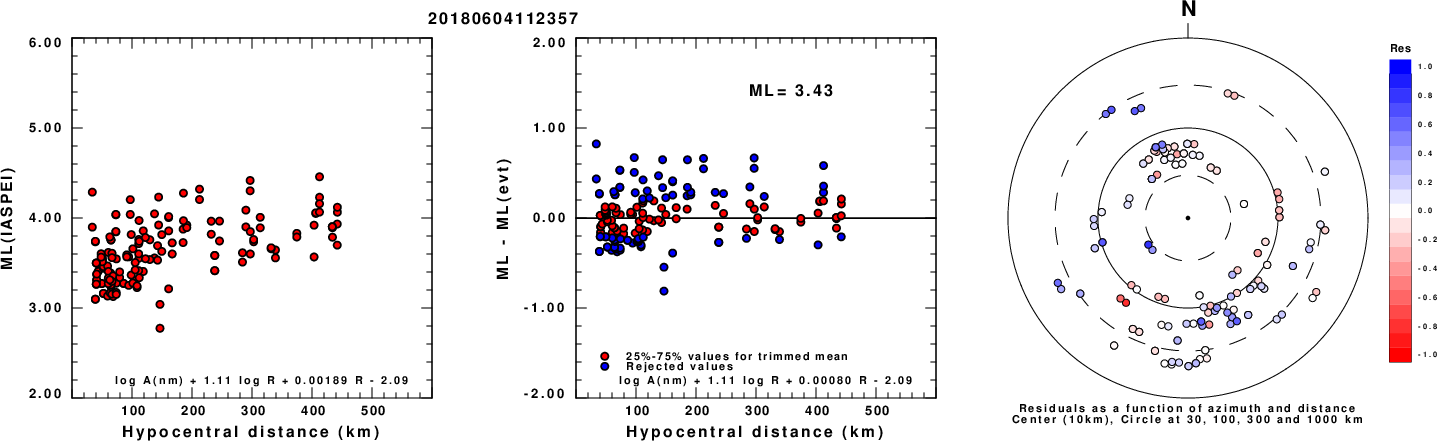

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

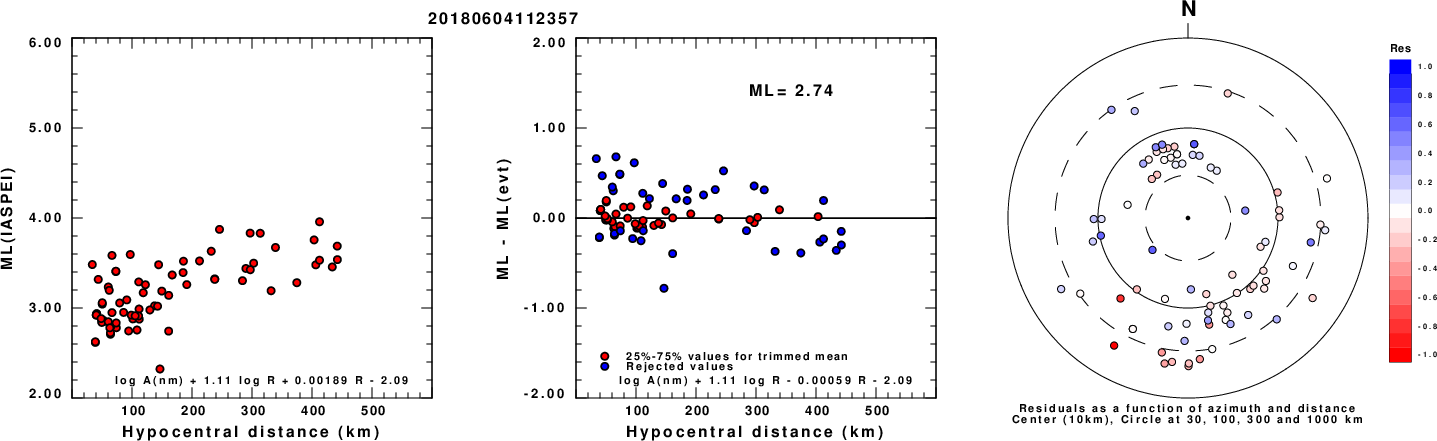

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

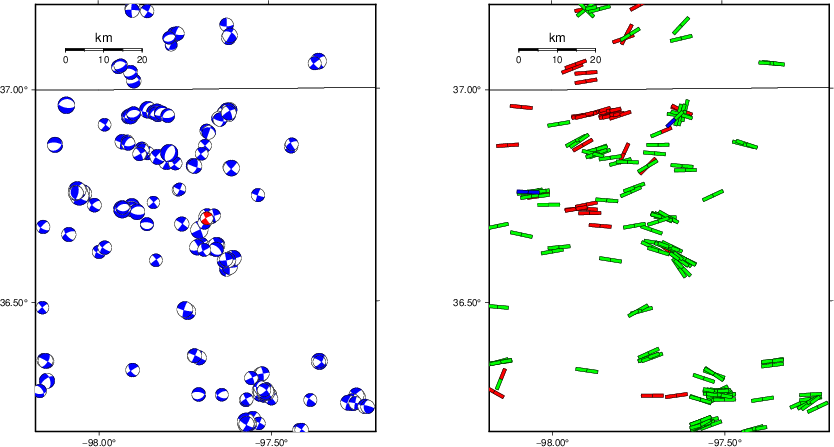

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

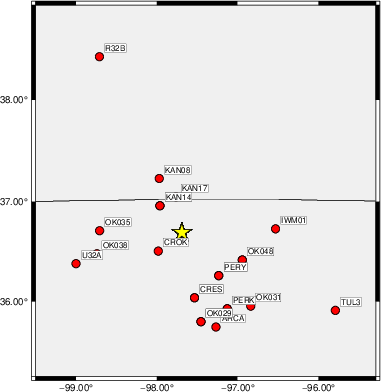

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -20 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   330    85   -20   3.03 0.5180
WVFGRD96    2.0   150    75   -10   3.16 0.5880
WVFGRD96    3.0   150    80   -10   3.20 0.6002
WVFGRD96    4.0   150    85    20   3.25 0.5971
WVFGRD96    5.0   150    85    25   3.29 0.5867
WVFGRD96    6.0   150    85    20   3.31 0.5710
WVFGRD96    7.0   150    85    25   3.35 0.5544
WVFGRD96    8.0   150    85    30   3.39 0.5317
WVFGRD96    9.0   150    85    30   3.42 0.5134
WVFGRD96   10.0   150    85    20   3.42 0.4968
WVFGRD96   11.0   150    85    15   3.43 0.4823
WVFGRD96   12.0   150    85    15   3.44 0.4678
WVFGRD96   13.0   325    85    -5   3.45 0.4552
WVFGRD96   14.0   325    85     5   3.46 0.4425
WVFGRD96   15.0   325    90    25   3.49 0.4319
WVFGRD96   16.0   325    90    25   3.50 0.4226
WVFGRD96   17.0   325    90    30   3.51 0.4159
WVFGRD96   18.0   145    90   -30   3.52 0.4101
WVFGRD96   19.0   145    90   -35   3.54 0.4052
WVFGRD96   20.0   325    90    35   3.55 0.4012
WVFGRD96   21.0   325    90    40   3.57 0.3999
WVFGRD96   22.0   325    90    40   3.57 0.3981
WVFGRD96   23.0   325    90    45   3.59 0.3960
WVFGRD96   24.0   325    85    40   3.59 0.3943
WVFGRD96   25.0   325    85    45   3.61 0.3921
WVFGRD96   26.0   325    85    45   3.61 0.3900
WVFGRD96   27.0   325    85    45   3.62 0.3873
WVFGRD96   28.0   145    90   -40   3.60 0.3832
WVFGRD96   29.0   145    90   -40   3.60 0.3812

The best solution is

WVFGRD96    3.0   150    80   -10   3.20 0.6002

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

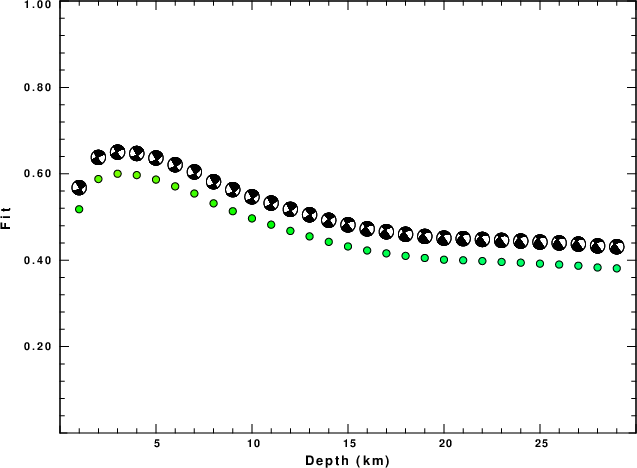

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

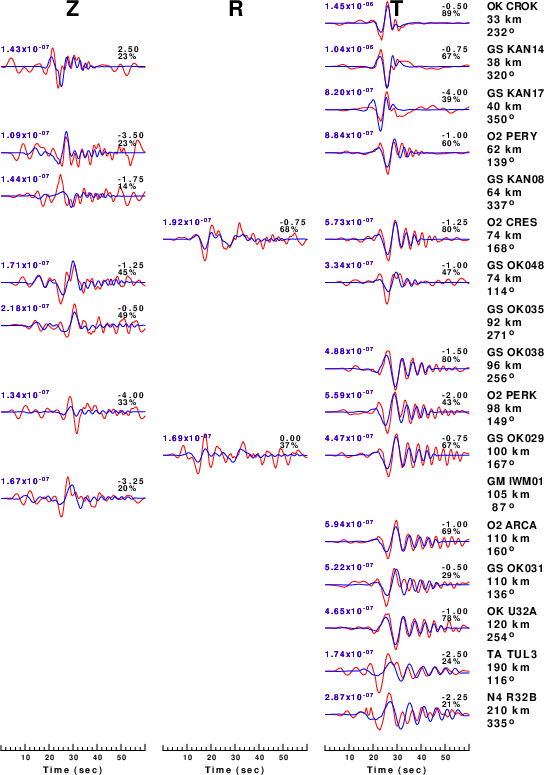

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -20 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

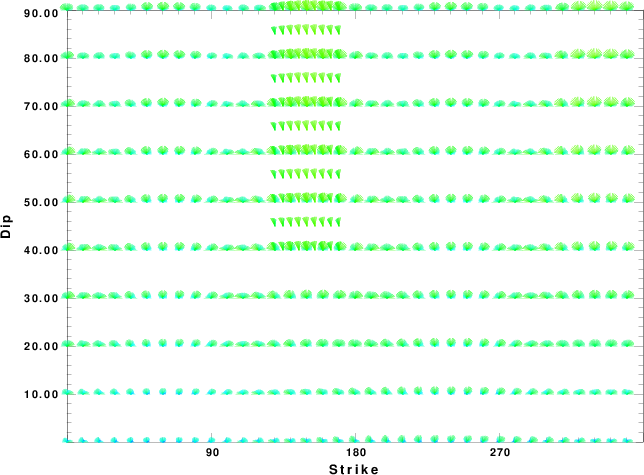

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

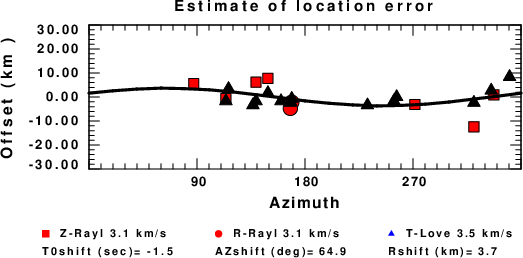

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
