The ANSS event ID is ak0186uo9bc4 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0186uo9bc4/executive.
2018/05/29 15:42:46 62.754 -149.085 13.6 4 Alaska
USGS/SLU Moment Tensor Solution ENS 2018/05/29 15:42:46:0 62.75 -149.09 13.6 4.0 Alaska Stations used: AK.BARN AK.BMR AK.BPAW AK.BWN AK.CAST AK.CCB AK.CUT AK.DHY AK.DIV AK.EYAK AK.FID AK.FIRE AK.GHO AK.GLB AK.GLI AK.HDA AK.HIN AK.HMT AK.ISLE AK.KAI AK.KLU AK.KNK AK.MCAR AK.MCK AK.MDM AK.MLY AK.NEA2 AK.PAX AK.PPD AK.PPLA AK.RAG AK.RC01 AK.RND AK.SAW AK.SCM AK.SCRK AK.SKN AK.SSN AK.SSP AK.SWD AK.TRF AK.VRDI AK.WAX AK.WRH AT.MENT AT.PMR IM.IL31 IU.COLA TA.G23K TA.H21K TA.H23K TA.H24K TA.I20K TA.I21K TA.I23K TA.I26K TA.J18K TA.J19K TA.J20K TA.J25K TA.J26L TA.K20K TA.K27K TA.L18K TA.L19K TA.L26K TA.L27K TA.M19K TA.M20K TA.M22K TA.M24K TA.M26K TA.M27K TA.N18K TA.N19K TA.N25K TA.O19K TA.O22K TA.POKR Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.45e+22 dyne-cm Mw = 4.04 Z = 18 km Plane Strike Dip Rake NP1 58 62 101 NP2 215 30 70 Principal Axes: Axis Value Plunge Azimuth T 1.45e+22 71 352 N 0.00e+00 10 232 P -1.45e+22 16 140 Moment Tensor: (dyne-cm) Component Value Mxx -6.19e+21 Mxy 6.37e+21 Mxz 7.40e+21 Myy -5.57e+21 Myz -3.11e+21 Mzz 1.18e+22 -------------- ------------#########- ----------################## --------###################### --------########################## -------############################- -------#############################-- -------########### ###############---- ------############ T ##############----- ------############# #############------- ------###########################--------- -----##########################----------- -----########################------------- ----######################-------------- ----###################----------------- ---################------------------- ---##########----------------------- ##------------------------- ---- #------------------------ P -- #----------------------- - ---------------------- -------------- Global CMT Convention Moment Tensor: R T P 1.18e+22 7.40e+21 3.11e+21 7.40e+21 -6.19e+21 -6.37e+21 3.11e+21 -6.37e+21 -5.57e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20180529154246/index.html |
STK = 215 DIP = 30 RAKE = 70 MW = 4.04 HS = 18.0

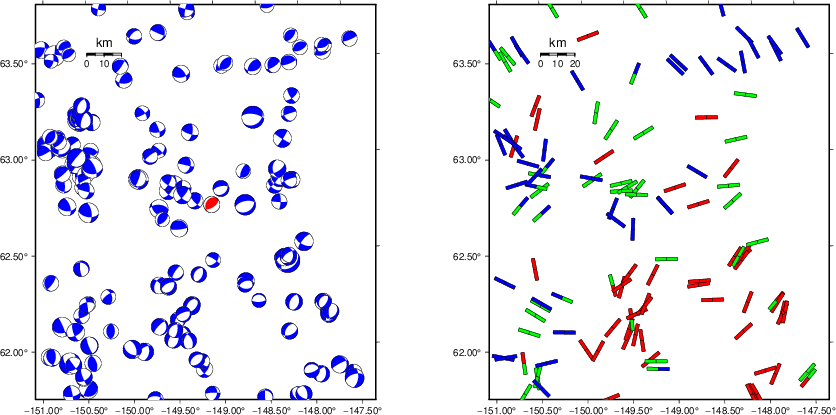

The NDK file is 20180529154246.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

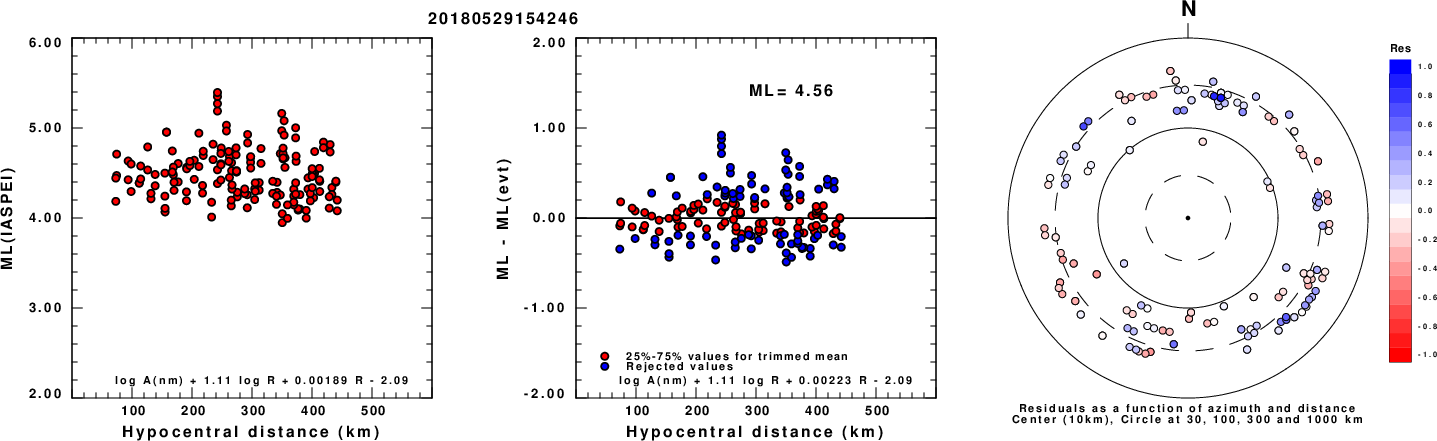

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

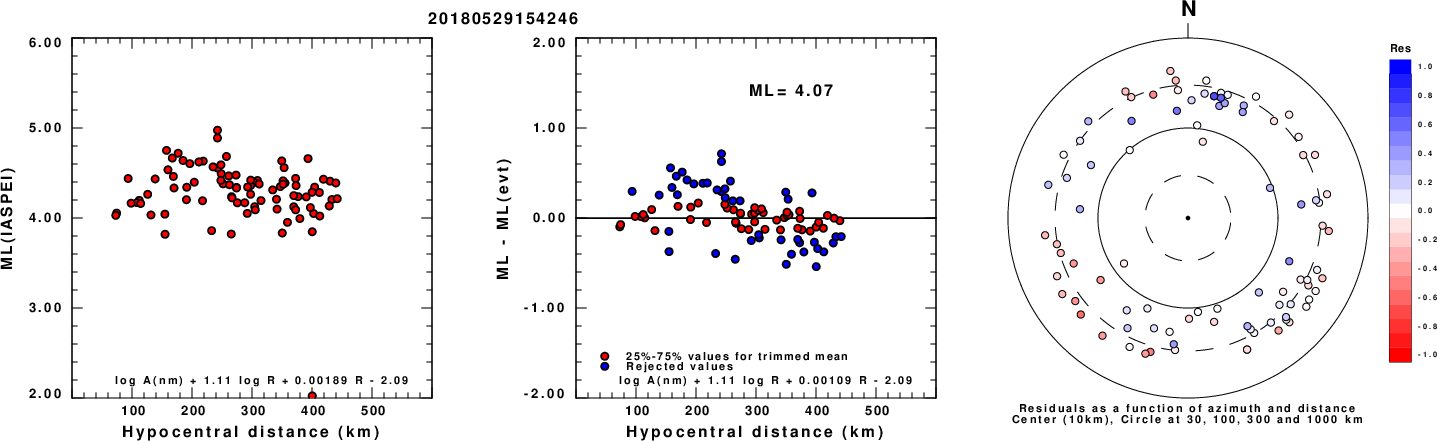

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

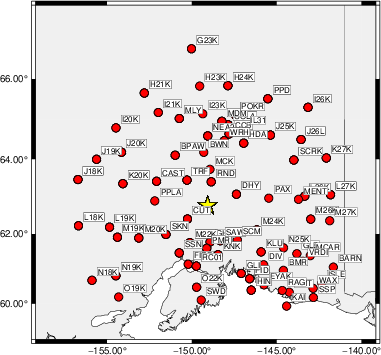

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 60 40 -90 3.59 0.2885 WVFGRD96 2.0 60 40 -90 3.73 0.3709 WVFGRD96 3.0 250 55 -80 3.74 0.2509 WVFGRD96 4.0 15 20 30 3.71 0.2527 WVFGRD96 5.0 80 90 -70 3.71 0.3039 WVFGRD96 6.0 65 80 -75 3.74 0.3514 WVFGRD96 7.0 60 80 -75 3.75 0.3909 WVFGRD96 8.0 60 75 -80 3.85 0.4188 WVFGRD96 9.0 60 75 -80 3.86 0.4526 WVFGRD96 10.0 60 70 -75 3.89 0.4787 WVFGRD96 11.0 210 25 65 3.91 0.5068 WVFGRD96 12.0 205 30 60 3.94 0.5444 WVFGRD96 13.0 210 30 65 3.96 0.5774 WVFGRD96 14.0 215 30 70 3.98 0.6045 WVFGRD96 15.0 210 35 65 4.00 0.6255 WVFGRD96 16.0 210 35 65 4.02 0.6405 WVFGRD96 17.0 210 35 65 4.03 0.6494 WVFGRD96 18.0 215 30 70 4.04 0.6529 WVFGRD96 19.0 215 30 70 4.05 0.6511 WVFGRD96 20.0 210 30 65 4.06 0.6444 WVFGRD96 21.0 210 30 65 4.08 0.6332 WVFGRD96 22.0 210 30 65 4.09 0.6192 WVFGRD96 23.0 210 30 65 4.09 0.6021 WVFGRD96 24.0 205 30 60 4.10 0.5824 WVFGRD96 25.0 205 30 60 4.11 0.5613 WVFGRD96 26.0 210 30 65 4.11 0.5389 WVFGRD96 27.0 215 25 70 4.12 0.5155 WVFGRD96 28.0 210 30 65 4.12 0.4911 WVFGRD96 29.0 215 35 70 4.12 0.4697
The best solution is
WVFGRD96 18.0 215 30 70 4.04 0.6529
The mechanism corresponding to the best fit is
![]() |
|

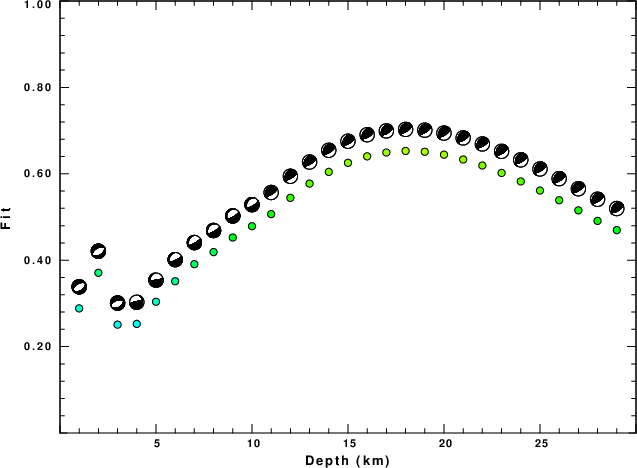

The best fit as a function of depth is given in the following figure:
![]() |
|

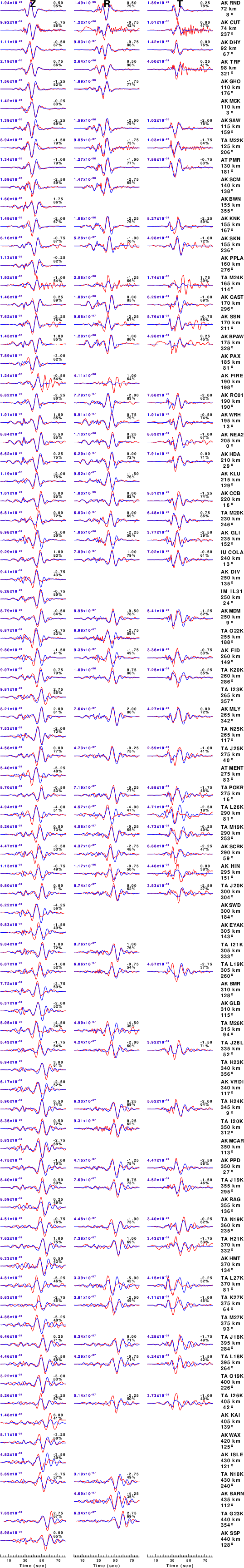

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

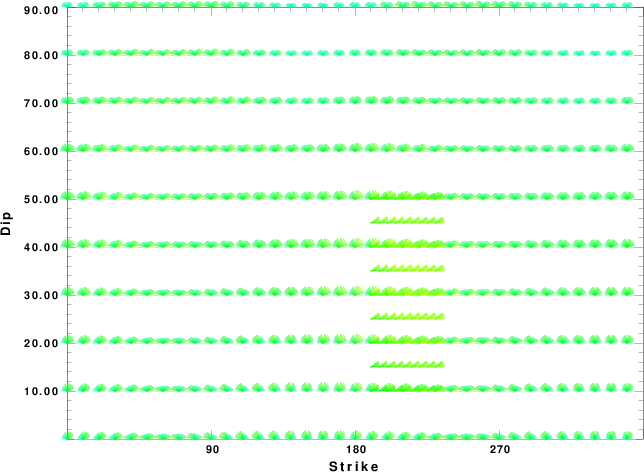

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

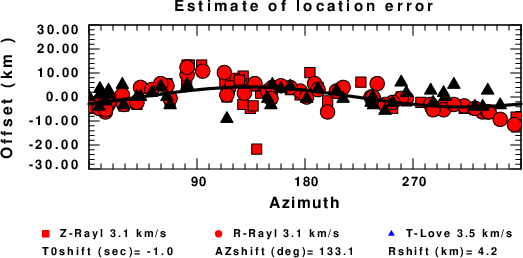

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
