Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.
The ANSS event ID is us1000dprg and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us1000dprg/executive.
2018/04/21 07:07:28 60.876 -138.287 9.7 3.5 Yukon
USGS/SLU Moment Tensor Solution
ENS 2018/04/21 07:07:28:0 60.88 -138.29 9.7 3.5 Yukon
Stations used:
AK.BARN AK.BCP AK.BMR AK.CTG AK.GLB AK.ISLE AK.JIS AK.KLU
AK.LOGN AK.MCAR AK.SSP AK.TABL AK.VRDI AT.SKAG CN.HYT
CN.WHY NY.MAYO TA.J30M TA.K29M TA.L27K TA.L29M TA.M27K
TA.M29M TA.M30M TA.M31M TA.N25K TA.N30M TA.N31M TA.N32M
TA.O30N TA.P29M TA.P30M TA.Q32M TA.R32K
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Best Fitting Double Couple
Mo = 3.39e+21 dyne-cm
Mw = 3.62
Z = 11 km
Plane Strike Dip Rake
NP1 115 65 85
NP2 307 25 101
Principal Axes:
Axis Value Plunge Azimuth
T 3.39e+21 70 15
N 0.00e+00 5 117
P -3.39e+21 20 209
Moment Tensor: (dyne-cm)
Component Value
Mxx -1.92e+21
Mxy -1.16e+21
Mxz 2.02e+21
Myy -6.67e+20
Myz 8.04e+20
Mzz 2.59e+21
--------------
----------------------
---##############-----------
######################--------
###########################-------
##############################------
#################################-----
--################## ############-----
----################ T #############----
------############### ##############----
--------##############################----
----------#############################---
-------------##########################---
---------------#######################--
-------------------###################--
-----------------------##############-
-----------------------------------#
----------------------------------
----- ----------------------
---- P ---------------------
- ------------------
--------------
Global CMT Convention Moment Tensor:
R T P
2.59e+21 2.02e+21 -8.04e+20
2.02e+21 -1.92e+21 1.16e+21
-8.04e+20 1.16e+21 -6.67e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20180421070728/index.html
|
STK = 115
DIP = 65
RAKE = 85
MW = 3.62
HS = 11.0
The NDK file is 20180421070728.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

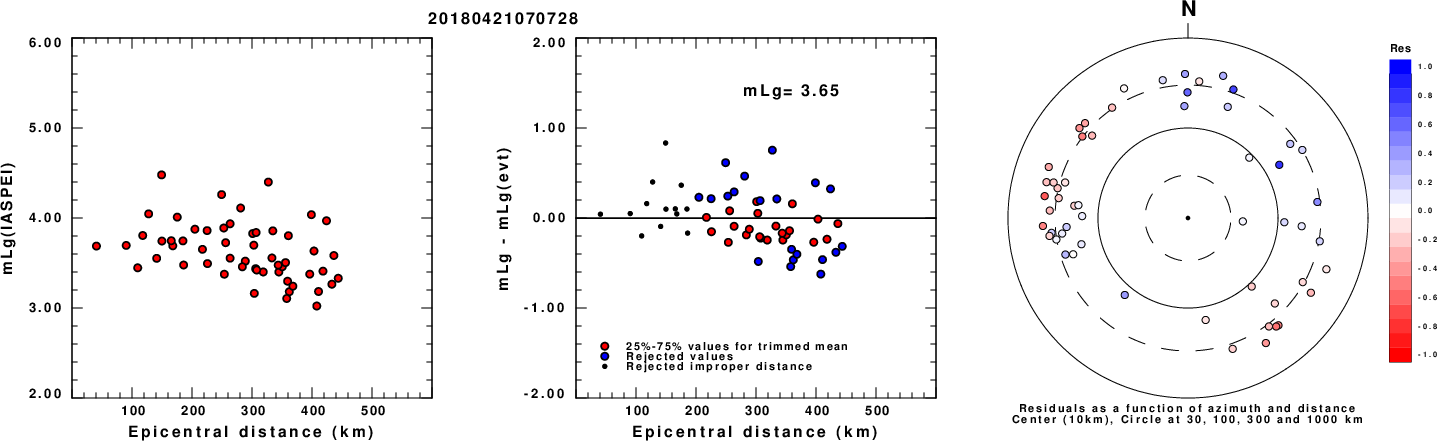

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated.
Right: residuals as a function of distance and azimuth.

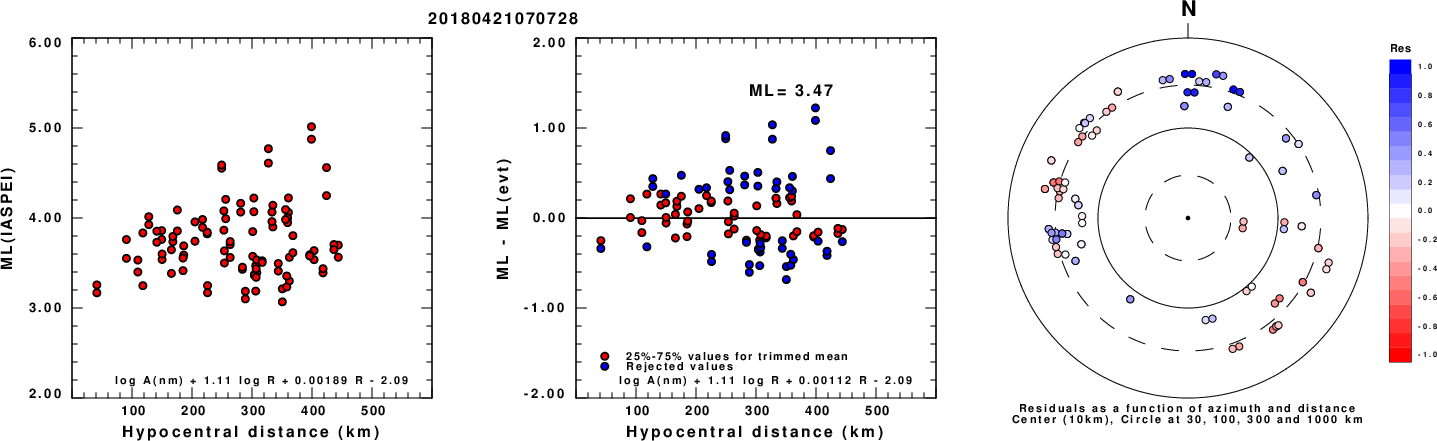

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

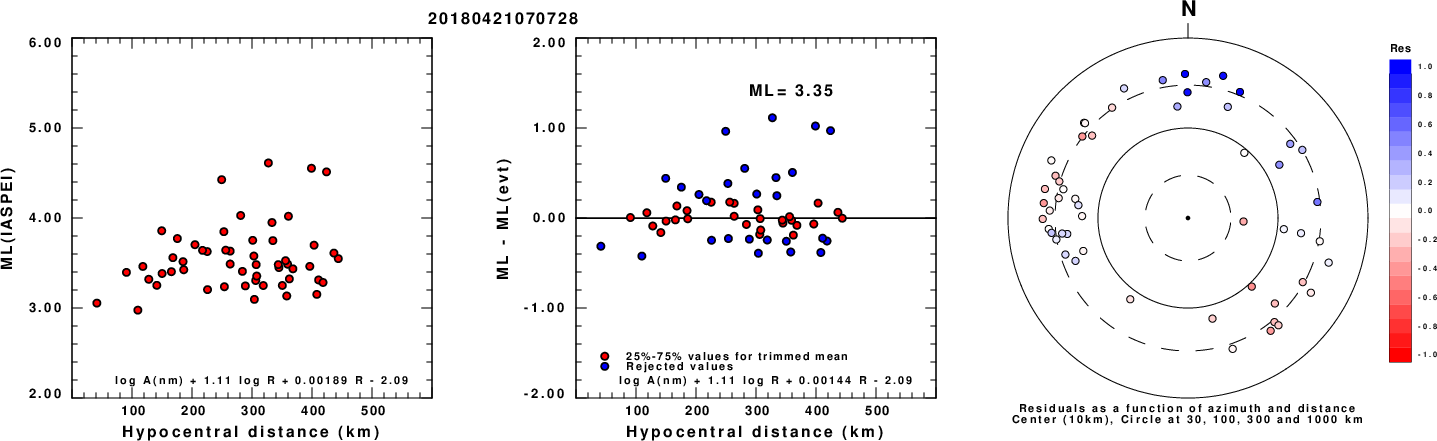

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
 |

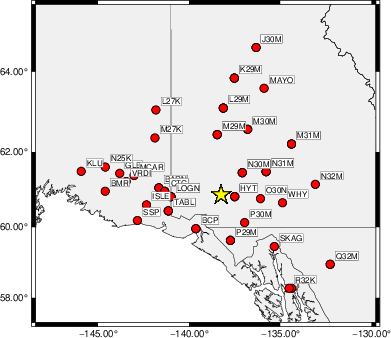

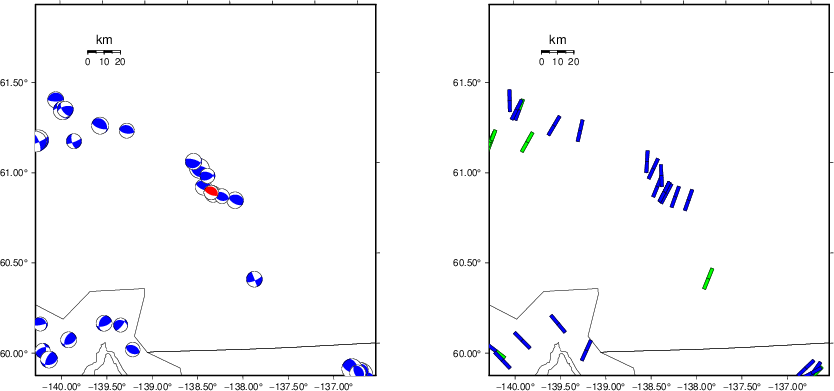

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 290 45 75 3.50 0.6327
WVFGRD96 2.0 295 50 85 3.56 0.5659
WVFGRD96 3.0 110 85 70 3.60 0.5335
WVFGRD96 4.0 290 90 -70 3.59 0.6009
WVFGRD96 5.0 115 80 75 3.59 0.6620
WVFGRD96 6.0 115 70 85 3.61 0.7079
WVFGRD96 7.0 310 25 100 3.61 0.7396
WVFGRD96 8.0 115 65 85 3.61 0.7620
WVFGRD96 9.0 115 65 85 3.60 0.7747
WVFGRD96 10.0 115 65 85 3.63 0.7819
WVFGRD96 11.0 115 65 85 3.62 0.7831
WVFGRD96 12.0 115 65 80 3.62 0.7821
WVFGRD96 13.0 315 25 110 3.61 0.7777
WVFGRD96 14.0 115 65 80 3.62 0.7723
WVFGRD96 15.0 115 65 80 3.62 0.7656
WVFGRD96 16.0 115 65 80 3.62 0.7579
WVFGRD96 17.0 110 65 75 3.63 0.7493
WVFGRD96 18.0 110 65 75 3.63 0.7399
WVFGRD96 19.0 110 65 75 3.64 0.7293
WVFGRD96 20.0 110 70 75 3.67 0.7209
WVFGRD96 21.0 110 70 75 3.67 0.7085
WVFGRD96 22.0 110 70 80 3.68 0.6948
WVFGRD96 23.0 110 70 80 3.69 0.6802
WVFGRD96 24.0 110 70 80 3.70 0.6644
WVFGRD96 25.0 110 70 80 3.70 0.6475
WVFGRD96 26.0 110 70 80 3.71 0.6299
WVFGRD96 27.0 115 65 85 3.71 0.6116
WVFGRD96 28.0 105 65 75 3.72 0.5934
WVFGRD96 29.0 105 65 75 3.72 0.5758
The best solution is
WVFGRD96 11.0 115 65 85 3.62 0.7831
The mechanism corresponding to the best fit is
|
|
|

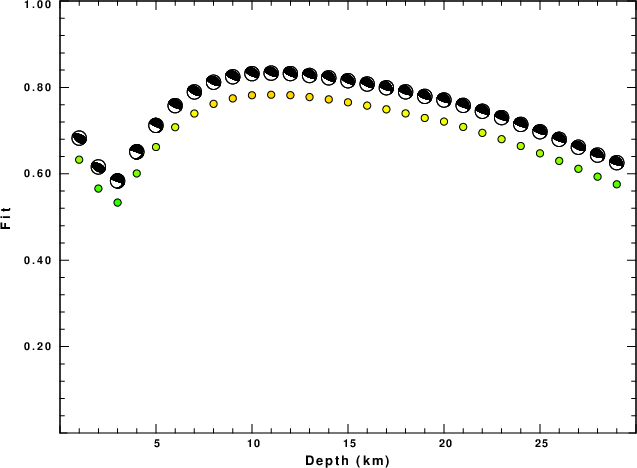

The best fit as a function of depth is given in the following figure:
|
|
|

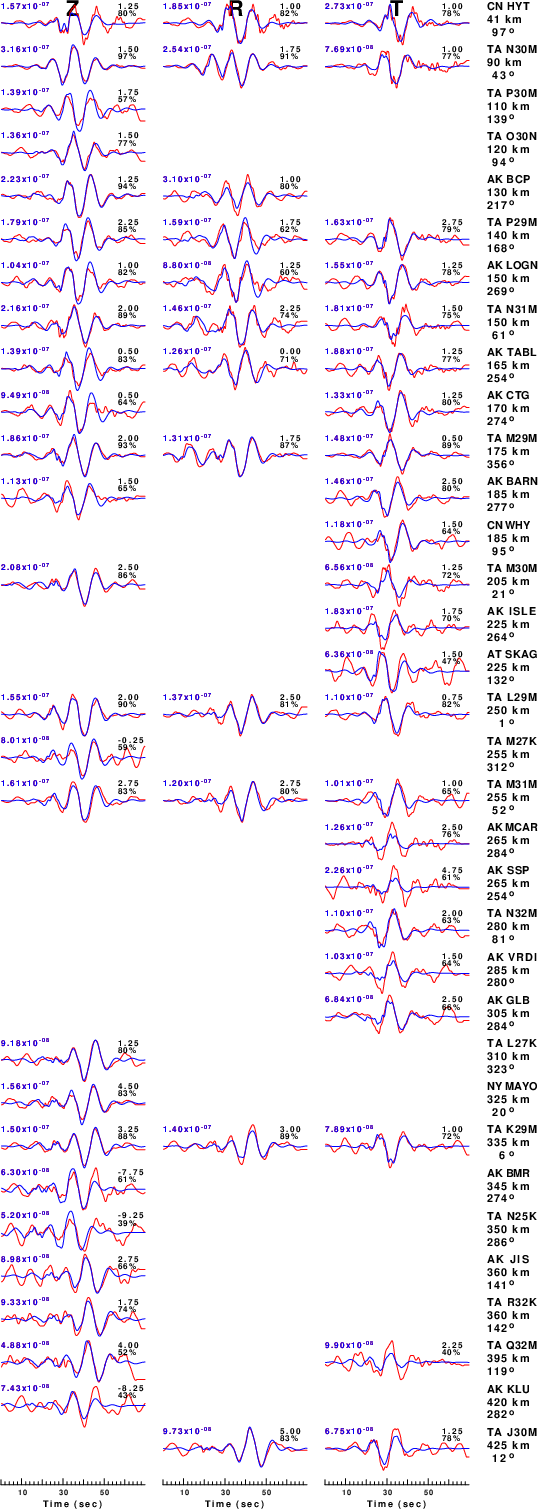

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2
|
| Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
|

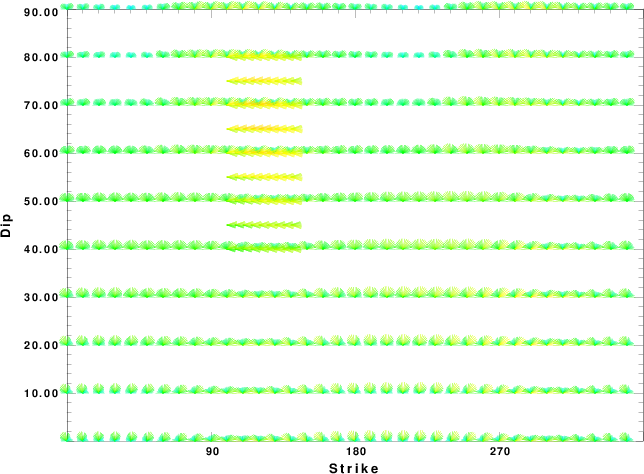

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

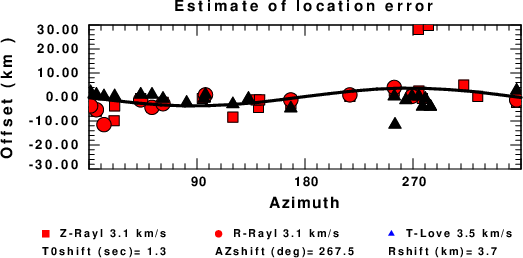

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 CUS Model with Q from simple gamma values ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00 9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00 10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00 20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00 0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
