The ANSS event ID is us2000dwsz and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us2000dwsz/executive.

2018/04/09 09:26:31 36.215 -97.569 6.3 3.1 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2018/04/09 09:26:31:0  36.22  -97.57   6.3 3.1 Oklahoma

 Stations used:
   GS.OK029 GS.OK032 GS.OK033 GS.OK038 GS.OK052 N4.T35B
   O2.DOVR O2.DRUM O2.MRSH O2.PERK O2.PERY O2.POCA OK.CROK
   OK.FNO OK.U32A OK.X37A TA.TUL3 US.WMOK

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.04 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 6.03e+20 dyne-cm
  Mw = 3.12
  Z  = 7 km
  Plane   Strike  Dip  Rake
   NP1       29    72   -154
   NP2      290    65   -20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.03e+20      5     158
    N   0.00e+00     58      61
    P  -6.03e+20     31     251

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     4.69e+20
       Mxy    -3.42e+20
       Mxz     4.26e+19
       Myy    -3.11e+20
       Myz     2.70e+20
       Mzz    -1.58e+20




                     ##############
                 #####################-
              ########################----
             #########################-----
           ###########################-------
          ###########################---------
         ####-------#################----------
        ---------------------#######------------
        -------------------------##-------------
       ---------------------------###------------
       ---------------------------######---------
       --------------------------#########-------
       ------   ----------------############-----
        ----- P ---------------###############--
        -----   -------------##################-
         -------------------###################
          -----------------###################
           --------------####################
             -----------###################
              --------############   #####
                 --############### T ##
                     #############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.58e+20   4.26e+19  -2.70e+20
  4.26e+19   4.69e+20   3.42e+20
 -2.70e+20   3.42e+20  -3.11e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20180409092631/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 290
      DIP = 65
     RAKE = -20
       MW = 3.12
       HS = 7.0

The NDK file is 20180409092631.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

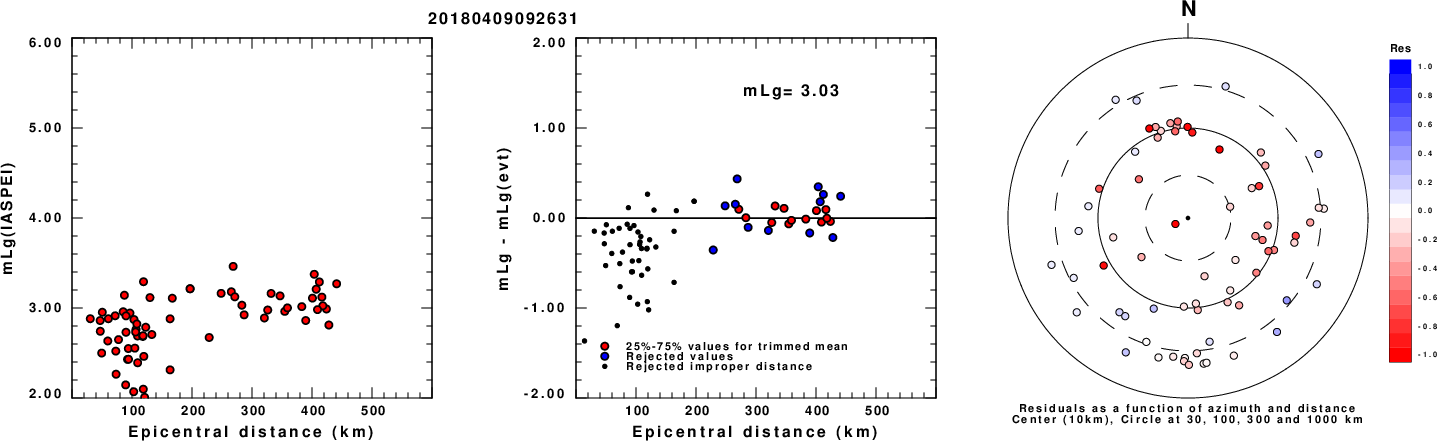

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

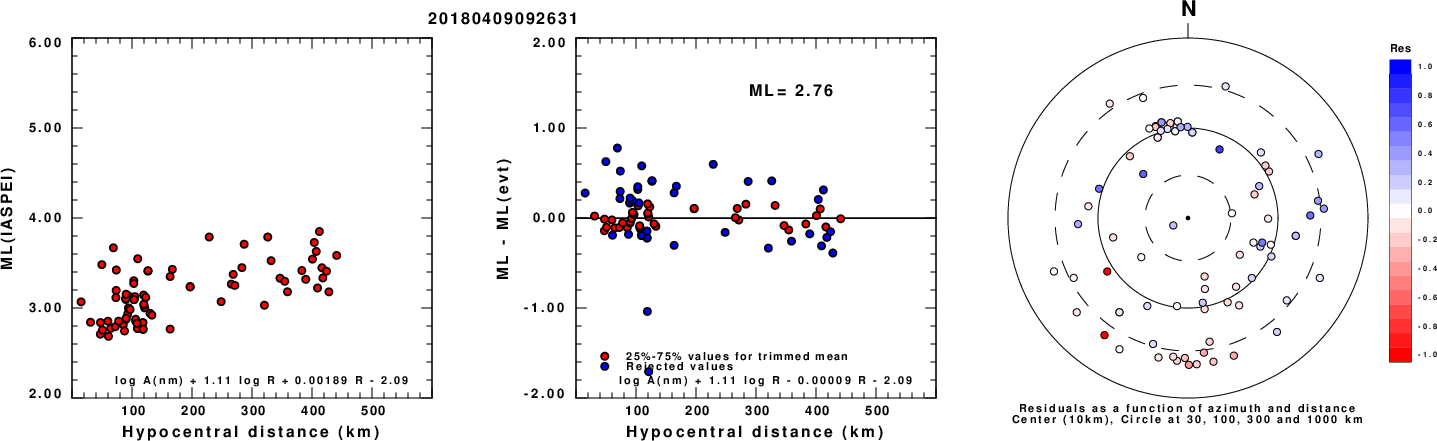

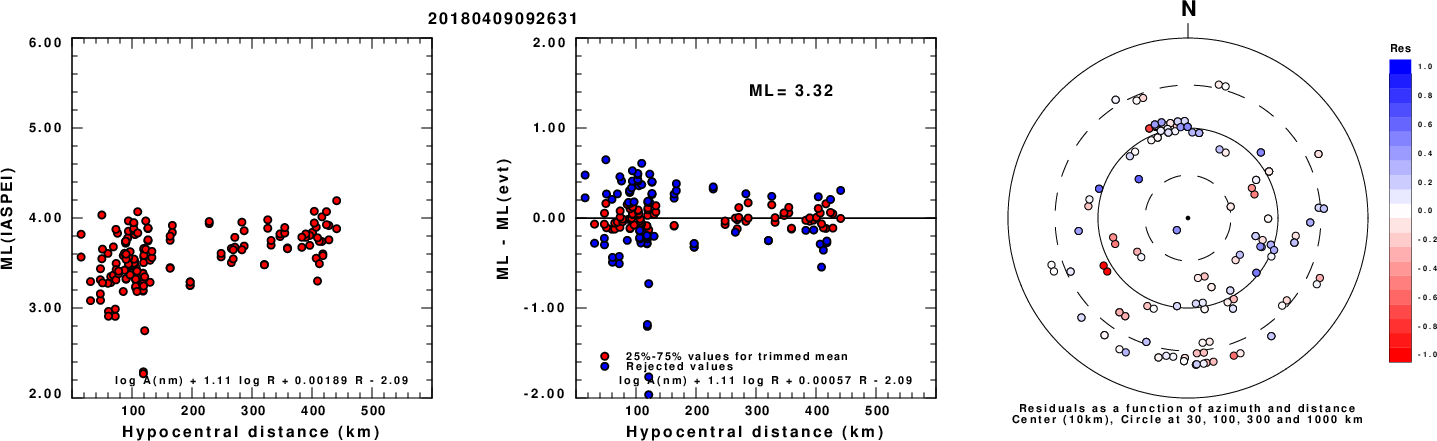

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

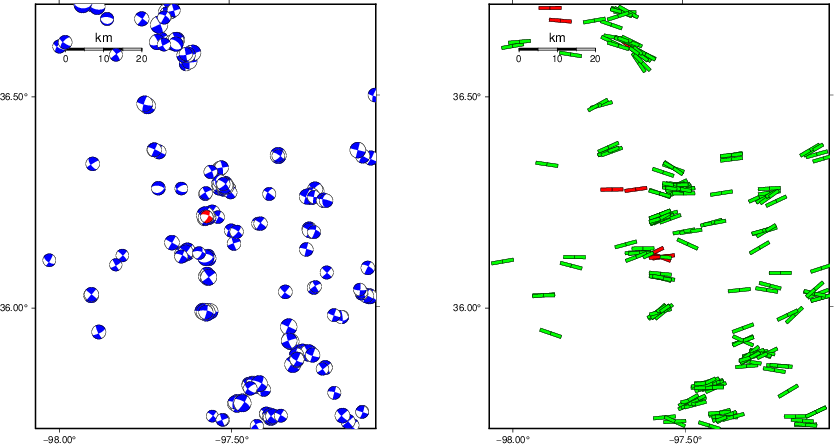

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   290    85     0   2.71 0.2828
WVFGRD96    2.0   295    85     5   2.91 0.4621
WVFGRD96    3.0   290    80   -10   2.98 0.5223
WVFGRD96    4.0   290    70   -15   3.04 0.5495
WVFGRD96    5.0   290    70   -20   3.07 0.5613
WVFGRD96    6.0   290    60   -15   3.11 0.5676
WVFGRD96    7.0   290    65   -20   3.12 0.5693
WVFGRD96    8.0   290    60   -20   3.16 0.5674
WVFGRD96    9.0   290    60   -20   3.18 0.5654
WVFGRD96   10.0   285    60   -35   3.21 0.5635
WVFGRD96   11.0   290    70   -30   3.20 0.5624
WVFGRD96   12.0   290    70   -30   3.22 0.5600
WVFGRD96   13.0   290    65   -25   3.23 0.5579
WVFGRD96   14.0   290    70   -30   3.24 0.5547
WVFGRD96   15.0   290    70   -30   3.25 0.5514
WVFGRD96   16.0   290    70   -30   3.26 0.5474
WVFGRD96   17.0   290    70   -30   3.27 0.5426
WVFGRD96   18.0   290    70   -30   3.28 0.5376
WVFGRD96   19.0   290    75   -30   3.28 0.5333
WVFGRD96   20.0   290    75   -30   3.29 0.5280
WVFGRD96   21.0   295    90   -25   3.28 0.5222
WVFGRD96   22.0   295    90   -25   3.29 0.5167
WVFGRD96   23.0   295    90   -25   3.29 0.5111
WVFGRD96   24.0   115    85    25   3.30 0.5055
WVFGRD96   25.0   115    80    25   3.30 0.4994
WVFGRD96   26.0   300    60    25   3.34 0.4928
WVFGRD96   27.0   300    60    25   3.35 0.4892
WVFGRD96   28.0   300    60    25   3.35 0.4854
WVFGRD96   29.0   295    65    25   3.35 0.4825

The best solution is

WVFGRD96    7.0   290    65   -20   3.12 0.5693

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

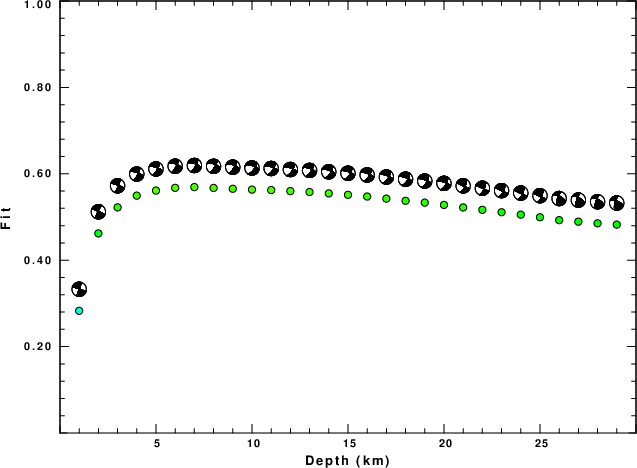

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

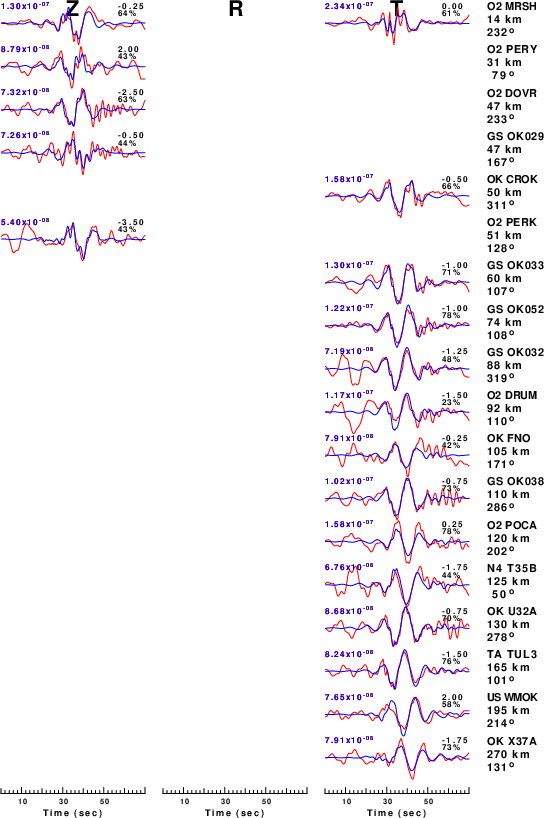

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

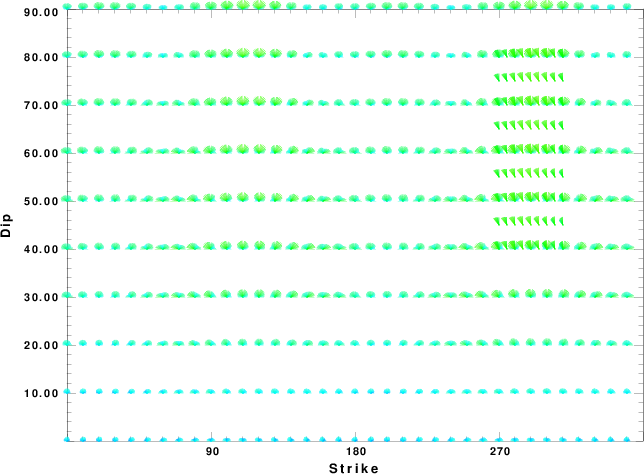

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

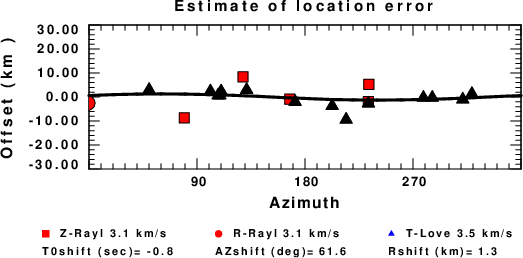

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
