The ANSS event ID is us2000ckm8 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us2000ckm8/executive.
2018/01/18 02:47:46 59.791 -136.792 10.0 4.3 Alaska
USGS/SLU Moment Tensor Solution ENS 2018/01/18 02:47:46:0 59.79 -136.79 10.0 4.3 Alaska Stations used: AK.BARN AK.BCP AK.BESE AK.GLB AK.JIS AK.PIN AT.SIT AT.SKAG CN.DLBC CN.HYT CN.WHY NY.FARO NY.MAYO NY.WTLY TA.M30M TA.M31M TA.N31M TA.O30N TA.P32M TA.P33M TA.R32K TA.S31K TA.S32K TA.S34M TA.T33K Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 3.20e+22 dyne-cm Mw = 4.27 Z = 7 km Plane Strike Dip Rake NP1 290 55 45 NP2 170 55 135 Principal Axes: Axis Value Plunge Azimuth T 3.20e+22 55 140 N 0.00e+00 35 320 P -3.20e+22 0 50 Moment Tensor: (dyne-cm) Component Value Mxx -6.86e+21 Mxy -2.10e+22 Mxz -1.17e+22 Myy -1.44e+22 Myz 9.55e+21 Mzz 2.13e+22 ###----------- #####----------------- #######--------------------- #######----------------------- #########----------------------- P #######--####-------------------- ##--------############---------------- -----------################------------- -----------###################---------- ------------######################-------- ------------########################------ ------------#########################----- ------------###########################--- ------------############ ############- ------------############ T ############- ------------########### ############ ------------######################## ------------###################### -----------################### ------------################ ----------############ ---------##### Global CMT Convention Moment Tensor: R T P 2.13e+22 -1.17e+22 -9.55e+21 -1.17e+22 -6.86e+21 2.10e+22 -9.55e+21 2.10e+22 -1.44e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20180118024746/index.html |
STK = 290 DIP = 55 RAKE = 45 MW = 4.27 HS = 7.0
The NDK file is 20180118024746.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

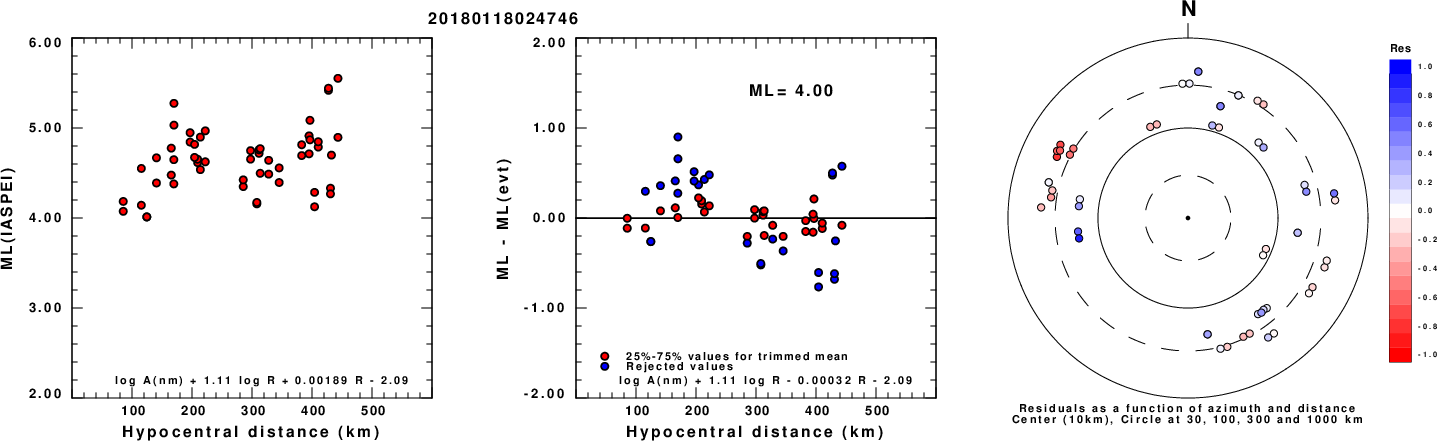

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

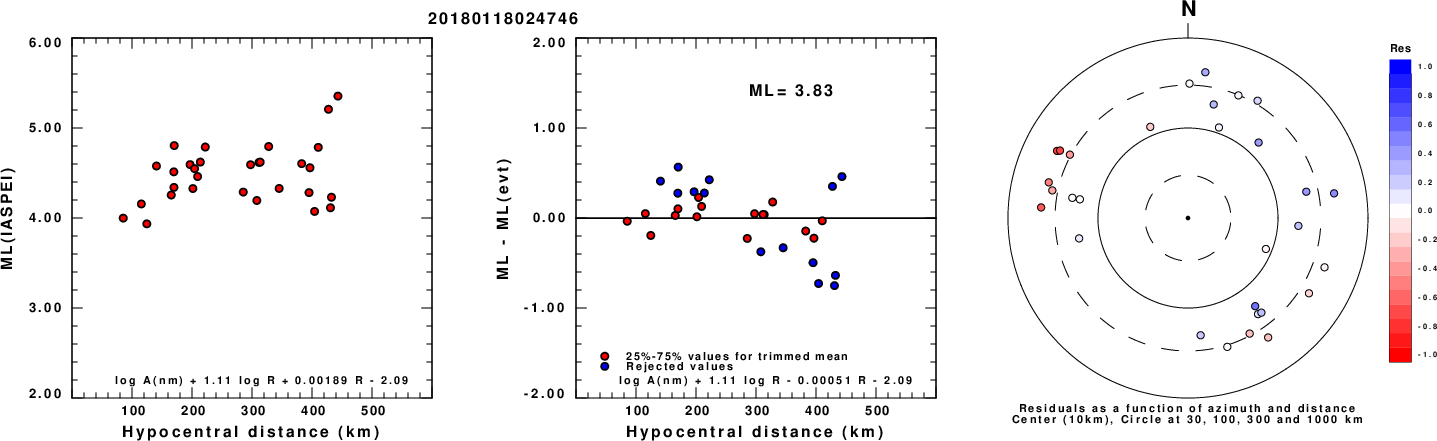

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

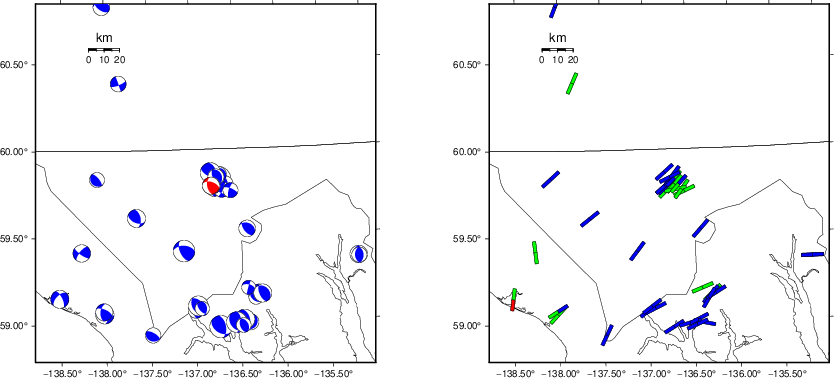

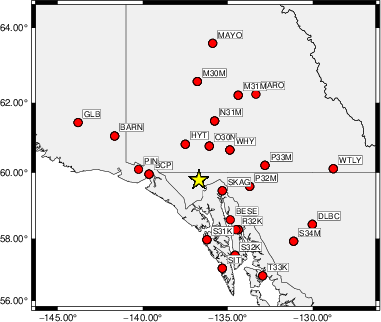

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 90 80 -55 4.24 0.5634 WVFGRD96 2.0 90 85 -55 4.25 0.5606 WVFGRD96 3.0 280 75 50 4.24 0.5930 WVFGRD96 4.0 290 60 50 4.26 0.6541 WVFGRD96 5.0 290 55 50 4.28 0.7019 WVFGRD96 6.0 290 55 50 4.28 0.7222 WVFGRD96 7.0 290 55 45 4.27 0.7238 WVFGRD96 8.0 285 60 40 4.27 0.7176 WVFGRD96 9.0 285 60 40 4.27 0.7041 WVFGRD96 10.0 285 60 40 4.30 0.6895 WVFGRD96 11.0 285 60 40 4.30 0.6675 WVFGRD96 12.0 280 65 35 4.31 0.6440 WVFGRD96 13.0 280 65 35 4.31 0.6183 WVFGRD96 14.0 280 65 30 4.31 0.5917 WVFGRD96 15.0 280 65 30 4.32 0.5658 WVFGRD96 16.0 280 65 30 4.32 0.5403 WVFGRD96 17.0 280 65 30 4.33 0.5154 WVFGRD96 18.0 280 65 30 4.33 0.4918 WVFGRD96 19.0 280 65 30 4.34 0.4696 WVFGRD96 20.0 280 65 35 4.36 0.4466 WVFGRD96 21.0 280 65 35 4.36 0.4258 WVFGRD96 22.0 285 65 35 4.36 0.4062 WVFGRD96 23.0 285 65 35 4.36 0.3882 WVFGRD96 24.0 285 65 40 4.37 0.3714 WVFGRD96 25.0 285 65 40 4.37 0.3557 WVFGRD96 26.0 90 65 -20 4.35 0.3422 WVFGRD96 27.0 90 60 -20 4.36 0.3342 WVFGRD96 28.0 90 60 -20 4.36 0.3264 WVFGRD96 29.0 100 60 20 4.36 0.3194
The best solution is
WVFGRD96 7.0 290 55 45 4.27 0.7238
The mechanism corresponding to the best fit is
![]() |
|

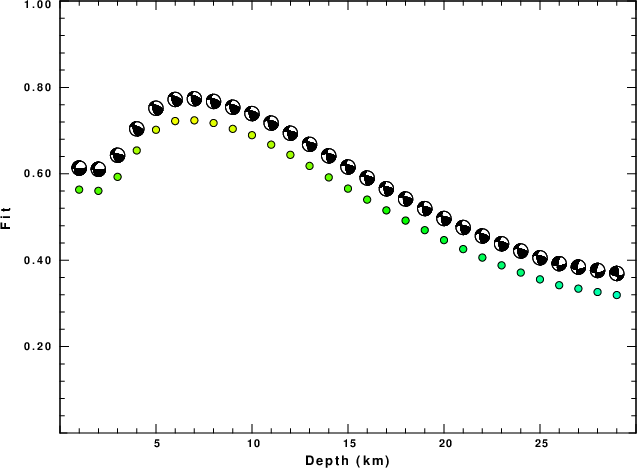

The best fit as a function of depth is given in the following figure:
![]() |
|

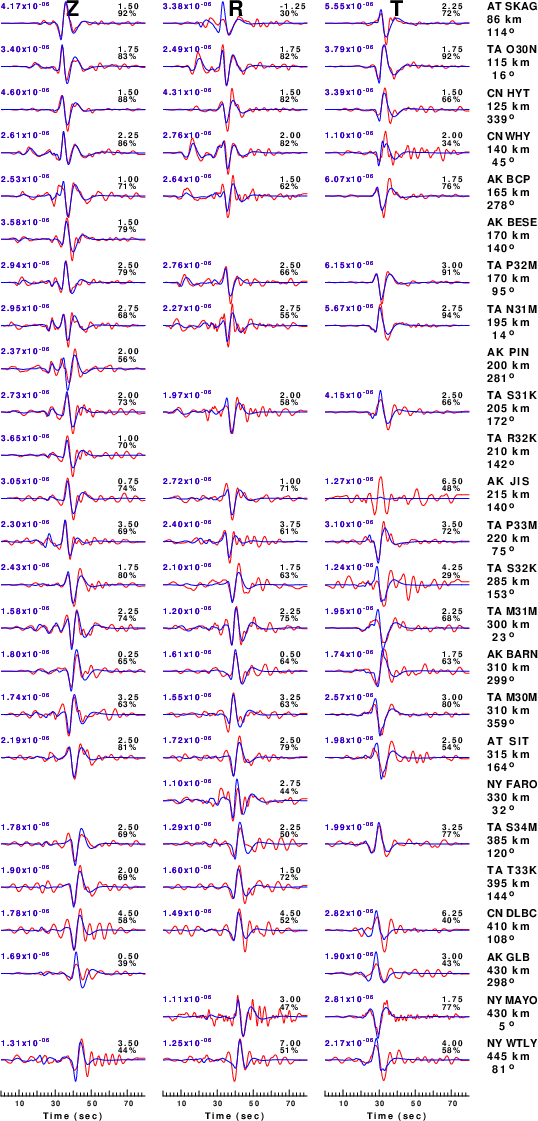

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

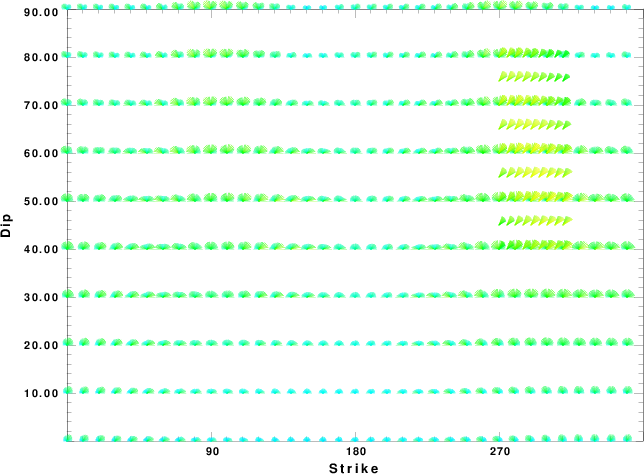

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

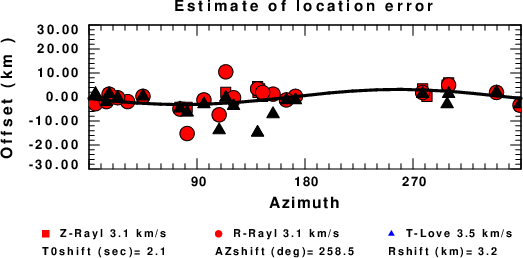

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 CUS Model with Q from simple gamma values ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00 9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00 10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00 20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00 0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
