2017/11/27 22:18:30 60.555 -147.430 16.6 5.3 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2017/11/27 22:18:30:0  60.56 -147.43  16.6 5.3 Alaska

 Stations used:
   AK.BARN AK.BRLK AK.BWN AK.CAST AK.CNP AK.CUT AK.DIV AK.EYAK
   AK.GHO AK.GLB AK.GRNC AK.HDA AK.HIN AK.KLU AK.KNK AK.KTH
   AK.MCAR AK.MCK AK.PPLA AK.RC01 AK.RND AK.SAW AK.SCM AK.SWD
   AK.TGL AK.TRF AK.VRDI AK.WAX AK.WRH AT.MENT AT.PMR TA.L26K
   TA.M22K TA.M24K TA.M27K TA.N25K TA.O22K TA.Q20K

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 5.07e+23 dyne-cm
  Mw = 5.07
  Z  = 29 km
  Plane   Strike  Dip  Rake
   NP1      210    85   -70
   NP2      313    21   -166
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.07e+23     37     282
    N   0.00e+00     20      28
    P  -5.07e+23     46     141

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.29e+23
       Mxy     5.05e+22
       Mxz     2.48e+23
       Myy     2.12e+23
       Myz    -3.99e+23
       Mzz    -8.27e+22




                     --------------
                 ---#########---------#
              -###################---#####
             ######################--######
           #######################------#####
          #######################--------#####
         #######################-----------####
        ######################--------------####
        ######   ############----------------###
       ####### T ###########-----------------####
       #######   ##########-------------------###
       ###################--------------------###
       ##################---------------------###
        ################----------------------##
        ###############----------   ----------##
         #############----------- P ----------#
          ###########------------   ---------#
           #########------------------------#
             ######------------------------
              #####-----------------------
                 #---------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -8.27e+22   2.48e+23   3.99e+23
  2.48e+23  -1.29e+23  -5.05e+22
  3.99e+23  -5.05e+22   2.12e+23


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20171127221830/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 210
      DIP = 85
     RAKE = -70
       MW = 5.07
       HS = 29.0

The NDK file is 20171127221830.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSW
 USGS/SLU Moment Tensor Solution
 ENS  2017/11/27 22:18:30:0  60.56 -147.43  16.6 5.3 Alaska

 Stations used:
   AK.BARN AK.BRLK AK.BWN AK.CAST AK.CNP AK.CUT AK.DIV AK.EYAK
   AK.GHO AK.GLB AK.GRNC AK.HDA AK.HIN AK.KLU AK.KNK AK.KTH
   AK.MCAR AK.MCK AK.PPLA AK.RC01 AK.RND AK.SAW AK.SCM AK.SWD
   AK.TGL AK.TRF AK.VRDI AK.WAX AK.WRH AT.MENT AT.PMR TA.L26K
   TA.M22K TA.M24K TA.M27K TA.N25K TA.O22K TA.Q20K

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 5.07e+23 dyne-cm
  Mw = 5.07
  Z  = 29 km
  Plane   Strike  Dip  Rake
   NP1      210    85   -70
   NP2      313    21   -166
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.07e+23     37     282
    N   0.00e+00     20      28
    P  -5.07e+23     46     141

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.29e+23
       Mxy     5.05e+22
       Mxz     2.48e+23
       Myy     2.12e+23
       Myz    -3.99e+23
       Mzz    -8.27e+22




                     --------------
                 ---#########---------#
              -###################---#####
             ######################--######
           #######################------#####
          #######################--------#####
         #######################-----------####
        ######################--------------####
        ######   ############----------------###
       ####### T ###########-----------------####
       #######   ##########-------------------###
       ###################--------------------###
       ##################---------------------###
        ################----------------------##
        ###############----------   ----------##
         #############----------- P ----------#
          ###########------------   ---------#
           #########------------------------#
             ######------------------------
              #####-----------------------
                 #---------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -8.27e+22   2.48e+23   3.99e+23
  2.48e+23  -1.29e+23  -5.05e+22
  3.99e+23  -5.05e+22   2.12e+23


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20171127221830/index.html

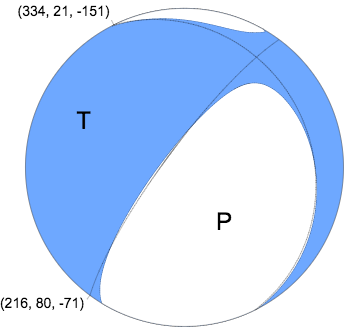

W-phase Moment Tensor (Mww)
Moment	1.059e+17 N-m
Magnitude	5.3 Mww
Depth	23.5 km
Percent DC	87 %
Half Duration	1.38 s
Catalog	US
Data Source	US3
Contributor	US3
Nodal Planes
Plane	Strike	Dip	Rake
NP1	334	21	-151
NP2	216	80	-71
Principal Axes
Axis	Value	Plunge	Azimuth
T	1.023e+17 N-m	33	291
N	0.069e+17 N-m	18	33
P	-1.092e+17 N-m	51	148



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

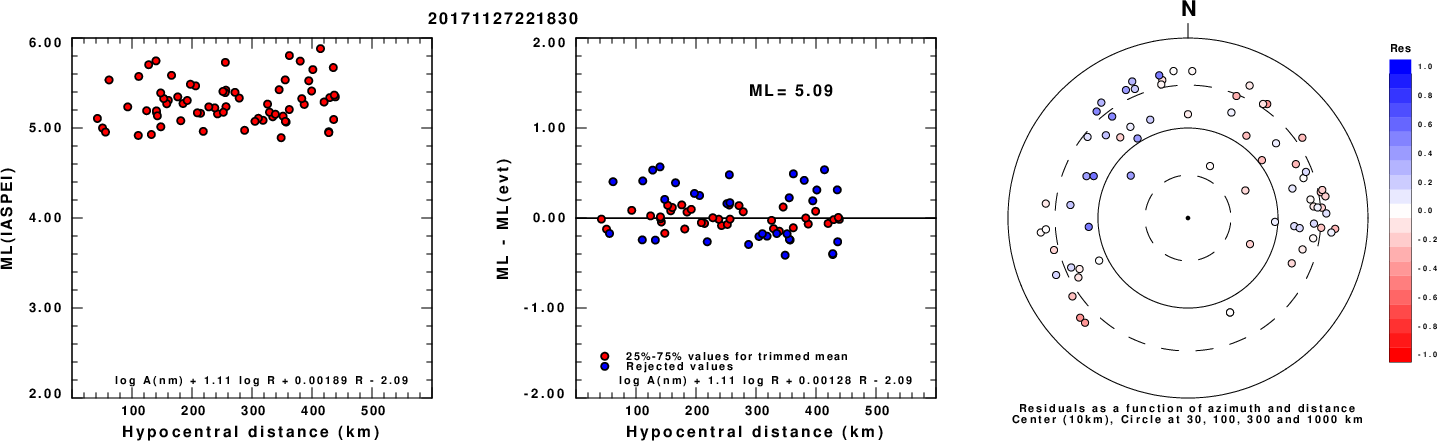

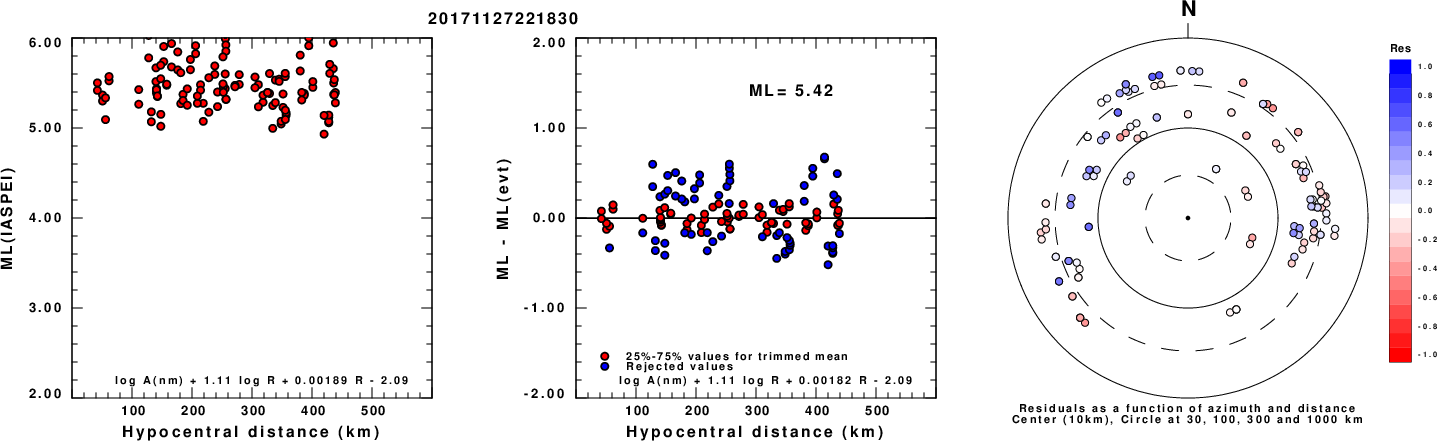

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    30    45    85   4.40 0.1888
WVFGRD96    2.0    35    40    90   4.55 0.2543
WVFGRD96    3.0    35    40    90   4.59 0.2105
WVFGRD96    4.0   300    35    -5   4.55 0.2061
WVFGRD96    5.0   315    25    20   4.58 0.2408
WVFGRD96    6.0   310    30    15   4.59 0.2697
WVFGRD96    7.0   315    30    20   4.61 0.2922
WVFGRD96    8.0    40    85    60   4.69 0.3148
WVFGRD96    9.0    40    85    60   4.71 0.3465
WVFGRD96   10.0    40    85    55   4.74 0.3766
WVFGRD96   11.0   215    90   -55   4.76 0.4040
WVFGRD96   12.0    35    90    55   4.78 0.4310
WVFGRD96   13.0   215    90   -55   4.80 0.4560
WVFGRD96   14.0   215    85   -55   4.82 0.4804
WVFGRD96   15.0   215    85   -55   4.85 0.5050
WVFGRD96   16.0   215    85   -55   4.87 0.5278
WVFGRD96   17.0   215    85   -60   4.88 0.5497
WVFGRD96   18.0   210    80   -60   4.90 0.5705
WVFGRD96   19.0   210    80   -65   4.91 0.5897
WVFGRD96   20.0   210    80   -65   4.93 0.6081
WVFGRD96   21.0   210    80   -65   4.96 0.6244
WVFGRD96   22.0   210    80   -65   4.97 0.6397
WVFGRD96   23.0   210    80   -65   4.99 0.6540
WVFGRD96   24.0   210    80   -65   5.01 0.6667
WVFGRD96   25.0   210    80   -65   5.02 0.6782
WVFGRD96   26.0   215    85   -65   5.04 0.6880
WVFGRD96   27.0   215    85   -65   5.05 0.6955
WVFGRD96   28.0   210    85   -70   5.06 0.7009
WVFGRD96   29.0   210    85   -70   5.07 0.7032
WVFGRD96   30.0   210    85   -70   5.09 0.7030
WVFGRD96   31.0   210    85   -65   5.10 0.6998
WVFGRD96   32.0   210    85   -65   5.10 0.6946
WVFGRD96   33.0   210    85   -65   5.11 0.6871
WVFGRD96   34.0    35    90    65   5.12 0.6712
WVFGRD96   35.0    35    90    65   5.12 0.6637
WVFGRD96   36.0    35    90    65   5.13 0.6548
WVFGRD96   37.0   210    85   -65   5.13 0.6454
WVFGRD96   38.0    35    90    60   5.14 0.6333
WVFGRD96   39.0   215    90   -60   5.14 0.6198
WVFGRD96   40.0    35    90    70   5.27 0.6037
WVFGRD96   41.0    35    90    65   5.26 0.5879
WVFGRD96   42.0    35    90    65   5.26 0.5736
WVFGRD96   43.0   215    90   -65   5.26 0.5576
WVFGRD96   44.0    35    90    60   5.26 0.5433
WVFGRD96   45.0    40    85    60   5.27 0.5304
WVFGRD96   46.0    40    85    60   5.27 0.5180
WVFGRD96   47.0    45    80    60   5.27 0.5077
WVFGRD96   48.0    45    80    55   5.27 0.4986
WVFGRD96   49.0    45    80    55   5.28 0.4887

The best solution is

WVFGRD96   29.0   210    85   -70   5.07 0.7032

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

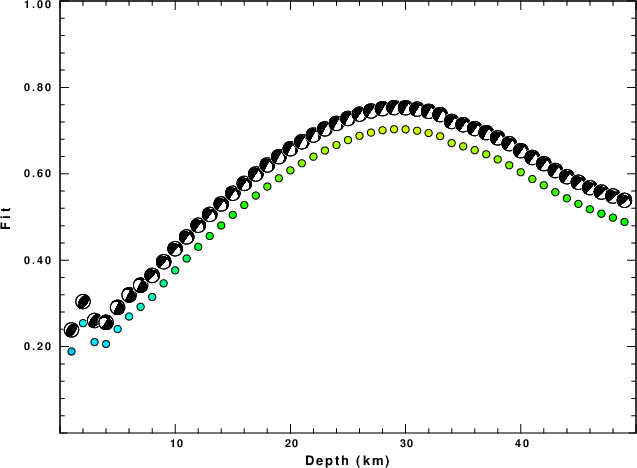

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

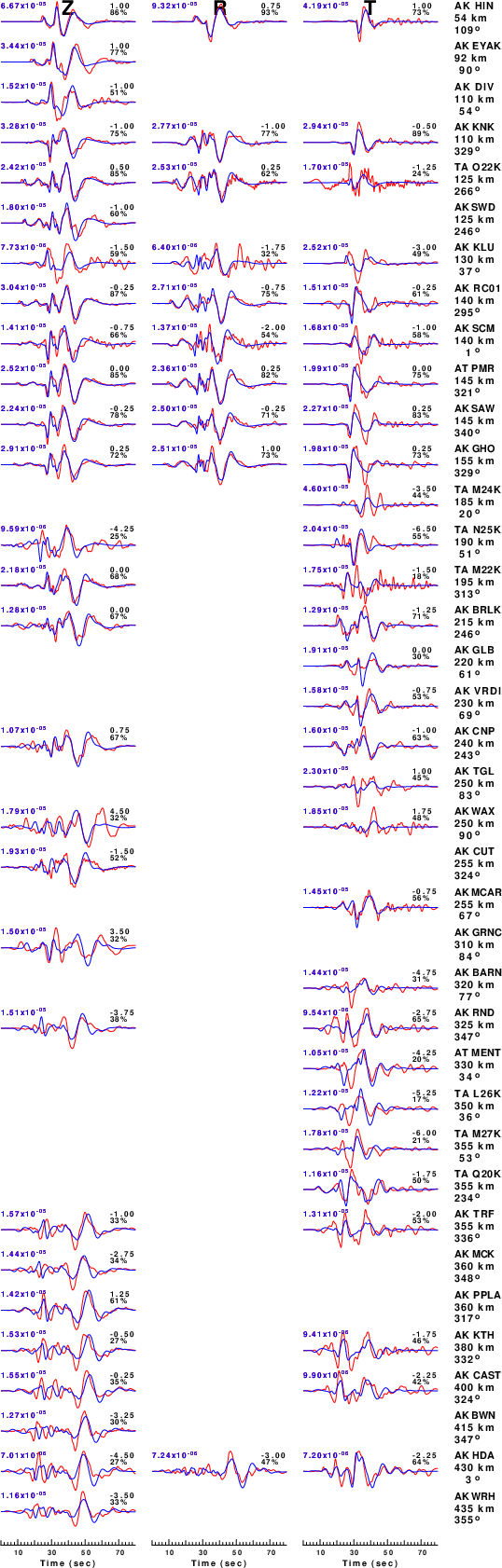

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

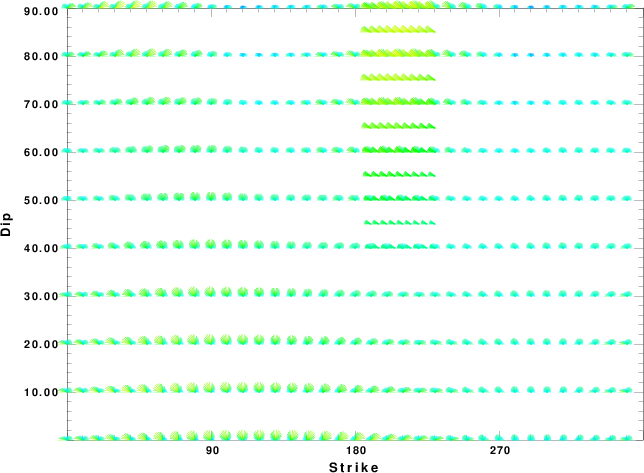

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

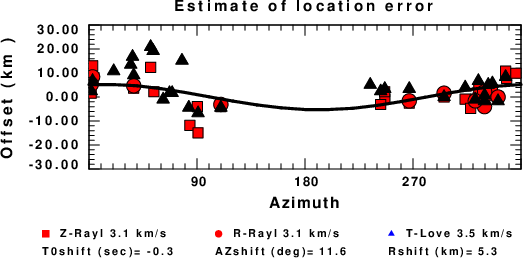

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
