The ANSS event ID is nc72895971 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nc72895971/executive.

2017/09/21 22:15:21 37.977 -122.066 16.1 2.7 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2017/09/21 22:15:21:0  37.98 -122.07  16.1 2.7 Alaska

 Stations used:
   AK.BMR AK.BPAW AK.BWN AK.CAST AK.CCB AK.CRQ AK.CTG AK.CUT
   AK.DHY AK.DIV AK.FID AK.GHO AK.GLB AK.GLI AK.HDA AK.HIN
   AK.KAI AK.KLU AK.KNK AK.KTH AK.MCAR AK.MCK AK.MDM AK.MLY
   AK.NEA2 AK.PPD AK.PPLA AK.PWL AK.RC01 AK.RIDG AK.RND AK.SAW
   AK.SCM AK.SCRK AK.SKN AK.SSN AK.TRF AK.VRDI AK.WRH AT.MENT
   AT.MID AT.PMR AT.SVW2 AT.TTA IM.IL31 TA.H21K TA.H23K
   TA.H24K TA.J20K TA.J25K TA.J26L TA.K20K TA.L19K TA.L26K
   TA.L27K TA.M19K TA.M22K TA.M24K TA.M26K TA.M27K TA.N19K
   TA.N25K TA.O22K TA.POKR TA.Q23K

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.72e+22 dyne-cm
  Mw = 4.09
  Z  = 18 km
  Plane   Strike  Dip  Rake
   NP1      195    60    60
   NP2       64    41   131
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.72e+22     62      56
    N   0.00e+00     26     211
    P  -1.72e+22     10     306

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -4.58e+21
       Mxy     9.66e+21
       Mxz     2.22e+21
       Myy    -8.30e+21
       Myz     8.30e+21
       Mzz     1.29e+22




                     -----------###
                 -------------#########
              --------------##############
               -----------#################
           - P ----------####################
          --   ---------######################
         --------------########################
        --------------###########   ###########-
        -------------############ T ##########--
       --------------############   ##########---
       -------------#########################----
       -------------########################-----
       -------------#######################------
        -----------######################-------
        -----------#####################--------
         ----------##################----------
          #--------################-----------
           ###------###########--------------
             #######-----------------------
              #######---------------------
                 ####------------------
                     #-------------



 Global CMT Convention Moment Tensor:
      R          T          P
  1.29e+22   2.22e+21  -8.30e+21
  2.22e+21  -4.58e+21  -9.66e+21
 -8.30e+21  -9.66e+21  -8.30e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20170921221521/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 195
      DIP = 60
     RAKE = 60
       MW = 4.09
       HS = 18.0

The NDK file is 20170921221521.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

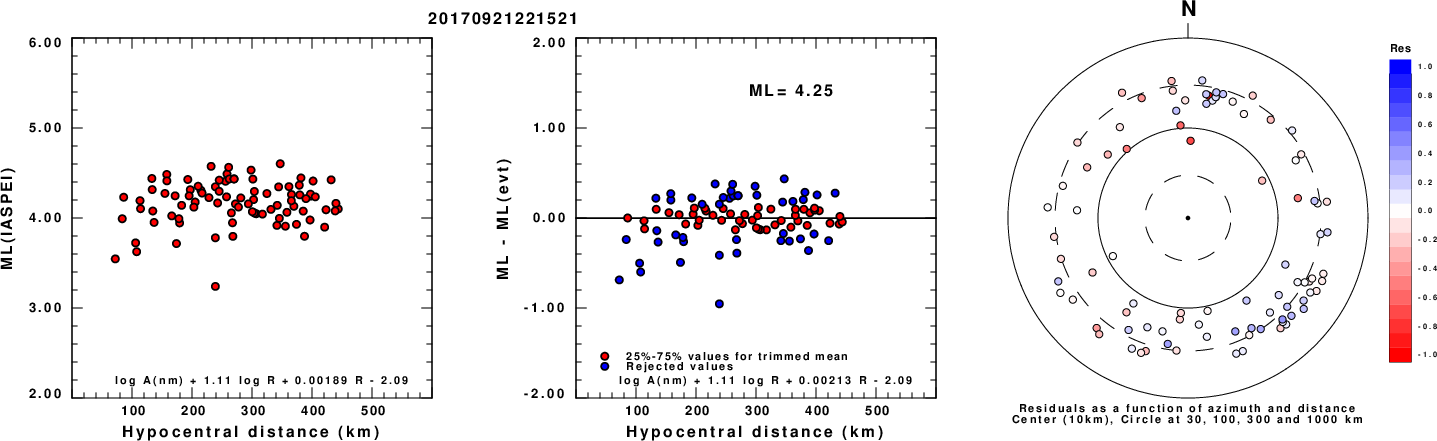

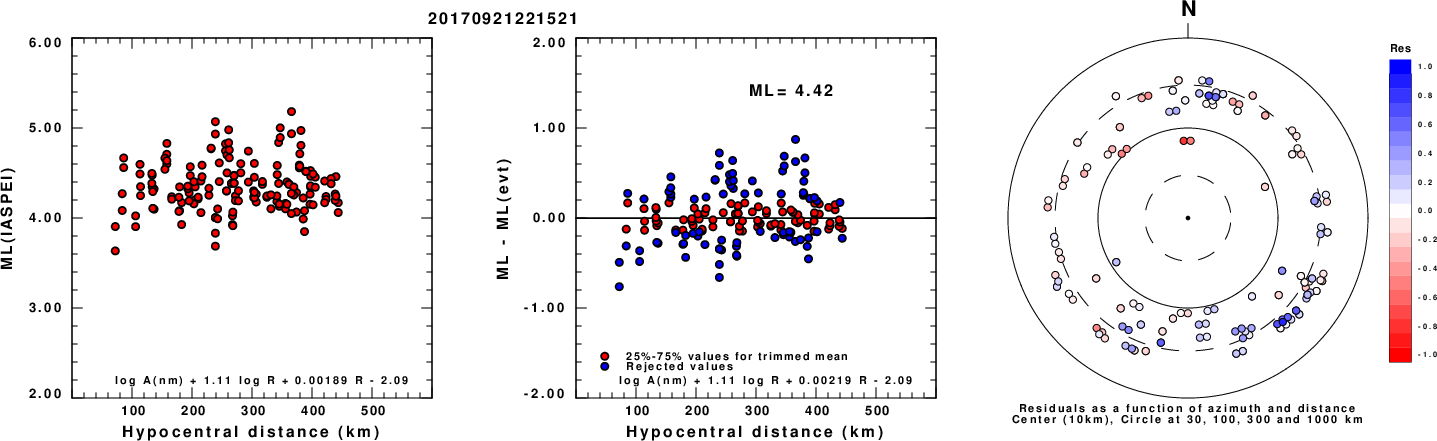

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

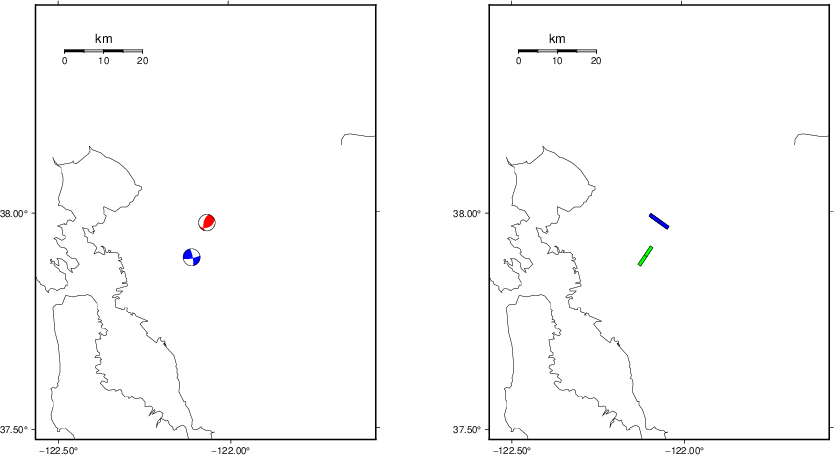

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

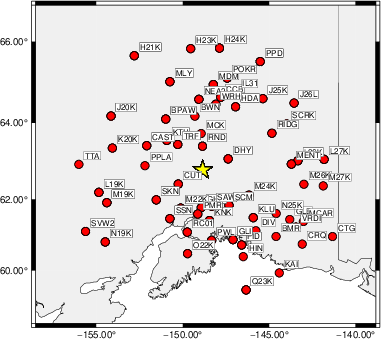

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   225    45   -85   3.62 0.2969
WVFGRD96    2.0    40    45   -95   3.76 0.3871
WVFGRD96    3.0   245    45   -65   3.77 0.2939
WVFGRD96    4.0     0    40     0   3.72 0.2788
WVFGRD96    5.0    -5    40    -5   3.74 0.3128
WVFGRD96    6.0   200    85   -65   3.79 0.3446
WVFGRD96    7.0    65    25   -45   3.81 0.3810
WVFGRD96    8.0    65    25   -50   3.90 0.4088
WVFGRD96    9.0    65    30   -50   3.93 0.4407
WVFGRD96   10.0    65    35   -50   3.95 0.4679
WVFGRD96   11.0   195    65    65   3.97 0.5075
WVFGRD96   12.0   195    60    60   3.99 0.5461
WVFGRD96   13.0   195    60    60   4.01 0.5781
WVFGRD96   14.0   195    60    60   4.03 0.6033
WVFGRD96   15.0   195    60    60   4.05 0.6217
WVFGRD96   16.0   195    60    60   4.06 0.6342
WVFGRD96   17.0   195    60    60   4.08 0.6409
WVFGRD96   18.0   195    60    60   4.09 0.6420
WVFGRD96   19.0   195    60    60   4.10 0.6382
WVFGRD96   20.0   195    60    60   4.11 0.6297
WVFGRD96   21.0   195    60    60   4.13 0.6167
WVFGRD96   22.0   190    60    60   4.14 0.6021
WVFGRD96   23.0   190    60    60   4.14 0.5854
WVFGRD96   24.0   190    60    60   4.15 0.5670
WVFGRD96   25.0   190    60    60   4.15 0.5472
WVFGRD96   26.0   190    60    60   4.16 0.5261
WVFGRD96   27.0   190    60    60   4.16 0.5044
WVFGRD96   28.0   190    60    60   4.17 0.4817
WVFGRD96   29.0   190    60    60   4.17 0.4581

The best solution is

WVFGRD96   18.0   195    60    60   4.09 0.6420

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

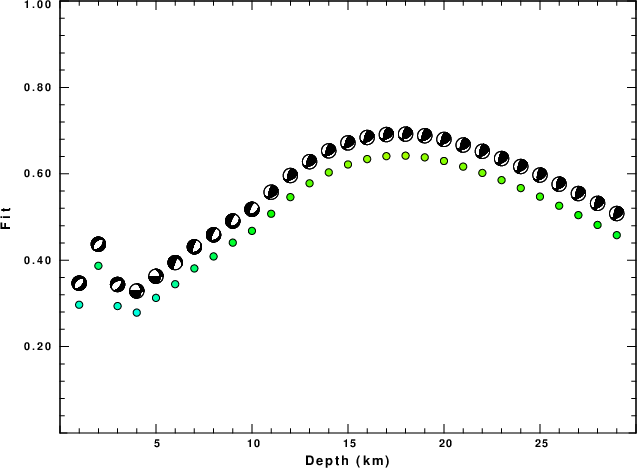

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

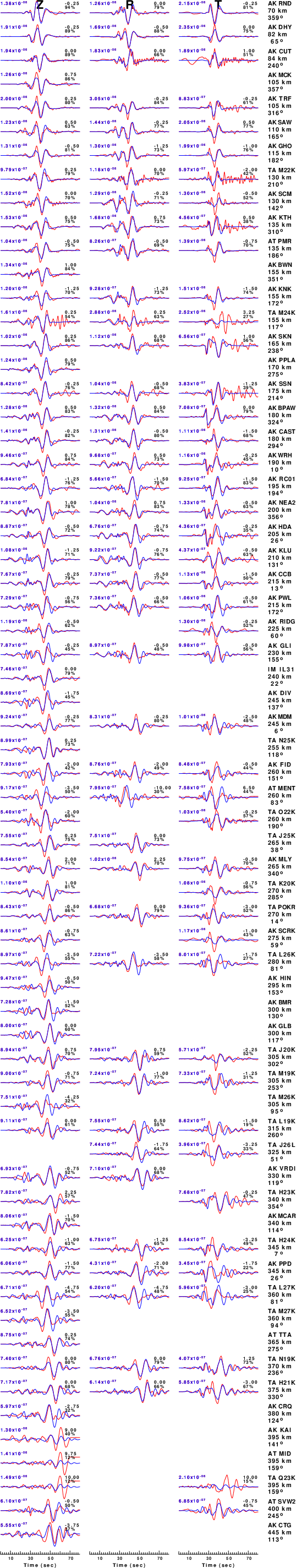

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

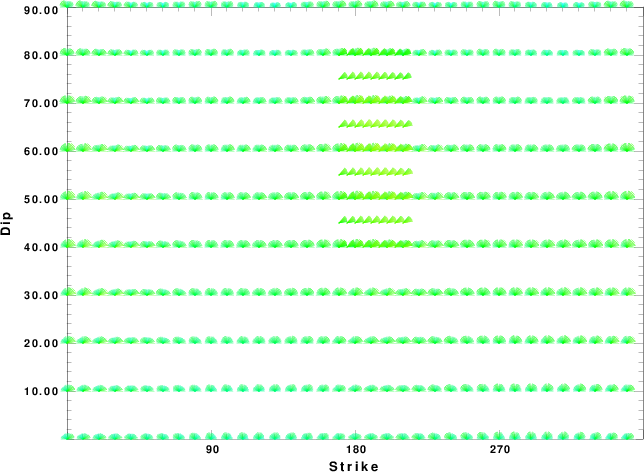

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

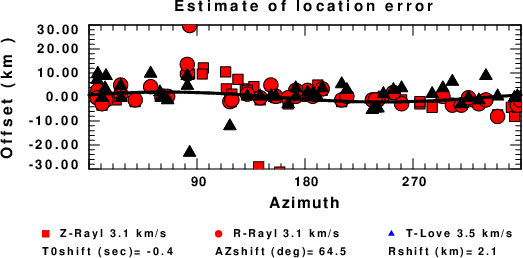

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
