The ANSS event ID is us2000anyv and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us2000anyv/executive.

2017/09/16 05:20:56 42.576 -111.413 8.7 3.9 Idaho

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2017/09/16 05:20:56:0  42.58 -111.41   8.7 3.9 Idaho

 Stations used:
   GS.ID07 GS.ID08 GS.ID09 GS.ID10 IW.DLMT IW.FLWY IW.FXWY
   IW.IMW IW.LOHW IW.MOOW IW.REDW TA.H17A TA.O20A US.AHID
   US.BW06 US.DUG US.ELK US.HLID US.HWUT US.RLMT UU.BGU
   UU.CVRU UU.HVU UU.MPU UU.NLU UU.RDMU UU.SPU UU.SWUT UU.TCU
   UU.TMU WY.YNR

 Filtering commands used:
   cut o DIST/3.3 -20 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 7.24e+21 dyne-cm
  Mw = 3.84
  Z  = 10 km
  Plane   Strike  Dip  Rake
   NP1      335    73   -148
   NP2      235    60   -20
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.24e+21      8     103
    N   0.00e+00     54       1
    P  -7.24e+21     34     199

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -4.10e+21
       Mxy    -3.02e+21
       Mxz     2.97e+21
       Myy     6.25e+21
       Myz     2.08e+21
       Mzz    -2.15e+21




                     --------------
                 ####------------------
              #########-------------------
             ############------------------
           ###############-----------########
          #################----###############
         ##################--##################
        ################------##################
        ##############---------#################
       ############-------------#################
       ###########--------------#################
       #########-----------------################
       ########-------------------###########   #
        #####----------------------########## T
        #####----------------------##########
         ###------------------------###########
          #-------------------------##########
           -----------   -----------#########
             --------- P ------------######
              --------   ------------#####
                 --------------------##
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.15e+21   2.97e+21  -2.08e+21
  2.97e+21  -4.10e+21   3.02e+21
 -2.08e+21   3.02e+21   6.25e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20170916052056/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 235
      DIP = 60
     RAKE = -20
       MW = 3.84
       HS = 10.0

The NDK file is 20170916052056.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

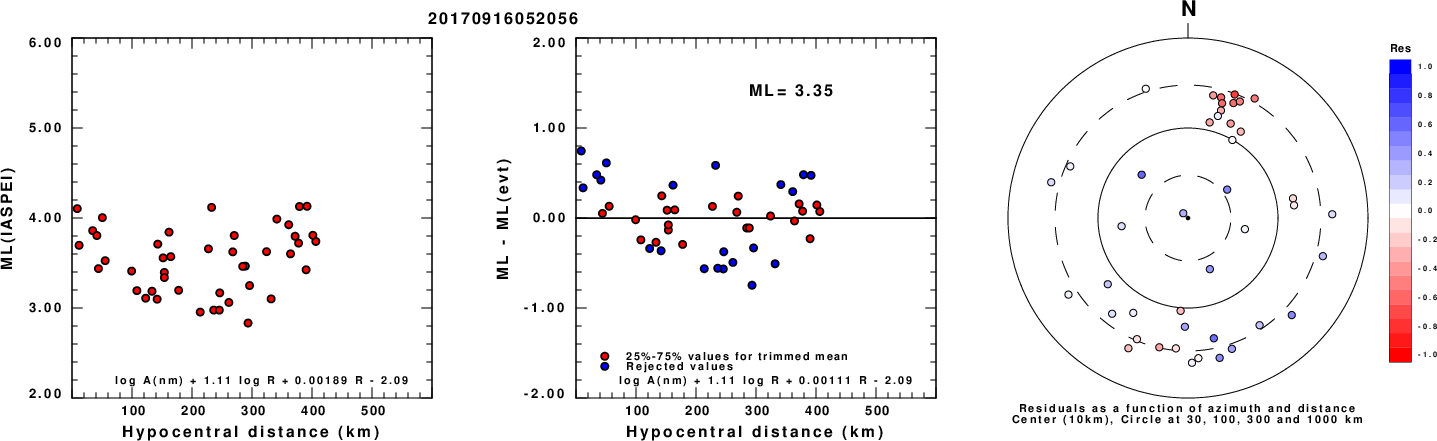

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.


Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

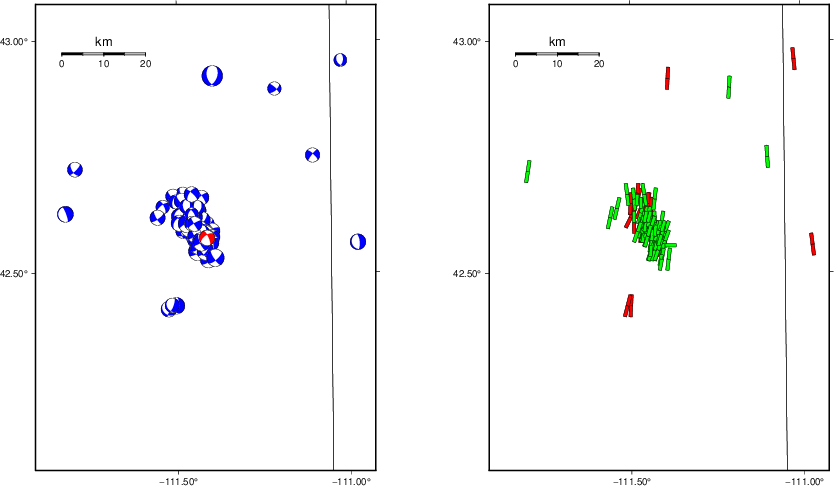

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

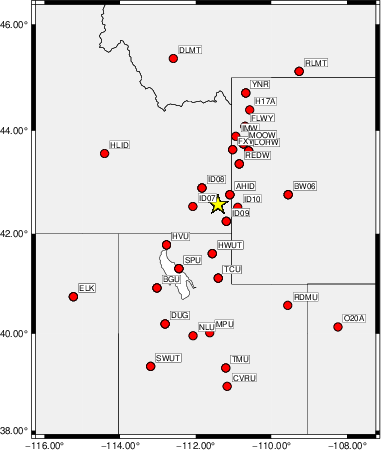

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    65    85    -5   3.37 0.3704
WVFGRD96    2.0   245    85     5   3.51 0.4893
WVFGRD96    3.0   245    55    10   3.61 0.5290
WVFGRD96    4.0   240    55   -10   3.66 0.5864
WVFGRD96    5.0   235    55   -20   3.69 0.6471
WVFGRD96    6.0   235    60   -20   3.72 0.6896
WVFGRD96    7.0   240    65   -15   3.75 0.7160
WVFGRD96    8.0   235    55   -25   3.81 0.7446
WVFGRD96    9.0   235    60   -20   3.82 0.7544
WVFGRD96   10.0   235    60   -20   3.84 0.7562
WVFGRD96   11.0   235    65   -20   3.86 0.7527
WVFGRD96   12.0   235    65   -20   3.87 0.7445
WVFGRD96   13.0   235    65   -20   3.88 0.7323
WVFGRD96   14.0   235    65   -20   3.89 0.7162
WVFGRD96   15.0   235    65   -20   3.90 0.6989
WVFGRD96   16.0   235    70   -20   3.92 0.6792
WVFGRD96   17.0   235    70   -20   3.93 0.6584
WVFGRD96   18.0   235    70   -20   3.93 0.6387
WVFGRD96   19.0   235    65   -20   3.94 0.6194
WVFGRD96   20.0   235    70   -20   3.95 0.6008
WVFGRD96   21.0   235    65   -20   3.95 0.5846
WVFGRD96   22.0   235    65   -25   3.96 0.5697
WVFGRD96   23.0   235    65   -25   3.96 0.5534
WVFGRD96   24.0   235    65   -25   3.97 0.5397
WVFGRD96   25.0   235    65   -25   3.97 0.5242
WVFGRD96   26.0   235    65   -25   3.98 0.5106
WVFGRD96   27.0   235    65   -25   3.98 0.4947
WVFGRD96   28.0   235    70   -25   3.98 0.4812
WVFGRD96   29.0   235    70   -25   3.98 0.4687

The best solution is

WVFGRD96   10.0   235    60   -20   3.84 0.7562

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

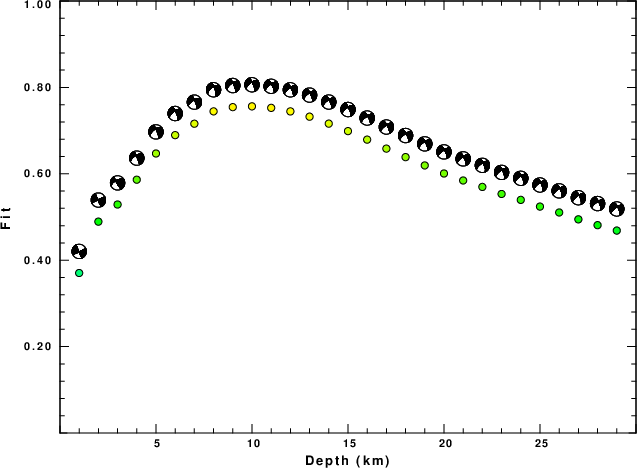

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

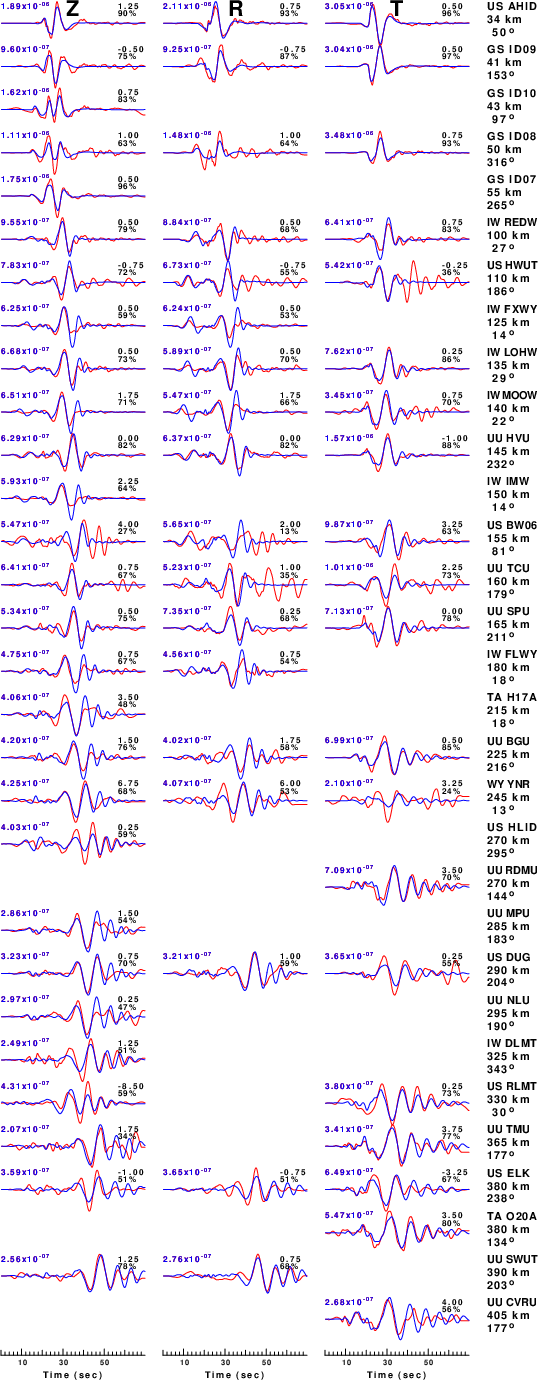

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

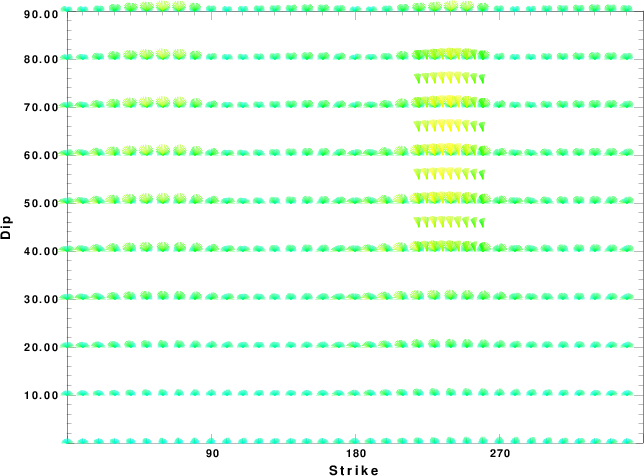

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

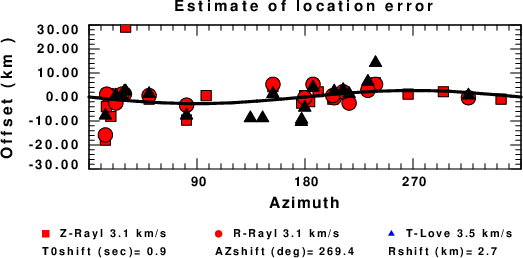

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
