The ANSS event ID is ak017brhvmq0 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak017brhvmq0/executive.
2017/09/13 07:22:18 62.898 -149.921 79.6 4.2 Alaska
USGS/SLU Moment Tensor Solution ENS 2017/09/13 07:22:18:0 62.90 -149.92 79.6 4.2 Alaska Stations used: AK.CAST AK.CUT AK.DHY AK.DIV AK.FID AK.GHO AK.GLI AK.KNK AK.KTH AK.MLY AK.NEA2 AK.PPLA AK.PWL AK.RC01 AK.RND AK.SAW AK.SCM AK.SKN AK.SSN AK.TRF AT.PMR TA.I23K TA.J20K TA.K20K TA.M19K TA.M22K TA.M24K Filtering commands used: cut o DIST/3.5 -30 o DIST/3.5 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 2.34e+22 dyne-cm Mw = 4.18 Z = 78 km Plane Strike Dip Rake NP1 21 80 102 NP2 150 15 40 Principal Axes: Axis Value Plunge Azimuth T 2.34e+22 53 305 N 0.00e+00 11 199 P -2.34e+22 34 101 Moment Tensor: (dyne-cm) Component Value Mxx 2.14e+21 Mxy -9.38e+20 Mxz 8.50e+21 Myy -9.68e+21 Myz -2.00e+22 Mzz 7.53e+21 ############## ##################---- -####################------- -#####################-------- -######################----------- -#######################------------ --######################-------------- --######### ###########--------------- --######### T ##########---------------- ---######### ##########----------------- ---#####################------------------ ---####################---------- ------ ---####################---------- P ------ ---##################----------- ----- ---#################-------------------- ---###############-------------------- ---#############-------------------- ----##########-------------------- ---########------------------- -----####------------------- ---------------------- ########----## Global CMT Convention Moment Tensor: R T P 7.53e+21 8.50e+21 2.00e+22 8.50e+21 2.14e+21 9.38e+20 2.00e+22 9.38e+20 -9.68e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20170913072218/index.html |
STK = 150 DIP = 15 RAKE = 40 MW = 4.18 HS = 78.0
The NDK file is 20170913072218.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

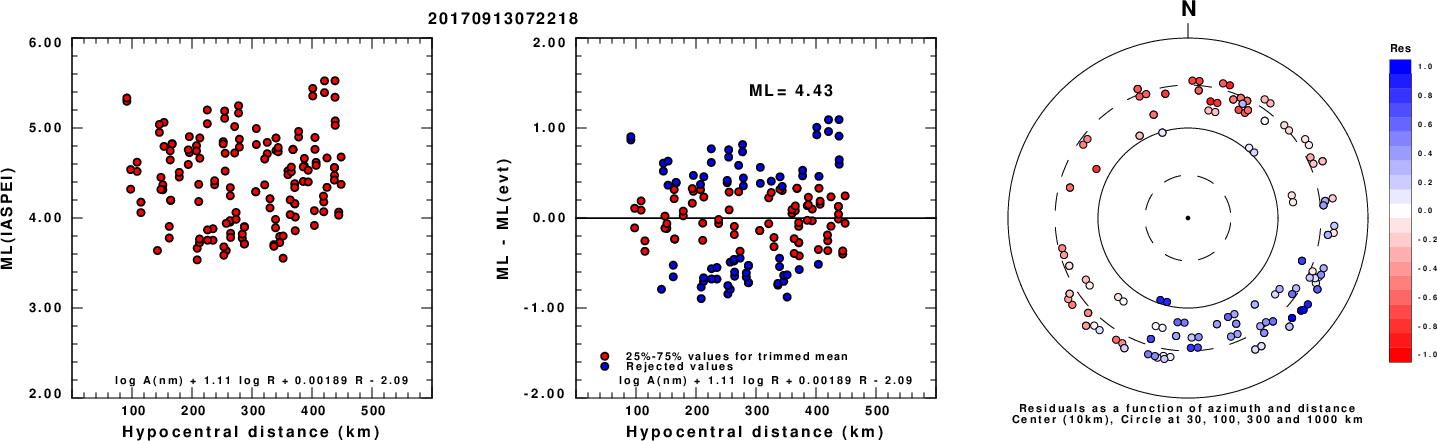

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

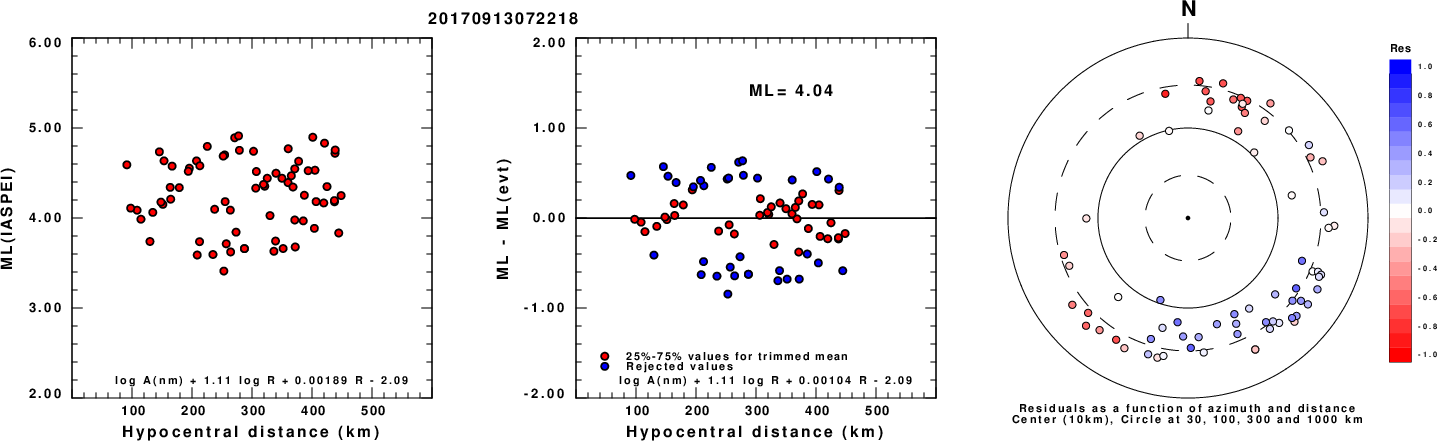

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

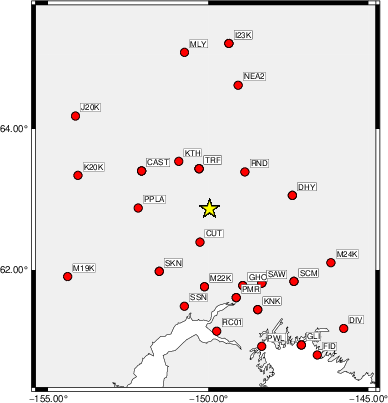

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.5 -30 o DIST/3.5 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 2.0 10 70 5 3.21 0.1439 WVFGRD96 4.0 10 70 10 3.32 0.1688 WVFGRD96 6.0 10 70 10 3.39 0.1758 WVFGRD96 8.0 275 75 -15 3.48 0.1854 WVFGRD96 10.0 275 70 -15 3.53 0.1885 WVFGRD96 12.0 100 75 10 3.57 0.1952 WVFGRD96 14.0 100 70 10 3.61 0.2023 WVFGRD96 16.0 100 70 10 3.64 0.2077 WVFGRD96 18.0 100 75 5 3.67 0.2144 WVFGRD96 20.0 100 70 0 3.70 0.2254 WVFGRD96 22.0 100 70 0 3.72 0.2361 WVFGRD96 24.0 100 70 0 3.74 0.2450 WVFGRD96 26.0 100 65 5 3.77 0.2547 WVFGRD96 28.0 105 60 20 3.79 0.2645 WVFGRD96 30.0 105 60 15 3.81 0.2742 WVFGRD96 32.0 105 55 20 3.83 0.2841 WVFGRD96 34.0 105 50 15 3.85 0.2918 WVFGRD96 36.0 100 55 0 3.85 0.2988 WVFGRD96 38.0 100 60 0 3.87 0.3072 WVFGRD96 40.0 155 25 55 4.02 0.3137 WVFGRD96 42.0 150 25 50 4.03 0.3205 WVFGRD96 44.0 150 25 45 4.05 0.3452 WVFGRD96 46.0 150 25 45 4.06 0.3697 WVFGRD96 48.0 150 25 45 4.08 0.3908 WVFGRD96 50.0 150 25 45 4.09 0.4126 WVFGRD96 52.0 150 25 45 4.11 0.4297 WVFGRD96 54.0 150 25 45 4.12 0.4462 WVFGRD96 56.0 150 25 45 4.13 0.4587 WVFGRD96 58.0 155 15 50 4.13 0.4706 WVFGRD96 60.0 150 15 45 4.14 0.4846 WVFGRD96 62.0 145 15 40 4.14 0.4983 WVFGRD96 64.0 145 15 35 4.14 0.5115 WVFGRD96 66.0 145 15 35 4.15 0.5235 WVFGRD96 68.0 145 15 35 4.16 0.5324 WVFGRD96 70.0 145 15 35 4.16 0.5408 WVFGRD96 72.0 145 15 35 4.17 0.5478 WVFGRD96 74.0 150 15 40 4.17 0.5512 WVFGRD96 76.0 150 15 40 4.18 0.5524 WVFGRD96 78.0 150 15 40 4.18 0.5536 WVFGRD96 80.0 145 15 30 4.18 0.5531 WVFGRD96 82.0 145 15 30 4.18 0.5503 WVFGRD96 84.0 145 15 30 4.18 0.5520 WVFGRD96 86.0 140 15 25 4.18 0.5512 WVFGRD96 88.0 140 15 25 4.18 0.5472 WVFGRD96 90.0 140 15 25 4.19 0.5478 WVFGRD96 92.0 140 15 25 4.19 0.5439 WVFGRD96 94.0 140 15 25 4.19 0.5399 WVFGRD96 96.0 140 15 20 4.19 0.5357 WVFGRD96 98.0 145 10 30 4.19 0.5302
The best solution is
WVFGRD96 78.0 150 15 40 4.18 0.5536

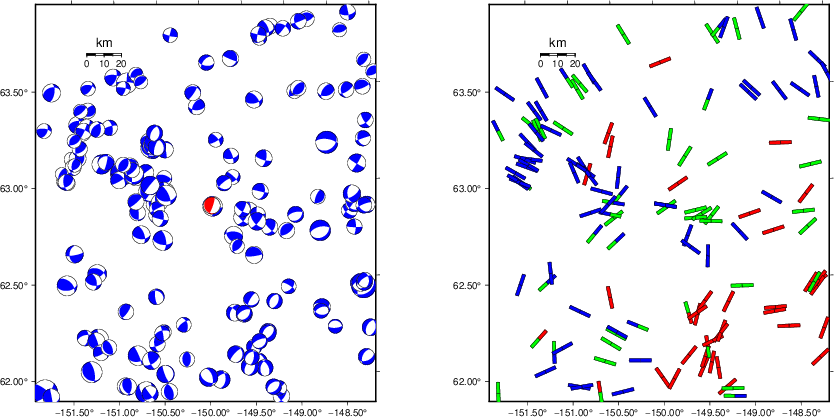

The mechanism corresponding to the best fit is
![]() |
|

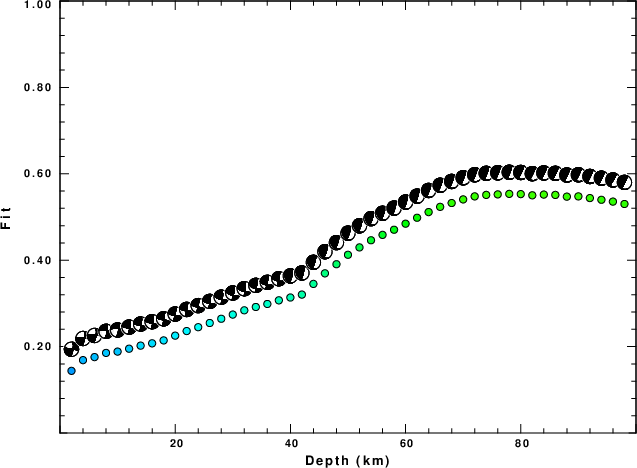

The best fit as a function of depth is given in the following figure:
![]() |
|

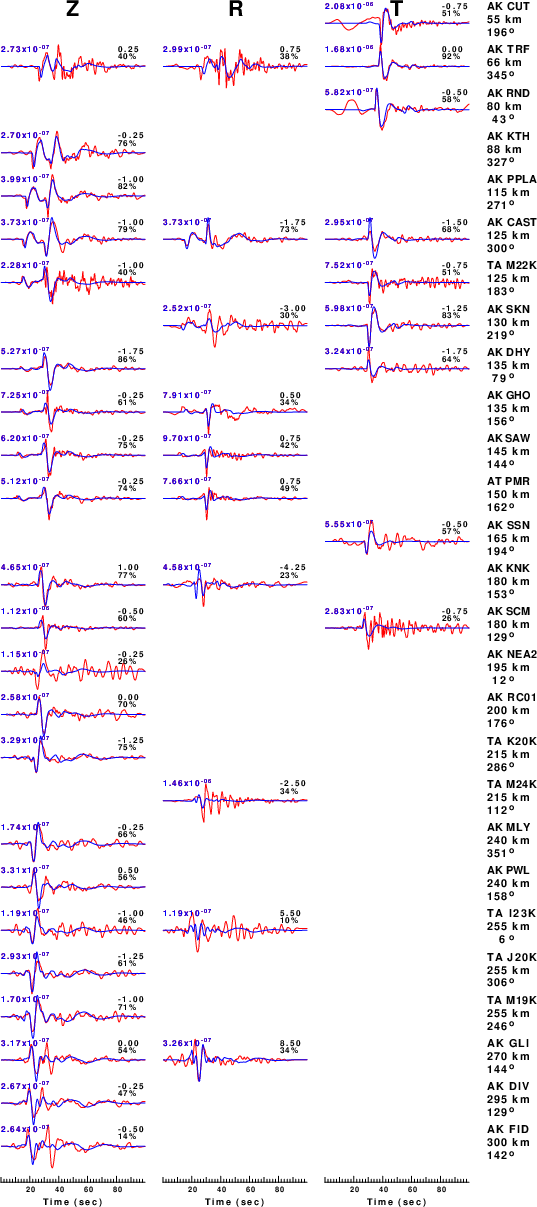

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.5 -30 o DIST/3.5 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

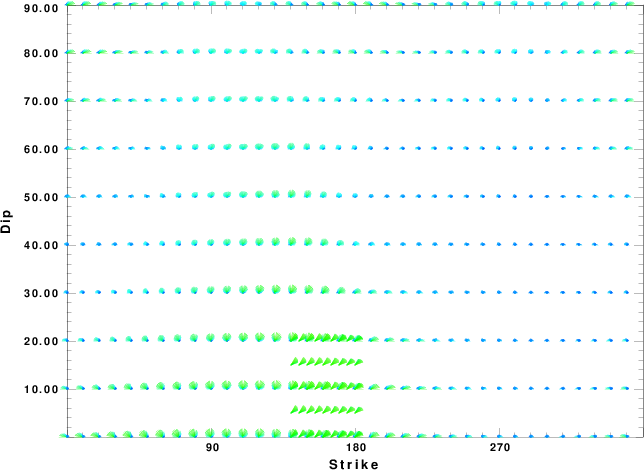

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

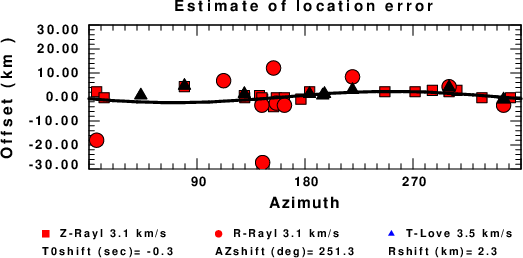

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
