The ANSS event ID is us2000a6uf and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us2000a6uf/executive.
2017/08/10 09:38:03 60.413 -140.587 7.3 3.8 Yukon

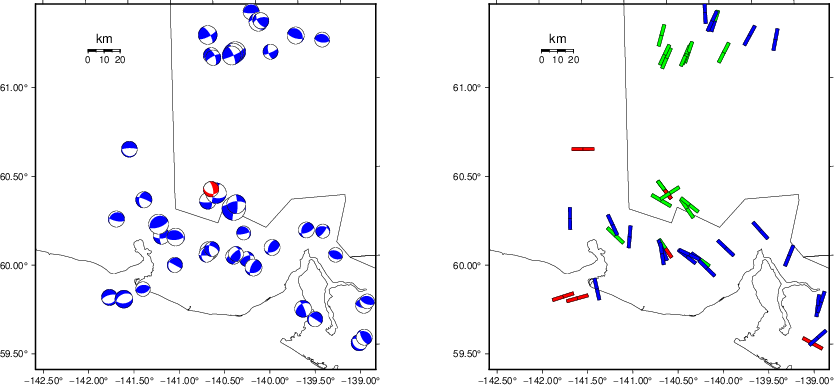

USGS/SLU Moment Tensor Solution ENS 2017/08/10 09:38:03:0 60.41 -140.59 7.3 3.8 Yukon Stations used: AK.BARN AK.BCP AK.CRQ AK.CTG AK.GLB AK.GRNC AK.ISLE AK.JIS AK.KLU AK.LOGN AK.MCAR AK.MESA AK.SCM AK.SSP AK.TABL AK.TGL AK.VRDI AK.WAX AK.YAH AT.MENT CN.HYT TA.L26K TA.L27K TA.M30M TA.M31M TA.N25K TA.N31M TA.P29M TA.P33M Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 7.24e+21 dyne-cm Mw = 3.84 Z = 14 km Plane Strike Dip Rake NP1 350 70 -55 NP2 106 40 -148 Principal Axes: Axis Value Plunge Azimuth T 7.24e+21 18 55 N 0.00e+00 33 157 P -7.24e+21 52 301 Moment Tensor: (dyne-cm) Component Value Mxx 1.45e+21 Mxy 4.32e+21 Mxz -6.10e+20 Myy 2.36e+21 Myz 4.72e+21 Mzz -3.81e+21 ----########## ----------############ --------------############## ----------------############## -------------------########### # ---------------------########## T ## ----------------------########## ### ---------- -----------################ ---------- P -----------################ ##--------- ------------################ ##------------------------################ ###-----------------------################ ####-----------------------############### #####---------------------############## #######-------------------#############- ########-----------------###########-- ##########--------------#########--- ##############---------####------- ####################---------- ###################--------- ################------ ###########--- Global CMT Convention Moment Tensor: R T P -3.81e+21 -6.10e+20 -4.72e+21 -6.10e+20 1.45e+21 -4.32e+21 -4.72e+21 -4.32e+21 2.36e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20170810093803/index.html |
STK = 350 DIP = 70 RAKE = -55 MW = 3.84 HS = 14.0
The NDK file is 20170810093803.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

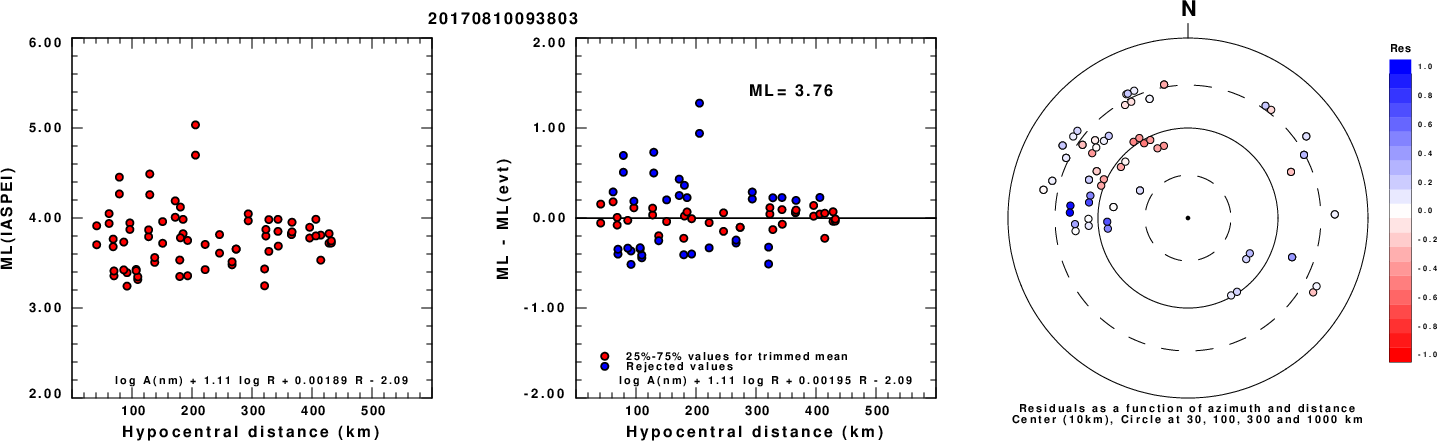

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

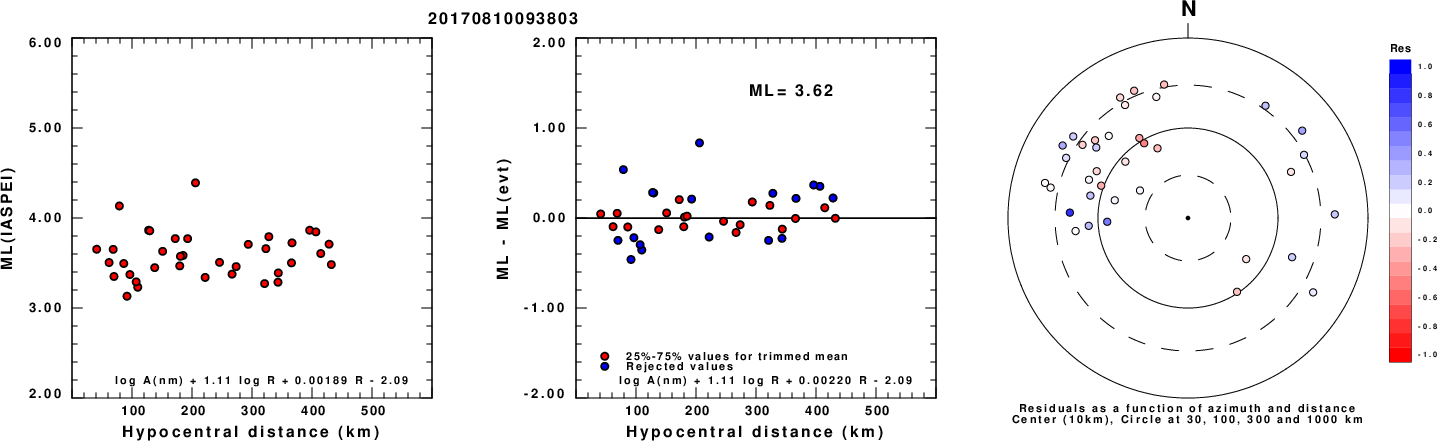

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

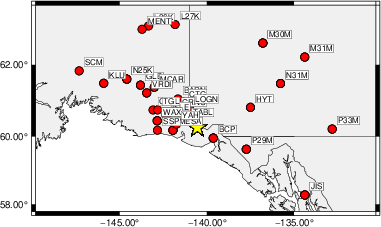

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 140 40 85 3.77 0.4543 WVFGRD96 2.0 145 35 85 3.83 0.4129 WVFGRD96 3.0 280 35 20 3.73 0.4181 WVFGRD96 4.0 275 40 15 3.72 0.4511 WVFGRD96 5.0 270 40 10 3.73 0.4801 WVFGRD96 6.0 270 40 10 3.73 0.5053 WVFGRD96 7.0 -5 75 -50 3.74 0.5276 WVFGRD96 8.0 -5 75 -50 3.74 0.5471 WVFGRD96 9.0 -5 75 -50 3.75 0.5616 WVFGRD96 10.0 350 70 -55 3.80 0.5766 WVFGRD96 11.0 350 70 -55 3.81 0.5864 WVFGRD96 12.0 350 70 -55 3.82 0.5932 WVFGRD96 13.0 350 70 -55 3.83 0.5970 WVFGRD96 14.0 350 70 -55 3.84 0.5987 WVFGRD96 15.0 350 70 -55 3.85 0.5981 WVFGRD96 16.0 345 70 -60 3.86 0.5954 WVFGRD96 17.0 345 70 -60 3.87 0.5911 WVFGRD96 18.0 345 70 -60 3.88 0.5852 WVFGRD96 19.0 345 70 -60 3.89 0.5784 WVFGRD96 20.0 345 70 -65 3.92 0.5762 WVFGRD96 21.0 345 70 -65 3.93 0.5677 WVFGRD96 22.0 345 70 -65 3.94 0.5589 WVFGRD96 23.0 345 70 -65 3.95 0.5495 WVFGRD96 24.0 350 70 -60 3.95 0.5399 WVFGRD96 25.0 350 70 -60 3.95 0.5312 WVFGRD96 26.0 350 70 -60 3.96 0.5219 WVFGRD96 27.0 350 70 -60 3.97 0.5125 WVFGRD96 28.0 350 70 -60 3.98 0.5026 WVFGRD96 29.0 350 70 -60 3.98 0.4925
The best solution is
WVFGRD96 14.0 350 70 -55 3.84 0.5987
The mechanism corresponding to the best fit is
![]() |
|

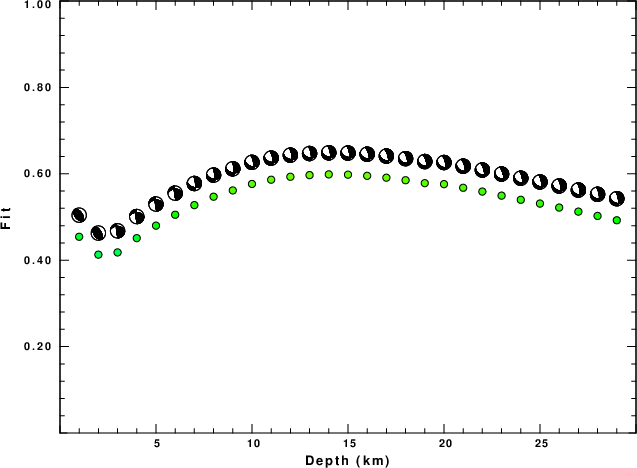

The best fit as a function of depth is given in the following figure:
![]() |
|

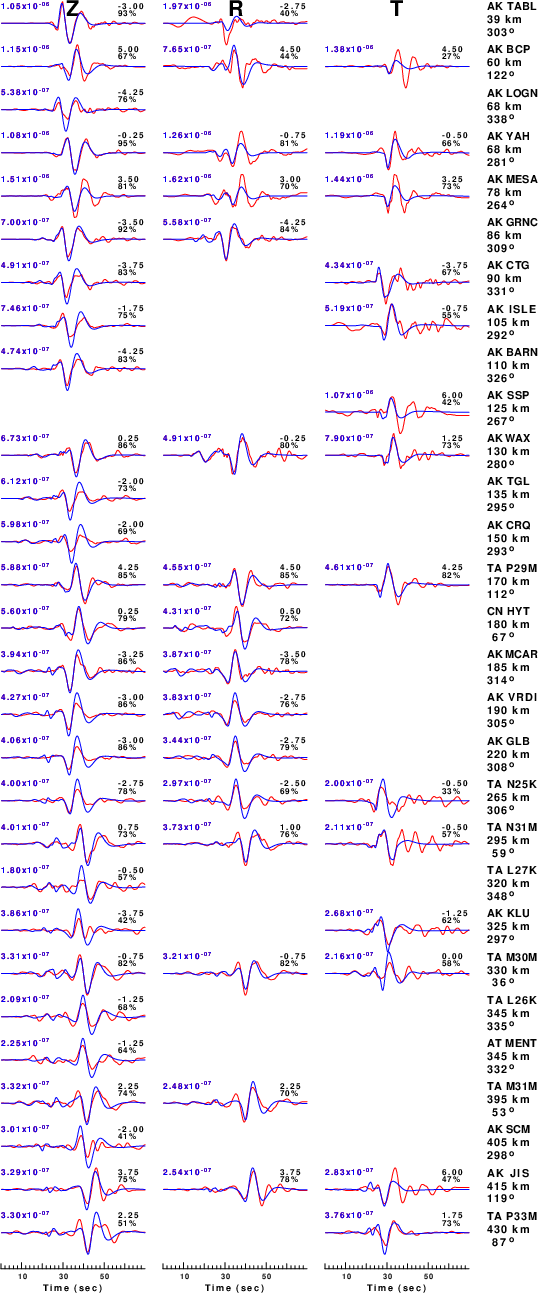

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

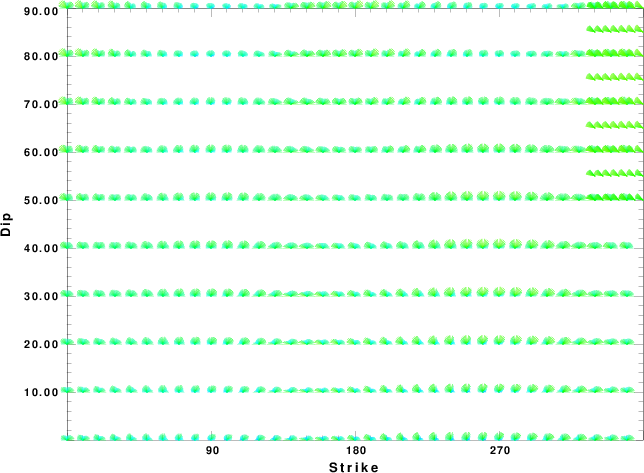

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

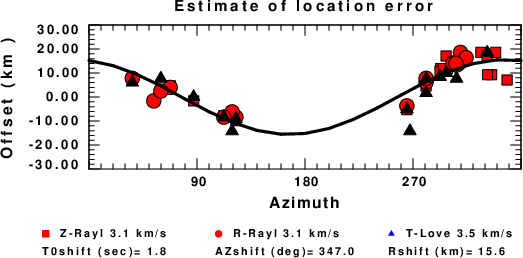

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
