Location

Location ANSS

The ANSS event ID is ak0178yhumx4 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0178yhumx4/executive.

2017/07/14 00:09:15 63.078 -150.663 118.2 4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2017/07/14 00:09:15:0  63.08 -150.66 118.2 4.0 Alaska

 Stations used:
   AK.BPAW AK.BWN AK.CAST AK.DHY AK.GHO AK.GLI AK.KLU AK.KNK
   AK.KTH AK.MDM AK.MLY AK.NEA2 AK.PAX AK.RC01 AK.SAW AK.SCM
   AK.TRF AT.PMR IU.COLA TA.H21K TA.H23K TA.I21K TA.I23K
   TA.J20K TA.J25K TA.K20K TA.L19K TA.M20K TA.M22K TA.POKR
   TA.TCOL

 Filtering commands used:
   cut o DIST/3.4 -50 o DIST/3.4 +60
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 1.30e+22 dyne-cm
  Mw = 4.01
  Z  = 122 km
  Plane   Strike  Dip  Rake
   NP1      234    87   -125
   NP2      140    35    -5
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.30e+22     33     353
    N   0.00e+00     35     236
    P  -1.30e+22     38     113

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     7.77e+21
       Mxy     1.82e+21
       Mxz     8.40e+21
       Myy    -6.71e+21
       Myz    -6.54e+21
       Mzz    -1.07e+21




                     ##############
                 ######################
              -##########   ##############
             -########### T ###############
           --############   #################
          --##############################----
         ---###########################--------
        ----########################------------
        ----#####################---------------
       -----###################------------------
       ------###############---------------------
       ------############------------------------
       -------#########---------------   --------
        -------######----------------- P -------
        --------##--------------------   -------
         -------#------------------------------
          ----#####---------------------------
           ##########------------------------
             ###########-------------------
              #############---------------
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.07e+21   8.40e+21   6.54e+21
  8.40e+21   7.77e+21  -1.82e+21
  6.54e+21  -1.82e+21  -6.71e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20170714000915/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 140
      DIP = 35
     RAKE = -5
       MW = 4.01
       HS = 122.0

The NDK file is 20170714000915.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

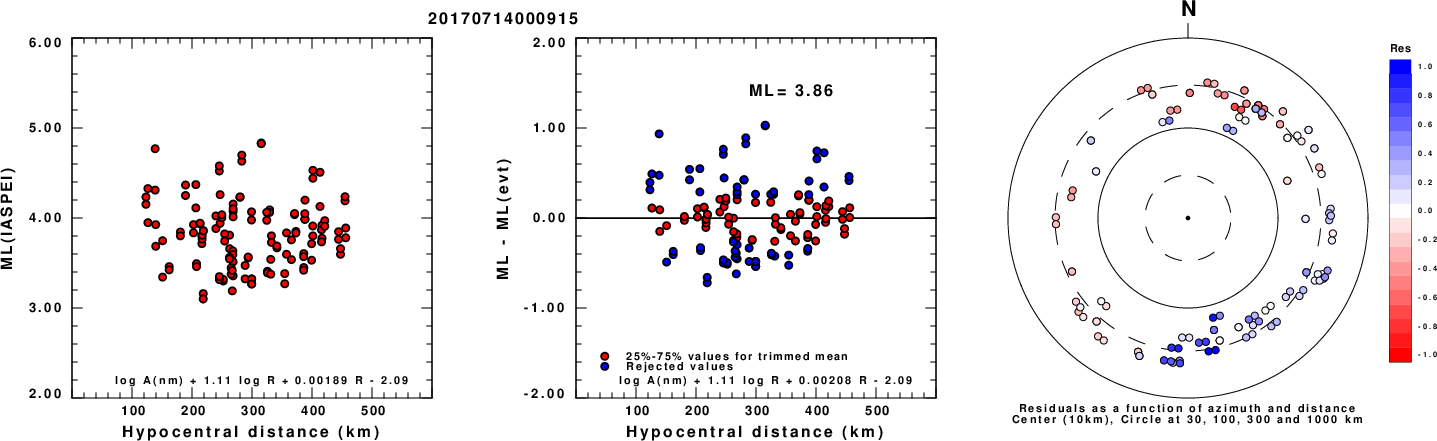

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

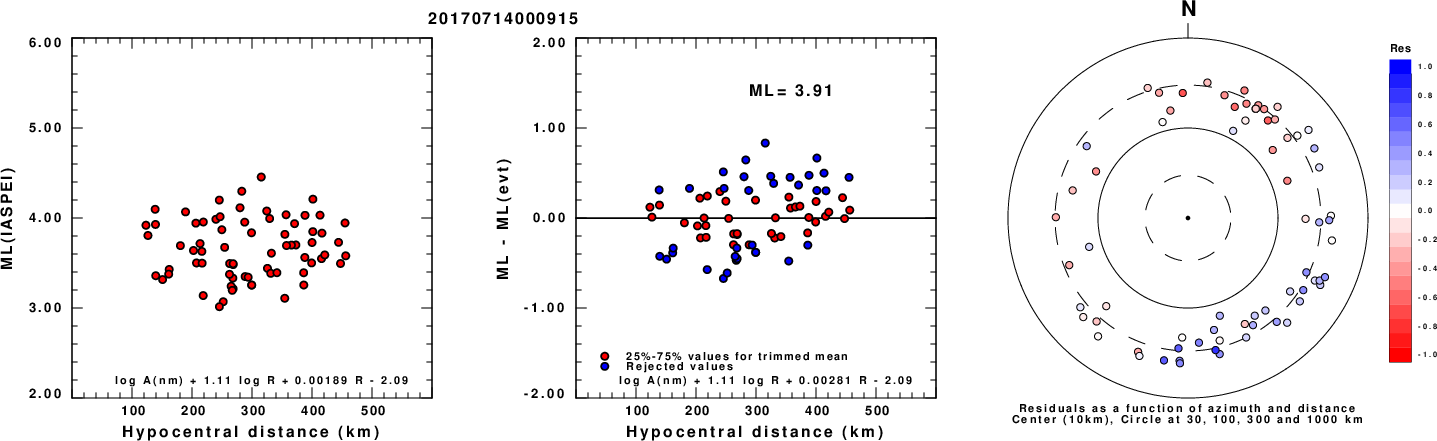

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

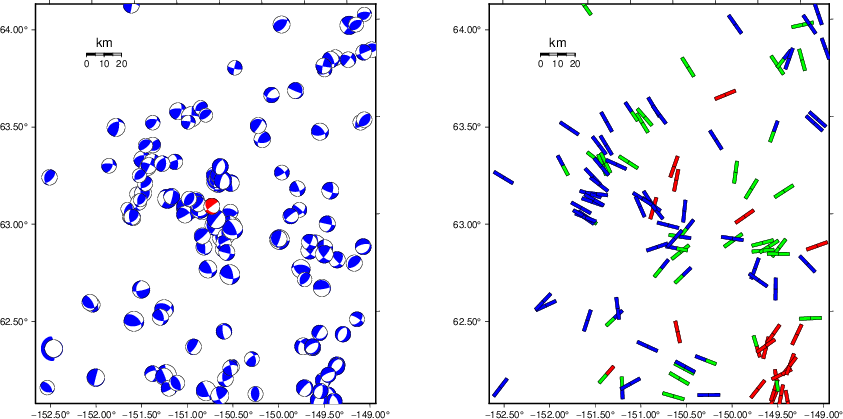

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

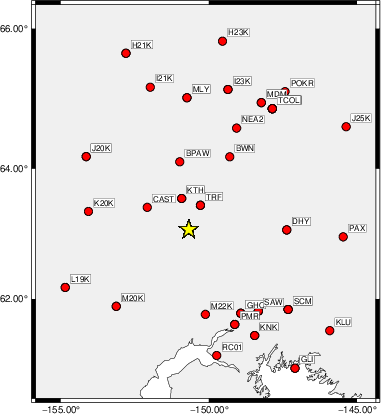

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.4 -50 o DIST/3.4 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   235    70   -30   2.94 0.1222
WVFGRD96    4.0   250    65    30   3.03 0.1419
WVFGRD96    6.0   250    70    30   3.08 0.1554
WVFGRD96    8.0   255    65    30   3.17 0.1685
WVFGRD96   10.0   250    75    30   3.20 0.1723
WVFGRD96   12.0    60    90   -30   3.23 0.1739
WVFGRD96   14.0    60    90   -30   3.26 0.1737
WVFGRD96   16.0    60    90   -30   3.28 0.1702
WVFGRD96   18.0    60    90   -30   3.31 0.1646
WVFGRD96   20.0    60    90   -30   3.32 0.1566
WVFGRD96   22.0    55    65   -20   3.36 0.1476
WVFGRD96   24.0    95    45    -5   3.43 0.1434
WVFGRD96   26.0    95    45    -5   3.45 0.1444
WVFGRD96   28.0    95    45   -10   3.48 0.1453
WVFGRD96   30.0    95    45   -10   3.50 0.1472
WVFGRD96   32.0    95    50   -15   3.52 0.1520
WVFGRD96   34.0   100    60   -25   3.51 0.1584
WVFGRD96   36.0   100    60   -25   3.54 0.1666
WVFGRD96   38.0   105    60   -25   3.57 0.1749
WVFGRD96   40.0   105    60   -35   3.63 0.1740
WVFGRD96   42.0   135    45    35   3.71 0.1729
WVFGRD96   44.0   135    50    30   3.73 0.1844
WVFGRD96   46.0   135    50    30   3.76 0.2004
WVFGRD96   48.0   135    50    30   3.79 0.2197
WVFGRD96   50.0   135    50    25   3.81 0.2430
WVFGRD96   52.0   135    50    25   3.84 0.2695
WVFGRD96   54.0   140    55    25   3.85 0.2980
WVFGRD96   56.0   145    55    25   3.86 0.3266
WVFGRD96   58.0   145    60    25   3.88 0.3564
WVFGRD96   60.0   145    60    20   3.89 0.3809
WVFGRD96   62.0   145    60    20   3.90 0.3966
WVFGRD96   64.0   150    40    10   3.87 0.4218
WVFGRD96   66.0   150    40    10   3.88 0.4501
WVFGRD96   68.0   150    35     5   3.88 0.4756
WVFGRD96   70.0   150    35     5   3.89 0.4928
WVFGRD96   72.0   150    35     5   3.90 0.5016
WVFGRD96   74.0   150    40     5   3.91 0.5107
WVFGRD96   76.0   150    40     5   3.92 0.5204
WVFGRD96   78.0   140    35     0   3.93 0.5303
WVFGRD96   80.0   140    35     0   3.94 0.5396
WVFGRD96   82.0   140    35     0   3.94 0.5474
WVFGRD96   84.0   140    35     0   3.95 0.5564
WVFGRD96   86.0   135    35    -5   3.95 0.5641
WVFGRD96   88.0   135    35    -5   3.96 0.5732
WVFGRD96   90.0   140    40     0   3.96 0.5813
WVFGRD96   92.0   140    40     0   3.97 0.5889
WVFGRD96   94.0   140    40     0   3.97 0.5975
WVFGRD96   96.0   140    40     0   3.98 0.6025
WVFGRD96   98.0   140    40     0   3.98 0.6109
WVFGRD96  100.0   140    35    -5   3.98 0.6156
WVFGRD96  102.0   140    35    -5   3.98 0.6217
WVFGRD96  104.0   140    35    -5   3.98 0.6268
WVFGRD96  106.0   140    35    -5   3.99 0.6317
WVFGRD96  108.0   140    35    -5   3.99 0.6352
WVFGRD96  110.0   140    35    -5   3.99 0.6381
WVFGRD96  112.0   140    35    -5   4.00 0.6415
WVFGRD96  114.0   140    35    -5   4.00 0.6429
WVFGRD96  116.0   140    35    -5   4.00 0.6438
WVFGRD96  118.0   140    35    -5   4.00 0.6456
WVFGRD96  120.0   140    35    -5   4.01 0.6448
WVFGRD96  122.0   140    35    -5   4.01 0.6461
WVFGRD96  124.0   135    30   -10   4.02 0.6435
WVFGRD96  126.0   135    30   -10   4.02 0.6438
WVFGRD96  128.0   135    30   -10   4.02 0.6421

The best solution is

WVFGRD96  122.0   140    35    -5   4.01 0.6461

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

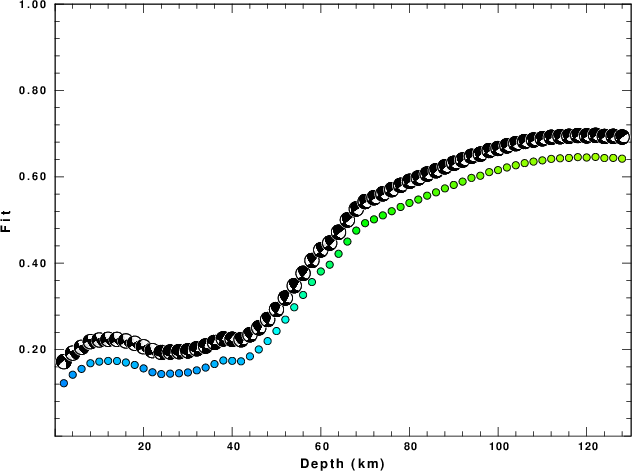

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

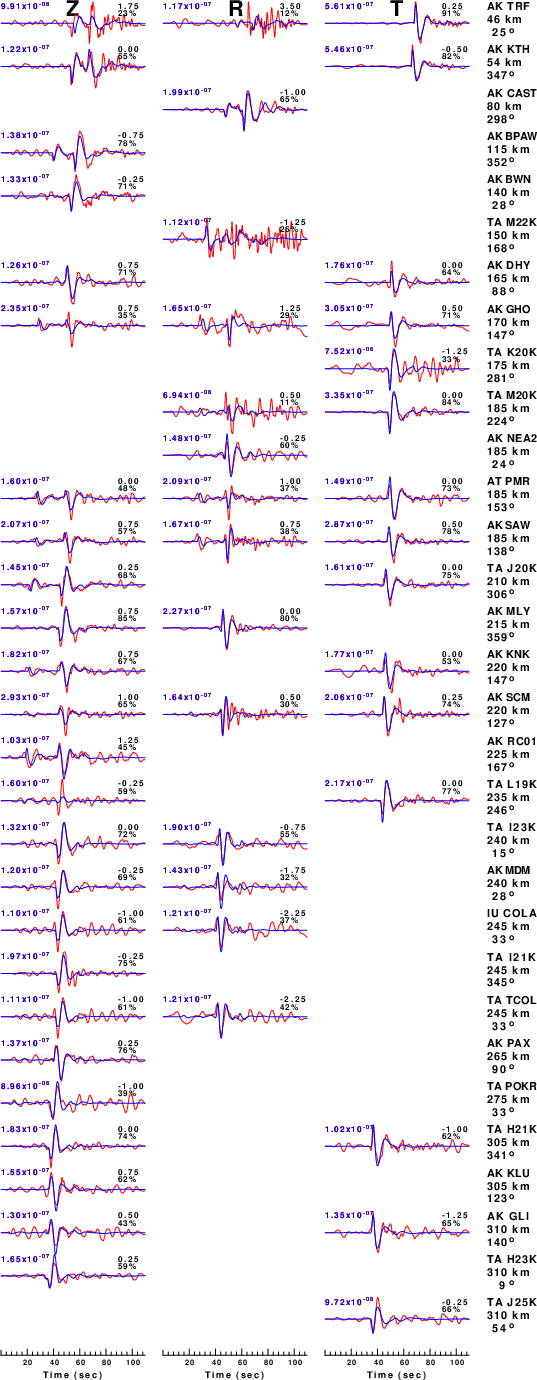

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.4 -50 o DIST/3.4 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

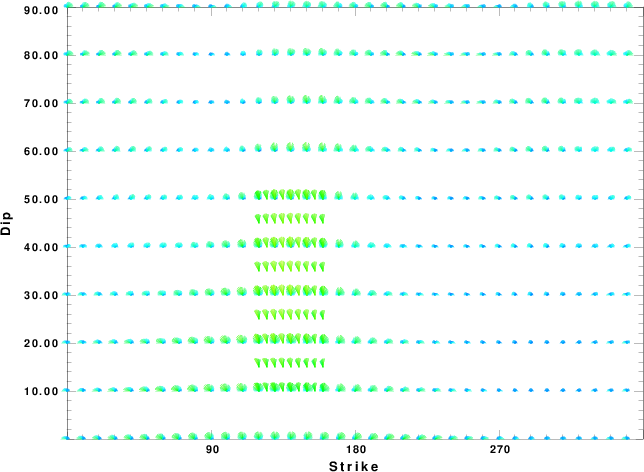

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

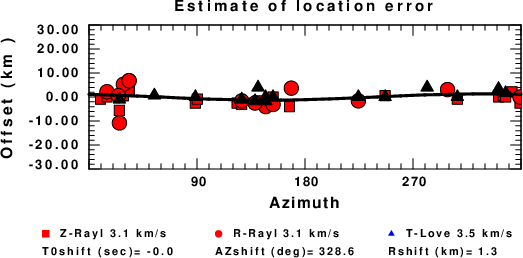

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
