The ANSS event ID is ak0177oakw2n and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0177oakw2n/executive.
2017/06/16 06:43:53 61.385 -146.609 32.5 3.6 Alaska
USGS/SLU Moment Tensor Solution ENS 2017/06/16 06:43:53:0 61.38 -146.61 32.5 3.6 Alaska Stations used: AK.DHY AK.EYAK AK.GHO AK.GLB AK.GLI AK.KLU AK.KNK AK.MCAR AK.PWL AK.SAW AK.SCM AK.VRDI AT.PMR TA.N25K Filtering commands used: cut o DIST/3.5 -30 o DIST/3.5 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 2.95e+21 dyne-cm Mw = 3.58 Z = 49 km Plane Strike Dip Rake NP1 181 76 -122 NP2 70 35 -25 Principal Axes: Axis Value Plunge Azimuth T 2.95e+21 24 295 N 0.00e+00 31 190 P -2.95e+21 49 56 Moment Tensor: (dyne-cm) Component Value Mxx 4.88e+19 Mxy -1.55e+21 Mxz -3.49e+20 Myy 1.12e+21 Myz -2.20e+21 Mzz -1.17e+21 #######------- ##########------------ ############---------------- #############----------------- ###############------------------- ###############--------------------- ### ##########---------- --------- #### T ##########---------- P ---------- #### ##########---------- ---------# ##################----------------------## #################-----------------------## #################----------------------### #################---------------------#### ################--------------------#### #################-----------------###### -###############---------------####### --#############-------------######## ----##########---------########### -------######--############### ------------################ ---------############# ------######## Global CMT Convention Moment Tensor: R T P -1.17e+21 -3.49e+20 2.20e+21 -3.49e+20 4.88e+19 1.55e+21 2.20e+21 1.55e+21 1.12e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20170616064353/index.html |
STK = 70 DIP = 35 RAKE = -25 MW = 3.58 HS = 49.0
The NDK file is 20170616064353.ndk The waveform inversion is preferred.

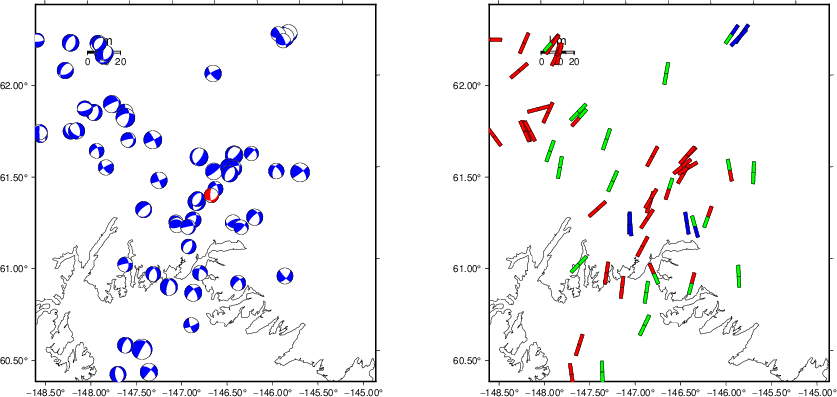

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

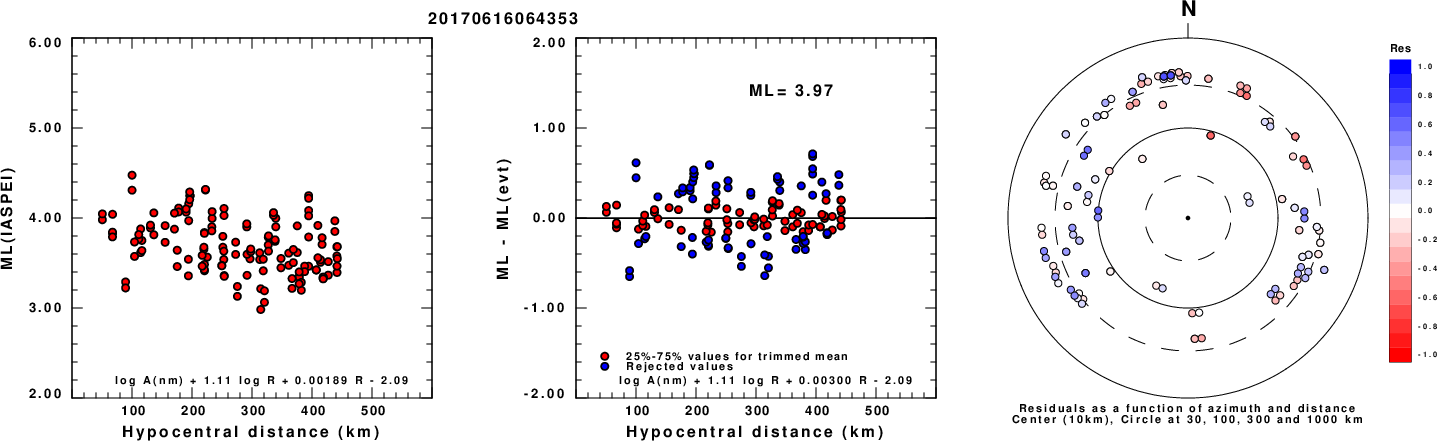

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

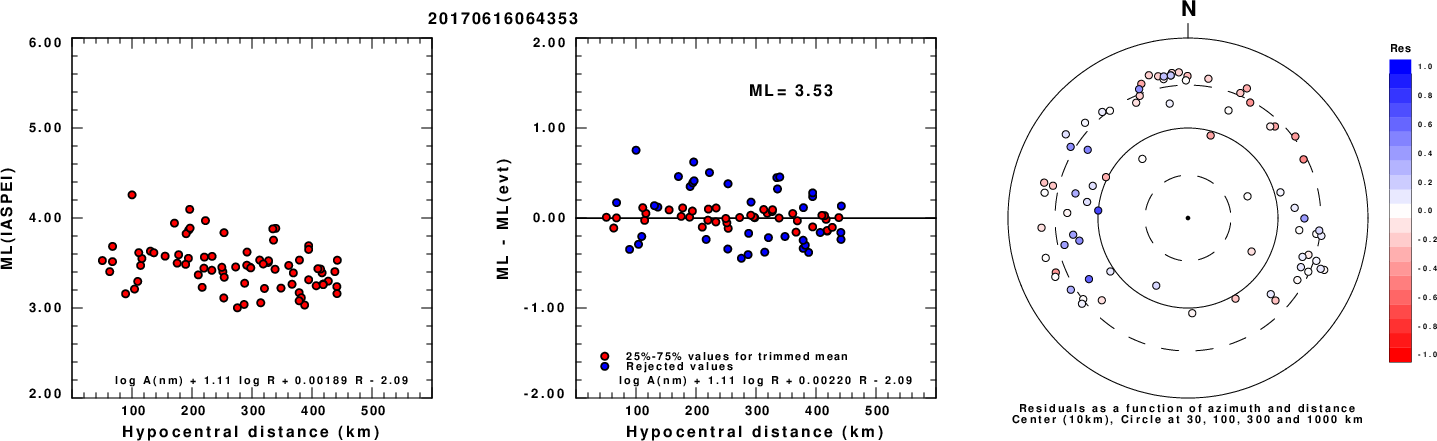

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

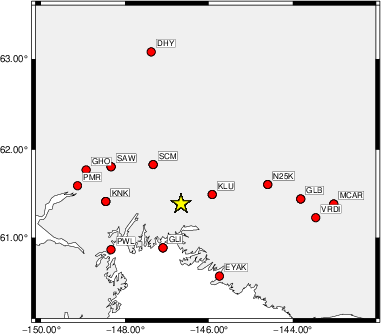

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.5 -30 o DIST/3.5 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 40 50 90 2.70 0.1690 WVFGRD96 2.0 40 50 85 2.86 0.2282 WVFGRD96 3.0 0 70 -50 2.86 0.2137 WVFGRD96 4.0 0 70 -50 2.89 0.2428 WVFGRD96 5.0 235 75 45 2.97 0.2715 WVFGRD96 6.0 235 75 40 3.00 0.2935 WVFGRD96 7.0 235 75 40 3.02 0.3084 WVFGRD96 8.0 240 70 40 3.09 0.3172 WVFGRD96 9.0 240 75 45 3.10 0.3241 WVFGRD96 10.0 240 75 40 3.12 0.3299 WVFGRD96 11.0 240 75 40 3.13 0.3317 WVFGRD96 12.0 245 70 40 3.15 0.3324 WVFGRD96 13.0 280 55 25 3.11 0.3325 WVFGRD96 14.0 280 55 25 3.13 0.3408 WVFGRD96 15.0 280 55 25 3.15 0.3483 WVFGRD96 16.0 280 55 25 3.16 0.3561 WVFGRD96 17.0 280 55 25 3.18 0.3638 WVFGRD96 18.0 280 55 25 3.20 0.3701 WVFGRD96 19.0 275 55 20 3.21 0.3757 WVFGRD96 20.0 280 55 25 3.23 0.3824 WVFGRD96 21.0 275 55 20 3.24 0.3887 WVFGRD96 22.0 275 55 20 3.25 0.3935 WVFGRD96 23.0 280 55 25 3.27 0.3978 WVFGRD96 24.0 280 55 25 3.28 0.4015 WVFGRD96 25.0 280 55 25 3.29 0.4039 WVFGRD96 26.0 95 50 15 3.29 0.4144 WVFGRD96 27.0 90 50 0 3.30 0.4284 WVFGRD96 28.0 90 45 0 3.32 0.4447 WVFGRD96 29.0 90 45 0 3.33 0.4602 WVFGRD96 30.0 85 45 -5 3.35 0.4729 WVFGRD96 31.0 85 40 -5 3.36 0.4829 WVFGRD96 32.0 85 40 -5 3.37 0.4907 WVFGRD96 33.0 85 40 -5 3.37 0.4978 WVFGRD96 34.0 85 40 -5 3.38 0.5058 WVFGRD96 35.0 85 40 -10 3.39 0.5124 WVFGRD96 36.0 75 35 -25 3.40 0.5232 WVFGRD96 37.0 75 35 -25 3.41 0.5340 WVFGRD96 38.0 70 35 -30 3.42 0.5442 WVFGRD96 39.0 70 40 -30 3.44 0.5541 WVFGRD96 40.0 65 30 -30 3.54 0.5619 WVFGRD96 41.0 65 30 -30 3.55 0.5693 WVFGRD96 42.0 65 30 -35 3.55 0.5767 WVFGRD96 43.0 65 30 -35 3.55 0.5834 WVFGRD96 44.0 65 30 -35 3.56 0.5878 WVFGRD96 45.0 65 35 -35 3.57 0.5919 WVFGRD96 46.0 65 35 -35 3.57 0.5959 WVFGRD96 47.0 65 35 -35 3.58 0.5962 WVFGRD96 48.0 70 35 -25 3.58 0.5996 WVFGRD96 49.0 70 35 -25 3.58 0.6008 WVFGRD96 50.0 70 35 -25 3.58 0.5995 WVFGRD96 51.0 70 35 -25 3.59 0.6006 WVFGRD96 52.0 70 40 -25 3.59 0.5990 WVFGRD96 53.0 70 40 -25 3.60 0.5987 WVFGRD96 54.0 70 40 -25 3.60 0.5973 WVFGRD96 55.0 70 40 -25 3.60 0.5937 WVFGRD96 56.0 70 40 -25 3.60 0.5920 WVFGRD96 57.0 70 40 -20 3.61 0.5886 WVFGRD96 58.0 70 40 -20 3.61 0.5879 WVFGRD96 59.0 70 35 -20 3.61 0.5860
The best solution is
WVFGRD96 49.0 70 35 -25 3.58 0.6008
The mechanism corresponding to the best fit is
![]() |
|

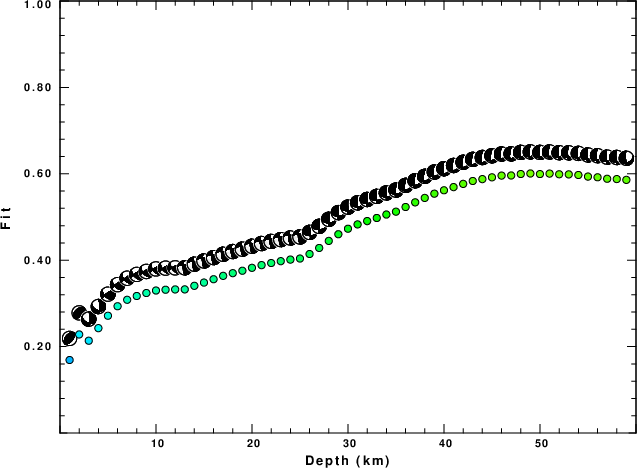

The best fit as a function of depth is given in the following figure:
![]() |
|

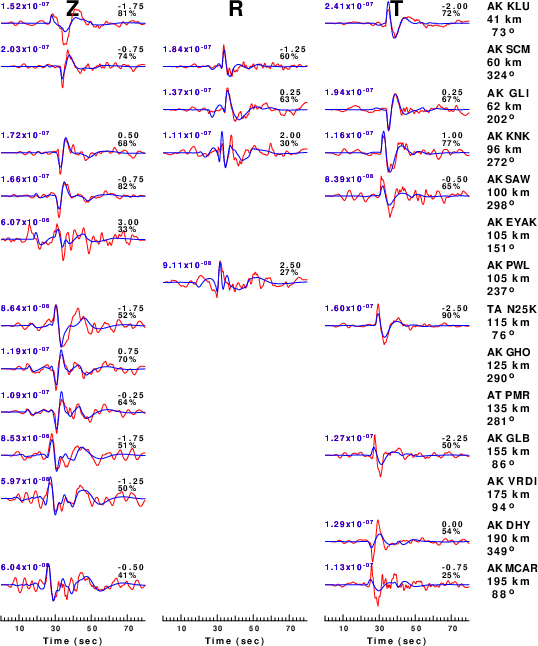

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.5 -30 o DIST/3.5 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

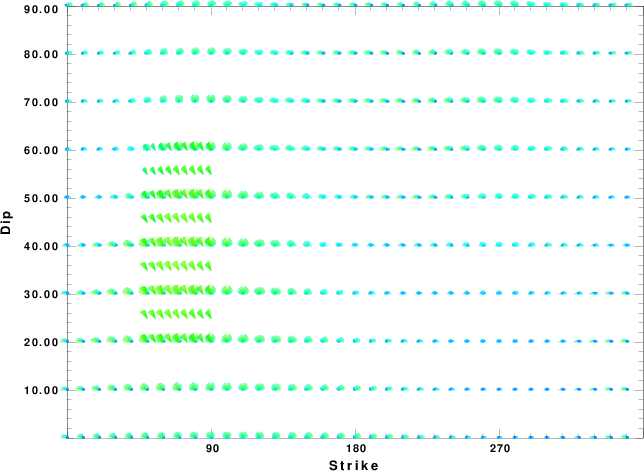

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

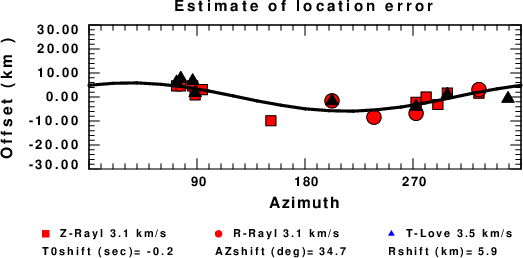

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
