The ANSS event ID is uw61293181 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/uw61293181/executive.

2017/06/16 03:55:26 47.840 -122.886 56.5 3.69 Washington

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2017/06/16 03:55:26:0  47.84 -122.89  56.5 3.7 Washington

 Stations used:
   CN.CLRS CN.PGC US.HAWA US.NLWA UW.DOSE UW.GNW UW.KENT
   UW.LON UW.LTY UW.SP2 UW.STOR UW.WISH

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 7.24e+21 dyne-cm
  Mw = 3.84
  Z  = 46 km
  Plane   Strike  Dip  Rake
   NP1       37    83   -135
   NP2      300    45   -10
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.24e+21     24     160
    N   0.00e+00     44      44
    P  -7.24e+21     36     269

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     5.31e+21
       Mxy    -1.98e+21
       Mxz    -2.52e+21
       Myy    -4.05e+21
       Myz     4.37e+21
       Mzz    -1.26e+21




                     ##############
                 ######################
              ##########################--
             ##########################----
           ##----------------#########-------
          -----------------------####---------
         --------------------------------------
        ---------------------------###----------
        --------------------------######--------
       -------------------------##########-------
       ------   ---------------############------
       ------ P --------------##############-----
       ------   ------------#################----
        -------------------##################---
        -----------------#####################--
         ---------------######################-
          ------------########################
           ---------#########################
             -----##############   ########
              --################ T #######
                 ###############   ####
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.26e+21  -2.52e+21  -4.37e+21
 -2.52e+21   5.31e+21   1.98e+21
 -4.37e+21   1.98e+21  -4.05e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20170616035526/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 300
      DIP = 45
     RAKE = -10
       MW = 3.84
       HS = 46.0

The NDK file is 20170616035526.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

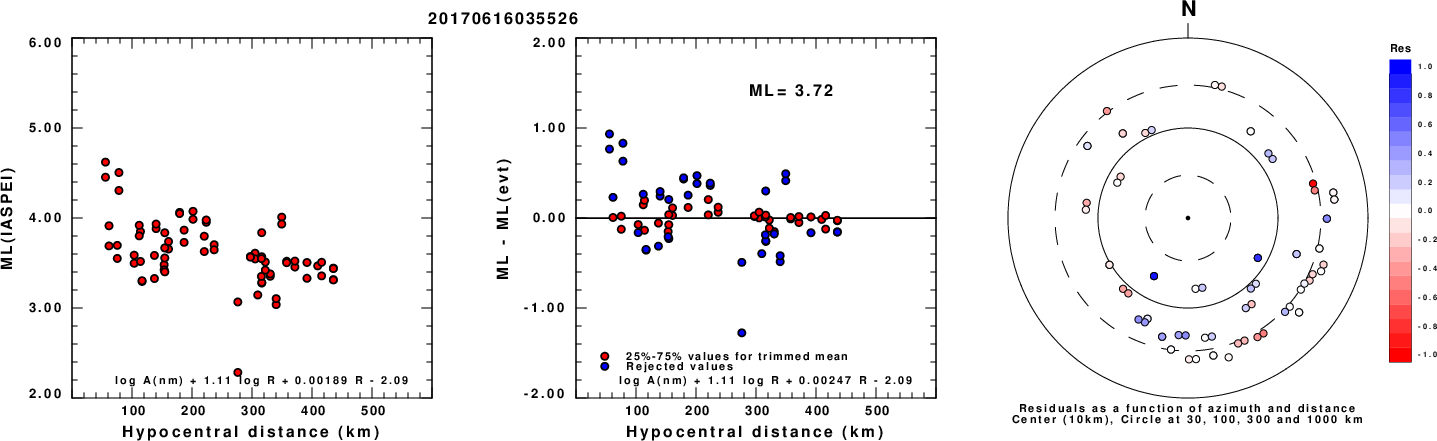

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

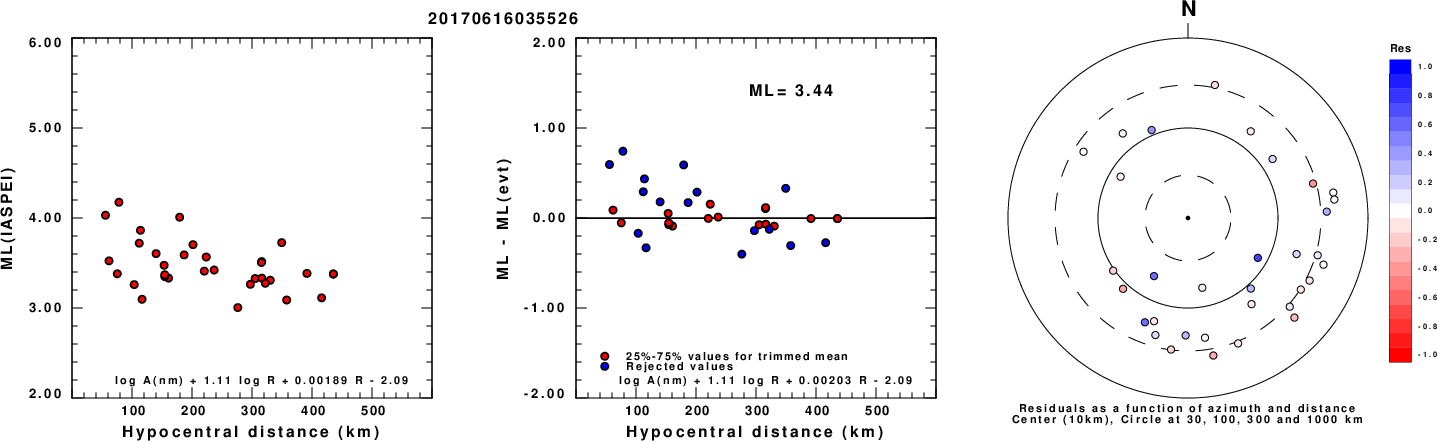

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    10    45   -90   3.23 0.3471
WVFGRD96    4.0   115    60     0   3.25 0.3951
WVFGRD96    6.0   295    55     5   3.36 0.4536
WVFGRD96    8.0   290    50    -5   3.44 0.4853
WVFGRD96   10.0   290    55    -5   3.46 0.4929
WVFGRD96   12.0   290    55   -10   3.48 0.4871
WVFGRD96   14.0   310    60   -20   3.41 0.4780
WVFGRD96   16.0   330    50    25   3.45 0.4837
WVFGRD96   18.0   330    50    25   3.47 0.4872
WVFGRD96   20.0   335    45    25   3.49 0.4947
WVFGRD96   22.0   335    40    25   3.52 0.5036
WVFGRD96   24.0   330    40    25   3.56 0.5119
WVFGRD96   26.0   330    35    30   3.60 0.5194
WVFGRD96   28.0   325    35    25   3.62 0.5229
WVFGRD96   30.0   315    35    15   3.64 0.5254
WVFGRD96   32.0   310    40     5   3.64 0.5274
WVFGRD96   34.0   310    40     5   3.66 0.5250
WVFGRD96   36.0   305    45     0   3.68 0.5292
WVFGRD96   38.0   300    50    -5   3.70 0.5413
WVFGRD96   40.0   300    40    -5   3.80 0.5510
WVFGRD96   42.0   300    40    -5   3.82 0.5568
WVFGRD96   44.0   300    45   -10   3.82 0.5600
WVFGRD96   46.0   300    45   -10   3.84 0.5618
WVFGRD96   48.0   300    45   -10   3.85 0.5614
WVFGRD96   50.0   300    45   -15   3.86 0.5594
WVFGRD96   52.0   300    45   -15   3.87 0.5564
WVFGRD96   54.0   300    50   -15   3.87 0.5524
WVFGRD96   56.0   300    50   -20   3.88 0.5487
WVFGRD96   58.0   300    50   -20   3.89 0.5451
WVFGRD96   60.0   300    50   -25   3.89 0.5399
WVFGRD96   62.0   300    50   -25   3.89 0.5356
WVFGRD96   64.0   300    50   -25   3.90 0.5288
WVFGRD96   66.0   300    50   -25   3.91 0.5217
WVFGRD96   68.0   300    55   -30   3.90 0.5155
WVFGRD96   70.0   300    55   -30   3.90 0.5088
WVFGRD96   72.0   300    55   -30   3.91 0.5012
WVFGRD96   74.0   300    55   -35   3.91 0.4954
WVFGRD96   76.0   300    50   -50   3.92 0.4880
WVFGRD96   78.0   300    50   -50   3.92 0.4839
WVFGRD96   80.0   300    50   -50   3.93 0.4794
WVFGRD96   82.0   300    50   -50   3.93 0.4746
WVFGRD96   84.0   300    50   -50   3.94 0.4699
WVFGRD96   86.0   305    55   -50   3.93 0.4655
WVFGRD96   88.0   300    55   -55   3.93 0.4613
WVFGRD96   90.0   300    55   -55   3.93 0.4570
WVFGRD96   92.0   300    55   -55   3.94 0.4531
WVFGRD96   94.0   300    55   -55   3.94 0.4485
WVFGRD96   96.0   300    55   -55   3.94 0.4443
WVFGRD96   98.0   300    55   -60   3.95 0.4395

The best solution is

WVFGRD96   46.0   300    45   -10   3.84 0.5618

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

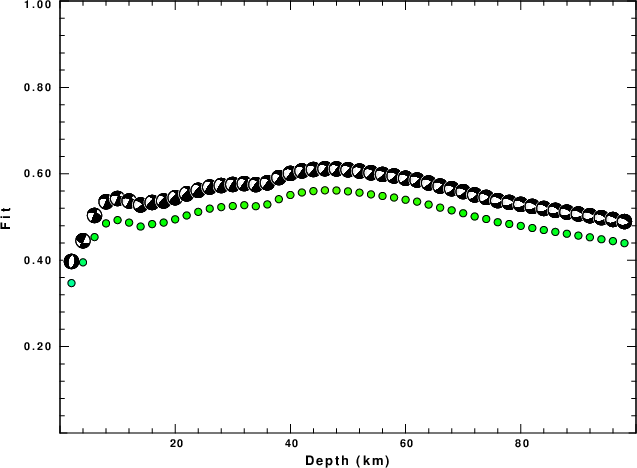

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

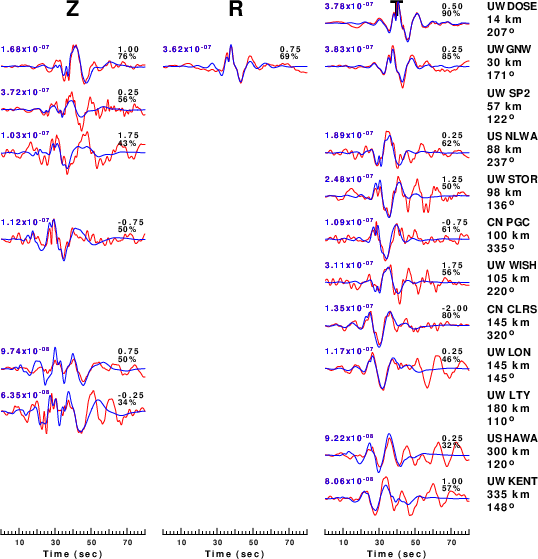

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

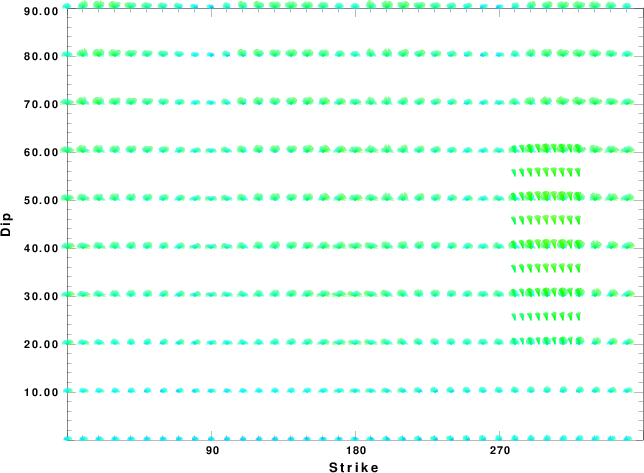

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

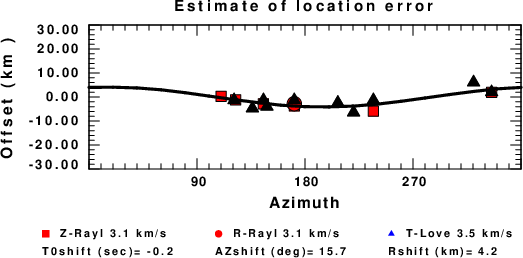

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
