The ANSS event ID is us100087h1 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us100087h1/executive.

2017/03/07 16:06:01 36.700 -97.678 8.1 3.2 Oklahoma

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2017/03/07 16:06:01:0 36.70 -97.68 8.1 3.2 Oklahoma Stations used: GS.KAN05 GS.KAN06 GS.KAN08 GS.KAN13 GS.KAN14 GS.OK029 GS.OK032 GS.OK033 OK.BLOK OK.CROK OK.U32A Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.04 n 3 lp c 0.15 n 3 Best Fitting Double Couple Mo = 8.22e+20 dyne-cm Mw = 3.21 Z = 3 km Plane Strike Dip Rake NP1 155 80 -20 NP2 249 70 -169 Principal Axes: Axis Value Plunge Azimuth T 8.22e+20 7 203 N 0.00e+00 68 309 P -8.22e+20 21 110 Moment Tensor: (dyne-cm) Component Value Mxx 6.00e+20 Mxy 5.26e+20 Mxz 9.92e+18 Myy -5.04e+20 Myz -2.96e+20 Mzz -9.62e+19 ############## --#################### ------###################### -------####################### ----------######################## -----------######################### -------------######################### --------------##########---------------- ---------------###---------------------- ---------------##------------------------- -----------#######------------------------ ---------##########----------------------- ------#############----------------------- ---################--------------- --- -###################-------------- P --- ####################------------- -- ####################---------------- #####################------------- ####################---------- ##### ############-------- ## T ##############--- ############# Global CMT Convention Moment Tensor: R T P -9.62e+19 9.92e+18 2.96e+20 9.92e+18 6.00e+20 -5.26e+20 2.96e+20 -5.26e+20 -5.04e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20170307160601/index.html

Preferred Solution

      STK = 155
      DIP = 80
     RAKE = -20
       MW = 3.21
       HS = 3.0

The NDK file is 20170307160601.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

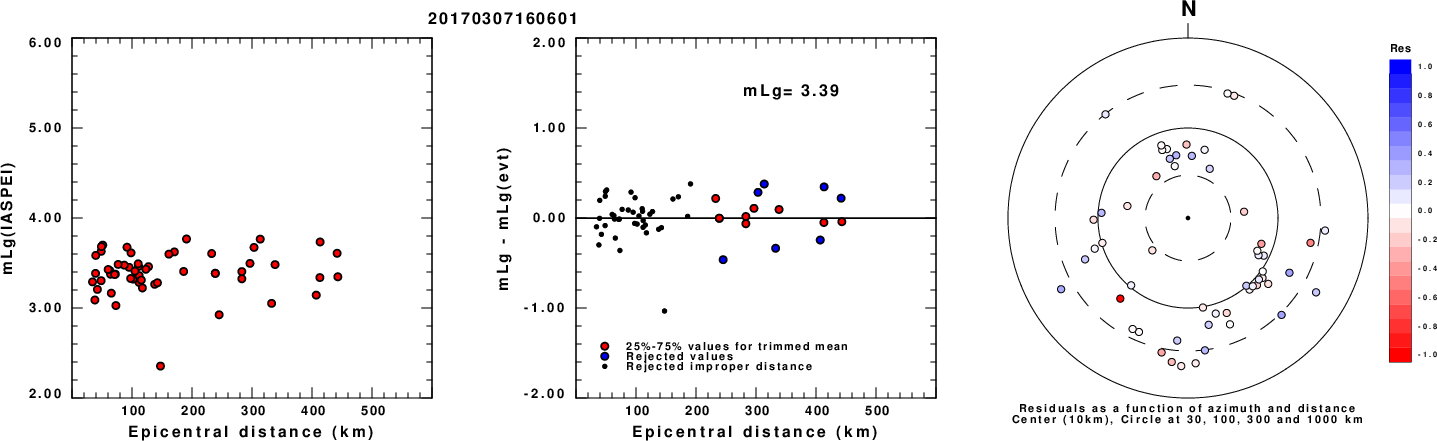

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

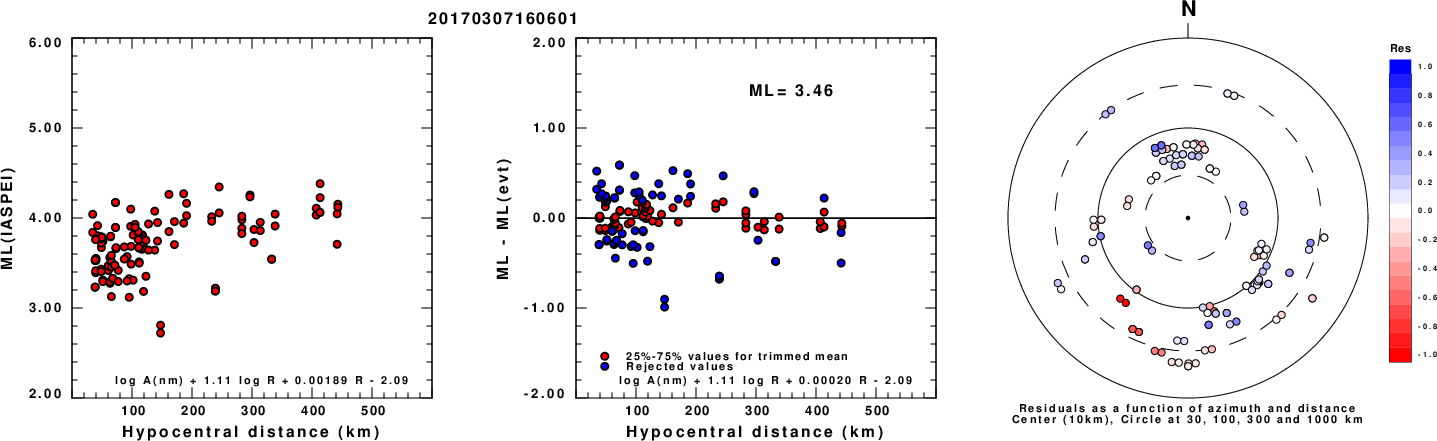

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

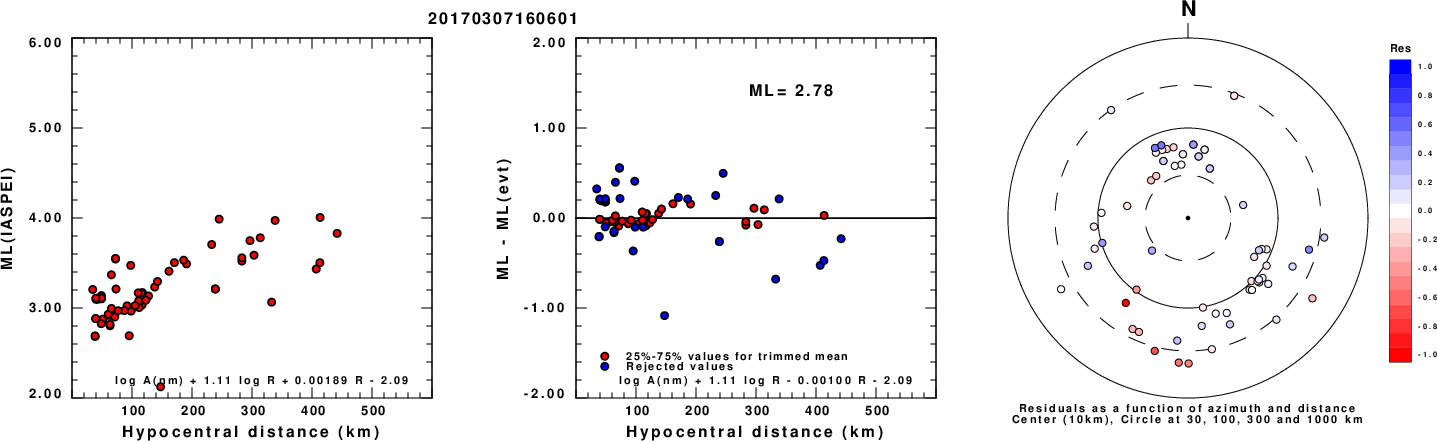

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

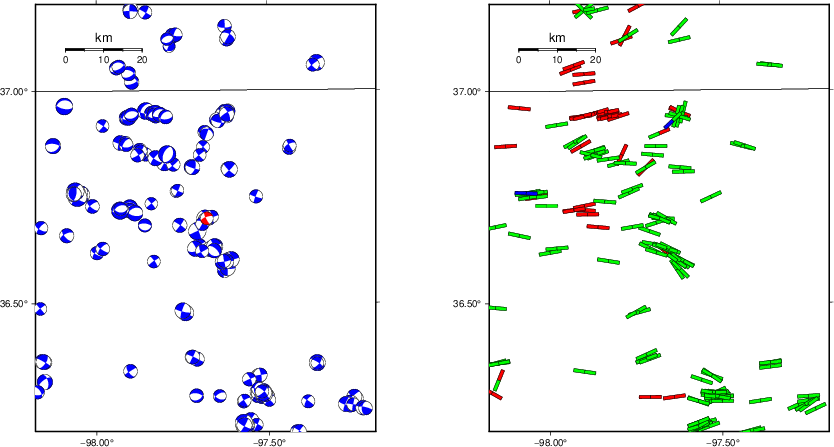

Context

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

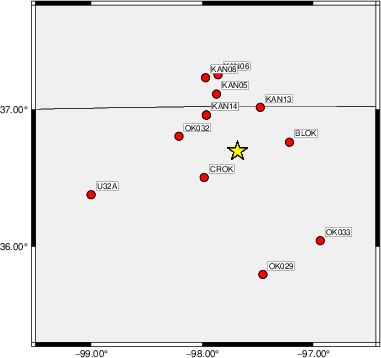

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.15 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   335    80     0   2.97 0.4158
WVFGRD96    2.0   150    65   -20   3.16 0.4716
WVFGRD96    3.0   155    80   -20   3.21 0.4819
WVFGRD96    4.0   335    80    -5   3.25 0.4782
WVFGRD96    5.0   335    80     0   3.30 0.4594
WVFGRD96    6.0   335    75     0   3.34 0.4324
WVFGRD96    7.0   160    85    30   3.40 0.3965
WVFGRD96    8.0   160    80    40   3.47 0.3650
WVFGRD96    9.0   160    85    45   3.51 0.3386
WVFGRD96   10.0   165    80    50   3.55 0.3159
WVFGRD96   11.0   160    85    50   3.57 0.2947
WVFGRD96   12.0   160    80    50   3.59 0.2756
WVFGRD96   13.0   250    65    15   3.53 0.2620
WVFGRD96   14.0   245    65    10   3.54 0.2531
WVFGRD96   15.0   245    65    10   3.55 0.2433
WVFGRD96   16.0    60    80   -20   3.56 0.2347
WVFGRD96   17.0   245    60    10   3.57 0.2324
WVFGRD96   18.0   245    60    10   3.58 0.2330
WVFGRD96   19.0    60    80   -15   3.59 0.2323
WVFGRD96   20.0   240    55     5   3.61 0.2352
WVFGRD96   21.0   245    45    15   3.64 0.2386
WVFGRD96   22.0   245    45    10   3.65 0.2484
WVFGRD96   23.0   245    45    10   3.66 0.2609
WVFGRD96   24.0   245    45    10   3.67 0.2691
WVFGRD96   25.0   245    45    10   3.67 0.2808
WVFGRD96   26.0   250    65    20   3.65 0.2876
WVFGRD96   27.0   250    65    20   3.65 0.2956
WVFGRD96   28.0   250    65    20   3.66 0.3002
WVFGRD96   29.0   250    65    20   3.66 0.3021

The best solution is

WVFGRD96    3.0   155    80   -20   3.21 0.4819

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

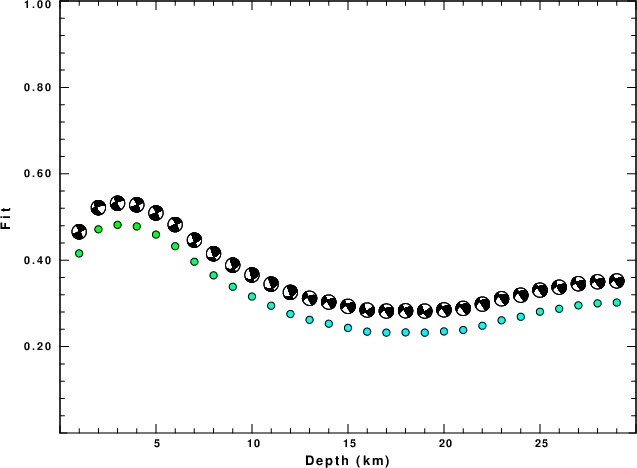

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

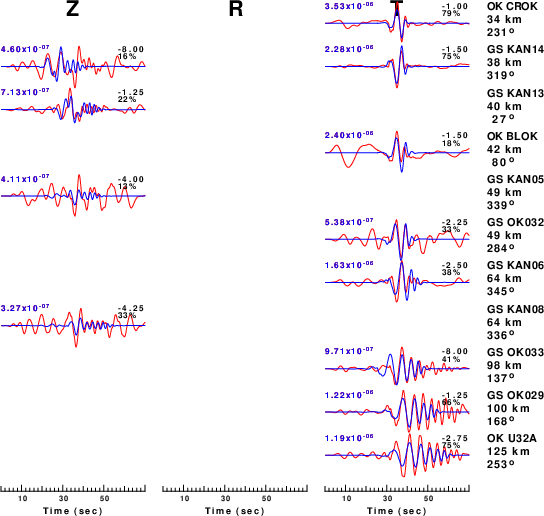

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.04 n 3
lp c 0.15 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

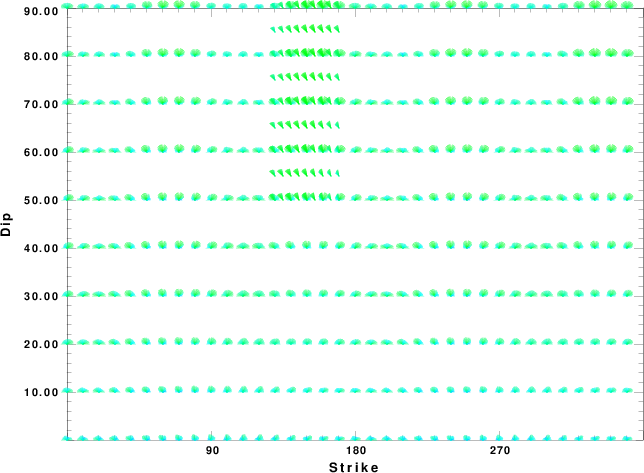

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

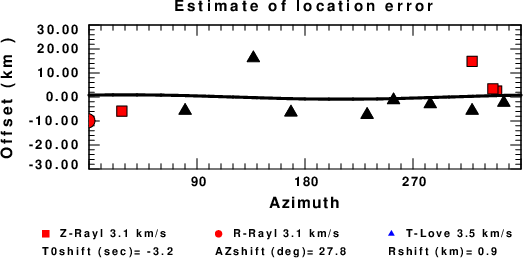

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
