The ANSS event ID is nc72766716 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nc72766716/executive.

2017/02/23 04:59:03 36.545 -121.138 8.7 2.83 Washington

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2017/02/23 04:59:03:0 36.54 -121.14 8.7 2.8 Washington Stations used: CN.CLRS CN.LLLB CN.OZB CN.PGC UO.JESE UO.MINN UO.RAIN US.NLWA UW.FORK UW.HOOD UW.LEBA UW.LON UW.LRIV UW.LTY UW.MRBL UW.OMAK UW.PHIN UW.RADR UW.STOR UW.UMAT UW.WISH UW.WOLL UW.YACT Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 Best Fitting Double Couple Mo = 1.17e+22 dyne-cm Mw = 3.98 Z = 17 km Plane Strike Dip Rake NP1 306 64 134 NP2 60 50 35 Principal Axes: Axis Value Plunge Azimuth T 1.17e+22 50 266 N 0.00e+00 39 103 P -1.17e+22 8 6 Moment Tensor: (dyne-cm) Component Value Mxx -1.14e+22 Mxy -8.13e+20 Mxz -2.08e+21 Myy 4.73e+21 Myz -5.94e+21 Mzz 6.64e+21 ------- P ---- ----------- -------- ---------------------------- ------------------------------ ######---------------------------- #############----------------------- ##################-------------------# ######################---------------### #########################------------### ############################---------##### ######### ##################------###### ######### T ####################---####### ######### ############################## ###############################---###### ############################-------##### #########################----------### ####################--------------## ---###########-------------------- ------------------------------ ---------------------------- ---------------------- -------------- Global CMT Convention Moment Tensor: R T P 6.64e+21 -2.08e+21 5.94e+21 -2.08e+21 -1.14e+22 8.13e+20 5.94e+21 8.13e+20 4.73e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20170223045903/index.html

Preferred Solution

      STK = 60
      DIP = 50
     RAKE = 35
       MW = 3.98
       HS = 17.0

The NDK file is 20170223045903.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU

USGSMT

USGS/SLU Moment Tensor Solution ENS 2017/02/23 04:59:03:0 36.54 -121.14 8.7 2.8 Washington Stations used: CN.CLRS CN.LLLB CN.OZB CN.PGC UO.JESE UO.MINN UO.RAIN US.NLWA UW.FORK UW.HOOD UW.LEBA UW.LON UW.LRIV UW.LTY UW.MRBL UW.OMAK UW.PHIN UW.RADR UW.STOR UW.UMAT UW.WISH UW.WOLL UW.YACT Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 Best Fitting Double Couple Mo = 1.17e+22 dyne-cm Mw = 3.98 Z = 17 km Plane Strike Dip Rake NP1 306 64 134 NP2 60 50 35 Principal Axes: Axis Value Plunge Azimuth T 1.17e+22 50 266 N 0.00e+00 39 103 P -1.17e+22 8 6 Moment Tensor: (dyne-cm) Component Value Mxx -1.14e+22 Mxy -8.13e+20 Mxz -2.08e+21 Myy 4.73e+21 Myz -5.94e+21 Mzz 6.64e+21 ------- P ---- ----------- -------- ---------------------------- ------------------------------ ######---------------------------- #############----------------------- ##################-------------------# ######################---------------### #########################------------### ############################---------##### ######### ##################------###### ######### T ####################---####### ######### ############################## ###############################---###### ############################-------##### #########################----------### ####################--------------## ---###########-------------------- ------------------------------ ---------------------------- ---------------------- -------------- Global CMT Convention Moment Tensor: R T P 6.64e+21 -2.08e+21 5.94e+21 -2.08e+21 -1.14e+22 8.13e+20 5.94e+21 8.13e+20 4.73e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20170223045903/index.html

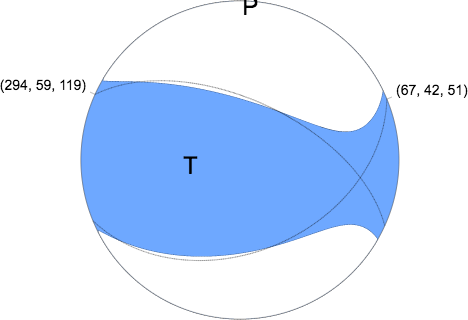

Regional Moment Tensor (Mwr) Moment 1.221e+15 N-m Magnitude 4.0 Mwr Depth 16.0 km Percent DC 72 % Half Duration – Catalog US Data Source US2 Contributor US2 Nodal Planes Plane Strike Dip Rake NP1 294 59 119 NP2 67 42 51 Principal Axes Axis Value Plunge Azimuth T 1.118e+15 N-m 64 255 N 0.185e+15 N-m 24 98 P -1.303e+15 N-m 9 4

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

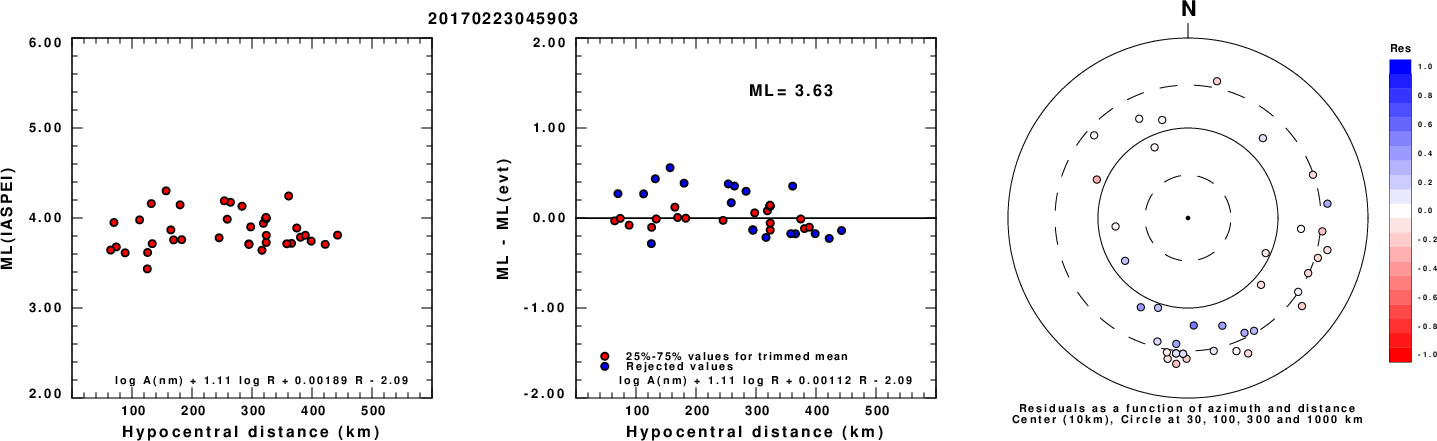

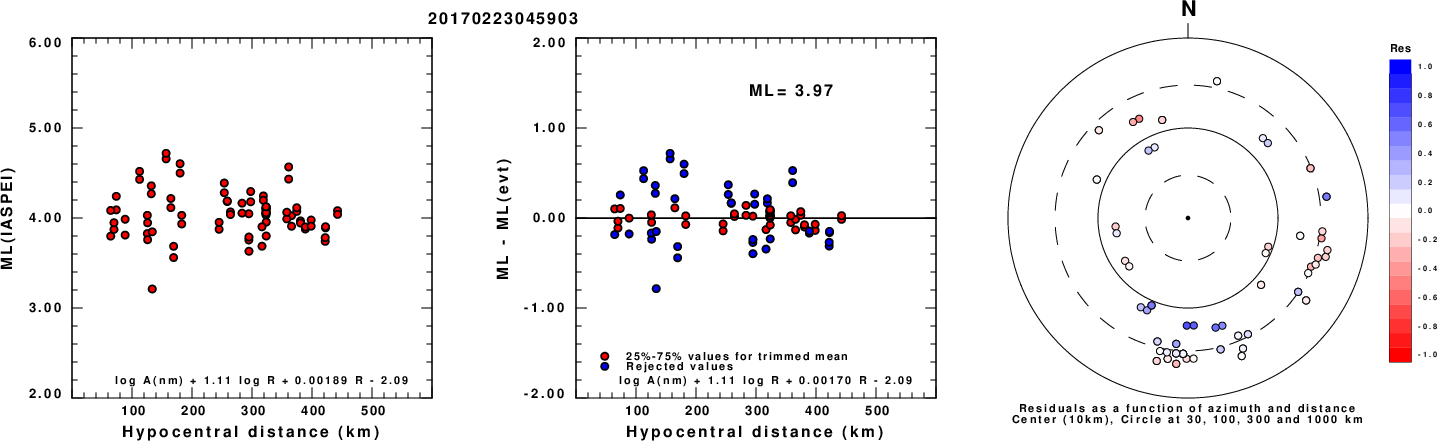

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

Waveform Inversion using wvfgrd96

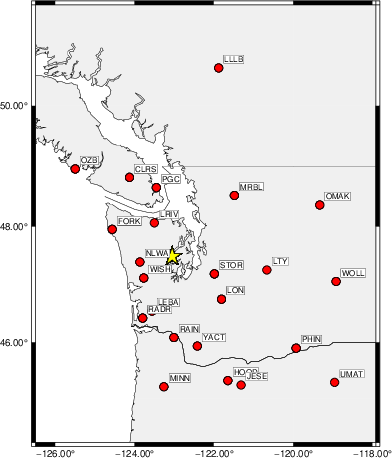

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    95    50   -90   3.58 0.2010
WVFGRD96    2.0   275    40   -90   3.70 0.2585
WVFGRD96    3.0   225    55   -10   3.67 0.2595
WVFGRD96    4.0   225    50   -10   3.72 0.2763
WVFGRD96    5.0   225    45    -5   3.75 0.2976
WVFGRD96    6.0    50    45     0   3.77 0.3179
WVFGRD96    7.0    50    50     5   3.79 0.3435
WVFGRD96    8.0    45    40    -5   3.86 0.3676
WVFGRD96    9.0    50    45    10   3.87 0.3911
WVFGRD96   10.0    60    45    35   3.90 0.4135
WVFGRD96   11.0    60    50    35   3.92 0.4357
WVFGRD96   12.0    60    50    40   3.93 0.4548
WVFGRD96   13.0    60    50    40   3.94 0.4686
WVFGRD96   14.0    60    50    35   3.95 0.4785
WVFGRD96   15.0    60    50    35   3.96 0.4853
WVFGRD96   16.0    60    50    35   3.97 0.4890
WVFGRD96   17.0    60    50    35   3.98 0.4900
WVFGRD96   18.0    55    55    30   3.99 0.4895
WVFGRD96   19.0    55    55    30   3.99 0.4871
WVFGRD96   20.0    55    55    30   4.00 0.4829
WVFGRD96   21.0    55    55    25   4.01 0.4787
WVFGRD96   22.0    55    55    25   4.02 0.4724
WVFGRD96   23.0    55    55    25   4.02 0.4651
WVFGRD96   24.0    55    55    25   4.03 0.4568
WVFGRD96   25.0    55    55    25   4.03 0.4477
WVFGRD96   26.0    55    55    25   4.04 0.4378
WVFGRD96   27.0   325    70    40   4.05 0.4300
WVFGRD96   28.0   325    70    40   4.06 0.4232
WVFGRD96   29.0   325    70    40   4.07 0.4154

The best solution is

WVFGRD96   17.0    60    50    35   3.98 0.4900

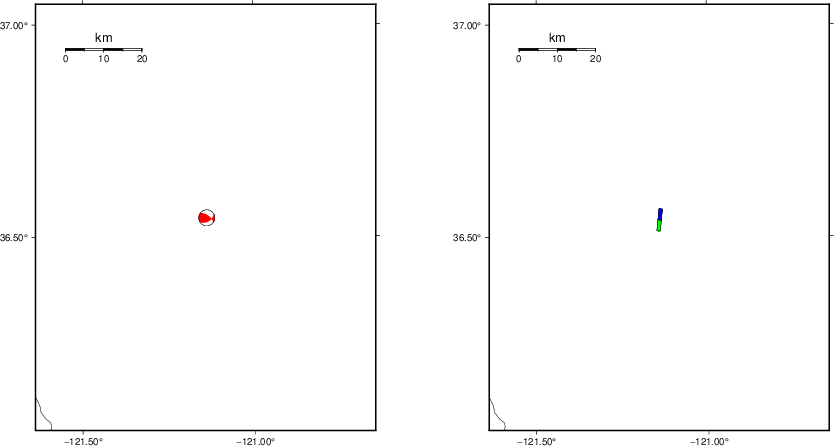

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

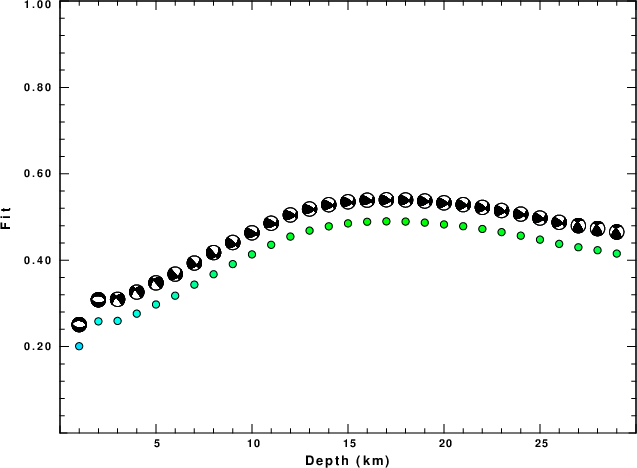

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

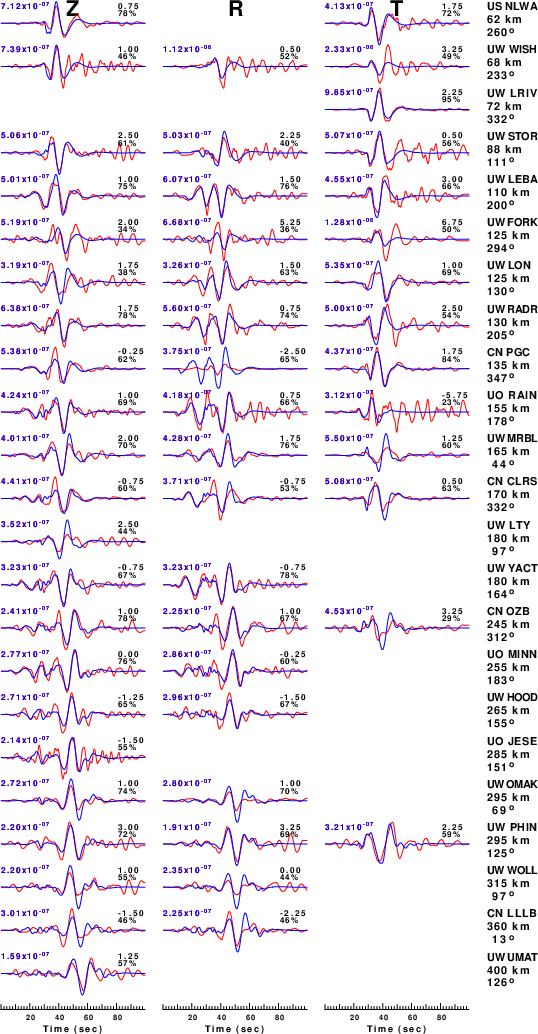

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

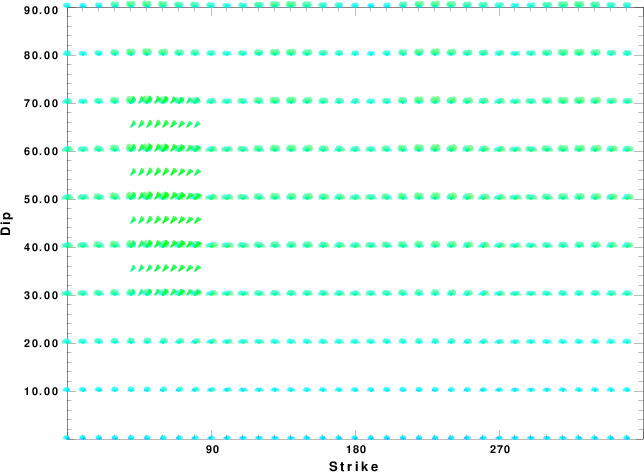

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

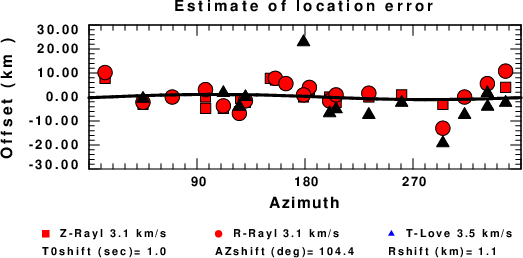

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
