2016/10/23 11:20:10 61.919 -151.748 99.7 4.1 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2016/10/23 11:20:10:0  61.92 -151.75  99.7 4.1 Alaska

 Stations used:
   AK.CAPN AK.CAST AK.DHY AK.KTH AK.MCK AK.RC01 AK.RND AK.SKN
   AK.SSN AK.TRF AV.ILSW TA.L19K TA.M19K TA.M22K TA.N18K
   TA.N19K TA.O18K TA.O19K TA.O22K

 Filtering commands used:
   cut o DIST/3.9 -40 o DIST/3.9 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 2.60e+22 dyne-cm
  Mw = 4.21
  Z  = 134 km
  Plane   Strike  Dip  Rake
   NP1      350    88   115
   NP2       85    25     5
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.60e+22     42     284
    N   0.00e+00     25     169
    P  -2.60e+22     38      58

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -3.62e+21
       Mxy    -1.06e+22
       Mxz    -3.50e+21
       Myy     1.89e+21
       Myz    -2.33e+22
       Mzz     1.74e+21




                     ####----------
                 ########--------------
              ############----------------
             #############-----------------
           ###############-------------------
          #################-------------------
         ##################----------   -------
        ###################---------- P --------
        #######   ##########---------   --------
       ######## T ##########---------------------
       ########   ##########---------------------
       ######################-------------------#
       -#####################------------------##
        #####################------------------#
        --####################---------------###
         --###################--------------###
          ---#################------------####
           ----###############----------#####
             -----#############------######
              ------------###--###########
                 --------------########
                     ----------####



 Global CMT Convention Moment Tensor:
      R          T          P
  1.74e+21  -3.50e+21   2.33e+22
 -3.50e+21  -3.62e+21   1.06e+22
  2.33e+22   1.06e+22   1.89e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20161023112010/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 85
      DIP = 25
     RAKE = 5
       MW = 4.21
       HS = 134.0

The NDK file is 20161023112010.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

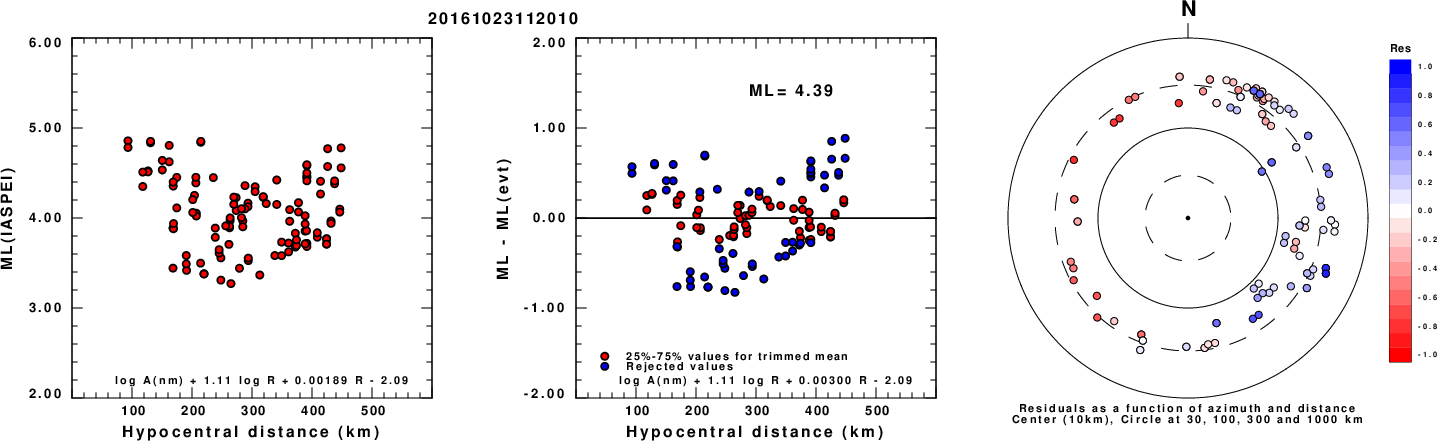

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

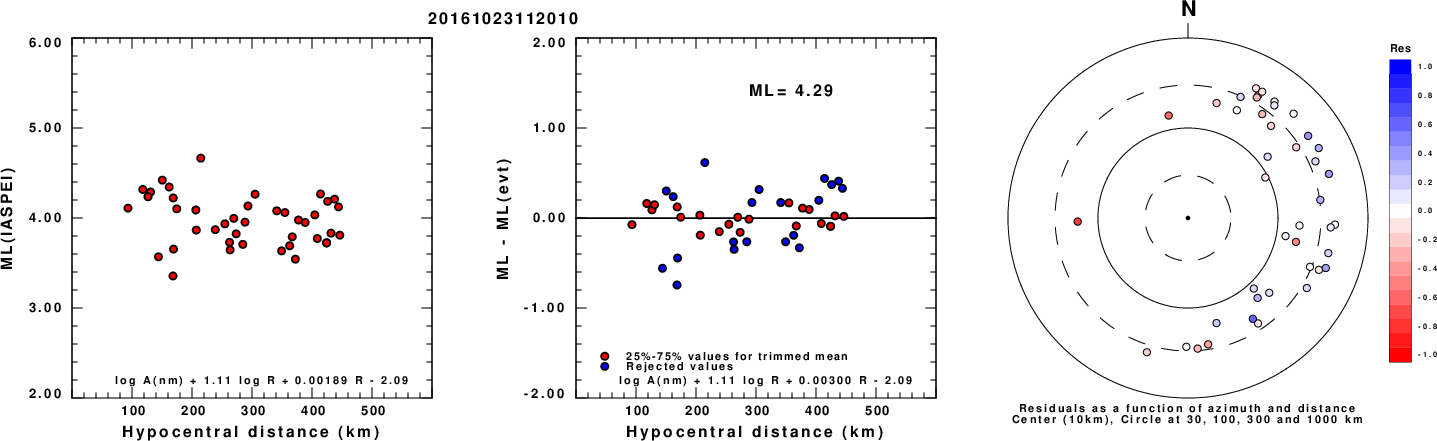

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.9 -40 o DIST/3.9 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   160    90     0   3.25 0.2692
WVFGRD96    4.0   160    80   -10   3.37 0.3151
WVFGRD96    6.0   160    80    -5   3.44 0.3306
WVFGRD96    8.0   160    80    -5   3.51 0.3345
WVFGRD96   10.0   160    80    -5   3.55 0.3190
WVFGRD96   12.0   160    80    -5   3.58 0.2942
WVFGRD96   14.0   160    80    -5   3.60 0.2669
WVFGRD96   16.0   245    75     5   3.59 0.2457
WVFGRD96   18.0   245    75     5   3.62 0.2504
WVFGRD96   20.0   245    75     5   3.66 0.2618
WVFGRD96   22.0   245    75     5   3.69 0.2789
WVFGRD96   24.0   250    80     5   3.74 0.2979
WVFGRD96   26.0   250    80     5   3.76 0.3173
WVFGRD96   28.0   245    80     0   3.76 0.3341
WVFGRD96   30.0   245    80     0   3.78 0.3500
WVFGRD96   32.0   245    80     5   3.80 0.3663
WVFGRD96   34.0   245    80     5   3.82 0.3849
WVFGRD96   36.0   245    80     5   3.85 0.3980
WVFGRD96   38.0   250    85     5   3.90 0.4112
WVFGRD96   40.0    70    90     0   3.95 0.4266
WVFGRD96   42.0   250    85     5   3.98 0.4314
WVFGRD96   44.0   250    80     5   4.01 0.4376
WVFGRD96   46.0   250    85     5   4.03 0.4406
WVFGRD96   48.0   250    85     5   4.04 0.4438
WVFGRD96   50.0    70    90    -5   4.06 0.4471
WVFGRD96   52.0    70    80    -5   4.06 0.4559
WVFGRD96   54.0    70    80    -5   4.07 0.4636
WVFGRD96   56.0    70    75    -5   4.08 0.4726
WVFGRD96   58.0    70    75     0   4.08 0.4813
WVFGRD96   60.0    70    75     0   4.09 0.4879
WVFGRD96   62.0    70    75     0   4.09 0.4923
WVFGRD96   64.0    70    70     0   4.09 0.4978
WVFGRD96   66.0    70    70     0   4.09 0.5030
WVFGRD96   68.0    70    70     0   4.09 0.5060
WVFGRD96   70.0    70    65     0   4.09 0.5116
WVFGRD96   72.0    70    65     5   4.10 0.5135
WVFGRD96   74.0    70    65     5   4.10 0.5180
WVFGRD96   76.0    70    60     5   4.10 0.5189
WVFGRD96   78.0    70    60     5   4.10 0.5243
WVFGRD96   80.0    70    60    10   4.10 0.5271
WVFGRD96   82.0    70    55    10   4.10 0.5304
WVFGRD96   84.0    70    55    10   4.10 0.5342
WVFGRD96   86.0    70    55    10   4.11 0.5357
WVFGRD96   88.0    70    55    10   4.11 0.5350
WVFGRD96   90.0    70    50     5   4.11 0.5380
WVFGRD96   92.0    70    50     5   4.11 0.5419
WVFGRD96   94.0    70    50     5   4.11 0.5434
WVFGRD96   96.0    70    50     5   4.11 0.5433
WVFGRD96   98.0    75    40     5   4.13 0.5447
WVFGRD96  100.0    75    40     5   4.13 0.5490
WVFGRD96  102.0    75    40     5   4.13 0.5509
WVFGRD96  104.0    75    40     5   4.14 0.5523
WVFGRD96  106.0    75    40     5   4.14 0.5563
WVFGRD96  108.0    80    30     5   4.16 0.5581
WVFGRD96  110.0    80    30     5   4.17 0.5609
WVFGRD96  112.0    80    30     5   4.17 0.5651
WVFGRD96  114.0    80    30     5   4.17 0.5659
WVFGRD96  116.0    80    30     5   4.17 0.5695
WVFGRD96  118.0    80    30     5   4.17 0.5712
WVFGRD96  120.0    85    25     5   4.20 0.5716
WVFGRD96  122.0    85    25     5   4.20 0.5747
WVFGRD96  124.0    85    25     5   4.20 0.5730
WVFGRD96  126.0    85    25     5   4.20 0.5757
WVFGRD96  128.0    85    25     5   4.20 0.5745
WVFGRD96  130.0    85    25     5   4.21 0.5761
WVFGRD96  132.0    85    25     5   4.21 0.5762
WVFGRD96  134.0    85    25     5   4.21 0.5766
WVFGRD96  136.0    85    25     5   4.21 0.5761
WVFGRD96  138.0    85    25     5   4.21 0.5746

The best solution is

WVFGRD96  134.0    85    25     5   4.21 0.5766

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

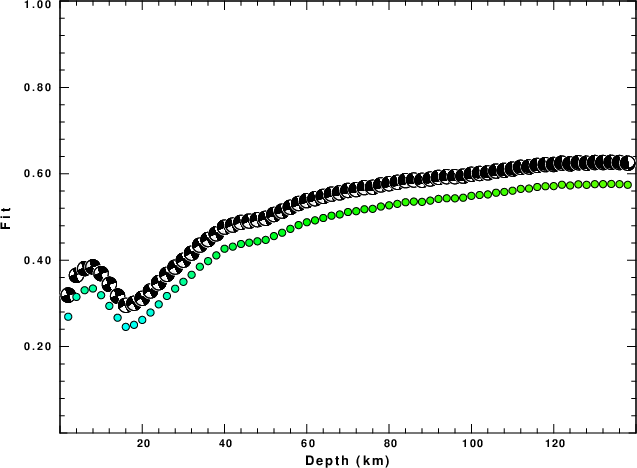

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

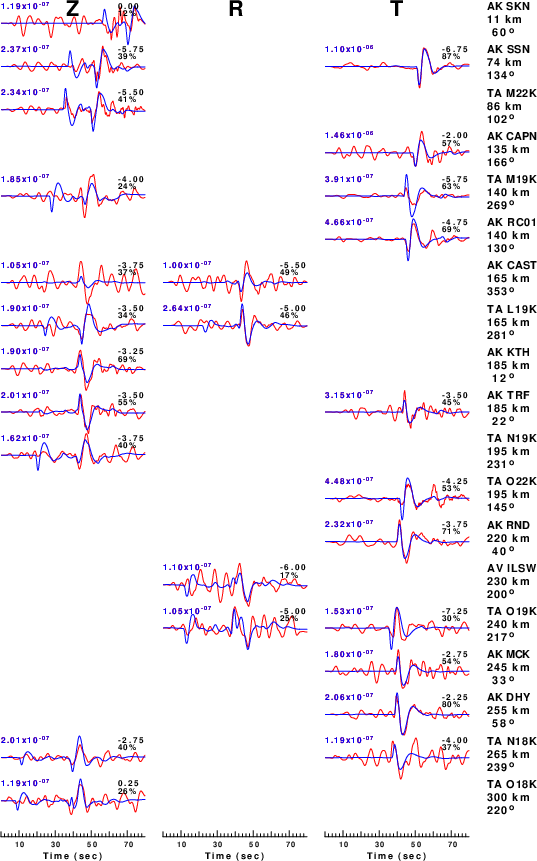

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.9 -40 o DIST/3.9 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

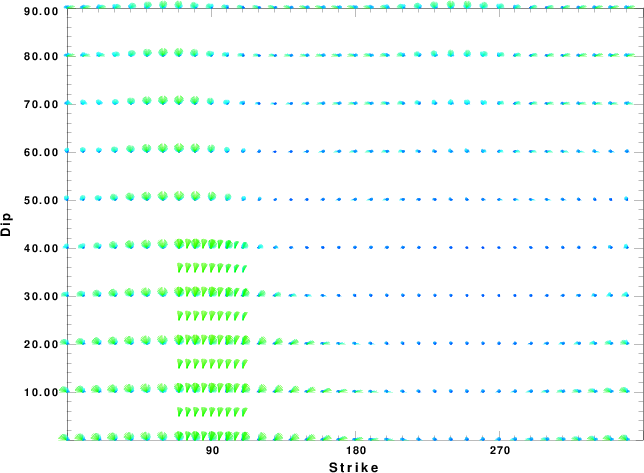

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

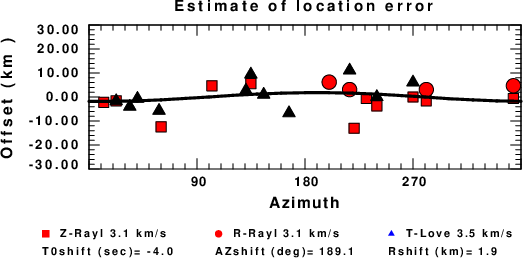

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
