2016/07/26 01:26:06 61.831 -151.737 108.6 3.9 Hawaii
USGS/SLU Moment Tensor Solution ENS 2016/07/26 01:26:06:0 61.83 -151.74 108.6 3.9 Hawaii Stations used: AK.DHY AK.FIRE AK.MCK AK.PPLA AK.RC01 AK.RND AK.SAW AK.SKN AT.PMR TA.K20K TA.L19K TA.M22K TA.N18K TA.N19K TA.O18K Filtering commands used: cut a -20 a 80 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 7.76e+21 dyne-cm Mw = 3.86 Z = 112 km Plane Strike Dip Rake NP1 75 60 55 NP2 309 45 135 Principal Axes: Axis Value Plunge Azimuth T 7.76e+21 59 293 N 0.00e+00 30 94 P -7.76e+21 9 189 Moment Tensor: (dyne-cm) Component Value Mxx -7.07e+21 Mxy -1.96e+21 Mxz 2.49e+21 Myy 1.56e+21 Myz -2.97e+21 Mzz 5.51e+21 -------------- ---------------------- ---------------------------- -###########------------------ ###################--------------- #######################------------- ###########################----------- ##############################---------- ########### #################--------- ############ T ###################-----### ############ ####################---#### ########################################## #################################---###### #############################-------#### --#######################-----------#### -------#########-------------------### ----------------------------------## ---------------------------------# ------------------------------ ---------------------------- ------ ------------- -- P --------- Global CMT Convention Moment Tensor: R T P 5.51e+21 2.49e+21 2.97e+21 2.49e+21 -7.07e+21 1.96e+21 2.97e+21 1.96e+21 1.56e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20160726012606/index.html |
STK = 75 DIP = 60 RAKE = 55 MW = 3.86 HS = 112.0
The NDK file is 20160726012606.ndk The waveform inversion is preferred.

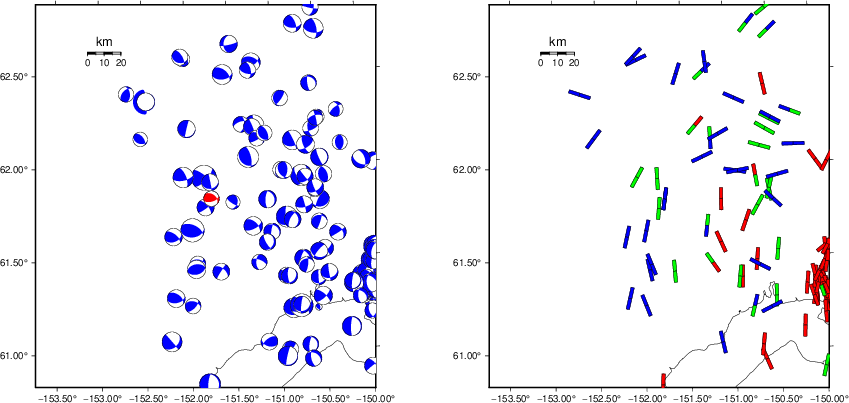

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

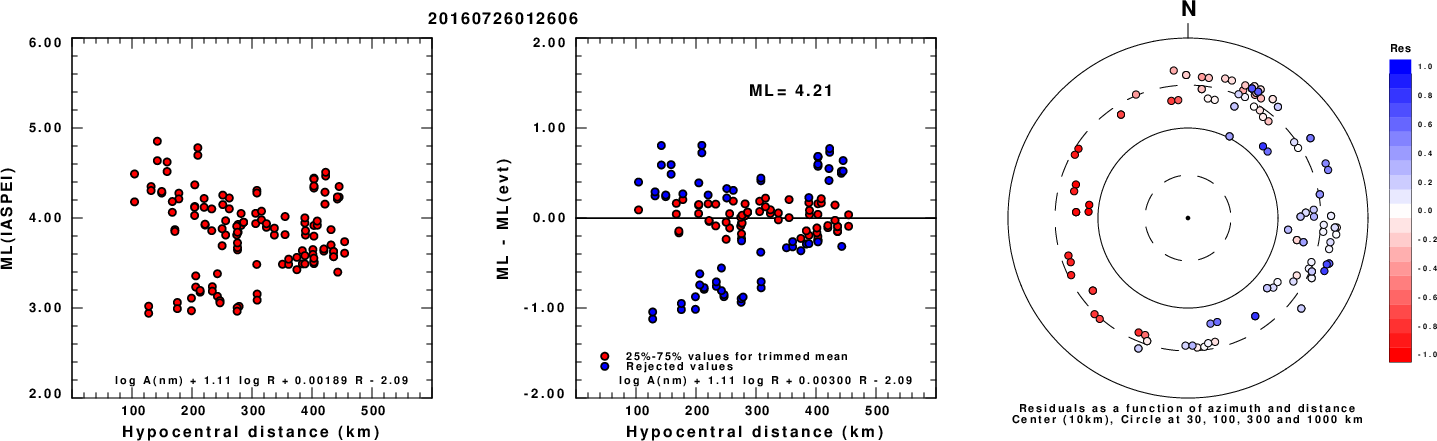

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

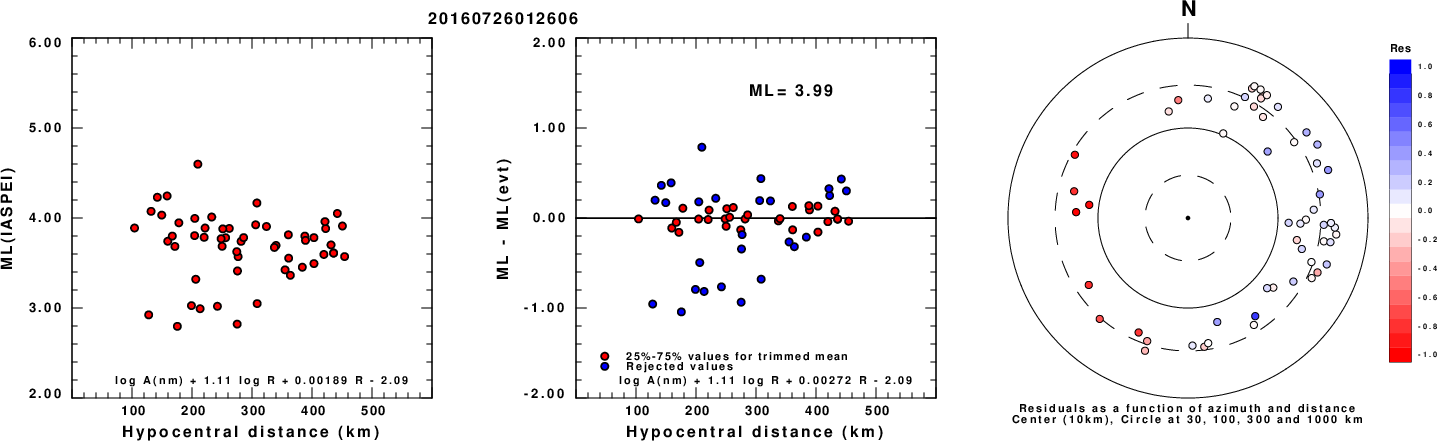

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

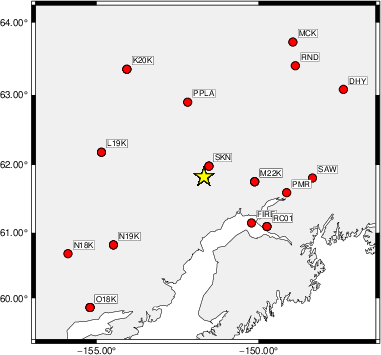

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut a -20 a 80 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 2.0 75 50 95 3.02 0.2537 WVFGRD96 4.0 40 75 45 3.07 0.2903 WVFGRD96 6.0 210 85 -40 3.10 0.3319 WVFGRD96 8.0 205 75 -45 3.17 0.3466 WVFGRD96 10.0 205 75 -40 3.17 0.3508 WVFGRD96 12.0 200 70 -40 3.19 0.3540 WVFGRD96 14.0 200 70 -35 3.21 0.3551 WVFGRD96 16.0 200 70 -35 3.23 0.3570 WVFGRD96 18.0 200 70 -30 3.25 0.3540 WVFGRD96 20.0 205 75 -30 3.27 0.3492 WVFGRD96 22.0 205 75 -30 3.29 0.3435 WVFGRD96 24.0 200 65 -35 3.30 0.3402 WVFGRD96 26.0 75 70 45 3.40 0.3412 WVFGRD96 28.0 200 65 -35 3.34 0.3405 WVFGRD96 30.0 70 75 40 3.42 0.3393 WVFGRD96 32.0 70 80 30 3.45 0.3433 WVFGRD96 34.0 70 80 25 3.47 0.3512 WVFGRD96 36.0 70 75 20 3.49 0.3563 WVFGRD96 38.0 70 75 20 3.51 0.3581 WVFGRD96 40.0 70 65 15 3.59 0.3524 WVFGRD96 42.0 70 70 25 3.59 0.3528 WVFGRD96 44.0 70 75 30 3.61 0.3587 WVFGRD96 46.0 65 85 30 3.62 0.3683 WVFGRD96 48.0 65 85 30 3.64 0.3768 WVFGRD96 50.0 65 85 30 3.65 0.3840 WVFGRD96 52.0 65 85 30 3.66 0.3915 WVFGRD96 54.0 65 80 30 3.68 0.3970 WVFGRD96 56.0 65 80 30 3.69 0.4032 WVFGRD96 58.0 65 80 30 3.70 0.4082 WVFGRD96 60.0 70 70 25 3.72 0.4114 WVFGRD96 62.0 70 70 25 3.73 0.4156 WVFGRD96 64.0 70 70 25 3.74 0.4193 WVFGRD96 66.0 70 70 25 3.75 0.4213 WVFGRD96 68.0 70 70 25 3.75 0.4233 WVFGRD96 70.0 70 70 25 3.76 0.4243 WVFGRD96 72.0 75 60 35 3.77 0.4271 WVFGRD96 74.0 75 60 40 3.77 0.4334 WVFGRD96 76.0 75 60 40 3.78 0.4390 WVFGRD96 78.0 80 55 45 3.79 0.4441 WVFGRD96 80.0 80 55 45 3.79 0.4487 WVFGRD96 82.0 80 55 45 3.80 0.4535 WVFGRD96 84.0 80 55 45 3.81 0.4576 WVFGRD96 86.0 80 55 45 3.81 0.4608 WVFGRD96 88.0 80 55 45 3.82 0.4634 WVFGRD96 90.0 75 60 50 3.81 0.4657 WVFGRD96 92.0 75 60 50 3.82 0.4666 WVFGRD96 94.0 75 60 55 3.82 0.4679 WVFGRD96 96.0 75 60 55 3.82 0.4701 WVFGRD96 98.0 75 60 55 3.83 0.4707 WVFGRD96 100.0 75 60 55 3.83 0.4719 WVFGRD96 102.0 75 60 55 3.84 0.4723 WVFGRD96 104.0 75 60 55 3.84 0.4729 WVFGRD96 106.0 75 60 55 3.85 0.4740 WVFGRD96 108.0 75 60 55 3.85 0.4740 WVFGRD96 110.0 75 60 55 3.85 0.4739 WVFGRD96 112.0 75 60 55 3.86 0.4747 WVFGRD96 114.0 75 60 55 3.86 0.4740 WVFGRD96 116.0 75 60 55 3.87 0.4736 WVFGRD96 118.0 75 60 60 3.86 0.4734 WVFGRD96 120.0 75 60 60 3.87 0.4722 WVFGRD96 122.0 75 60 60 3.87 0.4721 WVFGRD96 124.0 75 60 60 3.87 0.4706 WVFGRD96 126.0 75 60 60 3.88 0.4687 WVFGRD96 128.0 75 60 60 3.88 0.4674
The best solution is
WVFGRD96 112.0 75 60 55 3.86 0.4747
The mechanism corresponding to the best fit is
![]() |
|

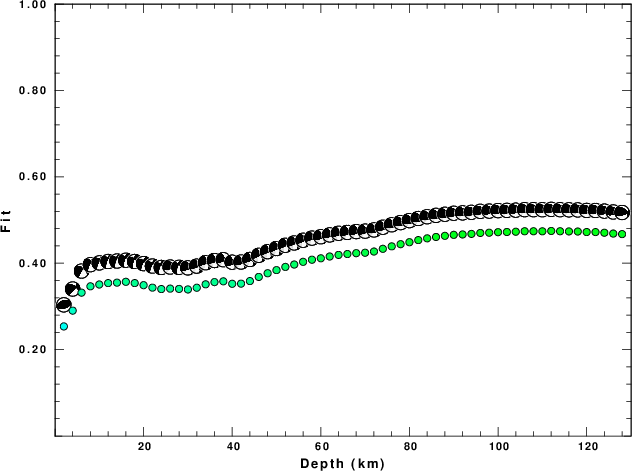

The best fit as a function of depth is given in the following figure:
![]() |
|

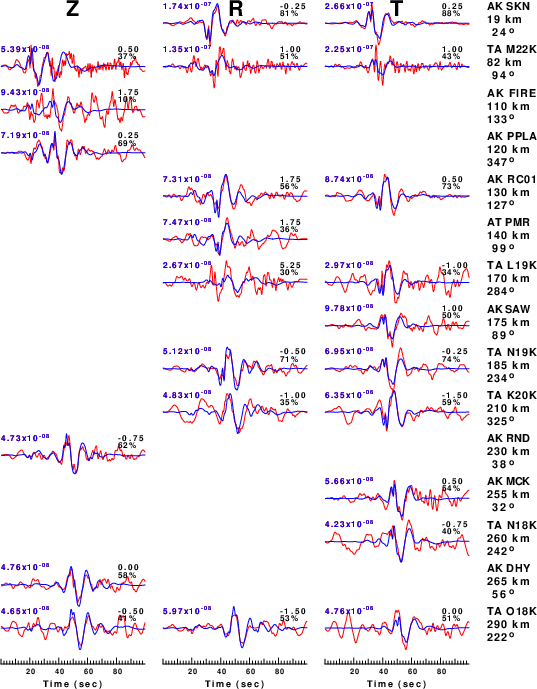

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut a -20 a 80 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 br c 0.12 0.25 n 4 p 2
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

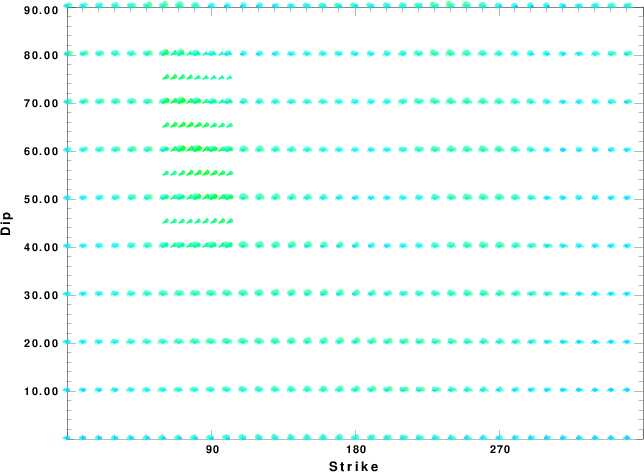

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

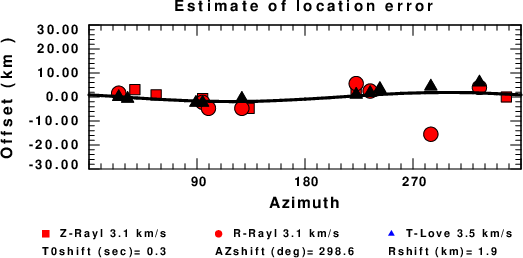

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
