Location

Location ANSS

The ANSS event ID is us10006249 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us10006249/executive.

2016/07/09 02:04:28 36.464 -98.758 7.2 4.4 Oklahoma

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2016/07/09 02:04:28:0 36.46 -98.76 7.2 4.4 Oklahoma Stations used: GS.KAN01 GS.KAN05 GS.KAN06 GS.KAN08 GS.KAN10 GS.KAN12 GS.KAN13 GS.KAN14 GS.KAN16 GS.KAN17 GS.KS20 GS.KS21 GS.OK025 GS.OK029 GS.OK030 GS.OK031 GS.OK032 GS.OK033 GS.OK034 GS.OK035 N4.R32B N4.T35B N4.U38B OK.BCOK OK.CHOK OK.CROK OK.ELIS OK.FNO OK.GORE OK.HTCH OK.NOKA OK.OKCFA OK.U32A TA.TUL1 US.CBKS US.KSU1 Filtering commands used: cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 3.80e+22 dyne-cm Mw = 4.32 Z = 7 km Plane Strike Dip Rake NP1 46 85 -170 NP2 315 80 -5 Principal Axes: Axis Value Plunge Azimuth T 3.80e+22 4 180 N 0.00e+00 79 72 P -3.80e+22 11 271 Moment Tensor: (dyne-cm) Component Value Mxx 3.79e+22 Mxy 5.67e+20 Mxz -2.45e+21 Myy -3.67e+22 Myz 6.85e+21 Mzz -1.13e+21 ############## ###################### ############################ --###########################- -------#######################---- ----------###################------- --------------###############--------- -----------------###########------------ -------------------#######-------------- - ------------------####---------------- - P -------------------------------------- - ------------------###----------------- --------------------#######--------------- -----------------###########------------ ---------------##############----------- ------------##################-------- ---------#####################------ -----#########################---- -############################- ############################ ######### ########## ##### T ###### Global CMT Convention Moment Tensor: R T P -1.13e+21 -2.45e+21 -6.85e+21 -2.45e+21 3.79e+22 -5.67e+20 -6.85e+21 -5.67e+20 -3.67e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20160709020428/index.html

Preferred Solution

      STK = 315
      DIP = 80
     RAKE = -5
       MW = 4.32
       HS = 7.0

The NDK file is 20160709020428.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU

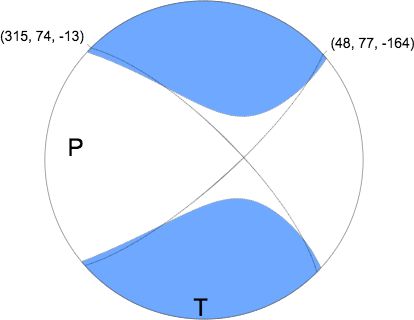

USGSMT

USGS/SLU Moment Tensor Solution ENS 2016/07/09 02:04:28:0 36.46 -98.76 7.2 4.4 Oklahoma Stations used: GS.KAN01 GS.KAN05 GS.KAN06 GS.KAN08 GS.KAN10 GS.KAN12 GS.KAN13 GS.KAN14 GS.KAN16 GS.KAN17 GS.KS20 GS.KS21 GS.OK025 GS.OK029 GS.OK030 GS.OK031 GS.OK032 GS.OK033 GS.OK034 GS.OK035 N4.R32B N4.T35B N4.U38B OK.BCOK OK.CHOK OK.CROK OK.ELIS OK.FNO OK.GORE OK.HTCH OK.NOKA OK.OKCFA OK.U32A TA.TUL1 US.CBKS US.KSU1 Filtering commands used: cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 3.80e+22 dyne-cm Mw = 4.32 Z = 7 km Plane Strike Dip Rake NP1 46 85 -170 NP2 315 80 -5 Principal Axes: Axis Value Plunge Azimuth T 3.80e+22 4 180 N 0.00e+00 79 72 P -3.80e+22 11 271 Moment Tensor: (dyne-cm) Component Value Mxx 3.79e+22 Mxy 5.67e+20 Mxz -2.45e+21 Myy -3.67e+22 Myz 6.85e+21 Mzz -1.13e+21 ############## ###################### ############################ --###########################- -------#######################---- ----------###################------- --------------###############--------- -----------------###########------------ -------------------#######-------------- - ------------------####---------------- - P -------------------------------------- - ------------------###----------------- --------------------#######--------------- -----------------###########------------ ---------------##############----------- ------------##################-------- ---------#####################------ -----#########################---- -############################- ############################ ######### ########## ##### T ###### Global CMT Convention Moment Tensor: R T P -1.13e+21 -2.45e+21 -6.85e+21 -2.45e+21 3.79e+22 -5.67e+20 -6.85e+21 -5.67e+20 -3.67e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20160709020428/index.html

Regional Moment Tensor (Mwr) Moment 4.625e+15 N-m Magnitude 4.4 Mwr Depth 8.0 km Percent DC 71 % Half Duration – Catalog US Data Source US1 Contributor US1 Nodal Planes Plane Strike Dip Rake NP1 48 77 -164 NP2 315 74 -13 Principal Axes Axis Value Plunge Azimuth T 4.942e+15 N-m 2 181 N -0.716e+15 N-m 70 86 P -4.225e+15 N-m 20 272

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

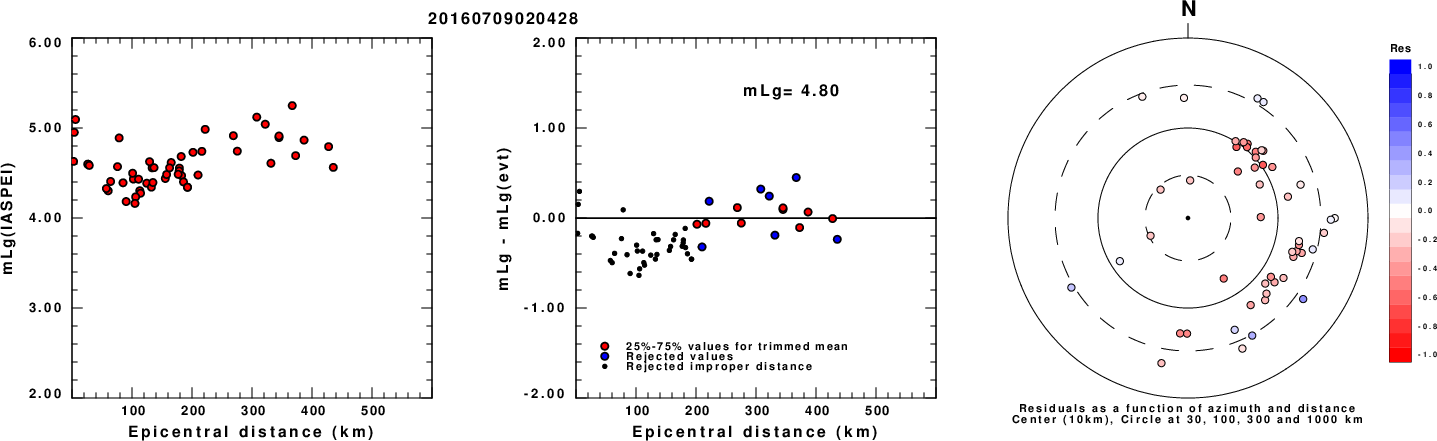

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

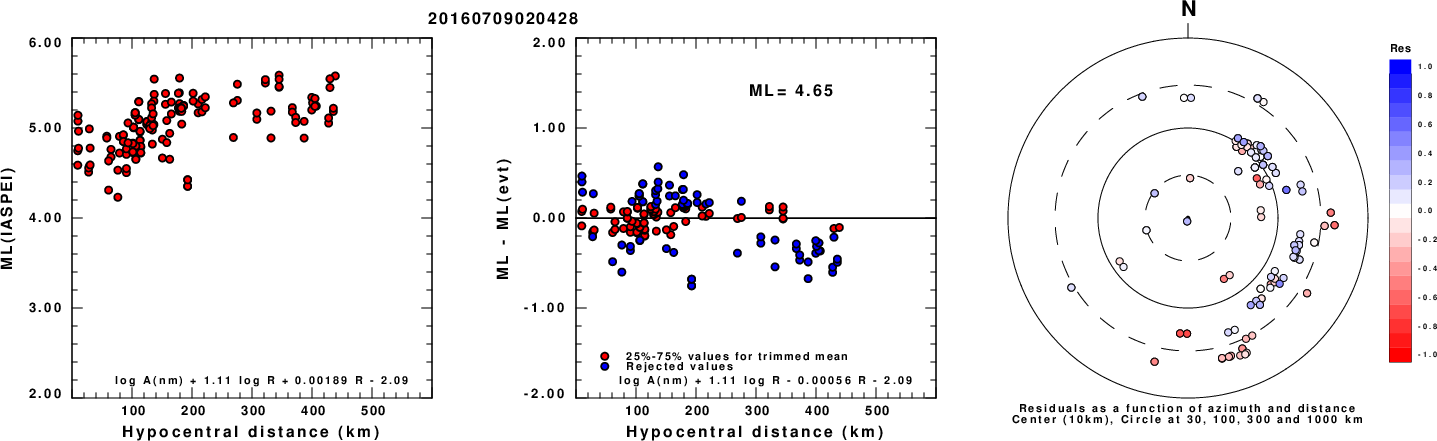

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

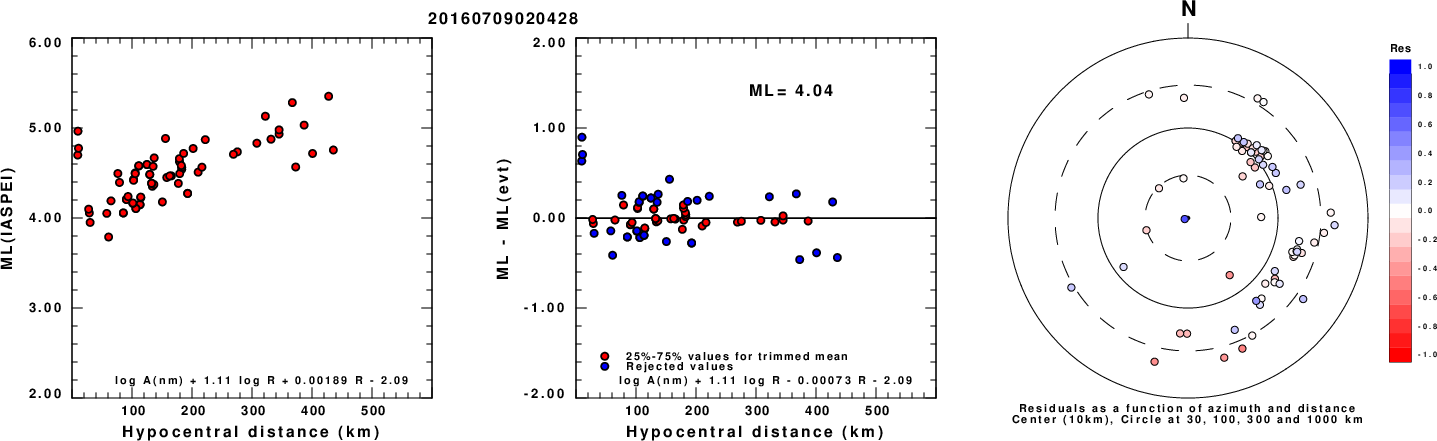

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

Waveform Inversion using wvfgrd96

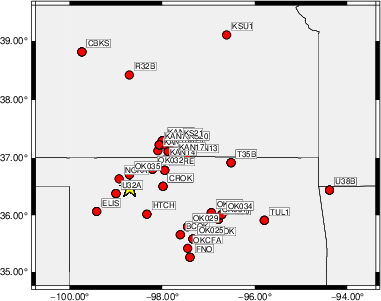

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   315    70     0   3.96 0.4034
WVFGRD96    2.0   135    85   -10   4.09 0.5458
WVFGRD96    3.0   135    90    10   4.15 0.6038
WVFGRD96    4.0   315    80   -10   4.20 0.6467
WVFGRD96    5.0   315    75    -5   4.25 0.6736
WVFGRD96    6.0   315    75    -5   4.28 0.6891
WVFGRD96    7.0   315    80    -5   4.32 0.6953
WVFGRD96    8.0   315    80    -5   4.35 0.6948
WVFGRD96    9.0   315    80    -5   4.38 0.6873
WVFGRD96   10.0   140    85     5   4.40 0.6738
WVFGRD96   11.0   140    85     5   4.42 0.6605
WVFGRD96   12.0   140    85     5   4.43 0.6446
WVFGRD96   13.0   140    85     5   4.45 0.6271
WVFGRD96   14.0   140    80     5   4.46 0.6094
WVFGRD96   15.0   135    85     5   4.47 0.5904
WVFGRD96   16.0   135    85     5   4.48 0.5701
WVFGRD96   17.0   135    80     5   4.49 0.5525
WVFGRD96   18.0   135    80     5   4.50 0.5342
WVFGRD96   19.0   135    80     5   4.50 0.5154
WVFGRD96   20.0   135    75     5   4.51 0.4995
WVFGRD96   21.0   135    70     0   4.52 0.4833
WVFGRD96   22.0   135    70    -5   4.52 0.4699
WVFGRD96   23.0   135    70    -5   4.53 0.4568
WVFGRD96   24.0   135    65    -5   4.53 0.4454
WVFGRD96   25.0   135    65    -5   4.54 0.4370
WVFGRD96   26.0   135    65    -5   4.54 0.4290
WVFGRD96   27.0   135    65    -5   4.55 0.4213
WVFGRD96   28.0   225    80    10   4.54 0.4199
WVFGRD96   29.0   225    80    10   4.55 0.4284

The best solution is

WVFGRD96    7.0   315    80    -5   4.32 0.6953

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

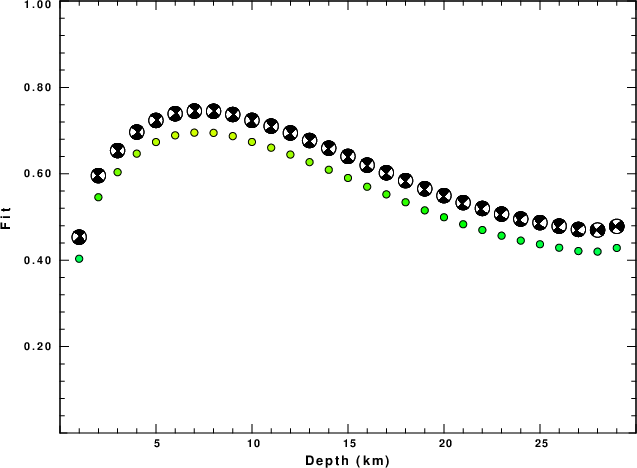

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

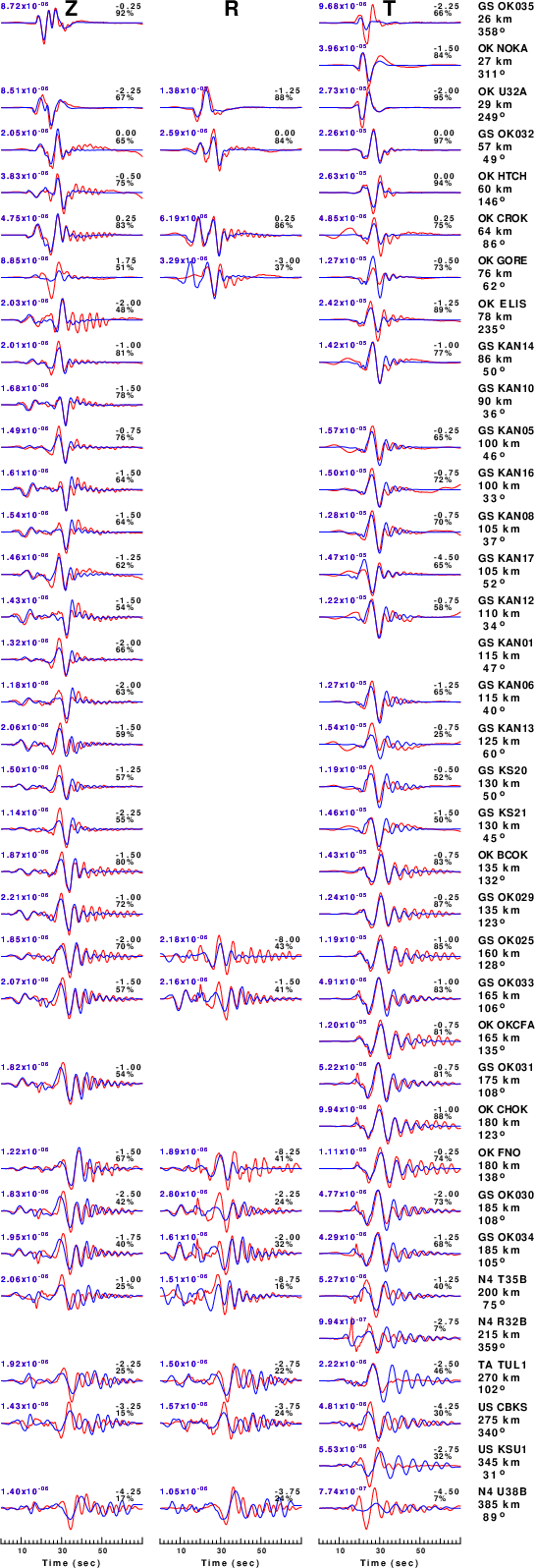

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

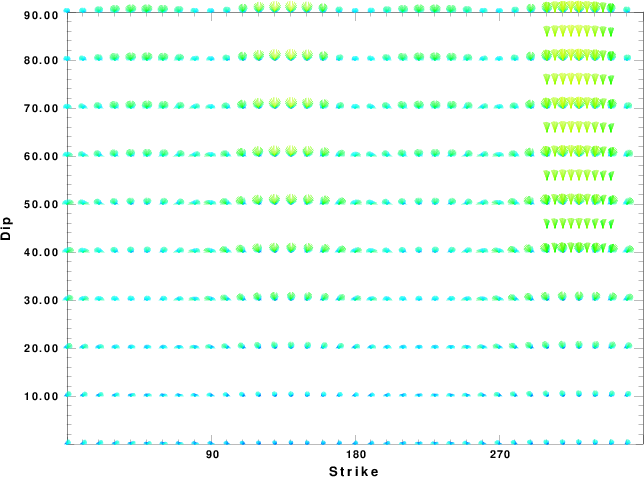

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

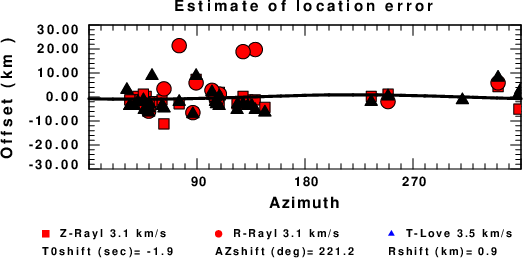

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
