The ANSS event ID is nn00550904 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00550904/executive.

2016/07/07 23:40:45 38.652 -118.794 9.1 4.5 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2016/07/07 23:40:45:0  38.65 -118.79   9.1 4.5 Nevada

 Stations used:
   CI.CCA CI.GSC CI.ISA IM.NV31 LB.BMN LB.TPH NN.BEK NN.COLR
   NN.CTC NN.GWY NN.KVN NN.LCH NN.LHV NN.MPK NN.PAH NN.PLTX
   NN.PNT NN.PRN NN.Q09A NN.QSM NN.REDF NN.RYN NN.S11A NN.SHP
   NN.SPR3 NN.VCN NN.WDEM NN.YER SN.HEL TA.R11A US.ELK US.TPNV
   US.WVOR

 Filtering commands used:
   cut o DIST/3.3 -20 o DIST/3.3 +60
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 2.26e+22 dyne-cm
  Mw = 4.17
  Z  = 8 km
  Plane   Strike  Dip  Rake
   NP1       70    85   -20
   NP2      162    70   -175
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.26e+22     10     118
    N   0.00e+00     69     237
    P  -2.26e+22     18      24

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.24e+22
       Mxy    -1.67e+22
       Mxz    -7.80e+21
       Myy     1.38e+22
       Myz     8.66e+20
       Mzz    -1.34e+21




                     --------------
                 ####-------------   --
              #######------------- P -----
             ########-------------   ------
           ##########------------------------
          ###########-------------------------
         ############--------------------------
        #############-------------------------##
        ##############---------------------#####
       ###############-----------------##########
       ###############------------###############
       ################------####################
       ##########################################
        ##########------########################
        ###--------------##################   ##
         -----------------################# T #
          -----------------################
           -----------------#################
             ----------------##############
              ----------------############
                 ---------------#######
                     -------------#



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.34e+21  -7.80e+21  -8.66e+20
 -7.80e+21  -1.24e+22   1.67e+22
 -8.66e+20   1.67e+22   1.38e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20160707234045/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 70
      DIP = 85
     RAKE = -20
       MW = 4.17
       HS = 8.0

The NDK file is 20160707234045.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMT
UNR
 USGS/SLU Moment Tensor Solution
 ENS  2016/07/07 23:40:45:0  38.65 -118.79   9.1 4.5 Nevada

 Stations used:
   CI.CCA CI.GSC CI.ISA IM.NV31 LB.BMN LB.TPH NN.BEK NN.COLR
   NN.CTC NN.GWY NN.KVN NN.LCH NN.LHV NN.MPK NN.PAH NN.PLTX
   NN.PNT NN.PRN NN.Q09A NN.QSM NN.REDF NN.RYN NN.S11A NN.SHP
   NN.SPR3 NN.VCN NN.WDEM NN.YER SN.HEL TA.R11A US.ELK US.TPNV
   US.WVOR

 Filtering commands used:
   cut o DIST/3.3 -20 o DIST/3.3 +60
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 2.26e+22 dyne-cm
  Mw = 4.17
  Z  = 8 km
  Plane   Strike  Dip  Rake
   NP1       70    85   -20
   NP2      162    70   -175
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.26e+22     10     118
    N   0.00e+00     69     237
    P  -2.26e+22     18      24

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.24e+22
       Mxy    -1.67e+22
       Mxz    -7.80e+21
       Myy     1.38e+22
       Myz     8.66e+20
       Mzz    -1.34e+21




                     --------------
                 ####-------------   --
              #######------------- P -----
             ########-------------   ------
           ##########------------------------
          ###########-------------------------
         ############--------------------------
        #############-------------------------##
        ##############---------------------#####
       ###############-----------------##########
       ###############------------###############
       ################------####################
       ##########################################
        ##########------########################
        ###--------------##################   ##
         -----------------################# T #
          -----------------################
           -----------------#################
             ----------------##############
              ----------------############
                 ---------------#######
                     -------------#



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.34e+21  -7.80e+21  -8.66e+20
 -7.80e+21  -1.24e+22   1.67e+22
 -8.66e+20   1.67e+22   1.38e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20160707234045/index.html

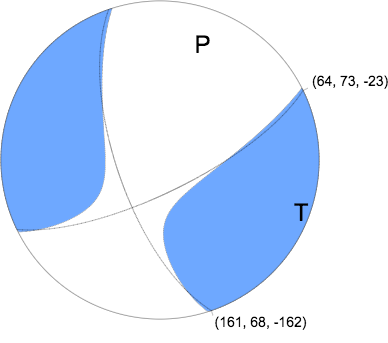

Regional Moment Tensor (Mwr)
Moment  2.214e+15 N-m
Magnitude   4.2 Mwr
Depth   8.0 km
Percent DC  79 %
Half Duration   –
Catalog US
Data Source US3
Contributor US3
Nodal Planes
Plane   Strike  Dip Rake
NP1     64 73 -23
NP2     161    68 -162
Principal Axes
Axis    Value   Plunge  Azimuth
T       2.324e+15 N-m   4  113
N       -0.238e+15 N-m  62 210
P       -2.085e+15 N-m  28 22


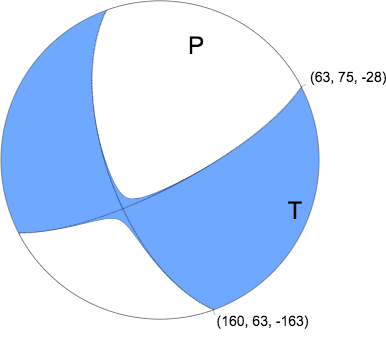

Moment Tensor (Mw)
Moment	2.121e+15 N-m
Magnitude	4.2 Mw
Depth	6.0 km
Percent DC	98 %
Half Duration	–
Catalog	NN
Data Source	NN2
Contributor	NN2
Nodal Planes
Plane	Strike	Dip	Rake
NP1	63	75	-28
NP2	160	63	-163
Principal Axes
Axis	Value	Plunge	Azimuth
T	2.108e+15 N-m	8	114
N	0.026e+15 N-m	58	217
P	-2.134e+15 N-m	30	19



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

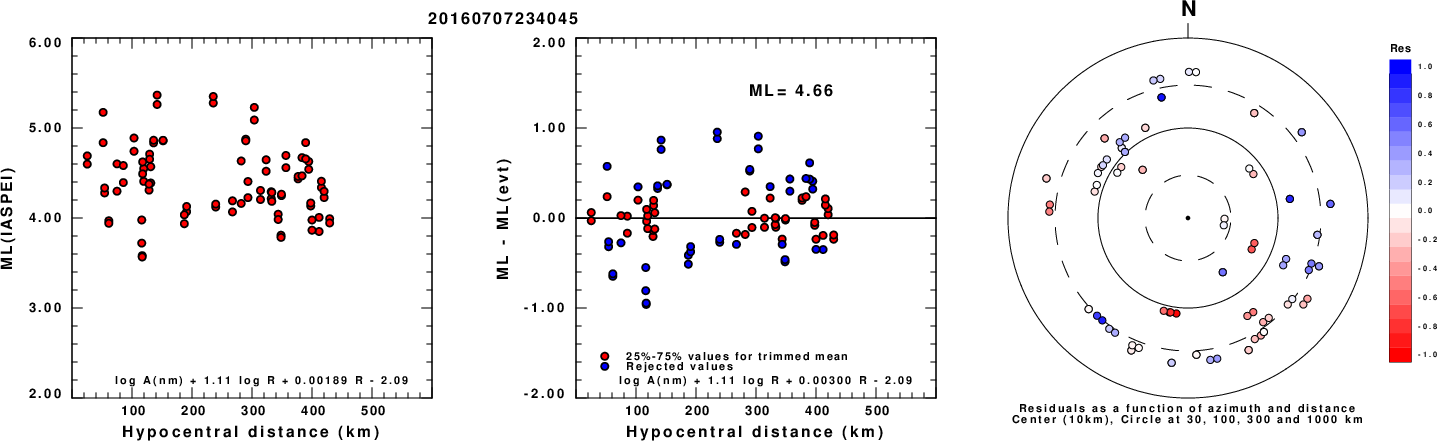

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

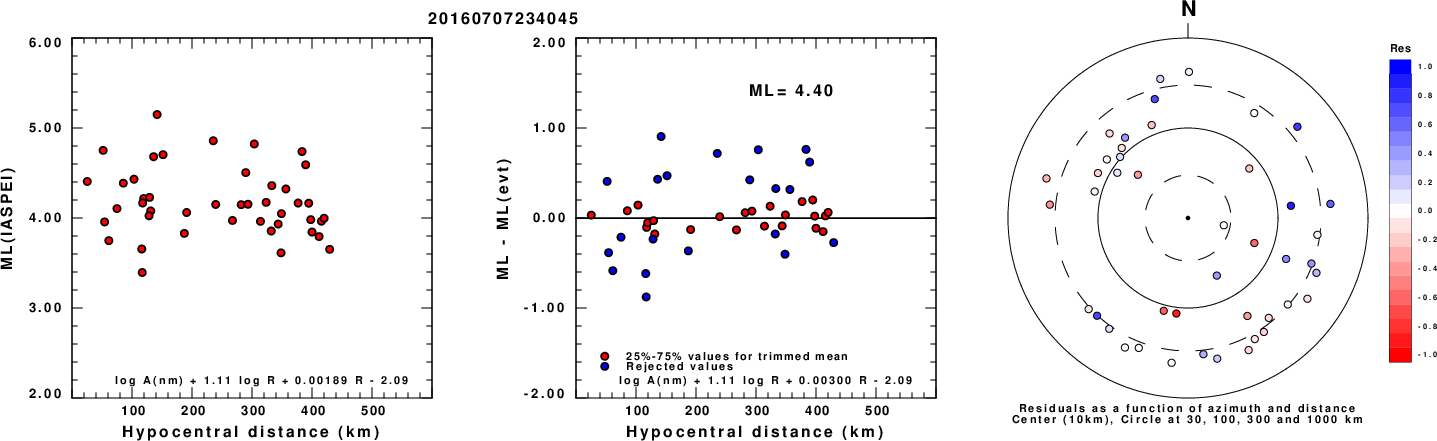

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

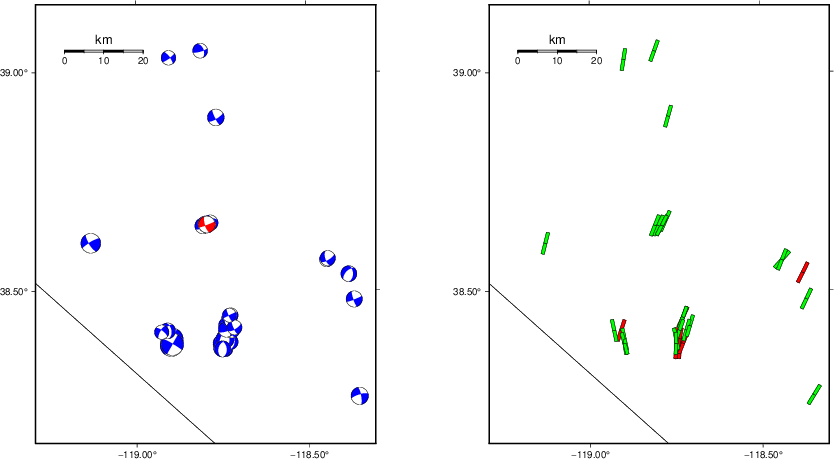

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

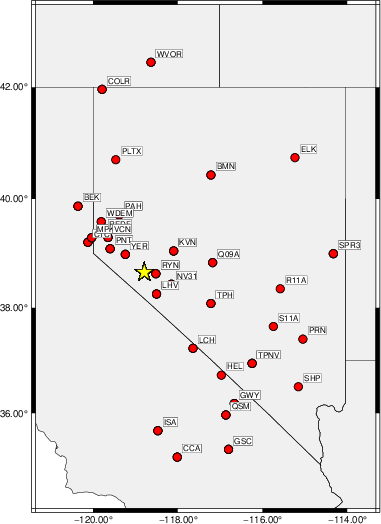

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -20 o DIST/3.3 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   250    80    -5   3.74 0.3762
WVFGRD96    2.0   250    90    15   3.89 0.5049
WVFGRD96    3.0   250    90    20   3.97 0.5741
WVFGRD96    4.0   250    90    20   4.02 0.6277
WVFGRD96    5.0    70    85   -20   4.06 0.6648
WVFGRD96    6.0    70    85   -20   4.09 0.6872
WVFGRD96    7.0    70    90   -15   4.12 0.7029
WVFGRD96    8.0    70    85   -20   4.17 0.7110
WVFGRD96    9.0    70    90   -15   4.18 0.7018
WVFGRD96   10.0   250    90    15   4.20 0.6845
WVFGRD96   11.0   250    85    15   4.21 0.6613
WVFGRD96   12.0   250    85    15   4.22 0.6342
WVFGRD96   13.0   250    85    10   4.24 0.6058
WVFGRD96   14.0   250    85    10   4.25 0.5783
WVFGRD96   15.0    70    90   -10   4.25 0.5519
WVFGRD96   16.0   245    85    10   4.25 0.5276
WVFGRD96   17.0    70    80   -10   4.26 0.5071
WVFGRD96   18.0    65    90    10   4.25 0.4905
WVFGRD96   19.0    65    85    15   4.25 0.4759
WVFGRD96   20.0    65    80    15   4.26 0.4630
WVFGRD96   21.0    65    80    15   4.26 0.4510
WVFGRD96   22.0    65    80    15   4.27 0.4398
WVFGRD96   23.0    65    80    15   4.28 0.4295
WVFGRD96   24.0    70    75    15   4.29 0.4200
WVFGRD96   25.0    70    75    15   4.29 0.4132
WVFGRD96   26.0    70    70    15   4.30 0.4075
WVFGRD96   27.0    70    70    15   4.30 0.4016
WVFGRD96   28.0   335    75    -5   4.31 0.4009
WVFGRD96   29.0   335    75    -5   4.31 0.4048

The best solution is

WVFGRD96    8.0    70    85   -20   4.17 0.7110

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

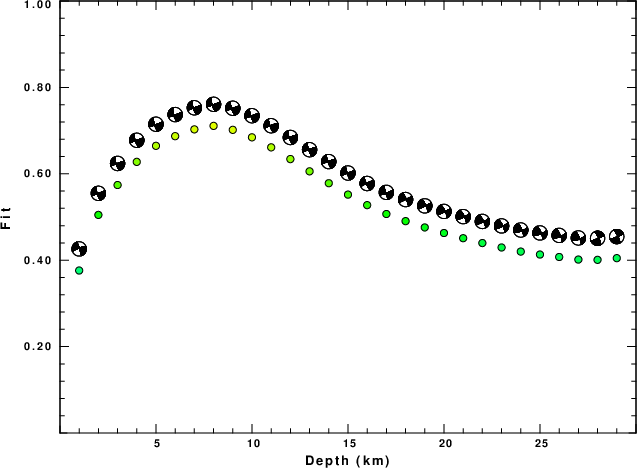

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

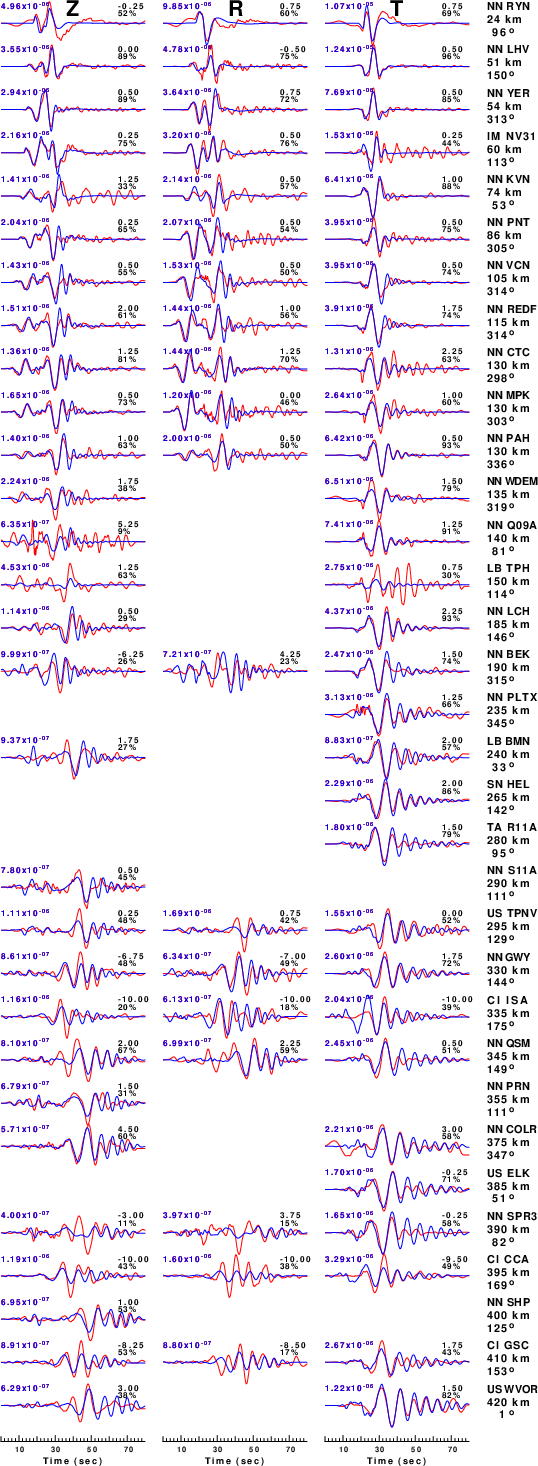

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -20 o DIST/3.3 +60
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

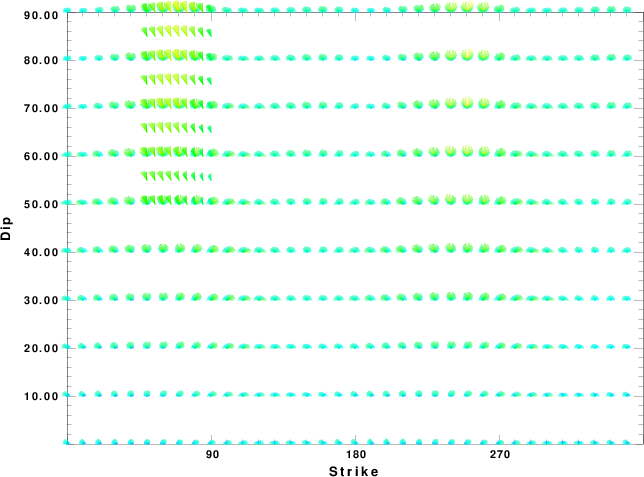

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

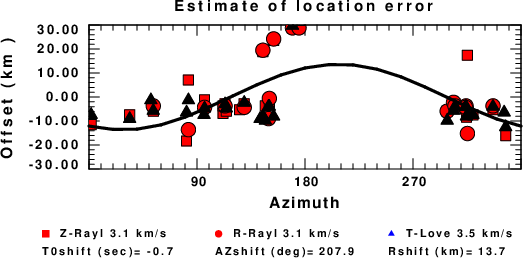

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Fri Apr 26 05:54:36 PM CDT 2024
