Location

Location ANSS

The ANSS event ID is us20004ymw and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us20004ymw/executive.

2016/02/08 01:42:50 36.316 -98.151 6.6 2.6 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2016/02/08 01:42:50:0  36.32  -98.15   6.6 2.6 Alaska

 Stations used:
   AK.CUT AK.DIV AK.EYAK AK.FID AK.GLB AK.GLI AK.KLU AK.KNK
   AK.PWL AK.SCM AK.VRDI TA.M24K TA.N25K

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3
   br c 0.12 0.5 n 4 p 2

 Best Fitting Double Couple
  Mo = 6.76e+21 dyne-cm
  Mw = 3.82
  Z  = 35 km
  Plane   Strike  Dip  Rake
   NP1      235    65   -40
   NP2      345    54   -149
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   6.76e+21      6     292
    N   0.00e+00     44      28
    P  -6.76e+21     45     195

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.18e+21
       Mxy    -3.17e+21
       Mxz     3.54e+21
       Myy     5.51e+21
       Myz     1.91e+20
       Mzz    -3.33e+21




                     ###-----------
                 ##########------------
              ###############-------------
             ##################------------
           #####################----------##-
          #######################-############
           ##################-----#############
         T ###############---------#############
           #############------------############
       ##############----------------############
       ############------------------############
       ##########--------------------############
       #########----------------------###########
        ######------------------------##########
        #####-------------------------##########
         ###------------   -----------#########
          #------------- P -----------########
           -------------   ----------########
             ------------------------######
              ----------------------######
                 ------------------####
                     -------------#



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.33e+21   3.54e+21  -1.91e+20
  3.54e+21  -2.18e+21   3.17e+21
 -1.91e+20   3.17e+21   5.51e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20160208014250/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 235
      DIP = 65
     RAKE = -40
       MW = 3.82
       HS = 35.0

The NDK file is 20160208014250.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

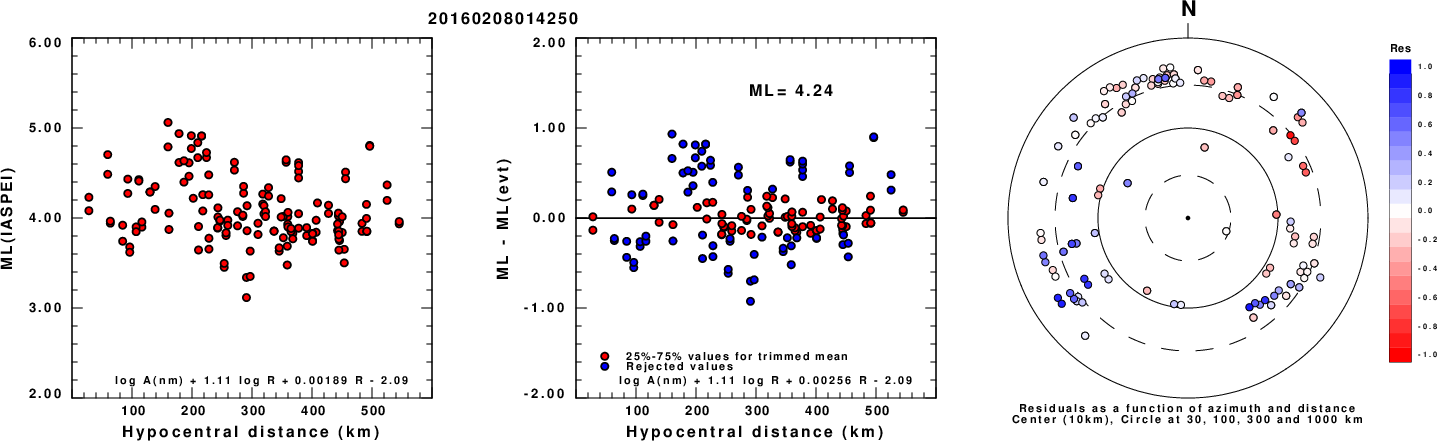

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

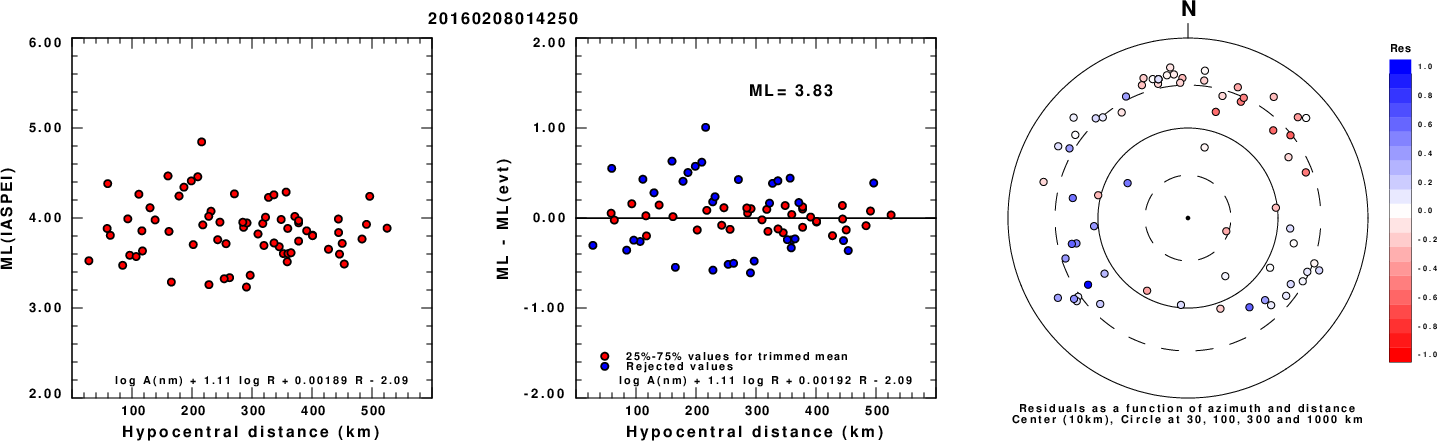

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

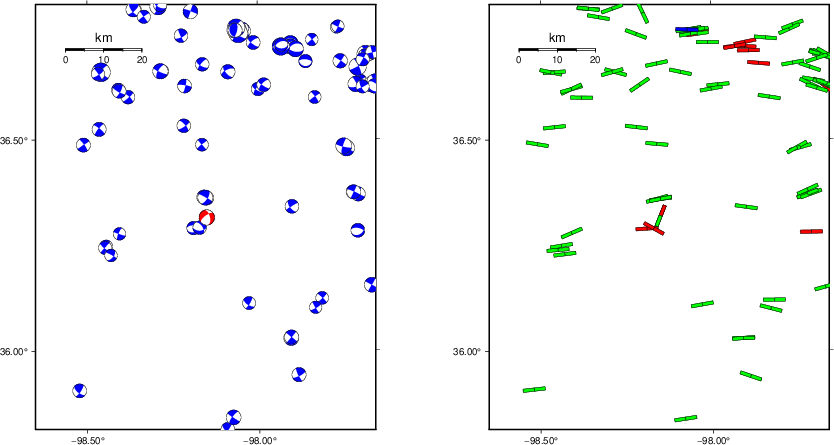

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

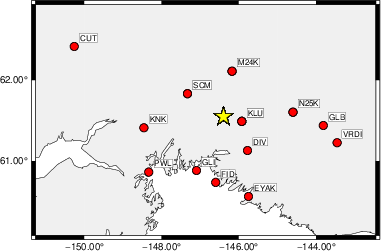

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.5 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   245    85     0   3.33 0.4556
WVFGRD96    2.0   245    55     0   3.45 0.4745
WVFGRD96    3.0   245    45     0   3.52 0.4690
WVFGRD96    4.0   155    85   -70   3.64 0.4680
WVFGRD96    5.0   150    80   -70   3.61 0.4714
WVFGRD96    6.0   155    85   -60   3.57 0.4714
WVFGRD96    7.0   155    85   -55   3.56 0.4721
WVFGRD96    8.0   150    80   -60   3.62 0.4754
WVFGRD96    9.0   150    80   -60   3.61 0.4766
WVFGRD96   10.0   150    80   -55   3.61 0.4773
WVFGRD96   11.0   105    55    55   3.58 0.4804
WVFGRD96   12.0   105    55    55   3.59 0.4913
WVFGRD96   13.0   105    55    55   3.59 0.4995
WVFGRD96   14.0   105    55    55   3.60 0.5060
WVFGRD96   15.0   105    55    55   3.60 0.5113
WVFGRD96   16.0   105    60    55   3.61 0.5162
WVFGRD96   17.0   105    60    55   3.62 0.5211
WVFGRD96   18.0   240    65   -35   3.63 0.5253
WVFGRD96   19.0   240    70   -35   3.64 0.5349
WVFGRD96   20.0   240    70   -35   3.65 0.5457
WVFGRD96   21.0   240    70   -40   3.66 0.5544
WVFGRD96   22.0   240    70   -40   3.68 0.5650
WVFGRD96   23.0   240    75   -40   3.68 0.5754
WVFGRD96   24.0   240    75   -40   3.70 0.5869
WVFGRD96   25.0   240    75   -40   3.71 0.5970
WVFGRD96   26.0   240    75   -40   3.72 0.6061
WVFGRD96   27.0   240    75   -40   3.74 0.6143
WVFGRD96   28.0   240    75   -40   3.75 0.6208
WVFGRD96   29.0   240    75   -40   3.76 0.6257
WVFGRD96   30.0   235    70   -40   3.78 0.6305
WVFGRD96   31.0   235    65   -40   3.79 0.6383
WVFGRD96   32.0   235    65   -40   3.80 0.6455
WVFGRD96   33.0   235    65   -40   3.81 0.6511
WVFGRD96   34.0   235    65   -40   3.82 0.6557
WVFGRD96   35.0   235    65   -40   3.82 0.6576
WVFGRD96   36.0   235    65   -40   3.83 0.6574
WVFGRD96   37.0   235    65   -40   3.84 0.6561
WVFGRD96   38.0   235    65   -40   3.85 0.6527
WVFGRD96   39.0   235    65   -35   3.86 0.6475
WVFGRD96   40.0   230    65   -50   3.94 0.6440
WVFGRD96   41.0   230    65   -45   3.94 0.6420
WVFGRD96   42.0   230    65   -50   3.95 0.6427
WVFGRD96   43.0   230    65   -50   3.96 0.6423
WVFGRD96   44.0   230    65   -50   3.96 0.6417
WVFGRD96   45.0   230    65   -50   3.97 0.6404
WVFGRD96   46.0   230    65   -50   3.97 0.6374
WVFGRD96   47.0   230    65   -45   3.98 0.6353
WVFGRD96   48.0   230    65   -45   3.98 0.6325
WVFGRD96   49.0   230    65   -45   3.99 0.6292

The best solution is

WVFGRD96   35.0   235    65   -40   3.82 0.6576

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

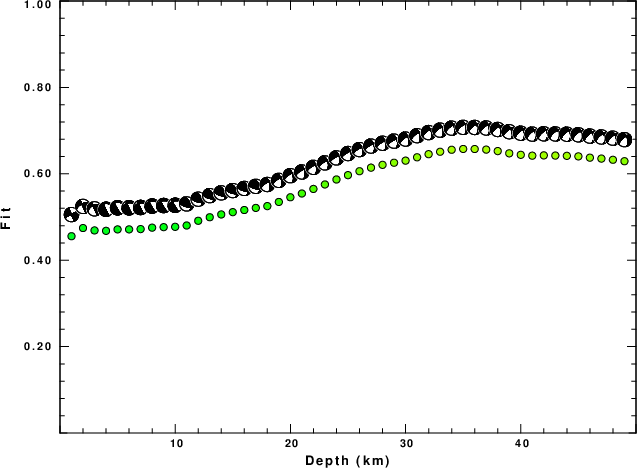

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.5 n 4 p 2

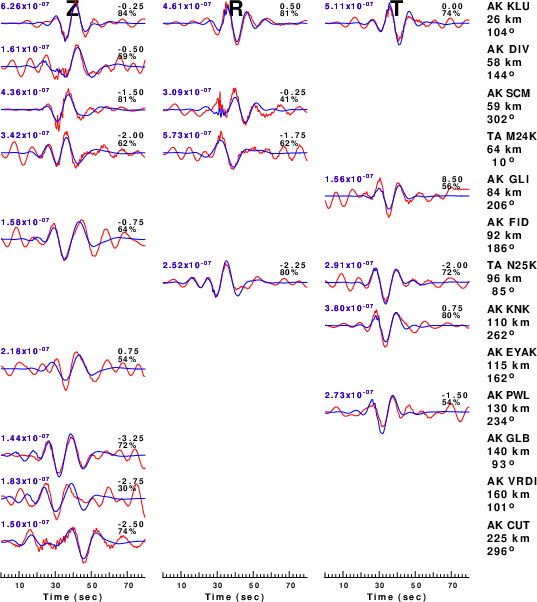

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

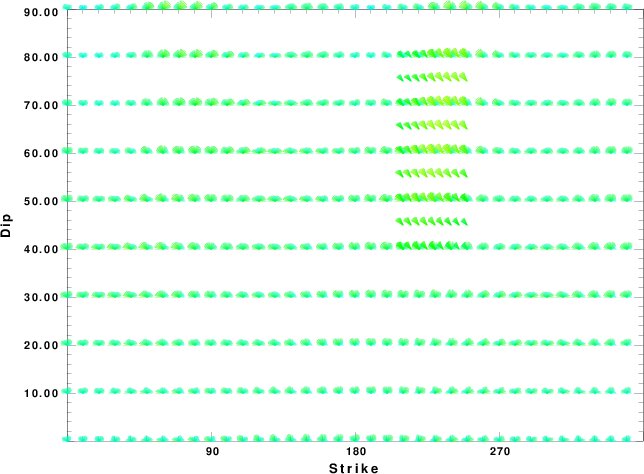

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

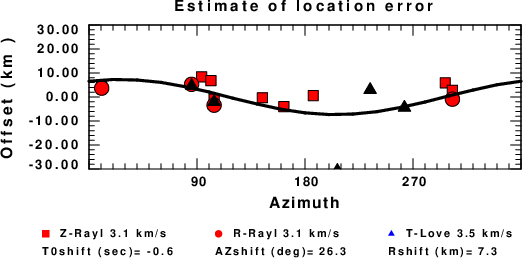

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
