Location

Location ANSS

The ANSS event ID is ak015ffuk2jn and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak015ffuk2jn/executive.

2015/12/02 10:05:25 61.697 -147.262 36.6 4.5 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2015/12/02 10:05:25:0  61.70 -147.26  36.6 4.5 Alaska

 Stations used:
   AK.BPAW AK.CAST AK.CUT AK.DHY AK.FID AK.FIRE AK.GHO AK.GLB
   AK.GLI AK.ISLE AK.KLU AK.KNK AK.KTH AK.MCAR AK.MCK AK.MDM
   AK.MLY AK.NEA2 AK.PAX AK.PPLA AK.PWL AK.RC01 AK.RND AK.SAW
   AK.TRF AK.VRDI AK.WAX AK.WRH AK.YAH AT.MID AT.PMR IM.IL31
   TA.J20K TA.L19K TA.L26K TA.L27K TA.M24K TA.M26K TA.M27K
   TA.N25K TA.O19K TA.O22K TA.Q23K TA.TCOL

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 7.59e+22 dyne-cm
  Mw = 4.52
  Z  = 48 km
  Plane   Strike  Dip  Rake
   NP1       65    85    10
   NP2      334    80   175
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.59e+22     11     290
    N   0.00e+00     79      91
    P  -7.59e+22      3     199

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -5.89e+22
       Mxy    -4.70e+22
       Mxz     9.01e+21
       Myy     5.66e+22
       Myz    -1.14e+22
       Mzz     2.29e+21




                     --------------
                 ###-------------------
              ########--------------------
             ##########--------------------
           #############---------------------
          ###############---------------------
            ##############--------------------#
        # T ################---------------#####
        #   #################-----------########
       ######################--------############
       #######################---################
       ######################--##################
       ##################-------#################
        #############------------###############
        ########------------------##############
         ##-----------------------#############
          -------------------------###########
           -------------------------#########
             -----------------------#######
              -----------------------#####
                 ---   --------------##
                     P ------------



 Global CMT Convention Moment Tensor:
      R          T          P
  2.29e+21   9.01e+21   1.14e+22
  9.01e+21  -5.89e+22   4.70e+22
  1.14e+22   4.70e+22   5.66e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20151202100525/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 65
      DIP = 85
     RAKE = 10
       MW = 4.52
       HS = 48.0

The NDK file is 20151202100525.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU

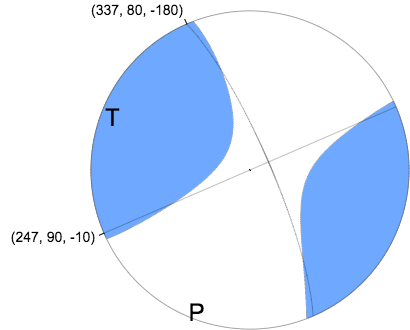

USGSMT
 USGS/SLU Moment Tensor Solution
 ENS  2015/12/02 10:05:25:0  61.70 -147.26  36.6 4.5 Alaska

 Stations used:
   AK.BPAW AK.CAST AK.CUT AK.DHY AK.FID AK.FIRE AK.GHO AK.GLB
   AK.GLI AK.ISLE AK.KLU AK.KNK AK.KTH AK.MCAR AK.MCK AK.MDM
   AK.MLY AK.NEA2 AK.PAX AK.PPLA AK.PWL AK.RC01 AK.RND AK.SAW
   AK.TRF AK.VRDI AK.WAX AK.WRH AK.YAH AT.MID AT.PMR IM.IL31
   TA.J20K TA.L19K TA.L26K TA.L27K TA.M24K TA.M26K TA.M27K
   TA.N25K TA.O19K TA.O22K TA.Q23K TA.TCOL

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 7.59e+22 dyne-cm
  Mw = 4.52
  Z  = 48 km
  Plane   Strike  Dip  Rake
   NP1       65    85    10
   NP2      334    80   175
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.59e+22     11     290
    N   0.00e+00     79      91
    P  -7.59e+22      3     199

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -5.89e+22
       Mxy    -4.70e+22
       Mxz     9.01e+21
       Myy     5.66e+22
       Myz    -1.14e+22
       Mzz     2.29e+21




                     --------------
                 ###-------------------
              ########--------------------
             ##########--------------------
           #############---------------------
          ###############---------------------
            ##############--------------------#
        # T ################---------------#####
        #   #################-----------########
       ######################--------############
       #######################---################
       ######################--##################
       ##################-------#################
        #############------------###############
        ########------------------##############
         ##-----------------------#############
          -------------------------###########
           -------------------------#########
             -----------------------#######
              -----------------------#####
                 ---   --------------##
                     P ------------



 Global CMT Convention Moment Tensor:
      R          T          P
  2.29e+21   9.01e+21   1.14e+22
  9.01e+21  -5.89e+22   4.70e+22
  1.14e+22   4.70e+22   5.66e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20151202100525/index.html

Regional Moment Tensor (Mwr)
Moment	8.224e+15 N-m
Magnitude	4.54
Depth	48.0 km
Percent DC	69%
Half Duration	–
Catalog	US (us100042ng)
Data Source	US3
Contributor	US3
Nodal Planes
Plane	Strike	Dip	Rake
NP1	337	80	-180
NP2	247	90	-10
Principal Axes
Axis	Value	Plunge	Azimuth
T	8.824	7	292
N	-1.372	80	67
P	-7.452	7	201



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

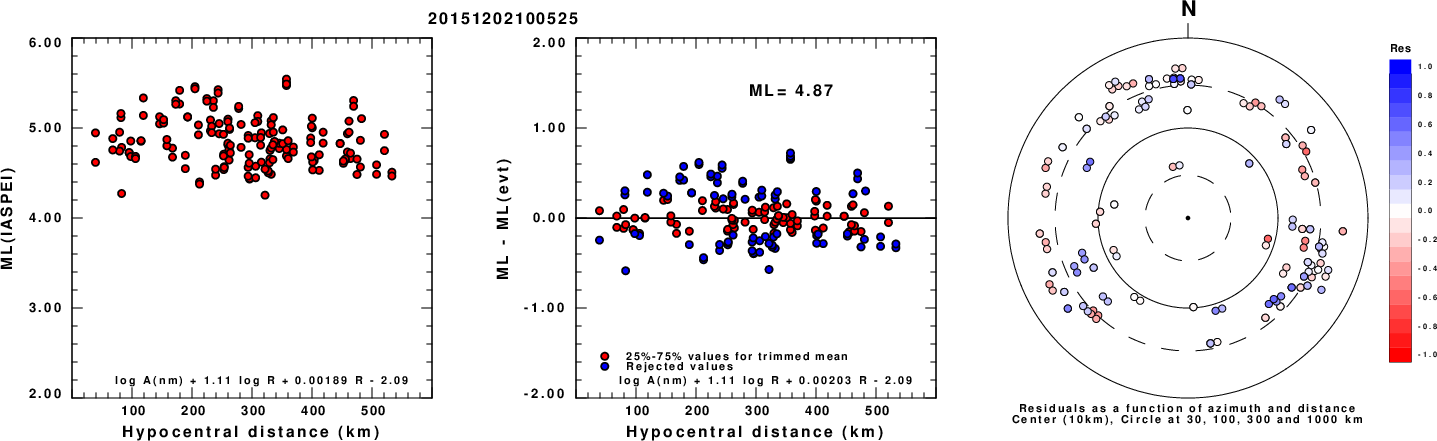

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

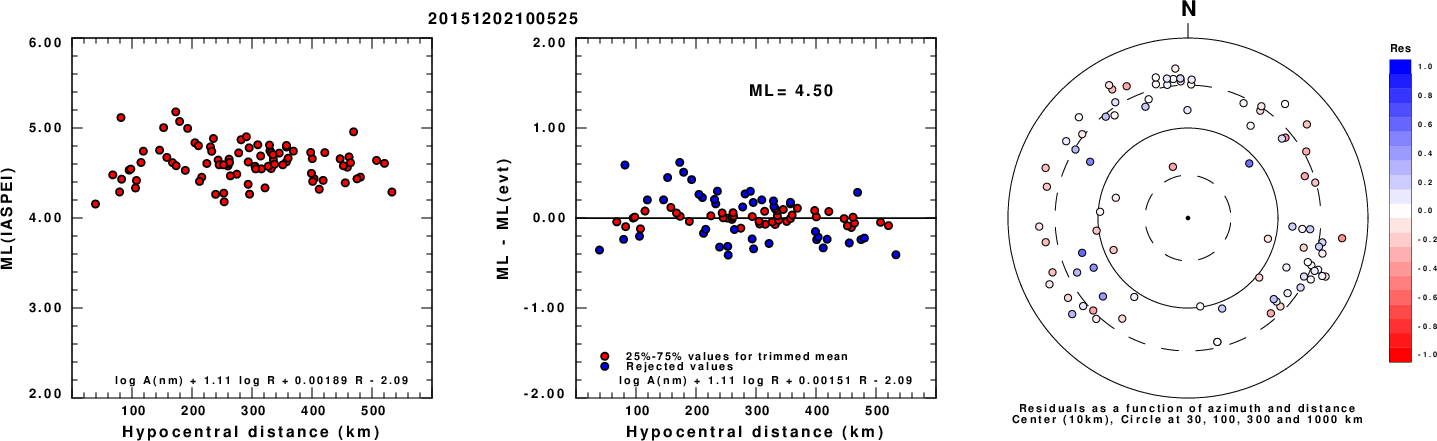

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

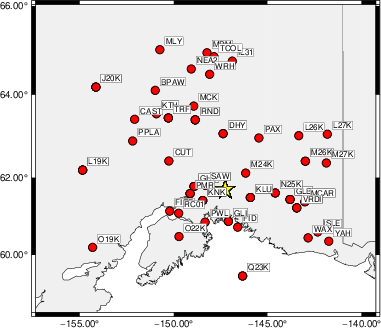

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    65    90     0   3.86 0.3305
WVFGRD96    4.0    65    85    -5   3.95 0.3992
WVFGRD96    6.0    65    85    -5   4.02 0.4443
WVFGRD96    8.0    65    85    -5   4.07 0.4838
WVFGRD96   10.0    65    85   -10   4.11 0.4992
WVFGRD96   12.0    70    75    10   4.13 0.5071
WVFGRD96   14.0    70    75    10   4.16 0.5195
WVFGRD96   16.0    70    80    10   4.18 0.5300
WVFGRD96   18.0    70    80    10   4.20 0.5396
WVFGRD96   20.0    70    80    10   4.22 0.5483
WVFGRD96   22.0    70    80    15   4.24 0.5571
WVFGRD96   24.0    70    80    15   4.26 0.5679
WVFGRD96   26.0    70    80    10   4.27 0.5787
WVFGRD96   28.0    70    80    10   4.29 0.5890
WVFGRD96   30.0    70    80    10   4.31 0.5975
WVFGRD96   32.0    70    85    10   4.33 0.6034
WVFGRD96   34.0    65    85    10   4.36 0.6080
WVFGRD96   36.0    65    85     5   4.38 0.6154
WVFGRD96   38.0    65    85     5   4.41 0.6233
WVFGRD96   40.0    65    85    10   4.45 0.6295
WVFGRD96   42.0    65    85    10   4.47 0.6336
WVFGRD96   44.0    65    85    10   4.49 0.6363
WVFGRD96   46.0    65    85    10   4.51 0.6369
WVFGRD96   48.0    65    85    10   4.52 0.6376
WVFGRD96   50.0    65    85    10   4.53 0.6365
WVFGRD96   52.0    65    85    10   4.55 0.6351
WVFGRD96   54.0   245    90   -10   4.56 0.6312
WVFGRD96   56.0   245    90   -10   4.57 0.6292
WVFGRD96   58.0    65    85    10   4.58 0.6278
WVFGRD96   60.0   245    90   -10   4.59 0.6232
WVFGRD96   62.0    65    85    10   4.59 0.6207
WVFGRD96   64.0    65    85    10   4.60 0.6171
WVFGRD96   66.0    65    85    10   4.61 0.6136
WVFGRD96   68.0    65    85    10   4.61 0.6097
WVFGRD96   70.0    65    85    10   4.62 0.6053
WVFGRD96   72.0    65    85    10   4.62 0.6004
WVFGRD96   74.0    65    85    10   4.63 0.5959
WVFGRD96   76.0    65    85     5   4.63 0.5913
WVFGRD96   78.0    65    85     5   4.63 0.5870
WVFGRD96   80.0    65    85     5   4.64 0.5824
WVFGRD96   82.0    65    85     5   4.64 0.5782
WVFGRD96   84.0    65    85     5   4.64 0.5737
WVFGRD96   86.0    65    85     5   4.65 0.5698
WVFGRD96   88.0    65    85     5   4.65 0.5655
WVFGRD96   90.0    65    85     5   4.65 0.5616
WVFGRD96   92.0    65    85     5   4.66 0.5578
WVFGRD96   94.0    70    80    10   4.66 0.5545
WVFGRD96   96.0    70    80    10   4.66 0.5513
WVFGRD96   98.0    70    80    10   4.66 0.5479

The best solution is

WVFGRD96   48.0    65    85    10   4.52 0.6376

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

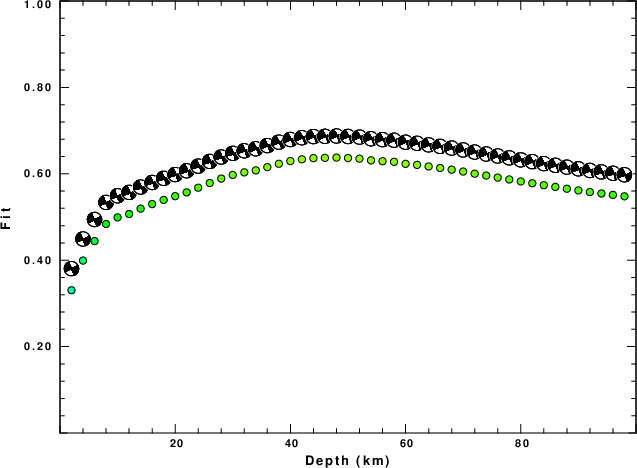

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3

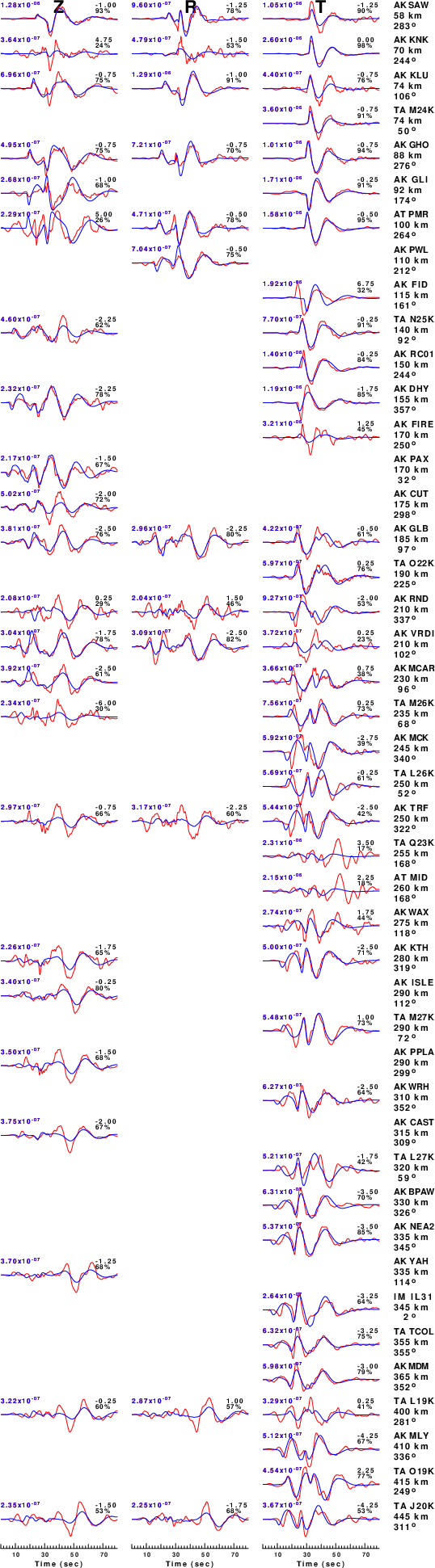

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

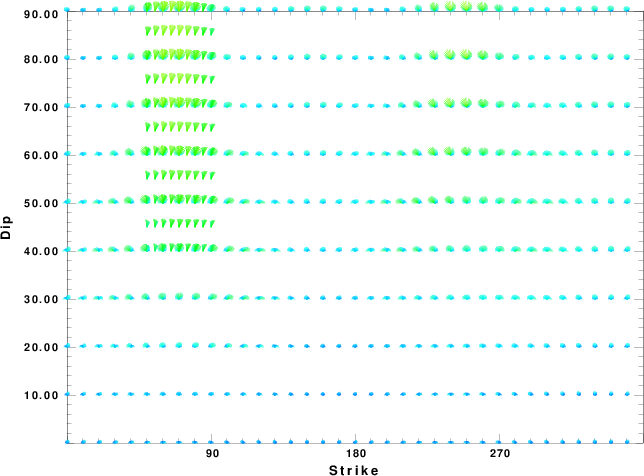

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

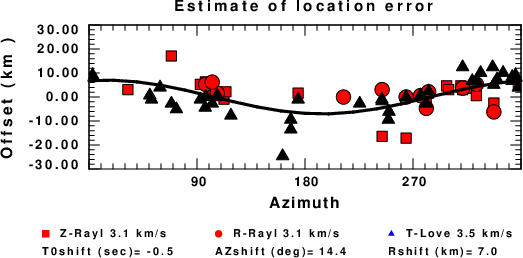

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sat Apr 27 01:30:36 AM CDT 2024
