Location

Location ANSS

The ANSS event ID is us2000419q and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us2000419q/executive.

2015/11/02 06:49:32 34.109 -112.138 6.7 3.6 Arizona

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2015/11/02 06:49:32:0  34.11 -112.14   6.7 3.6 Arizona

 Stations used:
   AE.U15A AE.X16A AE.X18A AE.Y14A CI.GLA TA.121A TA.214A
   US.WUAZ UU.CCUT UU.KNB UU.MTPU UU.PKCU UU.PSUT UU.VRUT

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +70
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 2.75e+21 dyne-cm
  Mw = 3.56
  Z  = 12 km
  Plane   Strike  Dip  Rake
   NP1      250    55   -60
   NP2       25    45   -126
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.75e+21      6     319
    N   0.00e+00     24      52
    P  -2.75e+21     65     217

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.25e+21
       Mxy    -1.58e+21
       Mxz     1.04e+21
       Myy     9.87e+20
       Myz     4.63e+20
       Mzz    -2.24e+21




                     ##############
                 #####################-
               T ######################---
             #   #######################---
           #############################-----
          #######################------#------
         ################----------------####--
        #############--------------------#######
        ##########-----------------------#######
       ########-------------------------#########
       ######---------------------------#########
       #####----------------------------#########
       ###-------------   -------------##########
        #-------------- P ------------##########
        #--------------   -----------###########
         ---------------------------###########
          -------------------------###########
           ----------------------############
             ------------------############
              ---------------#############
                 --------##############
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.24e+21   1.04e+21  -4.63e+20
  1.04e+21   1.25e+21   1.58e+21
 -4.63e+20   1.58e+21   9.87e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20151102064932/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 250
      DIP = 55
     RAKE = -60
       MW = 3.56
       HS = 12.0

The NDK file is 20151102064932.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

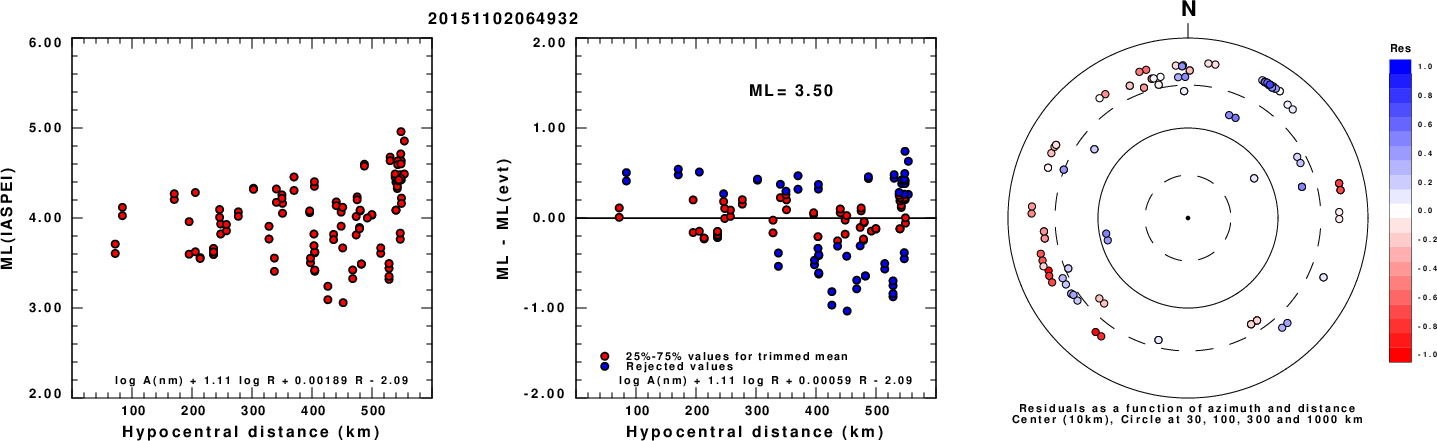

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

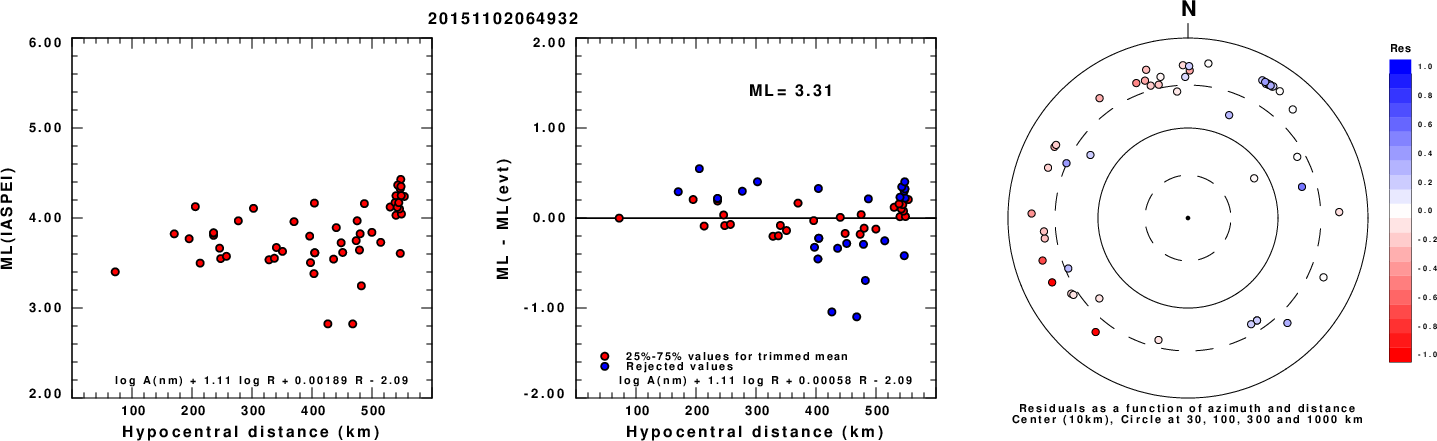

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

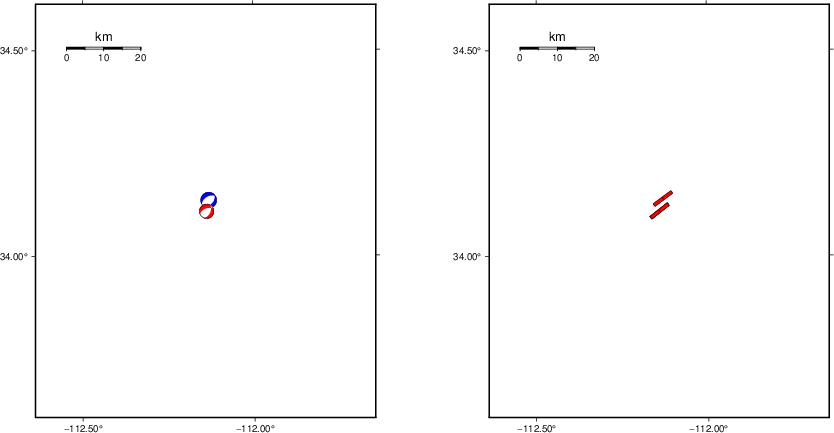

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

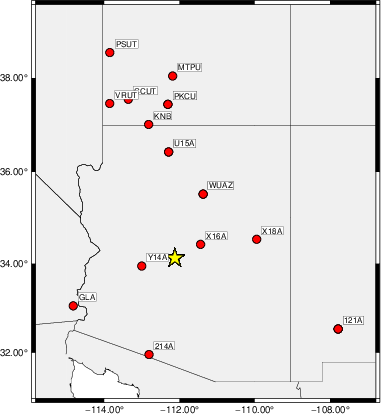

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   145    55    95   3.22 0.2142
WVFGRD96    2.0   135    45    85   3.38 0.3577
WVFGRD96    3.0   310    35    80   3.43 0.3860
WVFGRD96    4.0   290    20    50   3.52 0.4118
WVFGRD96    5.0   295    20    60   3.54 0.4357
WVFGRD96    6.0   290    20    55   3.55 0.4486
WVFGRD96    7.0    95    85    50   3.43 0.4555
WVFGRD96    8.0   100    80    60   3.50 0.4600
WVFGRD96    9.0    95    85    50   3.47 0.4623
WVFGRD96   10.0   255    65   -60   3.53 0.4646
WVFGRD96   11.0   250    55   -60   3.55 0.4662
WVFGRD96   12.0   250    55   -60   3.56 0.4673
WVFGRD96   13.0   255    55   -50   3.55 0.4672
WVFGRD96   14.0   255    55   -50   3.56 0.4662
WVFGRD96   15.0   255    50   -50   3.59 0.4644
WVFGRD96   16.0   255    50   -50   3.60 0.4618
WVFGRD96   17.0   255    50   -50   3.61 0.4581
WVFGRD96   18.0   255    50   -50   3.62 0.4540
WVFGRD96   19.0   255    50   -50   3.63 0.4492
WVFGRD96   20.0   255    50   -50   3.63 0.4438
WVFGRD96   21.0   260    55   -45   3.63 0.4379
WVFGRD96   22.0   260    65   -50   3.62 0.4320
WVFGRD96   23.0   260    65   -50   3.63 0.4276
WVFGRD96   24.0   260    65   -50   3.64 0.4245
WVFGRD96   25.0   265    75   -50   3.64 0.4221
WVFGRD96   26.0   265    75   -50   3.65 0.4205
WVFGRD96   27.0   265    75   -50   3.66 0.4195
WVFGRD96   28.0   265    75   -50   3.67 0.4184
WVFGRD96   29.0   270    80   -45   3.67 0.4167

The best solution is

WVFGRD96   12.0   250    55   -60   3.56 0.4673

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

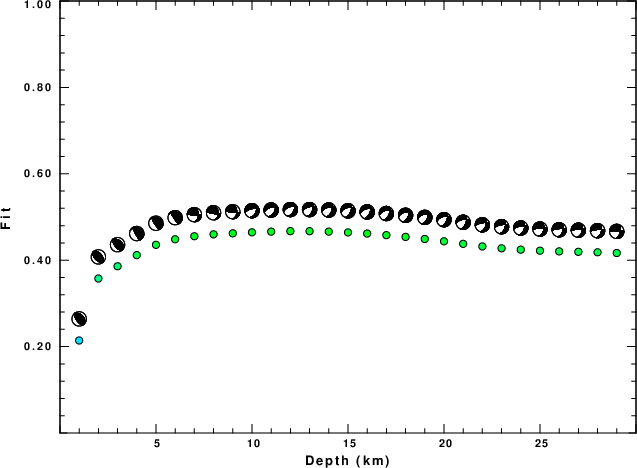

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

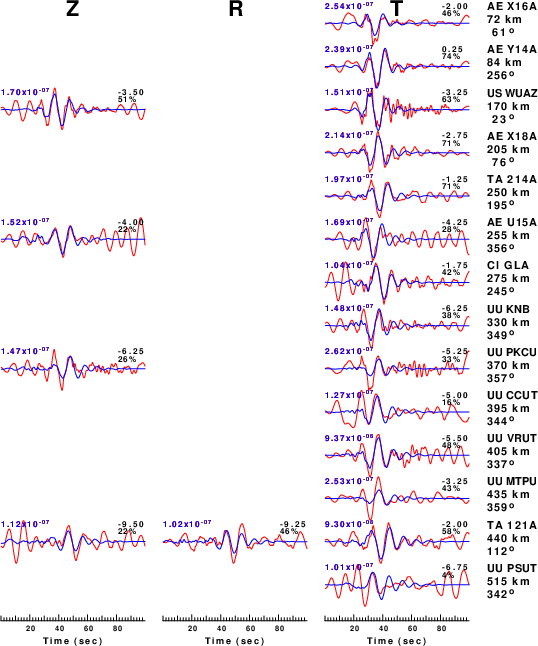

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

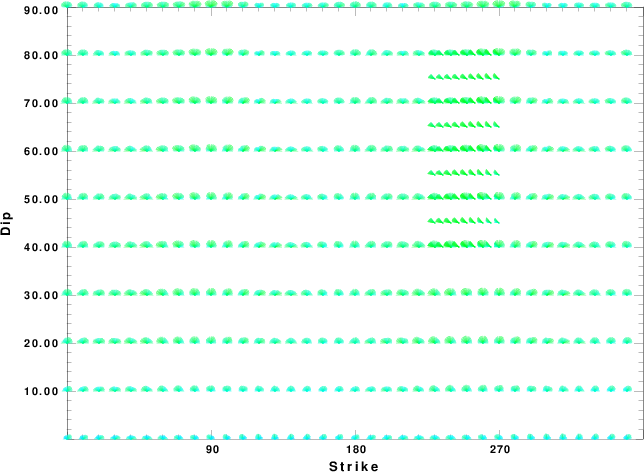

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

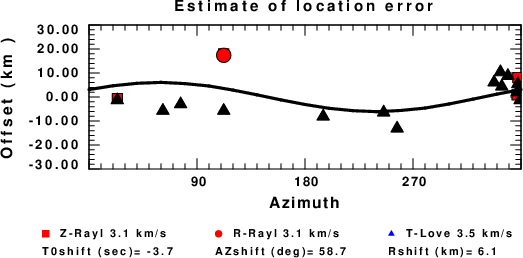

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sat Apr 27 12:29:11 AM CDT 2024
