Location

Location ANSS

The ANSS event ID is us10003mu5 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/us10003mu5/executive.

2015/10/11 10:27:13 36.321 -97.557 7.8 3.5 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2015/10/11 10:27:13:0  36.32  -97.56   7.8 3.5 Oklahoma

 Stations used:
   GS.KAN06 GS.KAN14 GS.OK025 GS.OK029 GS.OK030 GS.OK032
   N4.R32B N4.S39B N4.U38B OK.CROK OK.FNO

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +70
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 1.53e+21 dyne-cm
  Mw = 3.39
  Z  = 5 km
  Plane   Strike  Dip  Rake
   NP1       65    90   -165
   NP2      335    75     0
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.53e+21     11     199
    N   0.00e+00     75      65
    P  -1.53e+21     11     291

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.13e+21
       Mxy     9.51e+20
       Mxz    -3.59e+20
       Myy    -1.13e+21
       Myz     1.67e+20
       Mzz     0.00e+00




                     ##############
                 ----##################
              ---------###################
             -----------###################
           --------------####################
          -----------------###################
            ----------------##################-
        - P -----------------#############------
        -   ------------------########----------
       ------------------------###---------------
       -----------------------##-----------------
       -------------------#######----------------
       ---------------###########----------------
        ----------################--------------
        ------#####################-------------
         -#########################------------
          ##########################----------
           #########################---------
             #######################-------
              ######   ##############-----
                 ### T ##############--
                       ############



 Global CMT Convention Moment Tensor:
      R          T          P
  0.00e+00  -3.59e+20  -1.67e+20
 -3.59e+20   1.13e+21  -9.51e+20
 -1.67e+20  -9.51e+20  -1.13e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20151011102713/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 335
      DIP = 75
     RAKE = 0
       MW = 3.39
       HS = 5.0

The NDK file is 20151011102713.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMT
 USGS/SLU Moment Tensor Solution
 ENS  2015/10/11 10:27:13:0  36.32  -97.56   7.8 3.5 Oklahoma

 Stations used:
   GS.KAN06 GS.KAN14 GS.OK025 GS.OK029 GS.OK030 GS.OK032
   N4.R32B N4.S39B N4.U38B OK.CROK OK.FNO

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +70
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3

 Best Fitting Double Couple
  Mo = 1.53e+21 dyne-cm
  Mw = 3.39
  Z  = 5 km
  Plane   Strike  Dip  Rake
   NP1       65    90   -165
   NP2      335    75     0
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.53e+21     11     199
    N   0.00e+00     75      65
    P  -1.53e+21     11     291

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.13e+21
       Mxy     9.51e+20
       Mxz    -3.59e+20
       Myy    -1.13e+21
       Myz     1.67e+20
       Mzz     0.00e+00




                     ##############
                 ----##################
              ---------###################
             -----------###################
           --------------####################
          -----------------###################
            ----------------##################-
        - P -----------------#############------
        -   ------------------########----------
       ------------------------###---------------
       -----------------------##-----------------
       -------------------#######----------------
       ---------------###########----------------
        ----------################--------------
        ------#####################-------------
         -#########################------------
          ##########################----------
           #########################---------
             #######################-------
              ######   ##############-----
                 ### T ##############--
                       ############



 Global CMT Convention Moment Tensor:
      R          T          P
  0.00e+00  -3.59e+20  -1.67e+20
 -3.59e+20   1.13e+21  -9.51e+20
 -1.67e+20  -9.51e+20  -1.13e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20151011102713/index.html

Regional Moment Tensor (Mwr)
Moment	2.178e+14 N-m
Magnitude	3.49
Depth	6.0 km
Percent DC	91%
Half Duration	–
Catalog	US (us10003mu5)
Data Source	US1
Contributor	US1
Nodal Planes
Plane	Strike	Dip	Rake
NP1	336	90	-21
NP2	66	69	-180
Principal Axes
Axis	Value	Plunge	Azimuth
T	2.228	14	23
N	-0.104	69	156
P	-2.124	14	289



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

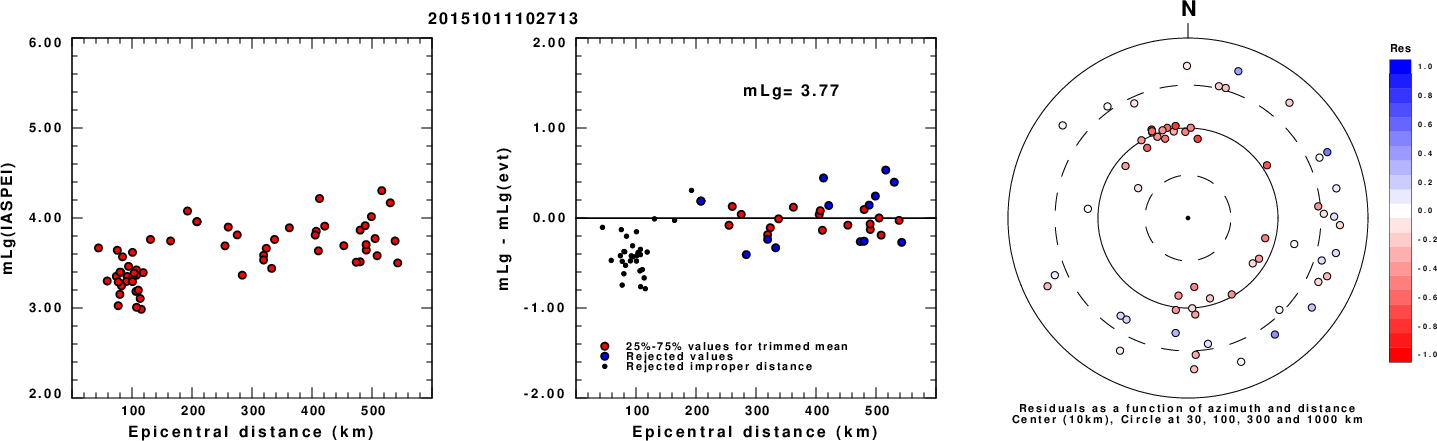

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

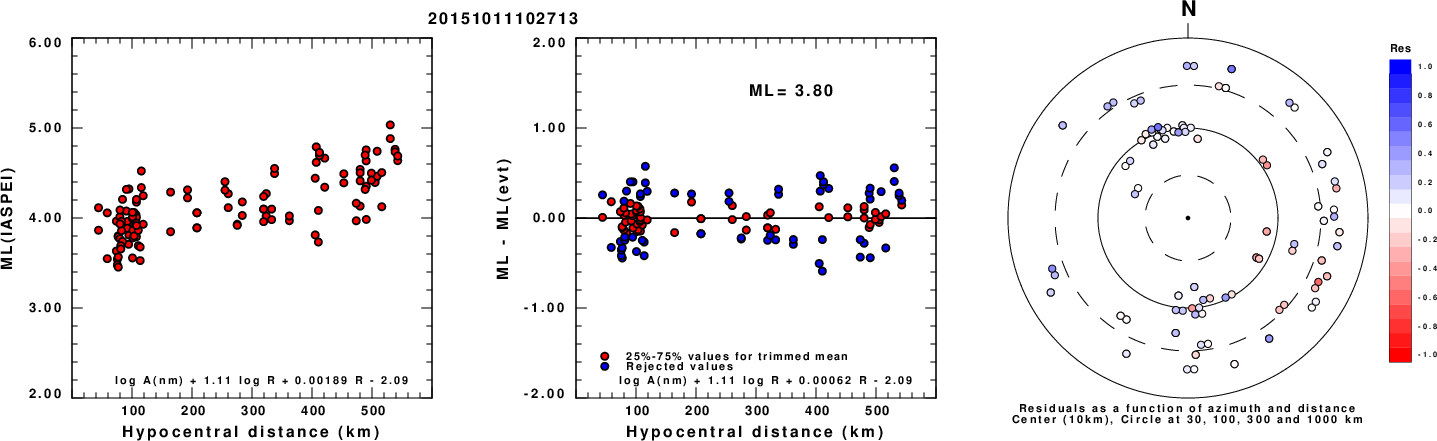

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

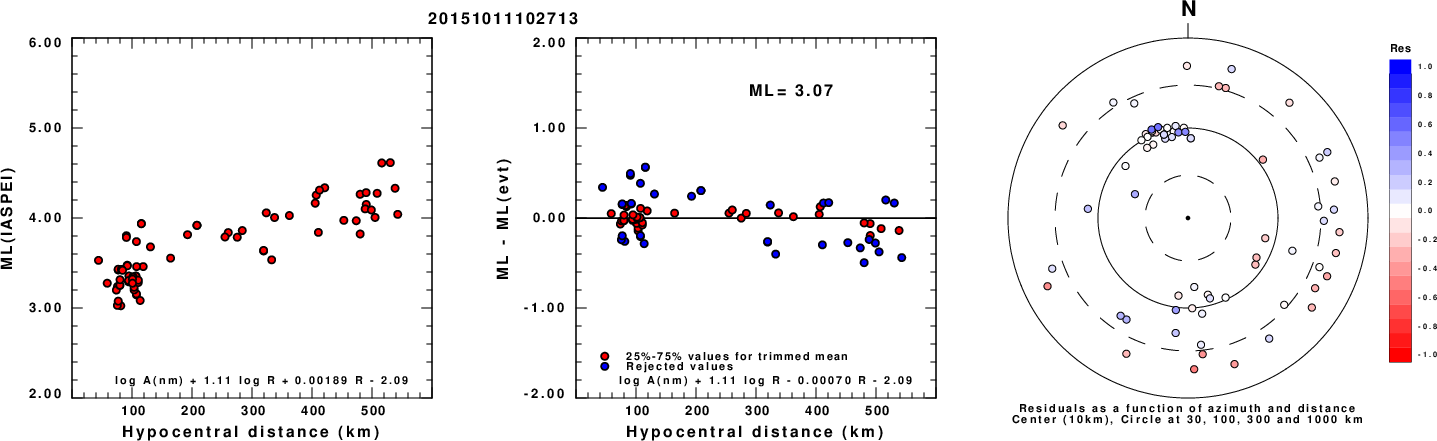

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

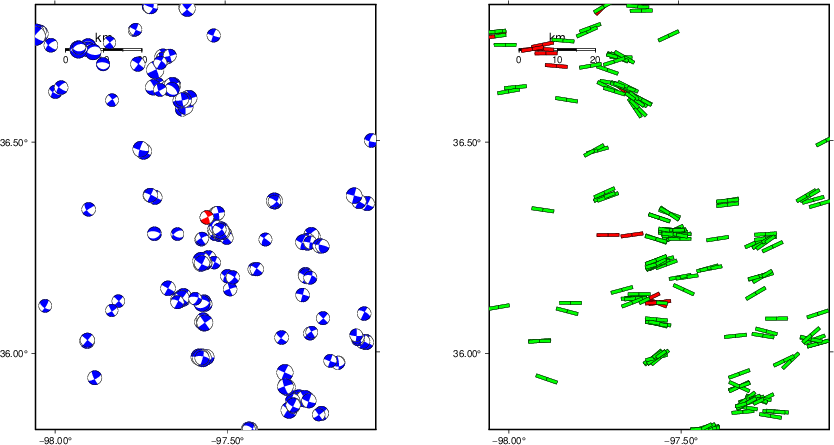

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

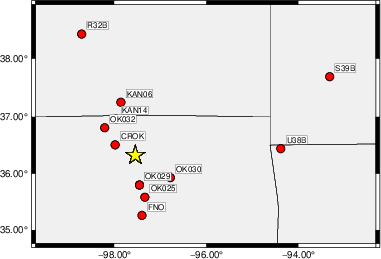

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   155    80   -15   3.15 0.3078
WVFGRD96    2.0   335    70   -15   3.29 0.3871
WVFGRD96    3.0   335    75    -5   3.32 0.4134
WVFGRD96    4.0   335    75    -5   3.36 0.4260
WVFGRD96    5.0   335    75     0   3.39 0.4300
WVFGRD96    6.0   335    80    -5   3.42 0.4290
WVFGRD96    7.0   335    80    -5   3.44 0.4238
WVFGRD96    8.0   155    90    30   3.50 0.4153
WVFGRD96    9.0   155    90    30   3.52 0.4048
WVFGRD96   10.0   155    90    25   3.52 0.3933
WVFGRD96   11.0   155    90    30   3.55 0.3814
WVFGRD96   12.0   155    90    25   3.55 0.3699
WVFGRD96   13.0   155    90    25   3.56 0.3585
WVFGRD96   14.0   155    90    25   3.57 0.3478
WVFGRD96   15.0   155    90    25   3.57 0.3378
WVFGRD96   16.0   155    85    20   3.58 0.3288
WVFGRD96   17.0   155    85    20   3.58 0.3207
WVFGRD96   18.0   155    75     0   3.58 0.3130
WVFGRD96   19.0   155    75    -5   3.59 0.3077
WVFGRD96   20.0   155    80   -15   3.60 0.3024
WVFGRD96   21.0   155    80   -15   3.61 0.2978
WVFGRD96   22.0   155    70    -5   3.61 0.2940
WVFGRD96   23.0   155    75   -15   3.62 0.2912
WVFGRD96   24.0   155    75   -15   3.63 0.2887
WVFGRD96   25.0   155    75   -15   3.63 0.2866
WVFGRD96   26.0   155    75   -15   3.64 0.2842
WVFGRD96   27.0   155    75   -15   3.64 0.2817
WVFGRD96   28.0   155    75    -5   3.64 0.2798
WVFGRD96   29.0   155    75    -5   3.65 0.2779

The best solution is

WVFGRD96    5.0   335    75     0   3.39 0.4300

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

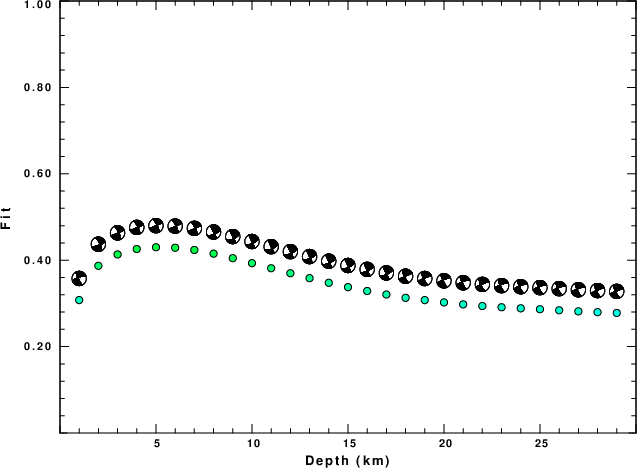

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

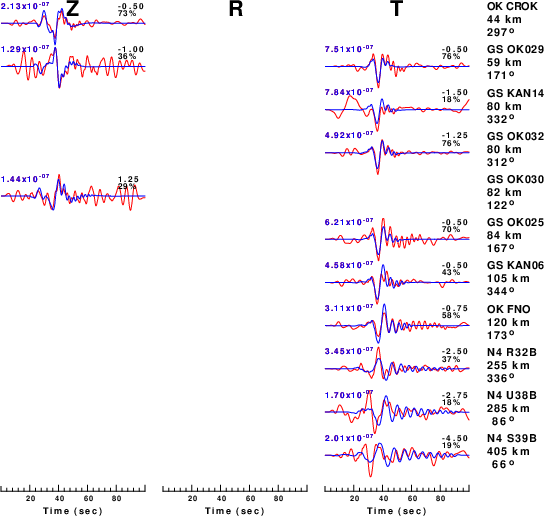

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

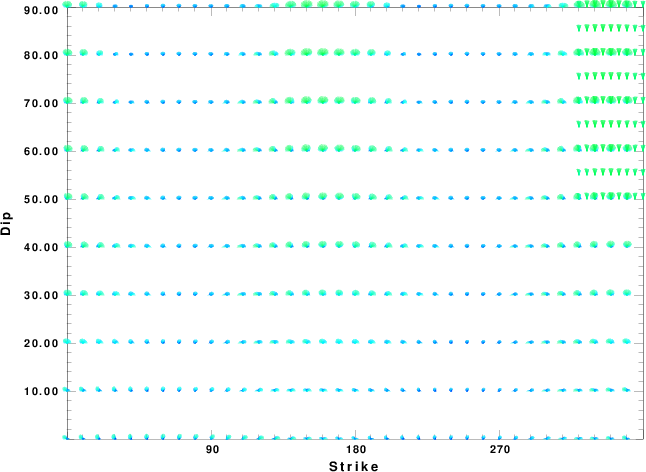

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

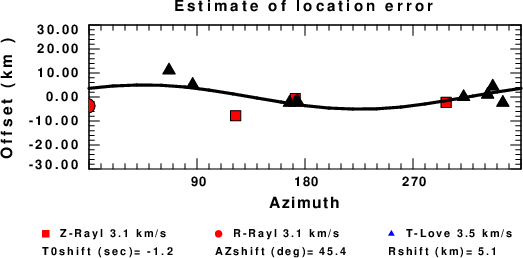

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Fri Apr 26 11:57:45 PM CDT 2024
