The ANSS event ID is ak01560tn6mh and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak01560tn6mh/executive.
2015/05/11 10:48:46 63.757 -149.304 117.8 3.6 Alaska
USGS/SLU Moment Tensor Solution ENS 2015/05/11 10:48:46:0 63.76 -149.30 117.8 3.6 Alaska Stations used: AK.CCB AK.KTH AK.MCK AK.NEA2 AK.PPD AK.RND AK.TRF AK.WAT4 AK.WAT5 AK.WRH IM.IL31 IU.COLA TA.POKR TA.TCOL Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 Best Fitting Double Couple Mo = 4.47e+21 dyne-cm Mw = 3.70 Z = 114 km Plane Strike Dip Rake NP1 319 79 134 NP2 60 45 15 Principal Axes: Axis Value Plunge Azimuth T 4.47e+21 39 268 N 0.00e+00 43 129 P -4.47e+21 22 17 Moment Tensor: (dyne-cm) Component Value Mxx -3.51e+21 Mxy -1.02e+21 Mxz -1.53e+21 Myy 2.35e+21 Myz -2.64e+21 Mzz 1.16e+21 -------------- -------------- ----- ----------------- P -------- ####-------------- --------- #########------------------------- ############------------------------ ###############----------------------# ##################--------------------## ###################------------------### ######################----------------#### ####### ##############-------------##### ####### T ###############-----------###### ####### #################--------####### ###########################-----######## ############################--########## ###########################--######### #######################------####### --################-----------##### ----------------------------## ---------------------------- ---------------------- -------------- Global CMT Convention Moment Tensor: R T P 1.16e+21 -1.53e+21 2.64e+21 -1.53e+21 -3.51e+21 1.02e+21 2.64e+21 1.02e+21 2.35e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20150511104846/index.html |
STK = 60 DIP = 45 RAKE = 15 MW = 3.70 HS = 114.0

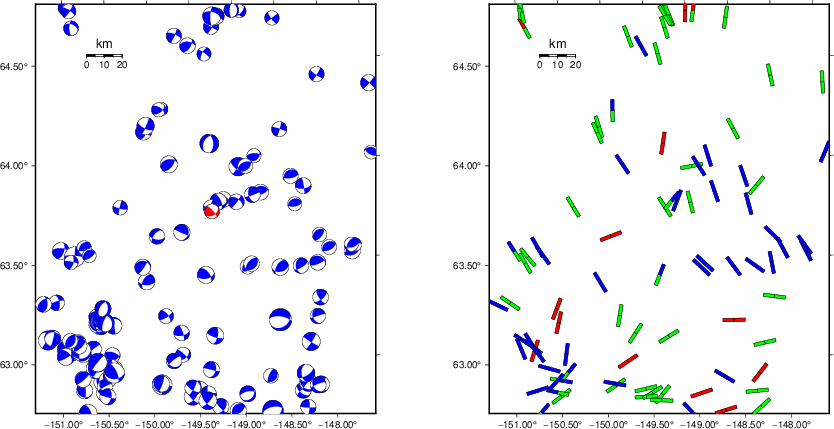

The NDK file is 20150511104846.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

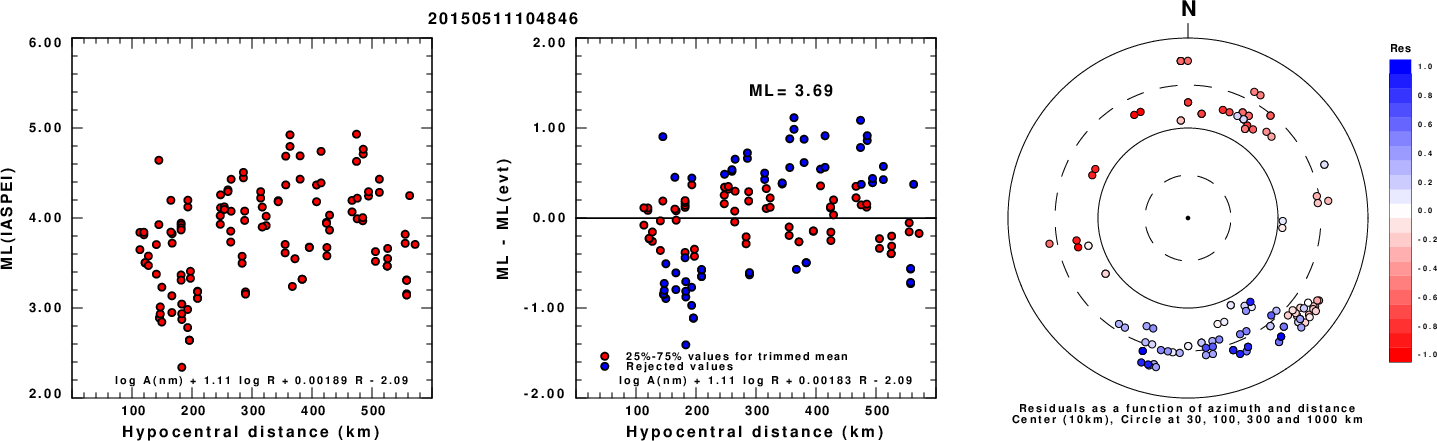

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

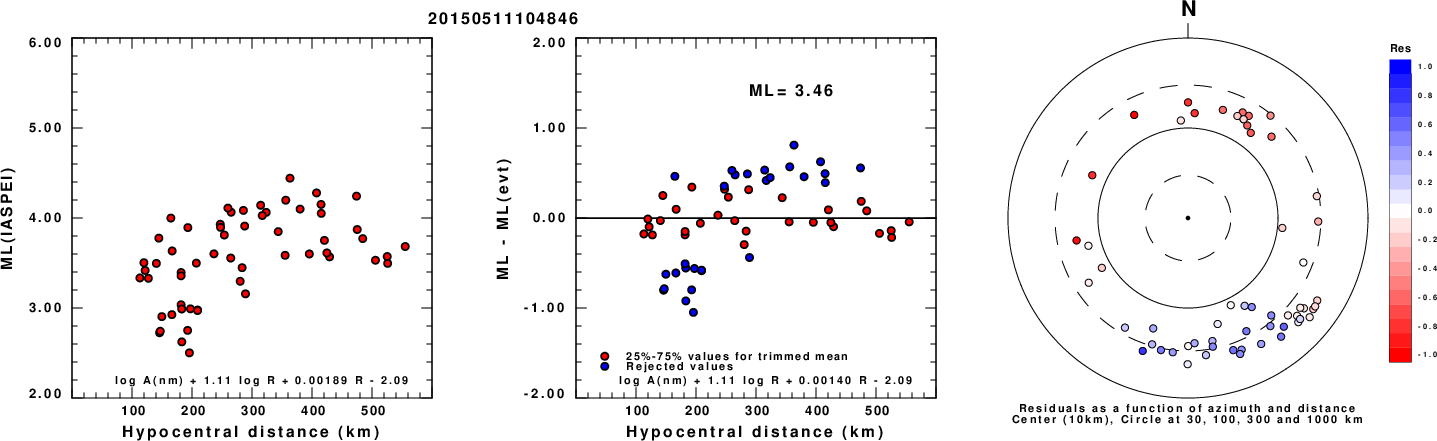

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

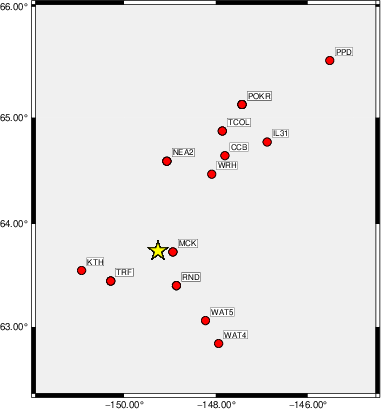

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 2.0 125 55 -55 2.95 0.3065 WVFGRD96 4.0 130 65 -45 3.01 0.3296 WVFGRD96 6.0 240 50 15 3.05 0.3564 WVFGRD96 8.0 240 50 15 3.12 0.4114 WVFGRD96 10.0 240 55 15 3.16 0.4453 WVFGRD96 12.0 235 55 5 3.18 0.4699 WVFGRD96 14.0 235 60 5 3.21 0.4938 WVFGRD96 16.0 235 65 5 3.23 0.5126 WVFGRD96 18.0 235 65 5 3.25 0.5275 WVFGRD96 20.0 235 70 5 3.27 0.5409 WVFGRD96 22.0 235 70 5 3.29 0.5535 WVFGRD96 24.0 235 70 5 3.31 0.5627 WVFGRD96 26.0 55 65 5 3.33 0.5713 WVFGRD96 28.0 55 65 5 3.34 0.5802 WVFGRD96 30.0 55 60 10 3.36 0.5842 WVFGRD96 32.0 50 65 10 3.37 0.5837 WVFGRD96 34.0 50 65 10 3.39 0.5814 WVFGRD96 36.0 50 65 10 3.40 0.5785 WVFGRD96 38.0 50 65 15 3.43 0.5764 WVFGRD96 40.0 50 55 10 3.49 0.5818 WVFGRD96 42.0 50 55 10 3.51 0.5832 WVFGRD96 44.0 50 55 15 3.53 0.5836 WVFGRD96 46.0 50 60 10 3.53 0.5832 WVFGRD96 48.0 50 60 10 3.54 0.5853 WVFGRD96 50.0 50 60 10 3.55 0.5873 WVFGRD96 52.0 50 60 10 3.56 0.5898 WVFGRD96 54.0 50 60 10 3.57 0.5908 WVFGRD96 56.0 50 60 10 3.58 0.5922 WVFGRD96 58.0 50 60 10 3.58 0.5949 WVFGRD96 60.0 50 60 10 3.59 0.5975 WVFGRD96 62.0 50 55 5 3.59 0.6028 WVFGRD96 64.0 50 55 5 3.60 0.6076 WVFGRD96 66.0 45 55 0 3.61 0.6127 WVFGRD96 68.0 45 55 0 3.61 0.6181 WVFGRD96 70.0 45 55 0 3.62 0.6214 WVFGRD96 72.0 45 50 0 3.62 0.6268 WVFGRD96 74.0 45 50 0 3.63 0.6296 WVFGRD96 76.0 45 50 0 3.63 0.6320 WVFGRD96 78.0 45 50 0 3.64 0.6343 WVFGRD96 80.0 45 50 0 3.64 0.6350 WVFGRD96 82.0 45 50 0 3.65 0.6361 WVFGRD96 84.0 60 45 20 3.65 0.6401 WVFGRD96 86.0 60 45 20 3.66 0.6441 WVFGRD96 88.0 60 45 20 3.66 0.6475 WVFGRD96 90.0 60 45 20 3.66 0.6508 WVFGRD96 92.0 60 45 20 3.67 0.6531 WVFGRD96 94.0 60 45 20 3.67 0.6555 WVFGRD96 96.0 60 45 20 3.67 0.6579 WVFGRD96 98.0 60 45 20 3.68 0.6598 WVFGRD96 100.0 60 45 20 3.68 0.6611 WVFGRD96 102.0 60 45 20 3.68 0.6623 WVFGRD96 104.0 60 45 15 3.69 0.6626 WVFGRD96 106.0 60 45 15 3.69 0.6645 WVFGRD96 108.0 60 45 15 3.70 0.6651 WVFGRD96 110.0 60 45 15 3.70 0.6658 WVFGRD96 112.0 60 45 15 3.70 0.6655 WVFGRD96 114.0 60 45 15 3.70 0.6659 WVFGRD96 116.0 60 45 15 3.71 0.6656 WVFGRD96 118.0 60 45 15 3.71 0.6655 WVFGRD96 120.0 60 45 15 3.71 0.6654 WVFGRD96 122.0 60 45 20 3.72 0.6650 WVFGRD96 124.0 60 45 15 3.72 0.6648 WVFGRD96 126.0 60 45 20 3.72 0.6643 WVFGRD96 128.0 60 45 20 3.73 0.6631
The best solution is
WVFGRD96 114.0 60 45 15 3.70 0.6659
The mechanism corresponding to the best fit is
![]() |
|

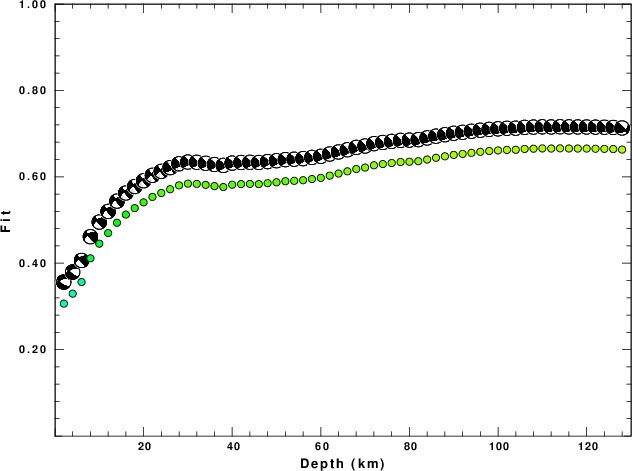

The best fit as a function of depth is given in the following figure:
![]() |
|

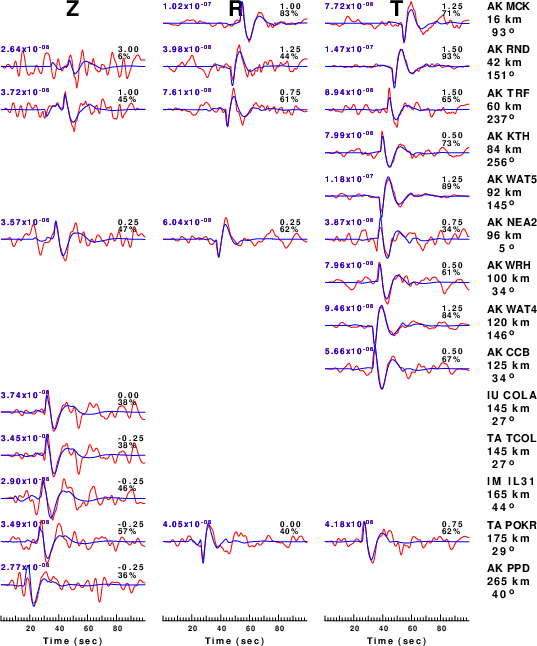

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

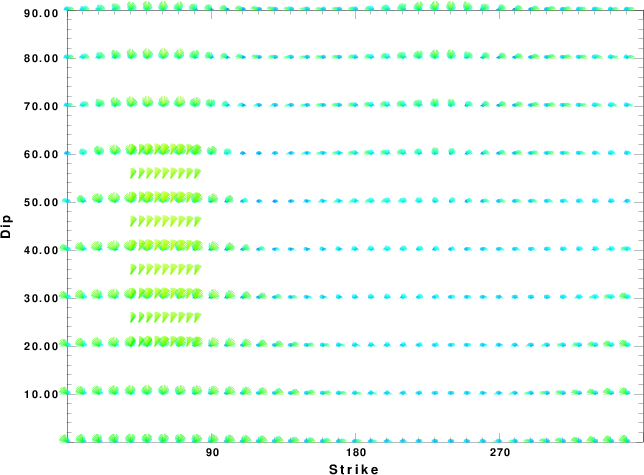

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

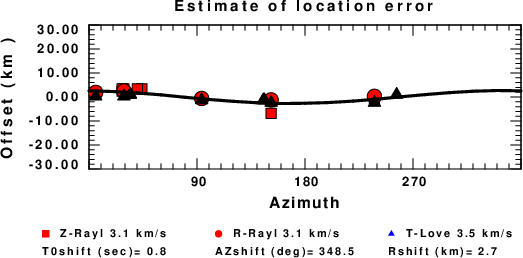

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
