Location

Location ANSS

The ANSS event ID is ak01549xx0v9 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak01549xx0v9/executive.

2015/04/03 08:29:27 67.548 -145.695 10.7 4.6 Alaska

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2015/04/03 08:29:27:0 67.55 -145.70 10.7 4.6 Alaska Stations used: AK.BPAW AK.BWN AK.CCB AK.COLD AK.DOT AK.FYU AK.KTH AK.MCK AK.MDM AK.MLY AK.NEA2 AK.PAX AK.PPD AK.RND AK.SCRK AK.TRF AK.WAT3 AK.WAT4 AK.WAT5 AK.WRH AT.MENT CN.INK IM.IL31 IU.COLA TA.I23K TA.K27K TA.L27K TA.POKR TA.TOLK US.EGAK Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 Best Fitting Double Couple Mo = 7.85e+22 dyne-cm Mw = 4.53 Z = 11 km Plane Strike Dip Rake NP1 30 75 20 NP2 295 71 164 Principal Axes: Axis Value Plunge Azimuth T 7.85e+22 25 253 N 0.00e+00 65 65 P -7.85e+22 3 162 Moment Tensor: (dyne-cm) Component Value Mxx -6.51e+22 Mxy 4.15e+22 Mxz -4.91e+21 Myy 5.17e+22 Myz -2.97e+22 Mzz 1.34e+22 -------------- ---------------------# ------------------------#### -------------------------##### --------------------------######## ---------------------------######### #########------------------########### #################----------############# ######################-----############# ##########################-############### ##########################----############ #########################-------########## #### #################-----------####### ### T ################--------------#### ### ##############-----------------### ##################-------------------- ################-------------------- #############--------------------- ##########-------------------- #######--------------------- #--------------- --- ------------ P Global CMT Convention Moment Tensor: R T P 1.34e+22 -4.91e+21 2.97e+22 -4.91e+21 -6.51e+22 -4.15e+22 2.97e+22 -4.15e+22 5.17e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20150403082927/index.html

Preferred Solution

      STK = 30
      DIP = 75
     RAKE = 20
       MW = 4.53
       HS = 11.0

The NDK file is 20150403082927.ndk The waveform inversion is preferred.

Moment Tensor Comparison

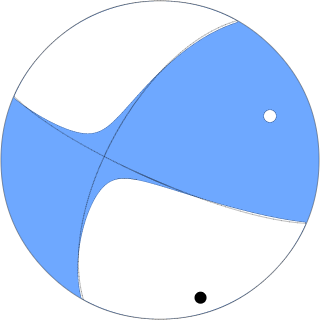

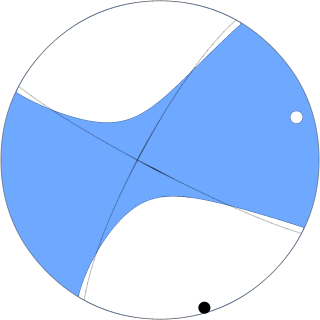

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU	USGSMT	USGSW
USGS/SLU Moment Tensor Solution ENS 2015/04/03 08:29:27:0 67.55 -145.70 10.7 4.6 Alaska Stations used: AK.BPAW AK.BWN AK.CCB AK.COLD AK.DOT AK.FYU AK.KTH AK.MCK AK.MDM AK.MLY AK.NEA2 AK.PAX AK.PPD AK.RND AK.SCRK AK.TRF AK.WAT3 AK.WAT4 AK.WAT5 AK.WRH AT.MENT CN.INK IM.IL31 IU.COLA TA.I23K TA.K27K TA.L27K TA.POKR TA.TOLK US.EGAK Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 Best Fitting Double Couple Mo = 7.85e+22 dyne-cm Mw = 4.53 Z = 11 km Plane Strike Dip Rake NP1 30 75 20 NP2 295 71 164 Principal Axes: Axis Value Plunge Azimuth T 7.85e+22 25 253 N 0.00e+00 65 65 P -7.85e+22 3 162 Moment Tensor: (dyne-cm) Component Value Mxx -6.51e+22 Mxy 4.15e+22 Mxz -4.91e+21 Myy 5.17e+22 Myz -2.97e+22 Mzz 1.34e+22 -------------- ---------------------# ------------------------#### -------------------------##### --------------------------######## ---------------------------######### #########------------------########### #################----------############# ######################-----############# ##########################-############### ##########################----############ #########################-------########## #### #################-----------####### ### T ################--------------#### ### ##############-----------------### ##################-------------------- ################-------------------- #############--------------------- ##########-------------------- #######--------------------- #--------------- --- ------------ P Global CMT Convention Moment Tensor: R T P 1.34e+22 -4.91e+21 2.97e+22 -4.91e+21 -6.51e+22 -4.15e+22 2.97e+22 -4.15e+22 5.17e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20150403082927/index.html	Regional Moment Tensor (Mwr) Moment 7.790e+15 N-m Magnitude 4.53 Depth 6.0 km Percent DC 69% Half Duration – Catalog US (us10001tiv) Data Source US2 Contributor US2 Nodal Planes Plane Strike Dip Rake NP1 208° 80° 5° NP2 117° 85° 170° Principal Axes Axis Value Plunge Azimuth T 7.072 11° 73° N 1.279 78° 270° P -8.351 3° 163°	W-phase Moment Tensor (Mww) Moment 9.025e+15 N-m Magnitude 4.57 Depth 11.5 km Percent DC 90% Half Duration – Catalog US (us10001tiv) Data Source US2 Contributor US2 Nodal Planes Plane Strike Dip Rake NP1 209° 64° 12° NP2 113° 79° 153° Principal Axes Axis Value Plunge Azimuth T 8.778 26° 68° N 0.476 61° 274° P -9.254 11° 164°

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

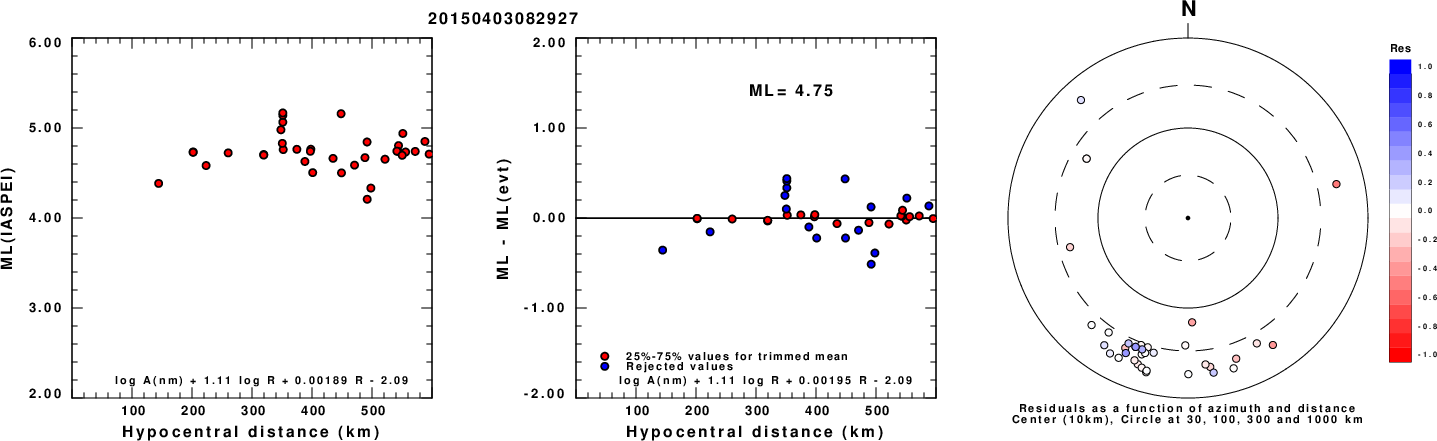

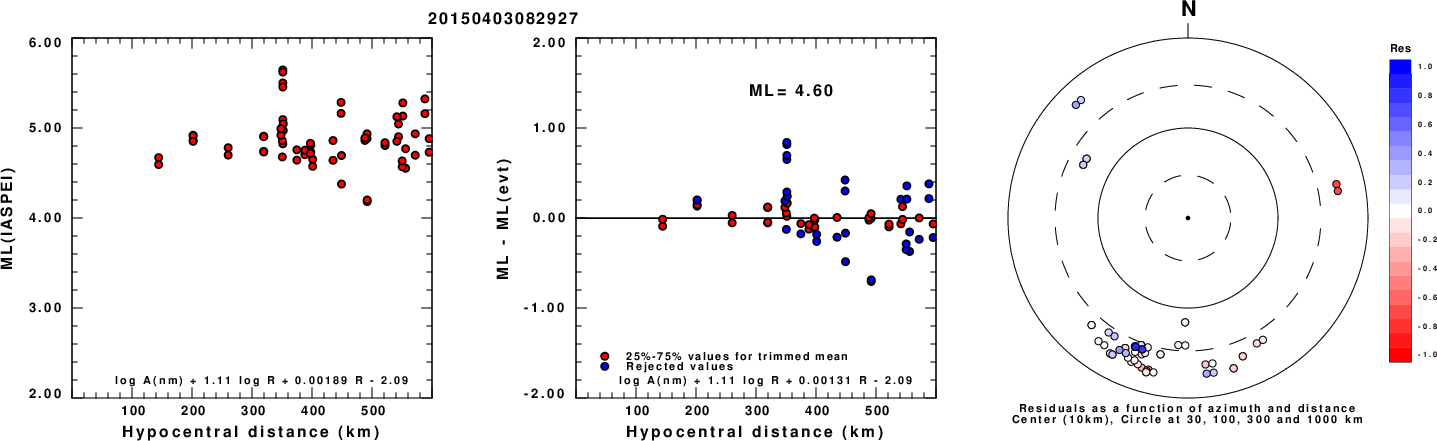

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

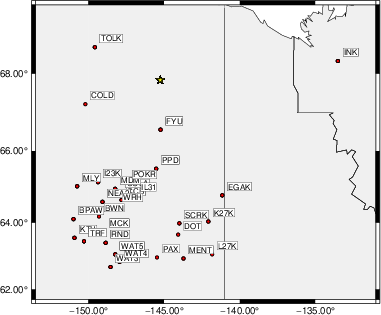

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   195    60   -40   4.29 0.4110
WVFGRD96    2.0   195    55   -40   4.39 0.4971
WVFGRD96    3.0    25    65    15   4.34 0.5259
WVFGRD96    4.0    25    70    15   4.37 0.5564
WVFGRD96    5.0    30    70    20   4.40 0.5810
WVFGRD96    6.0    30    70    20   4.43 0.6023
WVFGRD96    7.0    30    75    15   4.45 0.6228
WVFGRD96    8.0    30    70    20   4.48 0.6397
WVFGRD96    9.0    30    70    20   4.50 0.6487
WVFGRD96   10.0    30    75    20   4.52 0.6543
WVFGRD96   11.0    30    75    20   4.53 0.6558
WVFGRD96   12.0    30    75    20   4.54 0.6545
WVFGRD96   13.0    30    75    20   4.55 0.6496
WVFGRD96   14.0    30    75    20   4.56 0.6411
WVFGRD96   15.0    30    75    20   4.57 0.6299
WVFGRD96   16.0    30    80    20   4.58 0.6177
WVFGRD96   17.0    30    80    20   4.59 0.6033
WVFGRD96   18.0    30    80    15   4.60 0.5874
WVFGRD96   19.0    30    80    20   4.60 0.5720
WVFGRD96   20.0    30    80    20   4.61 0.5559
WVFGRD96   21.0    30    80    20   4.62 0.5386
WVFGRD96   22.0    30    80    20   4.62 0.5209
WVFGRD96   23.0   200    80   -25   4.63 0.5060
WVFGRD96   24.0   200    80   -25   4.63 0.4905
WVFGRD96   25.0   200    80   -25   4.64 0.4750
WVFGRD96   26.0   200    80   -30   4.65 0.4598
WVFGRD96   27.0   200    75   -30   4.65 0.4455
WVFGRD96   28.0   200    75   -30   4.66 0.4312
WVFGRD96   29.0   200    75   -30   4.66 0.4171

The best solution is

WVFGRD96   11.0    30    75    20   4.53 0.6558

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

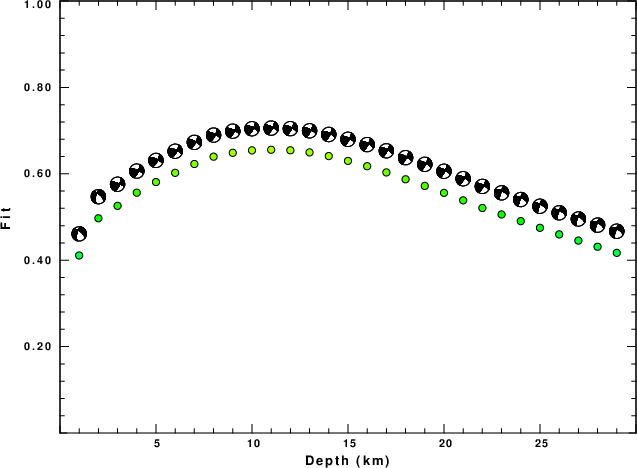

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

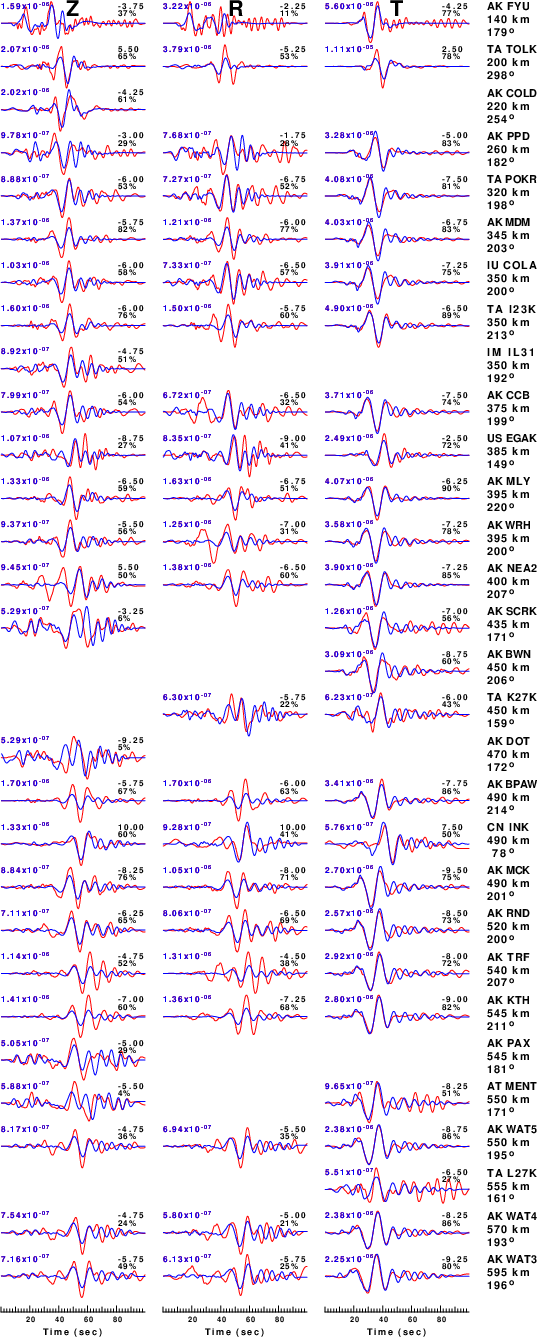

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

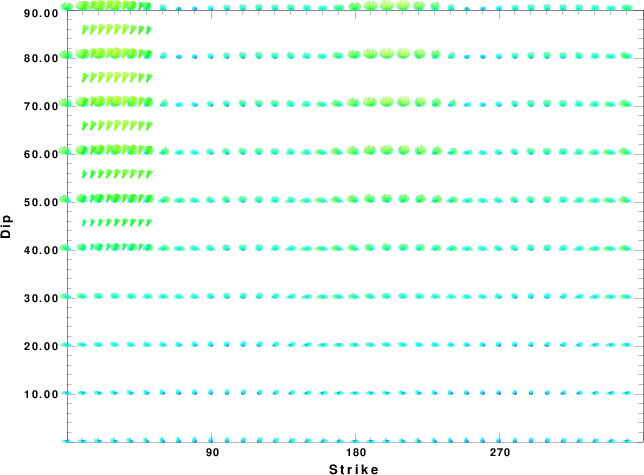

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

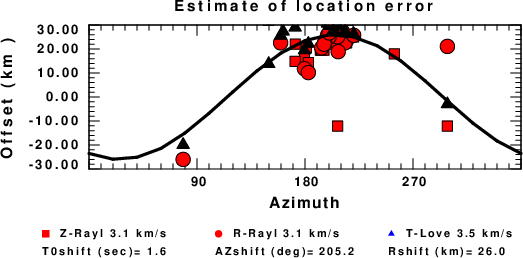

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
