The ANSS event ID is nn00482627 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00482627/executive.

2015/02/14 02:28:56 37.142 -117.262 17.0 4.8 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2015/02/14 02:28:56:0  37.14 -117.26  17.0 4.8 Nevada

 Stations used:
   AE.113A AE.U15A AE.W13A BC.CCX BC.RMX BC.SJX BC.TJX BC.TKX
   BK.SAO BK.WDC CI.BAR CI.GLA CI.GSC CI.ISA CI.MWC CI.OSI
   CI.PASC CI.SNCC IM.NV31 LB.MVU LB.TPH NC.AFD NC.MDPB NN.BEK
   NN.LHV NN.OMMB NN.PAH NN.PNT NN.PRN NN.REDF NN.RUB NN.RYN
   NN.SHP NN.VCN NN.WAK NN.WDEM NN.YER TA.109C TA.R11A US.DUG
   US.ELK US.TPNV US.WUAZ US.WVOR UU.BGU UU.CCUT UU.KNB
   UU.LCMT UU.MPU UU.MTPU UU.NLU UU.PKCU UU.PSUT UU.SZCU
   UU.TCRU UU.TMU UU.VRUT

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +70
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 1.32e+23 dyne-cm
  Mw = 4.68
  Z  = 12 km
  Plane   Strike  Dip  Rake
   NP1      203    56   -97
   NP2       35    35   -80
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.32e+23     10     298
    N   0.00e+00      6     207
    P  -1.32e+23     78      88

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.78e+22
       Mxy    -5.28e+22
       Mxz     1.01e+22
       Myy     9.42e+22
       Myz    -4.71e+22
       Mzz    -1.22e+23




                     ##############
                 ###############-------
              ###############------------#
             ##############---------------#
           ##############-----------------###
             ###########-------------------###
         # T ##########--------------------####
        ##   ########----------------------#####
        #############----------------------#####
       #############----------   ----------######
       ############----------- P ----------######
       ############-----------   ---------#######
       ###########------------------------#######
        ##########-----------------------#######
        #########-----------------------########
         ########----------------------########
          #######--------------------#########
           #######-----------------##########
             #####---------------##########
              ####------------############
                 ------################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.22e+23   1.01e+22   4.71e+22
  1.01e+22   2.78e+22   5.28e+22
  4.71e+22   5.28e+22   9.42e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20150214022856/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 35
      DIP = 35
     RAKE = -80
       MW = 4.68
       HS = 12.0

The NDK file is 20150214022856.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
UNR
 USGS/SLU Moment Tensor Solution
 ENS  2015/02/14 02:28:56:0  37.14 -117.26  17.0 4.8 Nevada

 Stations used:
   AE.113A AE.U15A AE.W13A BC.CCX BC.RMX BC.SJX BC.TJX BC.TKX
   BK.SAO BK.WDC CI.BAR CI.GLA CI.GSC CI.ISA CI.MWC CI.OSI
   CI.PASC CI.SNCC IM.NV31 LB.MVU LB.TPH NC.AFD NC.MDPB NN.BEK
   NN.LHV NN.OMMB NN.PAH NN.PNT NN.PRN NN.REDF NN.RUB NN.RYN
   NN.SHP NN.VCN NN.WAK NN.WDEM NN.YER TA.109C TA.R11A US.DUG
   US.ELK US.TPNV US.WUAZ US.WVOR UU.BGU UU.CCUT UU.KNB
   UU.LCMT UU.MPU UU.MTPU UU.NLU UU.PKCU UU.PSUT UU.SZCU
   UU.TCRU UU.TMU UU.VRUT

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +70
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.07 n 3

 Best Fitting Double Couple
  Mo = 1.32e+23 dyne-cm
  Mw = 4.68
  Z  = 12 km
  Plane   Strike  Dip  Rake
   NP1      203    56   -97
   NP2       35    35   -80
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.32e+23     10     298
    N   0.00e+00      6     207
    P  -1.32e+23     78      88

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.78e+22
       Mxy    -5.28e+22
       Mxz     1.01e+22
       Myy     9.42e+22
       Myz    -4.71e+22
       Mzz    -1.22e+23




                     ##############
                 ###############-------
              ###############------------#
             ##############---------------#
           ##############-----------------###
             ###########-------------------###
         # T ##########--------------------####
        ##   ########----------------------#####
        #############----------------------#####
       #############----------   ----------######
       ############----------- P ----------######
       ############-----------   ---------#######
       ###########------------------------#######
        ##########-----------------------#######
        #########-----------------------########
         ########----------------------########
          #######--------------------#########
           #######-----------------##########
             #####---------------##########
              ####------------############
                 ------################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.22e+23   1.01e+22   4.71e+22
  1.01e+22   2.78e+22   5.28e+22
  4.71e+22   5.28e+22   9.42e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20150214022856/index.html

Moment	9.684e+15 N-m
Magnitude	4.59
Depth	1.5 km
Percent DC	74%
Half Duration	–
Catalog	CI (ci37316264)
Data Source	CI3
Contributor	CI3
Nodal Planes
Plane	Strike	Dip	Rake
NP1	2°	38°	-133°
NP2	232°	63°	-62°
Principal Axes
Axis	Value	Plunge	Azimuth
T	10.289	14°	302°
N	-1.354	25°	38°
P	-8.935	61°	185°



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

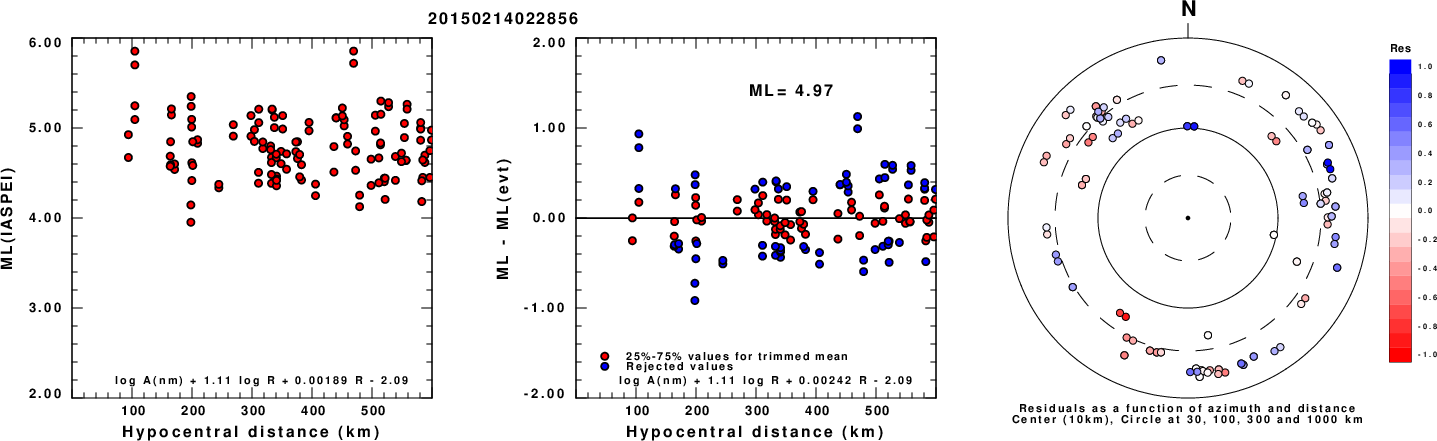

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

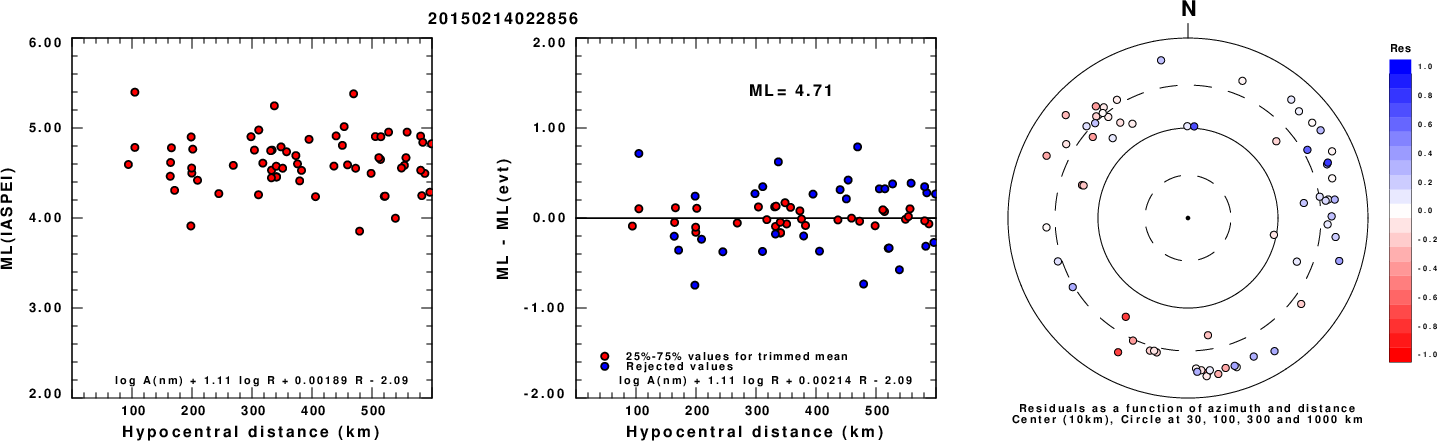

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

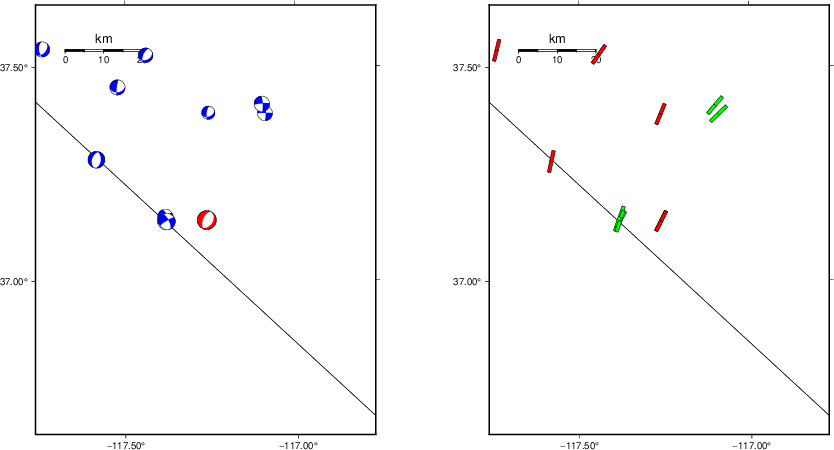

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

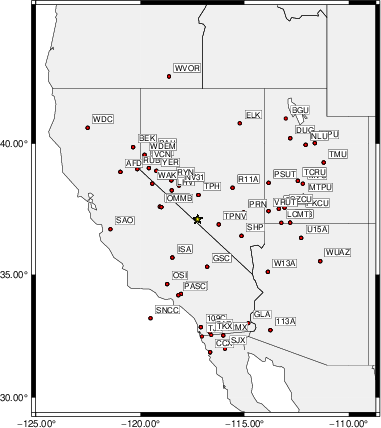

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.07 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   245    75   -15   4.29 0.3839
WVFGRD96    2.0    65    70   -20   4.39 0.4391
WVFGRD96    3.0    60    65   -35   4.46 0.4290
WVFGRD96    4.0    70    35    -5   4.53 0.4535
WVFGRD96    5.0    75    35     5   4.54 0.4942
WVFGRD96    6.0    75    40    10   4.55 0.5278
WVFGRD96    7.0    40    30   -70   4.59 0.5634
WVFGRD96    8.0    30    25   -85   4.65 0.6065
WVFGRD96    9.0    20    30  -100   4.67 0.6451
WVFGRD96   10.0    20    35  -100   4.68 0.6677
WVFGRD96   11.0    25    35   -95   4.68 0.6808
WVFGRD96   12.0    35    35   -80   4.68 0.6811
WVFGRD96   13.0    35    35   -80   4.68 0.6721
WVFGRD96   14.0   220    55   -75   4.68 0.6572
WVFGRD96   15.0   230    60   -60   4.67 0.6406
WVFGRD96   16.0   230    60   -60   4.67 0.6229
WVFGRD96   17.0   235    60   -50   4.68 0.6043
WVFGRD96   18.0    80    60    30   4.69 0.5890
WVFGRD96   19.0    80    60    30   4.70 0.5744
WVFGRD96   20.0    80    60    30   4.70 0.5583
WVFGRD96   21.0    80    60    30   4.71 0.5393
WVFGRD96   22.0    80    60    30   4.71 0.5203
WVFGRD96   23.0    80    60    30   4.72 0.5004
WVFGRD96   24.0    80    60    30   4.72 0.4804
WVFGRD96   25.0    80    60    30   4.72 0.4601
WVFGRD96   26.0    80    60    30   4.72 0.4394
WVFGRD96   27.0    80    60    30   4.72 0.4189
WVFGRD96   28.0    80    60    25   4.73 0.3989
WVFGRD96   29.0    80    55    25   4.73 0.3797

The best solution is

WVFGRD96   12.0    35    35   -80   4.68 0.6811

The mechanism corresponding to the best fit is

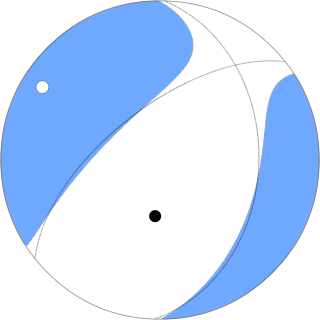

Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

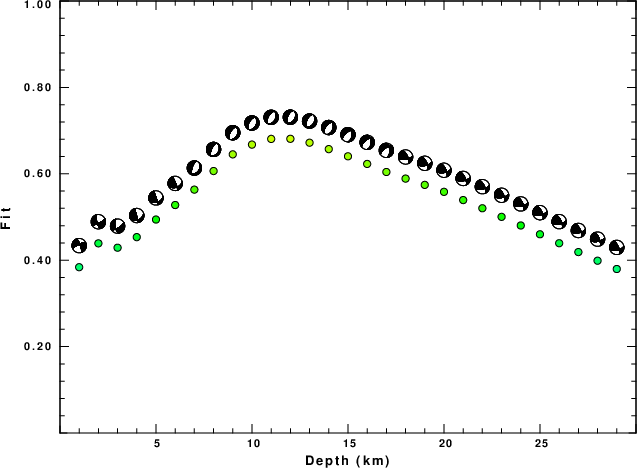

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.07 n 3

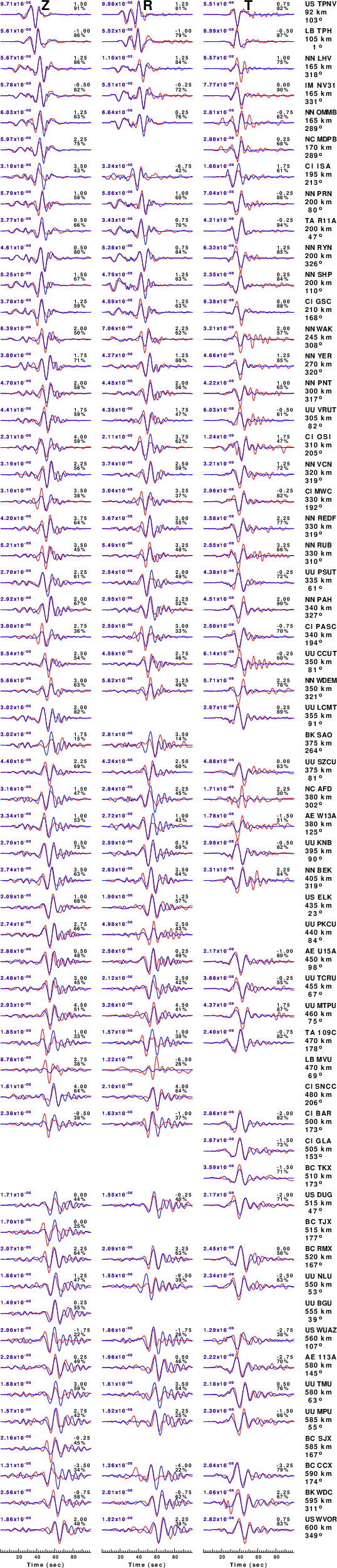

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

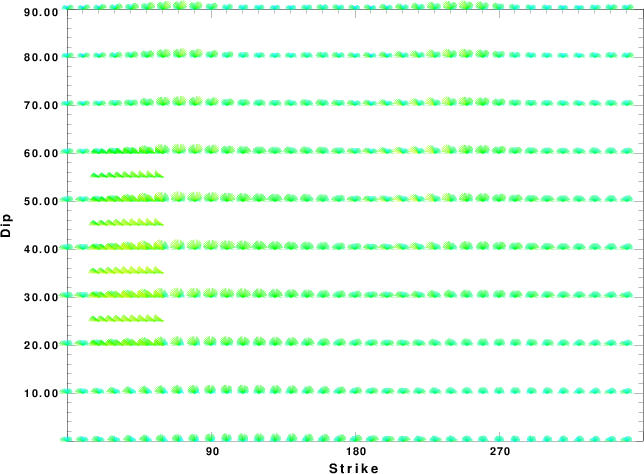

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

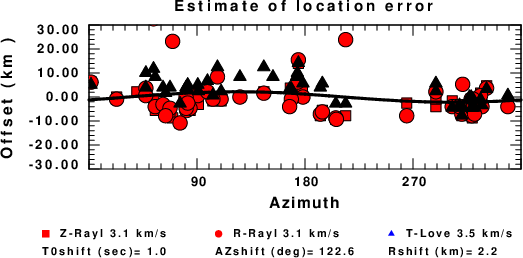

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Fri Apr 26 01:56:26 PM CDT 2024
