The ANSS event ID is usc000tkrs and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usc000tkrs/executive.

2015/02/01 18:06:04 36.945 -97.630 4.8 3.7 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2015/02/01 18:06:04:0  36.94  -97.63   4.8 3.7 Oklahoma

 Stations used:
   GS.KAN01 GS.KAN08 GS.KAN10 GS.KAN11 GS.KAN12 GS.KS21
   GS.OK025 GS.OK026 GS.OK028 GS.OK029 N4.T35B OK.BCOK OK.CROK
   OK.FNO OK.U32A OK.W35A OK.X34A TA.TUL1 US.WMOK

 Filtering commands used:
   cut o DIST/3.3 -20 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.09 n 3

 Best Fitting Double Couple
  Mo = 4.03e+21 dyne-cm
  Mw = 3.67
  Z  = 3 km
  Plane   Strike  Dip  Rake
   NP1       60    85    20
   NP2      328    70   175
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.03e+21     18     286
    N   0.00e+00     69      73
    P  -4.03e+21     10     192

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -3.44e+21
       Mxy    -1.78e+21
       Mxz     1.01e+21
       Myy     3.21e+21
       Myz    -9.64e+20
       Mzz     2.39e+20




                     --------------
                 ----------------------
              #######---------------------
             ##########--------------------
           ##############--------------------
          #################-------------------
         ###################---------------####
        ##   #################-----------#######
        ## T ##################-------##########
       ###   ###################---##############
       #########################-################
       ######################-----###############
       ###################---------##############
        ##############--------------############
        ###########------------------###########
         ######-----------------------#########
          #---------------------------########
           ----------------------------######
             --------------------------####
              --------   --------------###
                 ----- P --------------
                     -   ----------



 Global CMT Convention Moment Tensor:
      R          T          P
  2.39e+20   1.01e+21   9.64e+20
  1.01e+21  -3.44e+21   1.78e+21
  9.64e+20   1.78e+21   3.21e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20150201180604/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 60
      DIP = 85
     RAKE = 20
       MW = 3.67
       HS = 3.0

The NDK file is 20150201180604.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

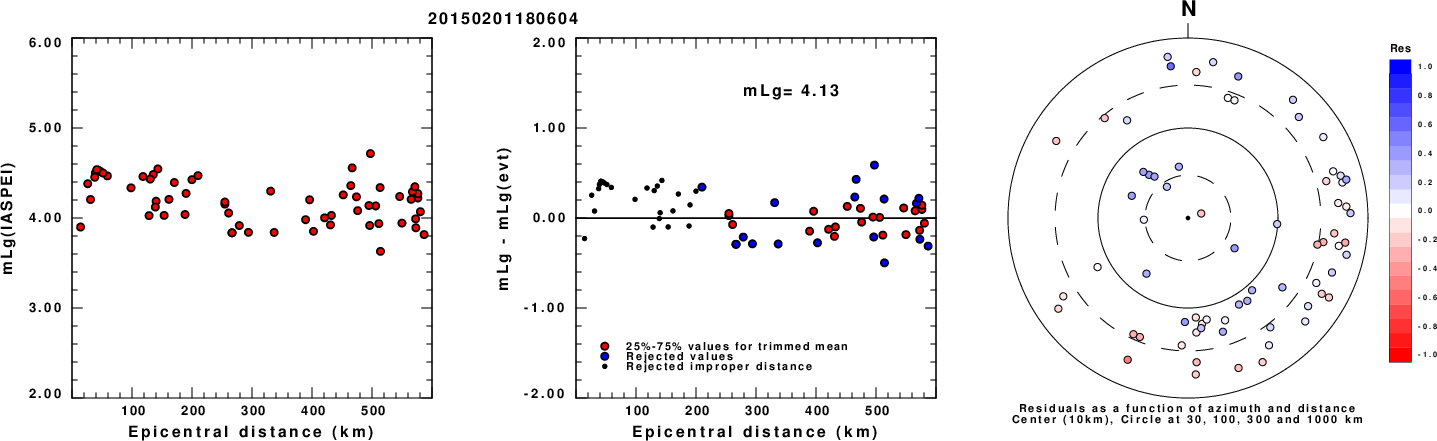

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

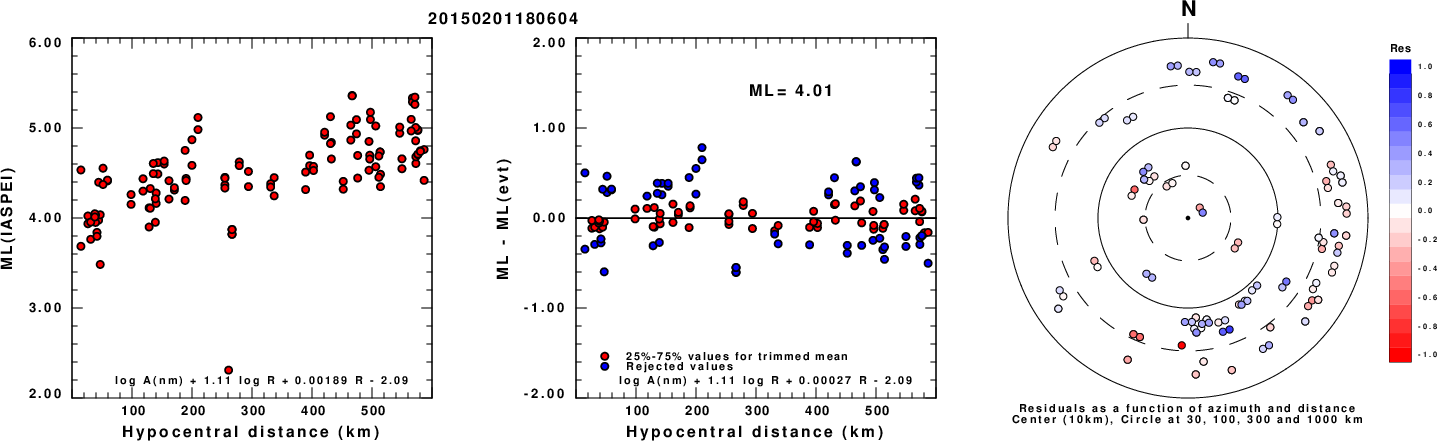

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

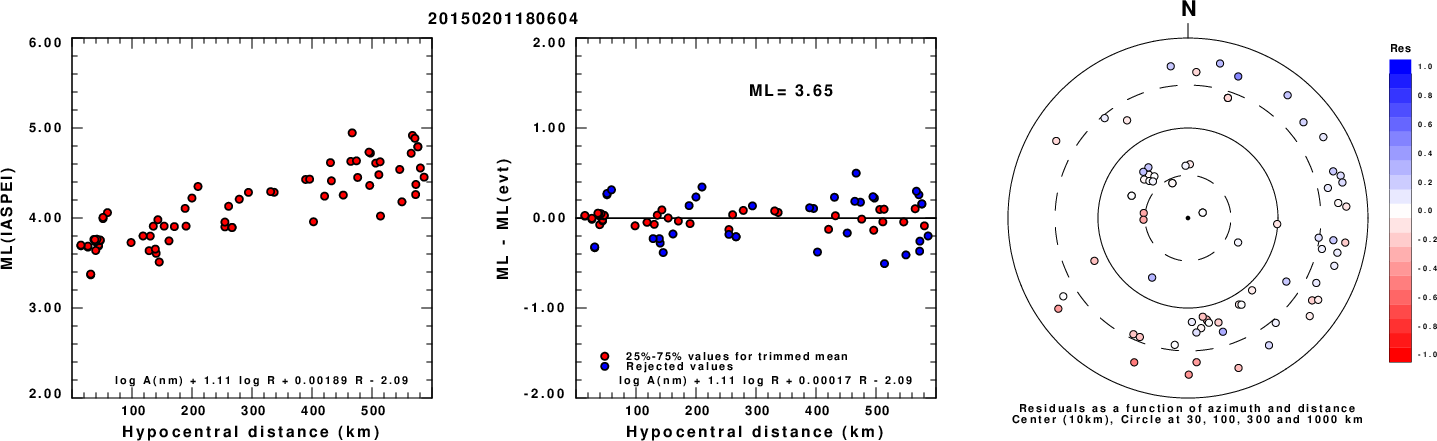

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

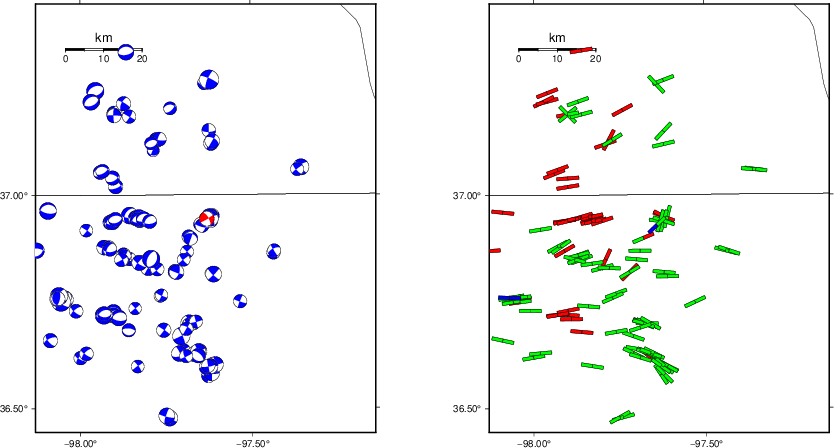

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

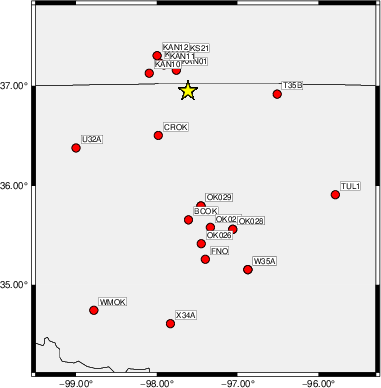

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.09 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   240    75     5   3.51 0.4102
WVFGRD96    2.0    65    50    10   3.66 0.4466
WVFGRD96    3.0    60    85    20   3.67 0.4637
WVFGRD96    4.0    60    85    15   3.70 0.4597
WVFGRD96    5.0    60    70    10   3.74 0.4443
WVFGRD96    6.0    60    75    10   3.76 0.4297
WVFGRD96    7.0    60    75    10   3.78 0.4133
WVFGRD96    8.0    55    85   -10   3.83 0.3986
WVFGRD96    9.0    55    85   -15   3.83 0.3848
WVFGRD96   10.0    55    80   -10   3.86 0.3727
WVFGRD96   11.0    55    80   -10   3.88 0.3620
WVFGRD96   12.0   160    75    45   3.87 0.3543
WVFGRD96   13.0   160    75    45   3.89 0.3536
WVFGRD96   14.0   160    75    45   3.90 0.3492
WVFGRD96   15.0   160    75    40   3.91 0.3422
WVFGRD96   16.0   155    75    35   3.93 0.3344
WVFGRD96   17.0   155    75    35   3.94 0.3250
WVFGRD96   18.0   155    75    35   3.94 0.3140
WVFGRD96   19.0   155    75    35   3.95 0.3020
WVFGRD96   20.0   155    75    30   3.95 0.2901
WVFGRD96   21.0   155    80    35   3.96 0.2796
WVFGRD96   22.0   155    80    35   3.97 0.2718
WVFGRD96   23.0   155    80    35   3.97 0.2638
WVFGRD96   24.0   235    65    10   4.02 0.2632
WVFGRD96   25.0   240    60    10   4.01 0.2647
WVFGRD96   26.0   240    60    10   4.02 0.2670
WVFGRD96   27.0   240    60    10   4.03 0.2689
WVFGRD96   28.0   235    70   -10   4.04 0.2709
WVFGRD96   29.0   235    70    -5   4.06 0.2744

The best solution is

WVFGRD96    3.0    60    85    20   3.67 0.4637

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

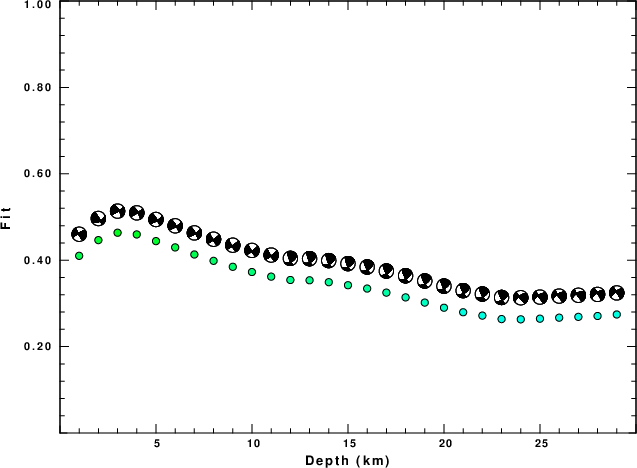

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

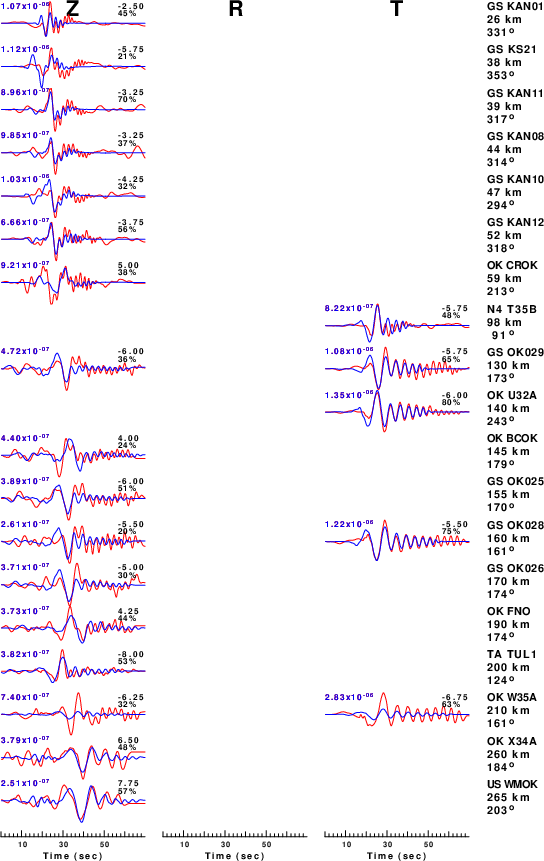

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.09 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

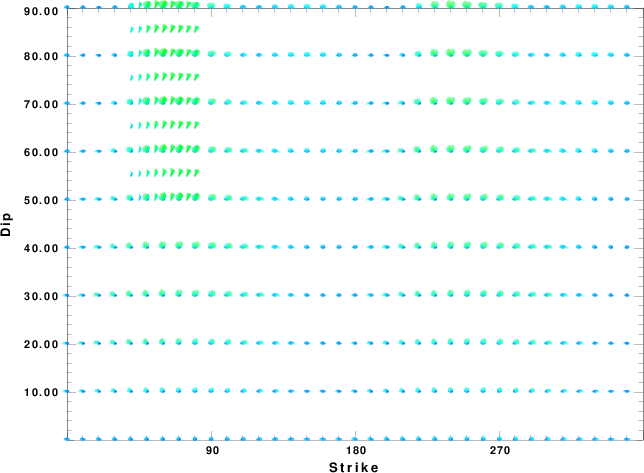

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

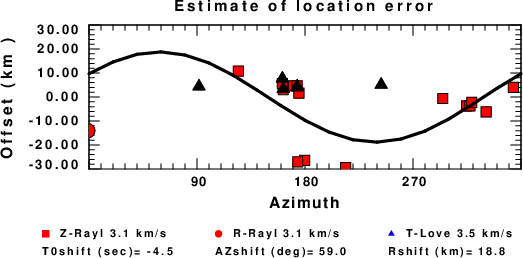

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Fri Apr 26 01:37:09 PM CDT 2024
