Location

Location ANSS

The ANSS event ID is usc000tesx and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usc000tesx/executive.

2015/01/12 11:36:39 41.748 -71.902 5.4 3.3 Connecticut

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2015/01/12 11:36:39:0  41.75  -71.90   5.4 3.3 Connecticut

 Stations used:
   IU.HRV LD.UCCT NE.BCX NE.BRYW NE.QUA2 NE.WSPT NE.YLE
   TA.L62A TA.L63A TA.L64A TA.M61A TA.M62A TA.M63A TA.M64A
   TA.N62A TA.N63A

 Filtering commands used:
   cut o DIST/3.3 -10 o DIST/3.3 +10
   rtr
   taper w 0.1
   hp c 0.05 n 3
   lp c 0.50 n 3

 Best Fitting Double Couple
  Mo = 9.12e+20 dyne-cm
  Mw = 3.24
  Z  = 1 km
  Plane   Strike  Dip  Rake
   NP1        1    70    94
   NP2      170    20    80
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   9.12e+20     65     277
    N   0.00e+00      3     179
    P  -9.12e+20     25      88

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.12e+18
       Mxy    -4.78e+19
       Mxz     2.71e+19
       Myy    -5.78e+20
       Myz    -7.03e+20
       Mzz     5.77e+20




                     -#######------
                 --###########---------
              ---##############-----------
             --################------------
           ---##################-------------
          ---###################--------------
         ---####################---------------
        ----#####################---------------
        ---######################---------------
       ----#########   ##########---------   ----
       ----######### T ##########--------- P ----
       ----#########   ##########---------   ----
       ----######################----------------
        ----#####################---------------
        ----#####################---------------
         ----###################---------------
          ----##################--------------
           ----#################-------------
             ----##############------------
              -----###########------------
                 ----#########---------
                     ----####------



 Global CMT Convention Moment Tensor:
      R          T          P
  5.77e+20   2.71e+19   7.03e+20
  2.71e+19   1.12e+18   4.78e+19
  7.03e+20   4.78e+19  -5.78e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20150112113639/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 170
      DIP = 20
     RAKE = 80
       MW = 3.24
       HS = 1.0

The NDK file is 20150112113639.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

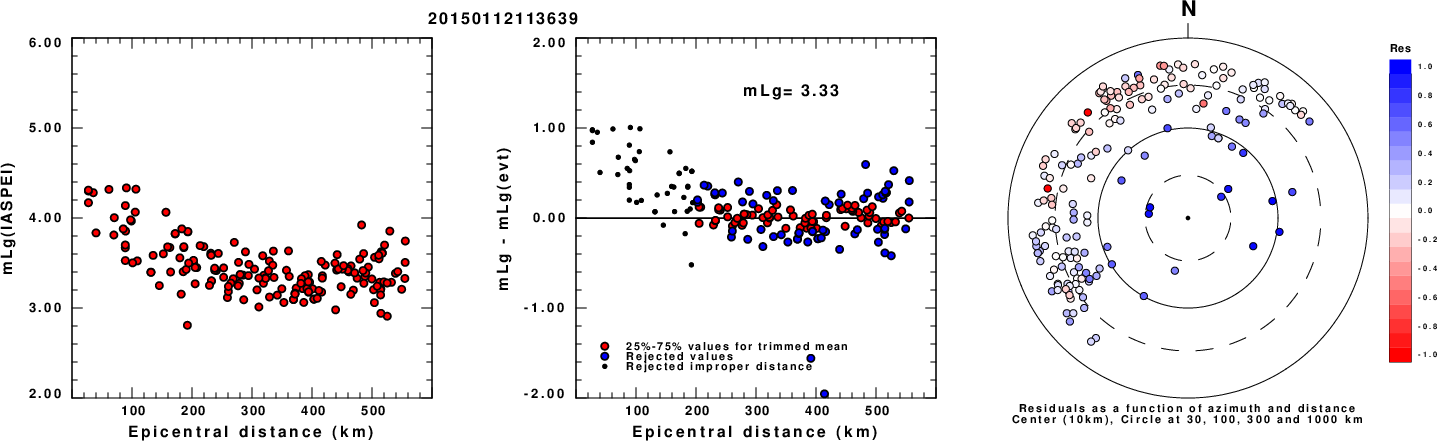

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude


Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

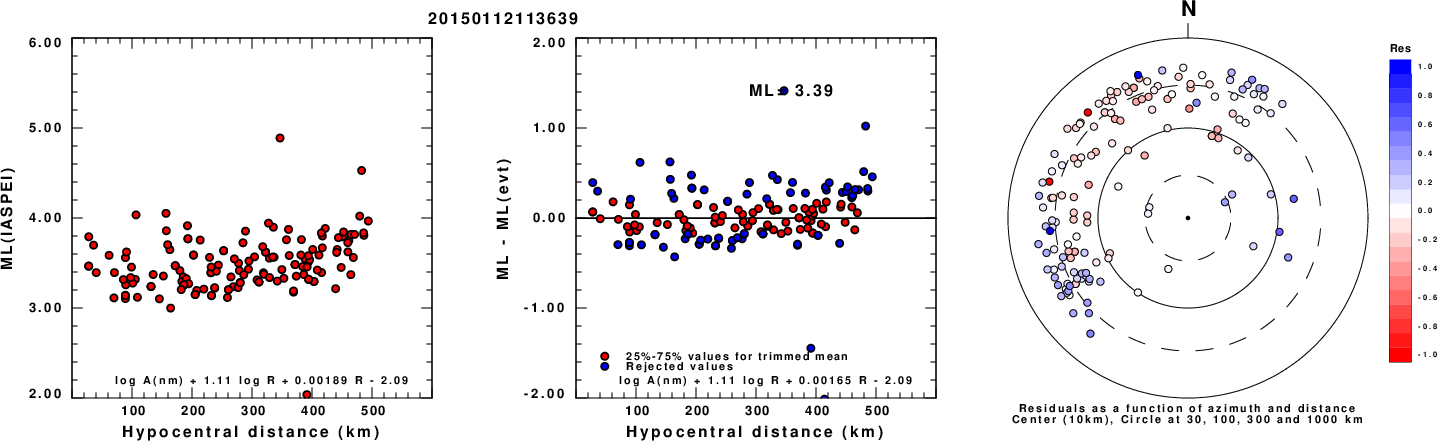

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

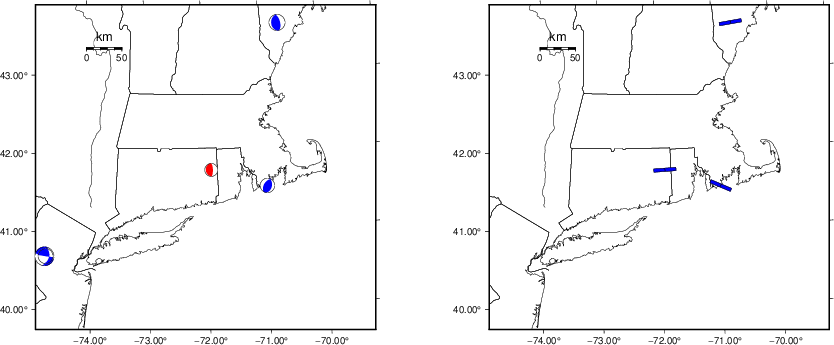

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

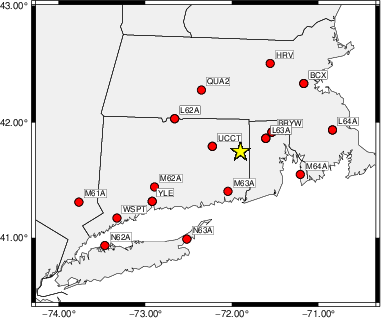

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -10 o DIST/3.3 +10
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.50 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   170    20    80   3.24 0.5695
WVFGRD96    2.0   355    85   -50   3.16 0.5123
WVFGRD96    3.0   350    80   -50   3.19 0.4850
WVFGRD96    4.0    40    40   -90   3.35 0.4470
WVFGRD96    5.0   225    50   -85   3.39 0.3982
WVFGRD96    6.0   180    40   -85   3.33 0.3395
WVFGRD96    7.0   335    65   -65   3.34 0.2850
WVFGRD96    8.0   270    50   -80   3.46 0.2502
WVFGRD96    9.0   135    45   -80   3.42 0.2328
WVFGRD96   10.0   180    70   -85   3.43 0.2310
WVFGRD96   11.0   100    30   -75   3.57 0.2357
WVFGRD96   12.0    95    30   -80   3.59 0.2551
WVFGRD96   13.0   270    65   -90   3.62 0.2692
WVFGRD96   14.0   275    60   -85   3.61 0.2905
WVFGRD96   15.0   275    60   -85   3.62 0.2882
WVFGRD96   16.0    90    30   -95   3.62 0.2931
WVFGRD96   17.0   170    90    70   3.55 0.2990
WVFGRD96   18.0   345    85   -70   3.55 0.3061
WVFGRD96   19.0   345    85   -70   3.57 0.3197
WVFGRD96   20.0   340    85   -75   3.61 0.3303
WVFGRD96   21.0   165    90    75   3.62 0.3258
WVFGRD96   22.0    -5    70  -100   3.61 0.3453
WVFGRD96   23.0    20    70   -85   3.65 0.3402
WVFGRD96   24.0   225    20   -75   3.70 0.3595
WVFGRD96   25.0    15    75   -85   3.65 0.3542
WVFGRD96   26.0   225    20   -75   3.71 0.3621
WVFGRD96   27.0   230    20   -70   3.71 0.3608
WVFGRD96   28.0   210    15   -75   3.67 0.3481
WVFGRD96   29.0   280    50   -80   3.67 0.3478

The best solution is

WVFGRD96    1.0   170    20    80   3.24 0.5695

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

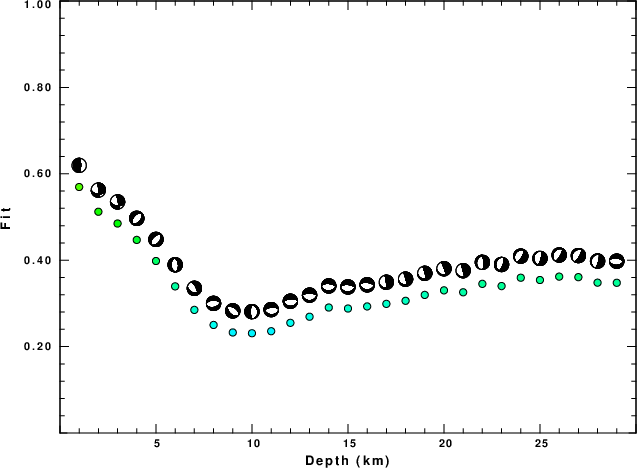

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -10 o DIST/3.3 +10
rtr
taper w 0.1
hp c 0.05 n 3
lp c 0.50 n 3

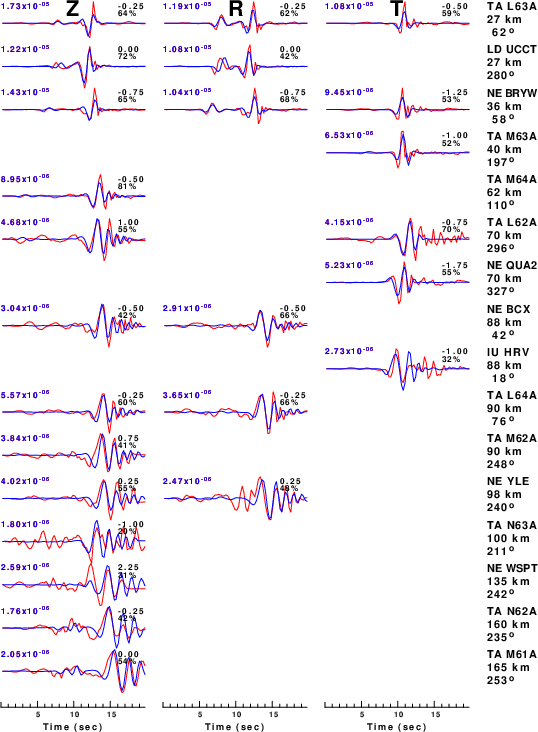

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

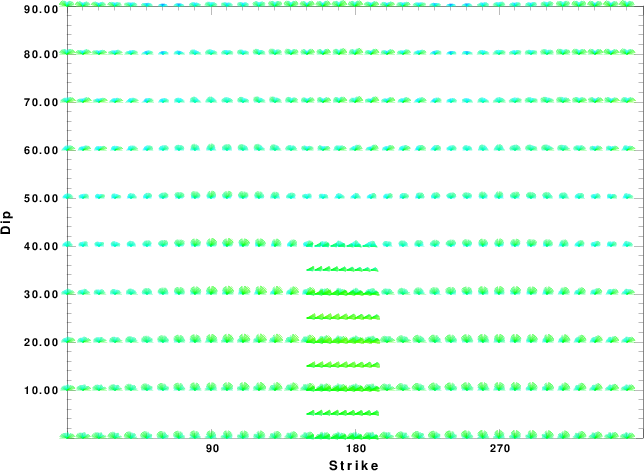

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

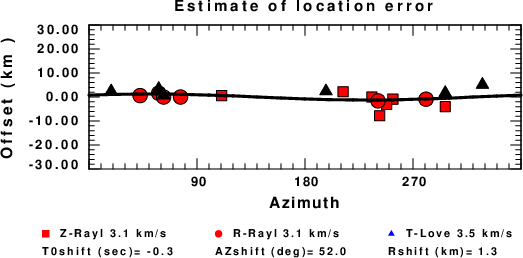

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
Last Changed Tue May 14 18:52:14 CDT 2024
