Location

Location ANSS

The ANSS event ID is uu60096887 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/uu60096887/executive.

2014/12/29 06:08:18 39.664 -111.972 4.0 3.65 Utah

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2014/12/29 06:08:18:0 39.66 -111.97 4.0 3.7 Utah Stations used: AE.U15A AE.W13A AE.X18A CI.LDF IM.PD31 IW.FLWY IW.LOHW IW.MFID IW.MOOW IW.REDW IW.RWWY IW.SMCO LB.TPH NN.LHV NN.PRN NN.RYN NN.SHP RE.PV04 RE.PV12 RE.PV14 RE.PV16 RE.PV17 RE.PV19 RE.PV22 TA.K22A TA.N23A TA.O20A TA.Q24A TA.R11A TA.S22A TA.W18A US.BW06 US.DUG US.ELK US.HLID US.ISCO US.MVCO US.TPNV UU.BGU UU.BRPU UU.CCUT UU.HVU UU.JLU UU.KNB UU.LCMT UU.MTPU UU.PKCU UU.PSUT UU.RDMU UU.SPU UU.SRU UU.SZCU UU.TCRU UU.TCU UU.TMU UU.VRUT WY.YHH WY.YMP WY.YMR WY.YNR WY.YPP Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 6.31e+21 dyne-cm Mw = 3.80 Z = 3 km Plane Strike Dip Rake NP1 174 46 -80 NP2 340 45 -100 Principal Axes: Axis Value Plunge Azimuth T 6.31e+21 0 257 N 0.00e+00 7 347 P -6.31e+21 83 163 Moment Tensor: (dyne-cm) Component Value Mxx 2.29e+20 Mxy 1.40e+21 Mxz 7.28e+20 Myy 5.98e+21 Myz -2.65e+20 Mzz -6.21e+21 #--########### #####-----############ #######---------############ #######------------########### ########---------------########### ########-----------------########### #########------------------########### #########--------------------########### #########---------------------########## ##########----------------------########## ##########----------------------########## ##########---------- ----------######### #######---------- P ----------######### T ########--------- ----------######## ########----------------------######## ##########---------------------####### ##########--------------------###### ##########------------------###### #########-----------------#### #########---------------#### ########------------## #######------- Global CMT Convention Moment Tensor: R T P -6.21e+21 7.28e+20 2.65e+20 7.28e+20 2.29e+20 -1.40e+21 2.65e+20 -1.40e+21 5.98e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20141229060818/index.html

Preferred Solution

      STK = 340
      DIP = 45
     RAKE = -100
       MW = 3.80
       HS = 3.0

The NDK file is 20141229060818.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU

USGSMT

USGS/SLU Moment Tensor Solution ENS 2014/12/29 06:08:18:0 39.66 -111.97 4.0 3.7 Utah Stations used: AE.U15A AE.W13A AE.X18A CI.LDF IM.PD31 IW.FLWY IW.LOHW IW.MFID IW.MOOW IW.REDW IW.RWWY IW.SMCO LB.TPH NN.LHV NN.PRN NN.RYN NN.SHP RE.PV04 RE.PV12 RE.PV14 RE.PV16 RE.PV17 RE.PV19 RE.PV22 TA.K22A TA.N23A TA.O20A TA.Q24A TA.R11A TA.S22A TA.W18A US.BW06 US.DUG US.ELK US.HLID US.ISCO US.MVCO US.TPNV UU.BGU UU.BRPU UU.CCUT UU.HVU UU.JLU UU.KNB UU.LCMT UU.MTPU UU.PKCU UU.PSUT UU.RDMU UU.SPU UU.SRU UU.SZCU UU.TCRU UU.TCU UU.TMU UU.VRUT WY.YHH WY.YMP WY.YMR WY.YNR WY.YPP Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.07 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 6.31e+21 dyne-cm Mw = 3.80 Z = 3 km Plane Strike Dip Rake NP1 174 46 -80 NP2 340 45 -100 Principal Axes: Axis Value Plunge Azimuth T 6.31e+21 0 257 N 0.00e+00 7 347 P -6.31e+21 83 163 Moment Tensor: (dyne-cm) Component Value Mxx 2.29e+20 Mxy 1.40e+21 Mxz 7.28e+20 Myy 5.98e+21 Myz -2.65e+20 Mzz -6.21e+21 #--########### #####-----############ #######---------############ #######------------########### ########---------------########### ########-----------------########### #########------------------########### #########--------------------########### #########---------------------########## ##########----------------------########## ##########----------------------########## ##########---------- ----------######### #######---------- P ----------######### T ########--------- ----------######## ########----------------------######## ##########---------------------####### ##########--------------------###### ##########------------------###### #########-----------------#### #########---------------#### ########------------## #######------- Global CMT Convention Moment Tensor: R T P -6.21e+21 7.28e+20 2.65e+20 7.28e+20 2.29e+20 -1.40e+21 2.65e+20 -1.40e+21 5.98e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20141229060818/index.html

Moment 7.11e+14 N-m Magnitude 3.8 Percent DC 84% Depth 3.0 km Updated 2014-12-30 02:27:21 UTC Author us Catalog Contributor us Code us_c000taht_mwr Principal Axes Axis Value Plunge Azimuth T 6.834 1 257 N 0.530 14 167 P -7.364 76 350 Nodal Planes Plane Strike Dip Rake NP1 153 47 -110 NP2 1 46 -70

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

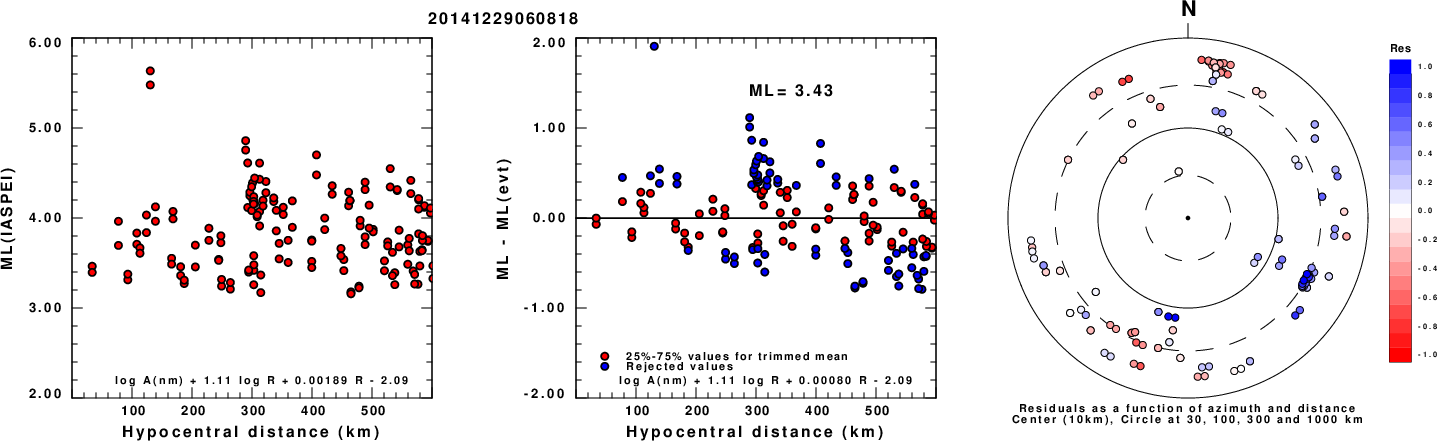

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

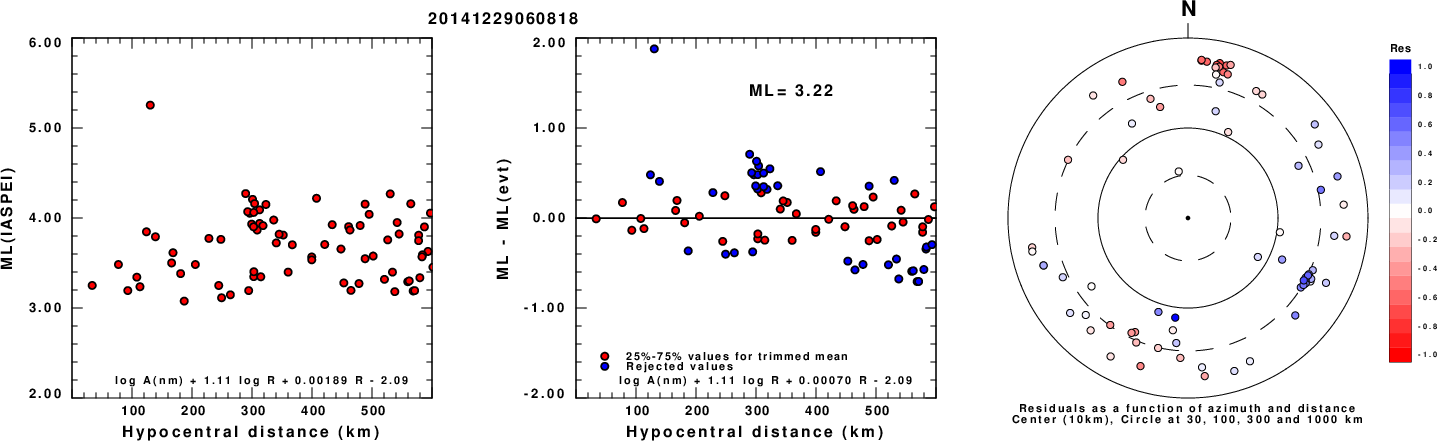

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

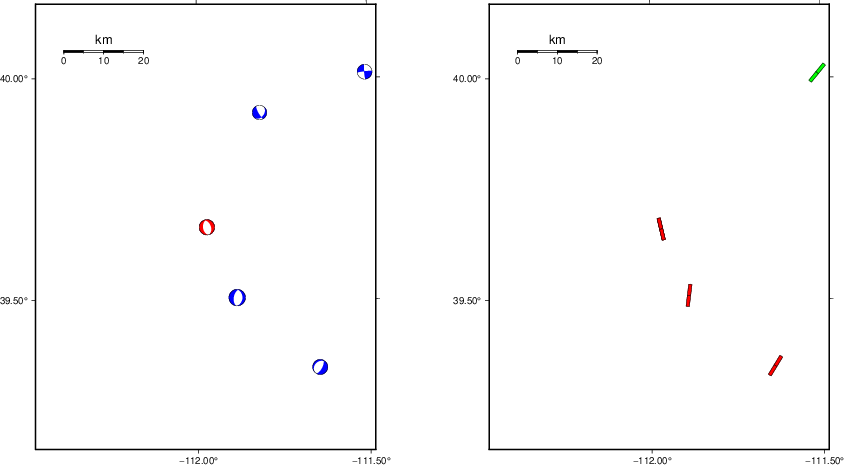

Context

Waveform Inversion using wvfgrd96

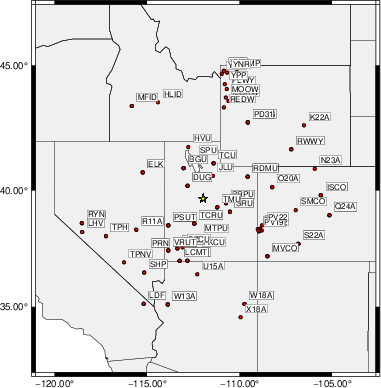

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
br c 0.12 0.25 n 4 p 2

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   180    45   -70   3.65 0.5541
WVFGRD96    2.0   180    45   -70   3.75 0.6934
WVFGRD96    3.0   340    45  -100   3.80 0.6992
WVFGRD96    4.0   175    45   -80   3.83 0.6451
WVFGRD96    5.0   340    65   -95   3.87 0.6063
WVFGRD96    6.0    20    70   -50   3.77 0.5717
WVFGRD96    7.0   220    75    35   3.75 0.5709
WVFGRD96    8.0   -10    65   -80   3.88 0.5764
WVFGRD96    9.0    25    80   -45   3.79 0.5716
WVFGRD96   10.0    25    80   -45   3.80 0.5712
WVFGRD96   11.0   220    70    35   3.81 0.5743
WVFGRD96   12.0   220    70    35   3.82 0.5798
WVFGRD96   13.0   220    70    35   3.82 0.5831
WVFGRD96   14.0   220    70    35   3.83 0.5847
WVFGRD96   15.0   220    70    35   3.84 0.5849
WVFGRD96   16.0   220    70    35   3.85 0.5839
WVFGRD96   17.0   220    70    35   3.85 0.5822
WVFGRD96   18.0   220    70    35   3.86 0.5796
WVFGRD96   19.0   220    70    35   3.87 0.5764
WVFGRD96   20.0    20    70   -35   3.88 0.5730
WVFGRD96   21.0    20    70   -40   3.89 0.5706
WVFGRD96   22.0    20    70   -40   3.90 0.5672
WVFGRD96   23.0    20    70   -40   3.90 0.5631
WVFGRD96   24.0    20    70   -40   3.91 0.5590
WVFGRD96   25.0    20    70   -40   3.92 0.5548
WVFGRD96   26.0    20    70   -40   3.93 0.5499
WVFGRD96   27.0    20    65   -40   3.94 0.5450
WVFGRD96   28.0    20    65   -40   3.95 0.5400
WVFGRD96   29.0    20    65   -40   3.95 0.5345

The best solution is

WVFGRD96    3.0   340    45  -100   3.80 0.6992

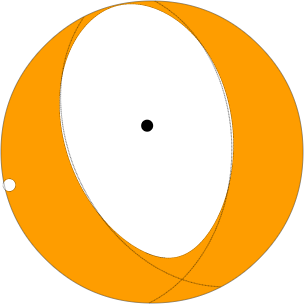

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

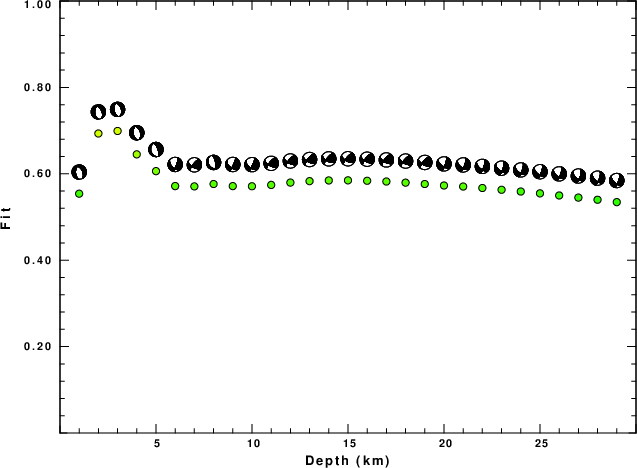

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

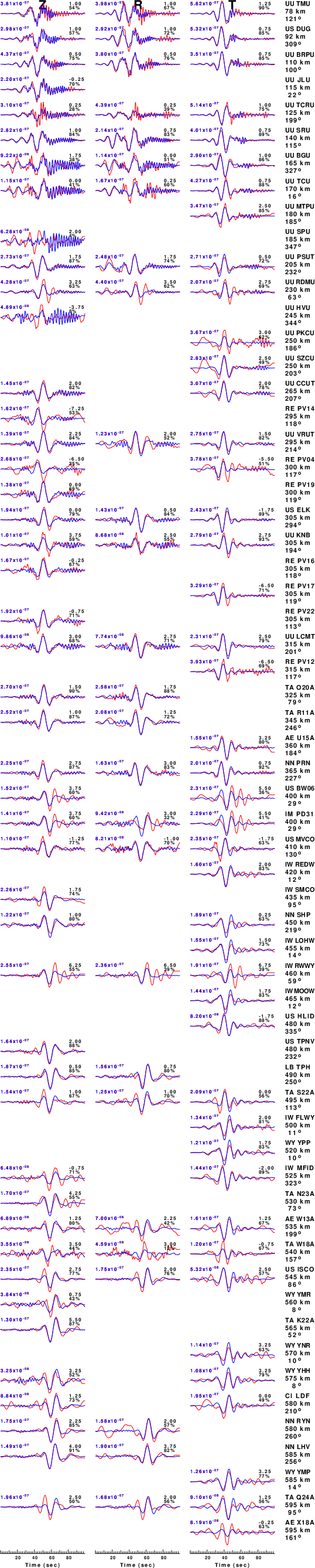

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.07 n 3
br c 0.12 0.25 n 4 p 2

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

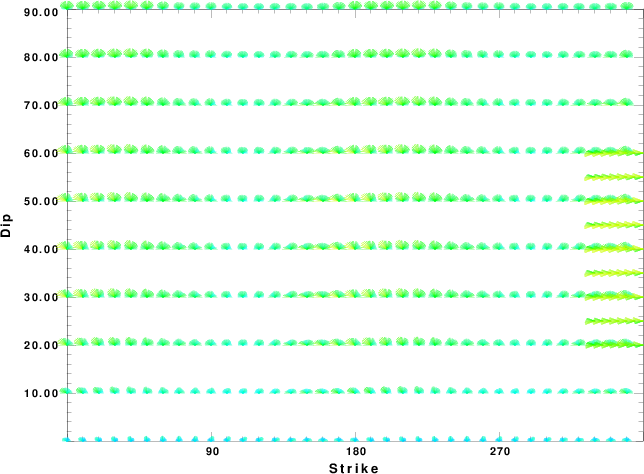

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

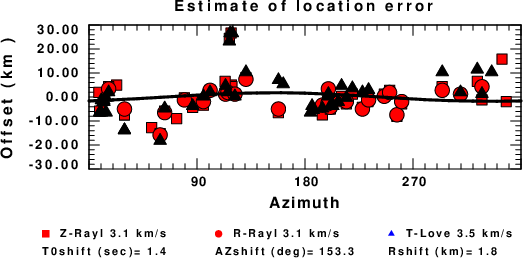

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
