Location

Location ANSS

The ANSS event ID is usb000skq4 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usb000skq4/executive.

2014/10/10 13:51:21 35.947 -96.759 5.0 4.2 Oklahoma

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2014/10/10 13:51:21:0  35.95  -96.76   5.0 4.2 Oklahoma

 Stations used:
   AG.FCAR AG.LCAR AG.WHAR AG.WLAR GS.KAN08 GS.KAN10 GS.KAN12
   GS.KAN13 GS.OK025 GS.OK026 GS.OK027 GS.OK028 GS.OK029
   IU.CCM N4.237B N4.N33B N4.P38B N4.P40B N4.R32B N4.S39B
   N4.T35B N4.T42B N4.U38B N4.Z35B N4.Z38B NM.MGMO NM.UALR
   OK.BCOK OK.CROK OK.FNO OK.QUOK OK.U32A OK.X37A TA.ABTX
   TA.TUL1 TA.U40A TA.W39A TA.W41B TA.WHTX TA.X40A TA.Z41A
   US.AMTX US.CBKS US.KSU1 US.MIAR US.WMOK

 Filtering commands used:
   cut o DIST/3.3 -30 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 2.19e+22 dyne-cm
  Mw = 4.16
  Z  = 4 km
  Plane   Strike  Dip  Rake
   NP1      190    90   180
   NP2      280    90    -0
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.19e+22     -0     325
    N   0.00e+00     90     190
    P  -2.19e+22     -0      55

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     7.48e+21
       Mxy    -2.06e+22
       Mxz    -1.66e+14
       Myy    -7.48e+21
       Myz     9.42e+14
       Mzz    -0.00e+00




                     ##########----
                 T ############--------
              ##   ############-----------
             #################-------------
           ###################------------- P
          ####################-------------
         ####################------------------
        #####################-------------------
        #####################-------------------
       -----################---------------------
       ----------------#####---------------------
       ---------------------#####----------------
       ---------------------################-----
        -------------------#####################
        -------------------#####################
         ------------------####################
          ----------------####################
           ---------------###################
             -------------#################
              -----------#################
                 --------##############
                     ----##########



 Global CMT Convention Moment Tensor:
      R          T          P
 -0.00e+00  -1.66e+14  -9.42e+14
 -1.66e+14   7.48e+21   2.06e+22
 -9.42e+14   2.06e+22  -7.48e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20141010135121/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 100
      DIP = 90
     RAKE = 0
       MW = 4.16
       HS = 4.0

The NDK file is 20141010135121.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

mLg Magnitude

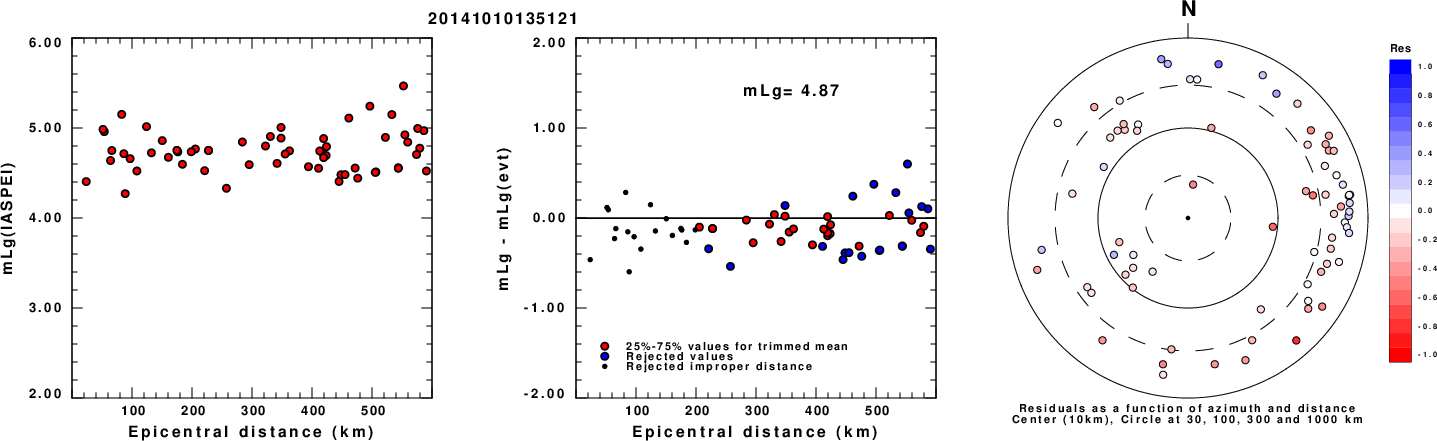

Left: mLg computed using the IASPEI formula. Center: mLg residuals versus epicentral distance ; the values used for the trimmed mean magnitude estimate are indicated. Right: residuals as a function of distance and azimuth.

ML Magnitude

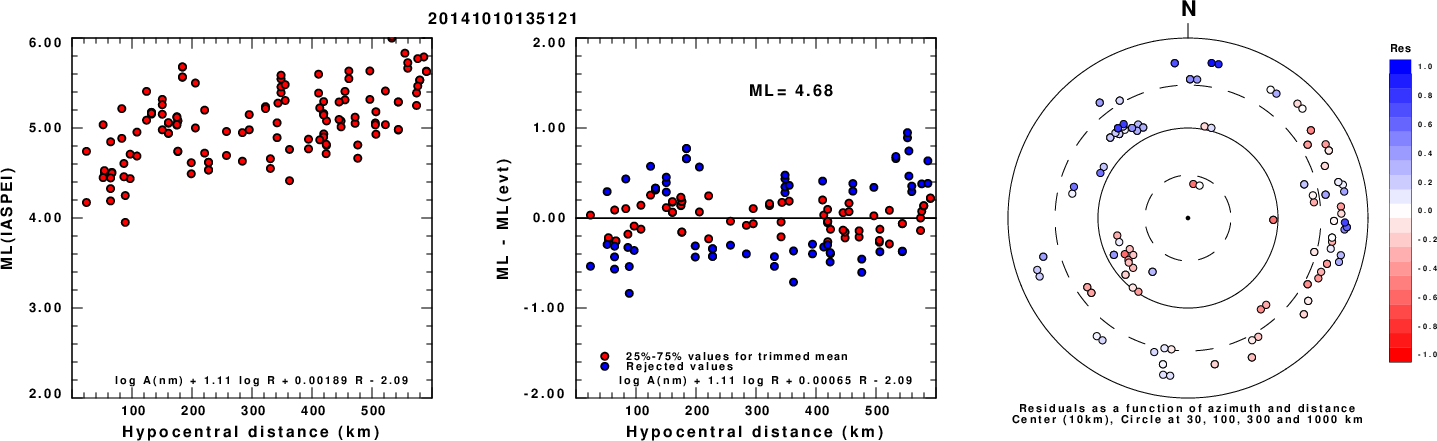

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

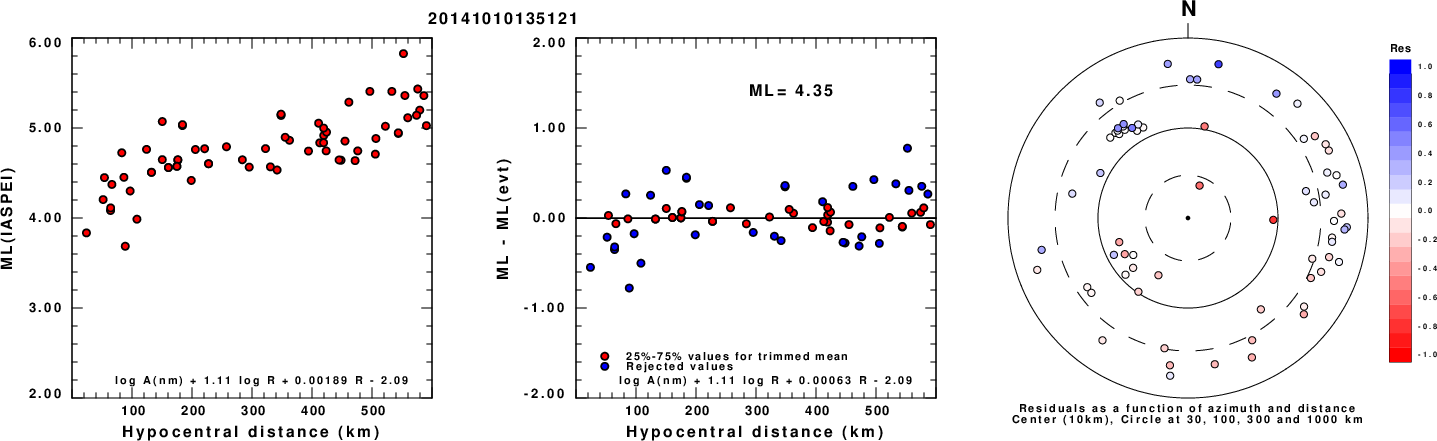

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

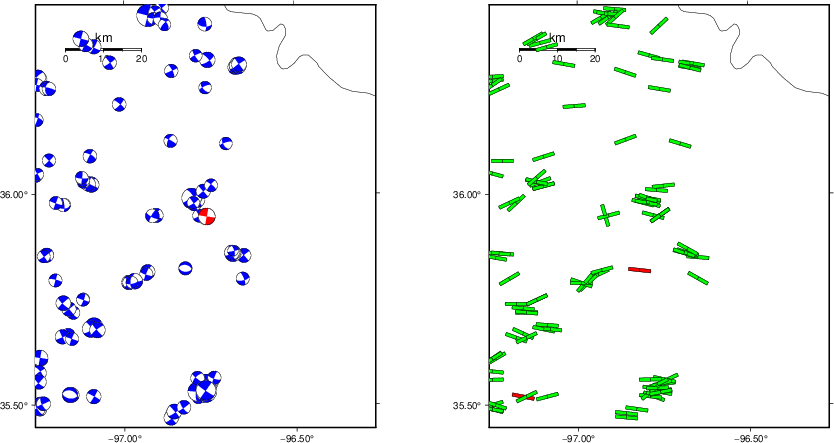

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

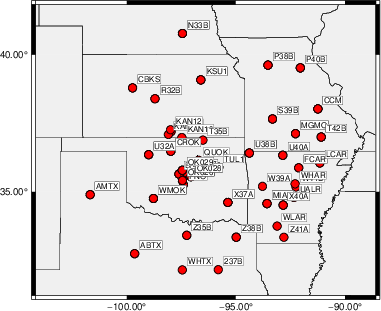

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   100    90   -15   3.99 0.4984
WVFGRD96    2.0   100    90   -15   4.09 0.5880
WVFGRD96    3.0   280    85    10   4.14 0.6195
WVFGRD96    4.0   100    90     0   4.16 0.6204
WVFGRD96    5.0   100    90     5   4.19 0.6059
WVFGRD96    6.0   280    80     0   4.21 0.5860
WVFGRD96    7.0   100    90    20   4.24 0.5715
WVFGRD96    8.0   100    90    25   4.27 0.5640
WVFGRD96    9.0   280    90   -30   4.29 0.5472
WVFGRD96   10.0   280    90   -30   4.30 0.5356
WVFGRD96   11.0   100    90    30   4.30 0.5250
WVFGRD96   12.0   280    85   -30   4.31 0.5166
WVFGRD96   13.0   275    80   -30   4.32 0.5099
WVFGRD96   14.0   275    80   -30   4.33 0.5037
WVFGRD96   15.0   275    80   -30   4.34 0.4974
WVFGRD96   16.0   275    80   -30   4.34 0.4920
WVFGRD96   17.0   275    80   -30   4.35 0.4873
WVFGRD96   18.0   275    80   -30   4.36 0.4827
WVFGRD96   19.0   275    80   -30   4.37 0.4782
WVFGRD96   20.0   275    80   -30   4.37 0.4738
WVFGRD96   21.0   275    80   -30   4.38 0.4705
WVFGRD96   22.0   275    75   -30   4.39 0.4664
WVFGRD96   23.0   275    75   -30   4.40 0.4626
WVFGRD96   24.0   275    75   -30   4.40 0.4589
WVFGRD96   25.0   275    75   -30   4.41 0.4550
WVFGRD96   26.0   275    80   -30   4.42 0.4515
WVFGRD96   27.0   275    80   -30   4.42 0.4482
WVFGRD96   28.0   275    80   -30   4.43 0.4447
WVFGRD96   29.0   275    80   -30   4.44 0.4411

The best solution is

WVFGRD96    4.0   100    90     0   4.16 0.6204

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

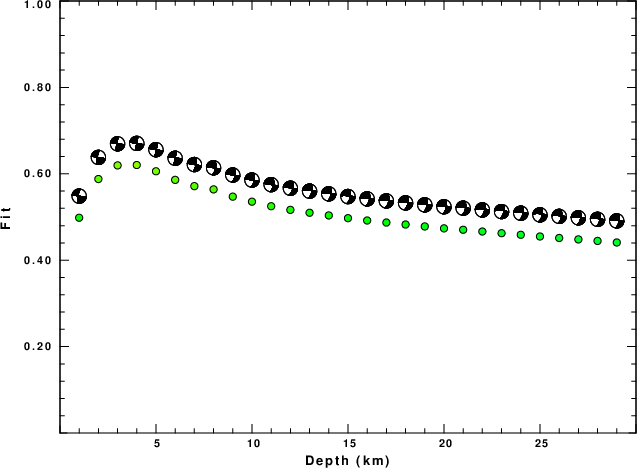

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3

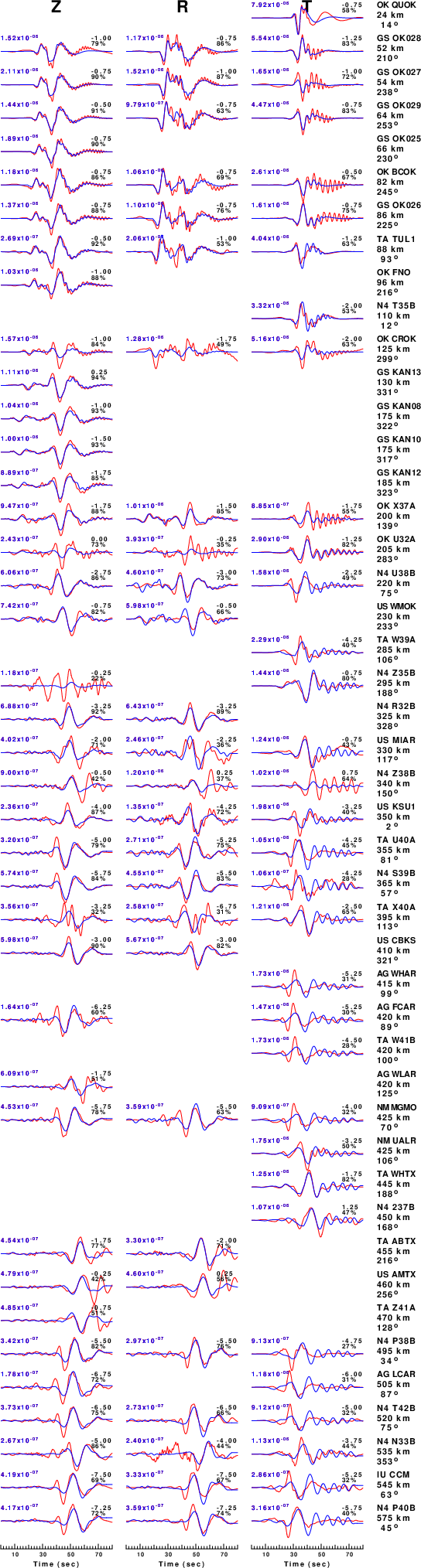

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

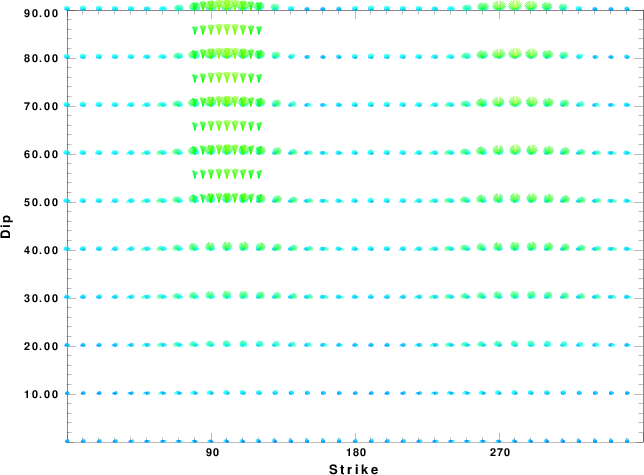

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

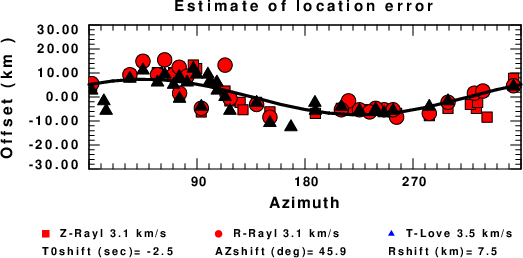

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Sat Apr 27 01:24:22 AM CDT 2024
