The ANSS event ID is usb000rtba and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usb000rtba/executive.

2014/07/16 00:20:08 62.560 -127.827 5.5 4.3 NT, Canada

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2014/07/16 00:20:08:0 62.56 -127.83 5.5 4.3 NT, Canada Stations used: AK.BESE AK.JIS AT.SKAG CN.BVCY CN.DAWY CN.DHRN CN.DLBC CN.EDZN CN.HYT CN.NOWN CN.PLBC CN.WHY CN.YKW3 CN.YUK5 CN.YUK6 TA.EPYK Filtering commands used: cut o DIST/3.3 -50 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.08 n 3 Best Fitting Double Couple Mo = 3.43e+22 dyne-cm Mw = 4.29 Z = 9 km Plane Strike Dip Rake NP1 343 69 -148 NP2 240 60 -25 Principal Axes: Axis Value Plunge Azimuth T 3.43e+22 5 110 N 0.00e+00 52 13 P -3.43e+22 38 204 Moment Tensor: (dyne-cm) Component Value Mxx -1.39e+22 Mxy -1.89e+22 Mxz 1.40e+22 Myy 2.64e+22 Myz 9.83e+21 Mzz -1.25e+22 ##------------ ########-------------- ############---------------- ###############--------------- ##################---------------- ####################---############# ###################---################ ################-------################# #############-----------################ ############--------------################ ##########----------------################ ########-------------------############### ######---------------------############### ####-----------------------########## ###------------------------########## T ##------------------------########## ----------- -----------########### ---------- P -----------########## -------- -----------######## ---------------------####### ------------------#### -------------# Global CMT Convention Moment Tensor: R T P -1.25e+22 1.40e+22 -9.83e+21 1.40e+22 -1.39e+22 1.89e+22 -9.83e+21 1.89e+22 2.64e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20140716002008/index.html

Preferred Solution

      STK = 240
      DIP = 60
     RAKE = -25
       MW = 4.29
       HS = 9.0

The NDK file is 20140716002008.ndk The waveform inversion is preferred.

Context

Waveform Inversion using wvfgrd96

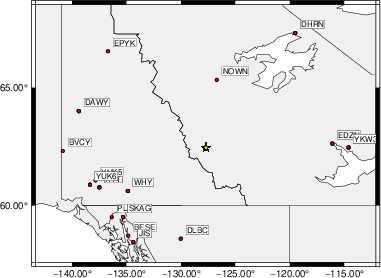

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

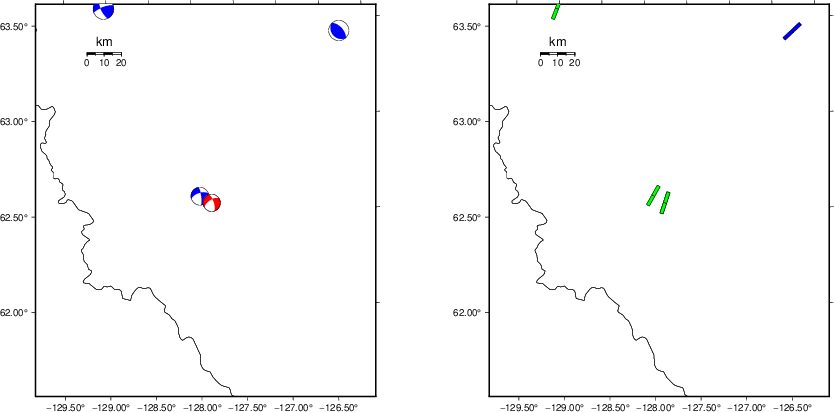

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -50 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   255    25    10   4.38 0.6700
WVFGRD96    2.0   255    40    20   4.29 0.7084
WVFGRD96    3.0   255    45    25   4.28 0.7065
WVFGRD96    4.0   245    50     0   4.26 0.6912
WVFGRD96    5.0   245    55   -10   4.26 0.6975
WVFGRD96    6.0   245    55   -15   4.26 0.7042
WVFGRD96    7.0   245    60   -20   4.27 0.7106
WVFGRD96    8.0   240    60   -20   4.28 0.7145
WVFGRD96    9.0   240    60   -25   4.29 0.7169
WVFGRD96   10.0   240    60   -25   4.31 0.7138
WVFGRD96   11.0   240    60   -25   4.31 0.7112
WVFGRD96   12.0   240    60   -25   4.32 0.7060
WVFGRD96   13.0   240    65   -30   4.33 0.6983
WVFGRD96   14.0   240    65   -30   4.34 0.6903
WVFGRD96   15.0   240    65   -30   4.34 0.6812
WVFGRD96   16.0   240    65   -30   4.35 0.6705
WVFGRD96   17.0   240    65   -30   4.36 0.6583
WVFGRD96   18.0   240    65   -25   4.36 0.6455
WVFGRD96   19.0   240    65   -25   4.37 0.6323
WVFGRD96   20.0   235    60   -30   4.38 0.6151
WVFGRD96   21.0   235    60   -30   4.39 0.5993
WVFGRD96   22.0   235    60   -30   4.39 0.5836
WVFGRD96   23.0   235    60   -30   4.40 0.5679
WVFGRD96   24.0   235    60   -30   4.40 0.5515
WVFGRD96   25.0   235    60   -30   4.41 0.5347
WVFGRD96   26.0   235    60   -30   4.41 0.5181
WVFGRD96   27.0   235    60   -30   4.42 0.5017
WVFGRD96   28.0   235    60   -30   4.42 0.4853
WVFGRD96   29.0   325    60   -35   4.43 0.4808

The best solution is

WVFGRD96    9.0   240    60   -25   4.29 0.7169

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

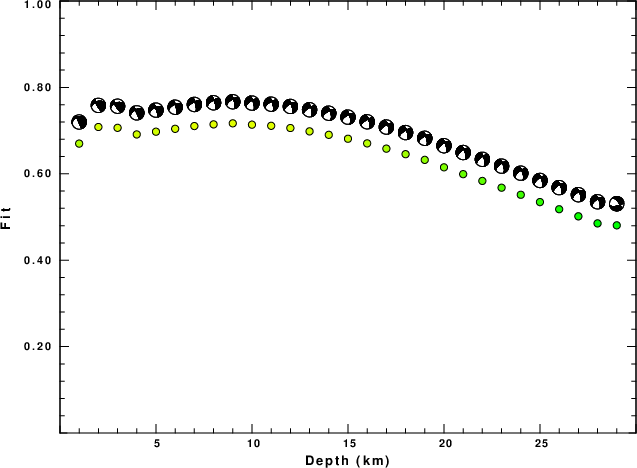

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -50 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3

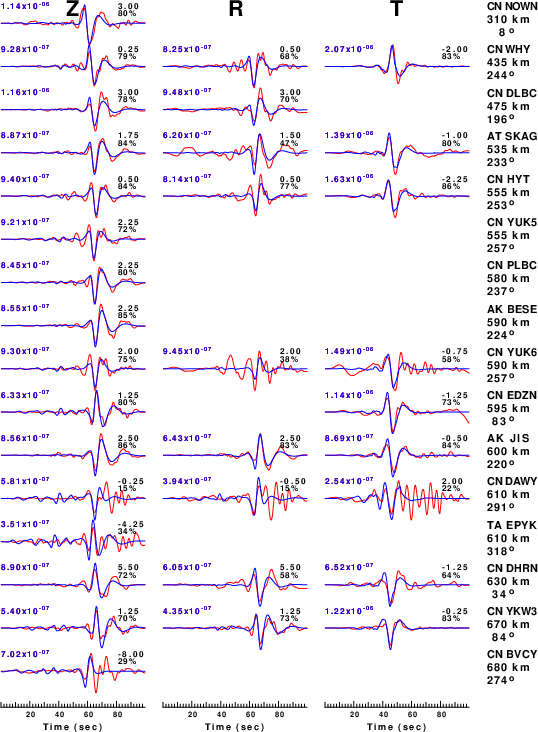

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

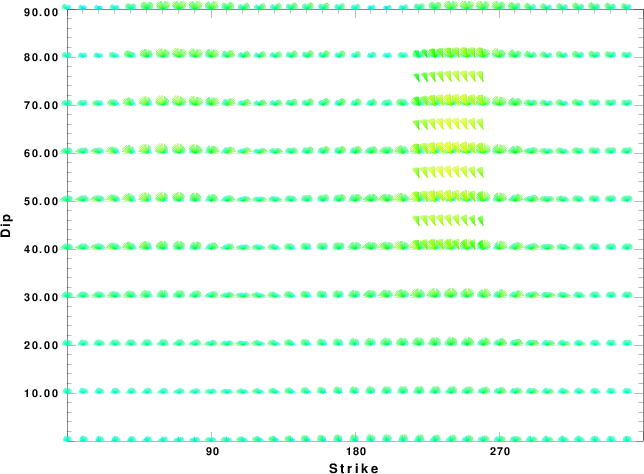

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

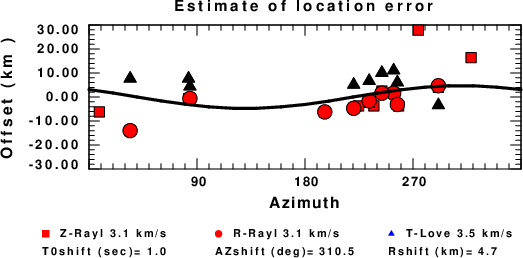

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
CUS Model with Q from simple gamma values
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
  H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC)   QP   QS  ETAP  ETAS  FREFP  FREFS
  1.0000  5.0000  2.8900  2.5000 0.172E-02 0.387E-02 0.00  0.00  1.00  1.00
  9.0000  6.1000  3.5200  2.7300 0.160E-02 0.363E-02 0.00  0.00  1.00  1.00
 10.0000  6.4000  3.7000  2.8200 0.149E-02 0.336E-02 0.00  0.00  1.00  1.00
 20.0000  6.7000  3.8700  2.9020 0.000E-04 0.000E-04 0.00  0.00  1.00  1.00
  0.0000  8.1500  4.7000  3.3640 0.194E-02 0.431E-02 0.00  0.00  1.00  1.00
