The ANSS event ID is ak0147pznycy and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0147pznycy/executive.

2014/06/17 09:03:49 62.756 -150.728 95.4 4.5 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2014/06/17 09:03:49:0  62.76 -150.73  95.4 4.5 Alaska

 Stations used:
   AK.BPAW AK.CCB AK.DHY AK.GHO AK.HDA AK.KNK AK.MCAR AK.MCK
   AK.PPLA AK.RC01 AK.RIDG AK.RND AK.SAW AK.SCM AK.TRF AK.VRDI
   AK.WRH AT.PMR IM.IL31 IU.COLA

 Filtering commands used:
   cut a -30 a 180
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 5.96e+22 dyne-cm
  Mw = 4.45
  Z  = 98 km
  Plane   Strike  Dip  Rake
   NP1      341    64   134
   NP2       95    50    35
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   5.96e+22     50     301
    N   0.00e+00     39     138
    P  -5.96e+22      8      41

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -2.69e+22
       Mxy    -3.97e+22
       Mxz     8.64e+21
       Myy    -6.75e+21
       Myz    -3.07e+22
       Mzz     3.36e+22




                     #-------------
                 #######---------------
              ############-------------
             ###############----------- P -
           ##################----------   ---
          #####################---------------
         #######################---------------
        ##########   ###########----------------
        ########## T ############---------------
       ###########   #############---------------
       -###########################--------------
       --##########################--------------
       ----#########################------------#
        -----#######################----------##
        -------#####################--------####
         ----------#################----#######
          ---------------------------#########
           --------------------------########
             -----------------------#######
              ----------------------######
                 -------------------###
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  3.36e+22   8.64e+21   3.07e+22
  8.64e+21  -2.69e+22   3.97e+22
  3.07e+22   3.97e+22  -6.75e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20140617090349/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 95
      DIP = 50
     RAKE = 35
       MW = 4.45
       HS = 98.0

The NDK file is 20140617090349.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

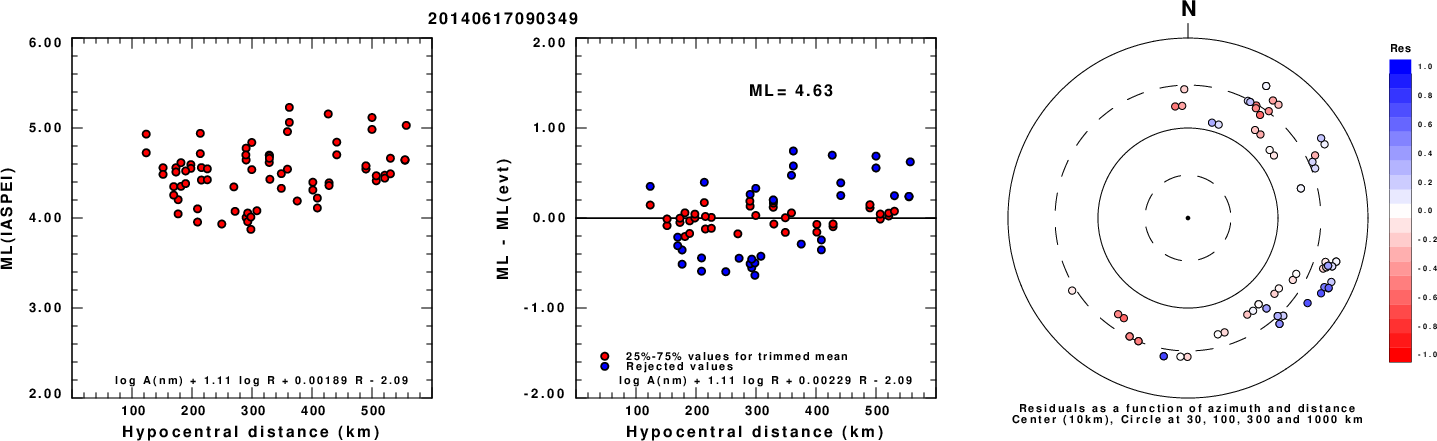

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

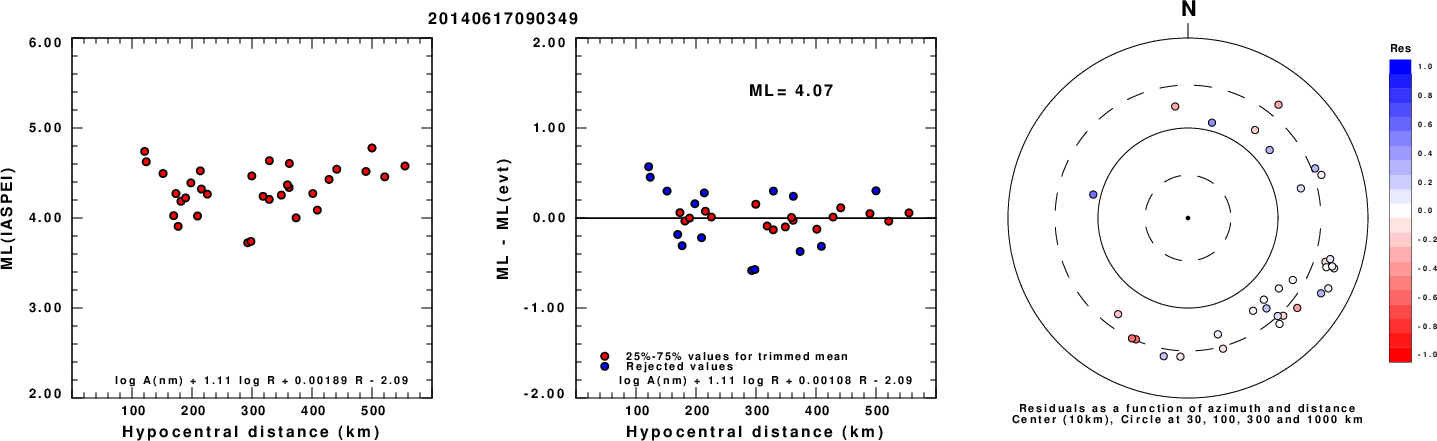

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

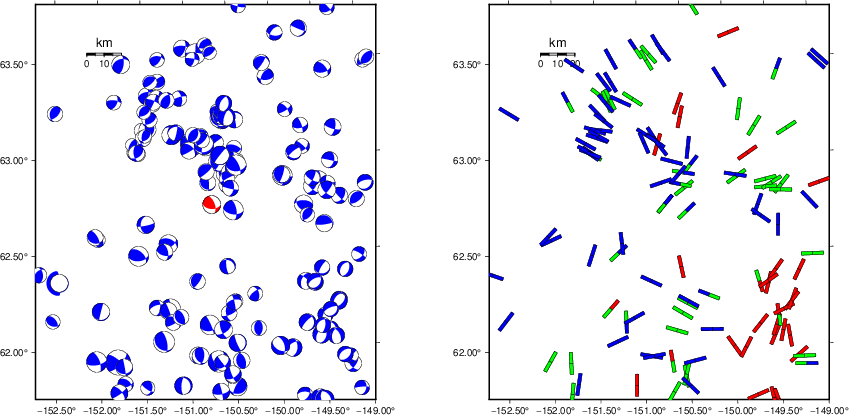

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

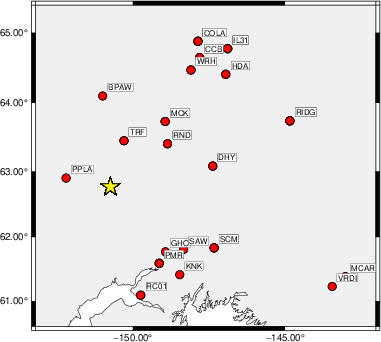

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut a -30 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   115    50  -100   3.68 0.2358
WVFGRD96    4.0   135    50   -75   3.78 0.2249
WVFGRD96    6.0     0    65    15   3.78 0.2243
WVFGRD96    8.0     0    65    20   3.84 0.2435
WVFGRD96   10.0     0    65    20   3.87 0.2653
WVFGRD96   12.0    -5    65    20   3.89 0.2786
WVFGRD96   14.0   355    65    20   3.90 0.2837
WVFGRD96   16.0   345    70    25   3.91 0.2829
WVFGRD96   18.0   345    70    25   3.92 0.2800
WVFGRD96   20.0   345    70    25   3.94 0.2773
WVFGRD96   22.0   345    70    25   3.95 0.2671
WVFGRD96   24.0   340    70    30   3.96 0.2564
WVFGRD96   26.0   340    75    30   3.97 0.2460
WVFGRD96   28.0   275    70    45   3.97 0.2443
WVFGRD96   30.0   275    70    45   3.99 0.2466
WVFGRD96   32.0   275    70    45   4.00 0.2419
WVFGRD96   34.0    70    75    -5   4.09 0.2368
WVFGRD96   36.0    65    75    -5   4.12 0.2366
WVFGRD96   38.0    75    80   -10   4.15 0.2424
WVFGRD96   40.0   100    80   -35   4.23 0.2525
WVFGRD96   42.0   100    80   -35   4.24 0.2598
WVFGRD96   44.0   105    80   -30   4.28 0.2665
WVFGRD96   46.0   105    80   -30   4.30 0.2731
WVFGRD96   48.0   100    80   -30   4.31 0.2797
WVFGRD96   50.0   100    80   -30   4.32 0.2877
WVFGRD96   52.0    90    80   -35   4.32 0.2970
WVFGRD96   54.0    95    85   -35   4.34 0.3097
WVFGRD96   56.0    95    90   -35   4.34 0.3212
WVFGRD96   58.0   275    90    35   4.36 0.3335
WVFGRD96   60.0   275    85    40   4.35 0.3463
WVFGRD96   62.0    90    35    35   4.33 0.3662
WVFGRD96   64.0    90    35    35   4.35 0.3881
WVFGRD96   66.0    95    35    40   4.36 0.4086
WVFGRD96   68.0    90    40    35   4.38 0.4294
WVFGRD96   70.0    90    40    35   4.39 0.4484
WVFGRD96   72.0    90    40    35   4.39 0.4645
WVFGRD96   74.0    95    40    35   4.41 0.4790
WVFGRD96   76.0    95    40    40   4.40 0.4913
WVFGRD96   78.0   100    40    45   4.41 0.5016
WVFGRD96   80.0    90    45    30   4.43 0.5105
WVFGRD96   82.0    95    45    35   4.43 0.5192
WVFGRD96   84.0    95    45    35   4.43 0.5268
WVFGRD96   86.0    95    45    35   4.43 0.5326
WVFGRD96   88.0    95    45    35   4.44 0.5371
WVFGRD96   90.0    95    45    35   4.44 0.5397
WVFGRD96   92.0    95    50    35   4.44 0.5424
WVFGRD96   94.0    95    50    35   4.45 0.5451
WVFGRD96   96.0    95    50    35   4.45 0.5463
WVFGRD96   98.0    95    50    35   4.45 0.5471
WVFGRD96  100.0    95    50    35   4.45 0.5470
WVFGRD96  102.0    95    55    30   4.47 0.5463
WVFGRD96  104.0    95    55    30   4.47 0.5464
WVFGRD96  106.0    95    55    30   4.47 0.5455
WVFGRD96  108.0    95    55    30   4.47 0.5441
WVFGRD96  110.0    95    55    35   4.46 0.5428
WVFGRD96  112.0    95    55    35   4.46 0.5405
WVFGRD96  114.0    95    55    35   4.46 0.5376
WVFGRD96  116.0    95    60    35   4.47 0.5353
WVFGRD96  118.0    95    60    35   4.47 0.5329

The best solution is

WVFGRD96   98.0    95    50    35   4.45 0.5471

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

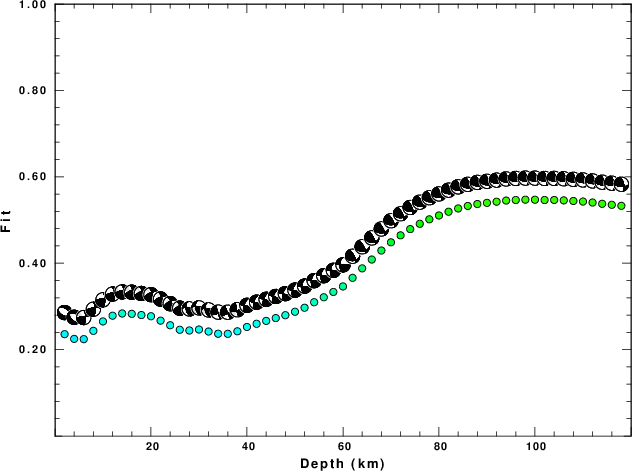

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

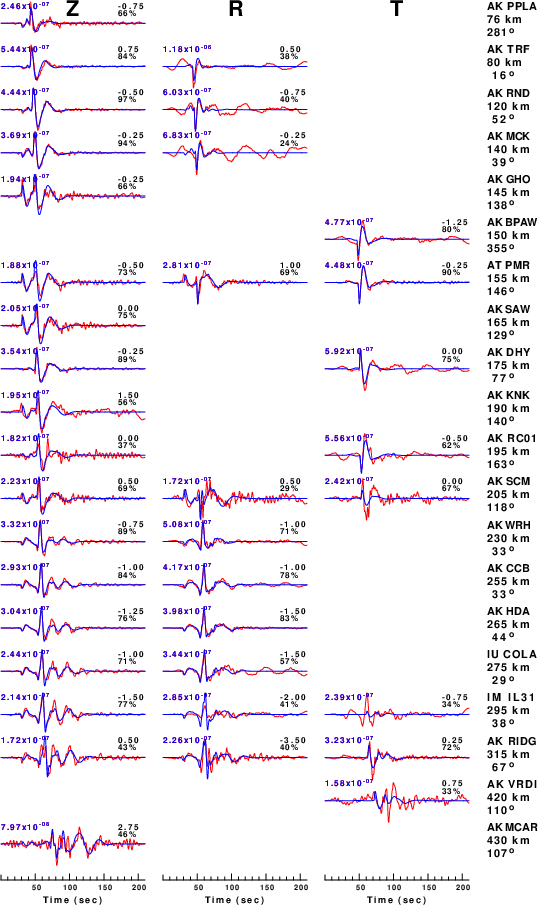

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut a -30 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

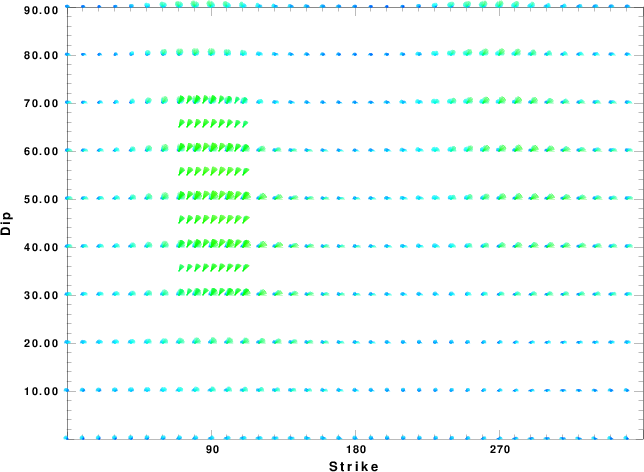

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

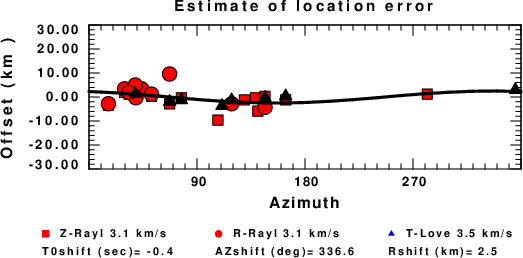

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
