2014/05/09 18:09:00 59.768 -136.599 15.4 4.2 Alaska
USGS/SLU Moment Tensor Solution ENS 2014/05/09 18:09:00:0 59.77 -136.60 15.4 4.2 Alaska Stations used: AK.BAL AK.BARN AK.BESE AK.CRQ AK.CTG AK.DOT AK.EYAK AK.GLB AK.HARP AK.JIS AK.MCAR AK.TGL AK.VRDI AK.YAH AT.SKAG AT.YKU2 CN.DAWY CN.DLBC CN.HYT CN.WHY US.WRAK Filtering commands used: cut a -30 a 180 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 7.76e+21 dyne-cm Mw = 3.86 Z = 18 km Plane Strike Dip Rake NP1 265 75 20 NP2 170 71 164 Principal Axes: Axis Value Plunge Azimuth T 7.76e+21 25 128 N 0.00e+00 65 300 P -7.76e+21 3 37 Moment Tensor: (dyne-cm) Component Value Mxx -2.54e+21 Mxy -6.82e+21 Mxz -2.13e+21 Myy 1.21e+21 Myz 2.08e+21 Mzz 1.33e+21 ###----------- ######---------------- #########---------------- P ##########---------------- - ###########----------------------- ############------------------------ #############------------------------- ##############-------------------------- ##############-------------------------- #############---#######################--- ######----------########################## ##--------------########################## -----------------######################### ----------------######################## ----------------######################## ----------------############## ##### ----------------############# T #### ---------------############# ### --------------################ --------------############## ------------########## ----------#### Global CMT Convention Moment Tensor: R T P 1.33e+21 -2.13e+21 -2.08e+21 -2.13e+21 -2.54e+21 6.82e+21 -2.08e+21 6.82e+21 1.21e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20140509180900/index.html |
STK = 265 DIP = 75 RAKE = 20 MW = 3.86 HS = 18.0
The NDK file is 20140509180900.ndk The waveform inversion is preferred.
The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
USGS/SLU Moment Tensor Solution ENS 2014/05/09 18:09:00:0 59.77 -136.60 15.4 4.2 Alaska Stations used: AK.BAL AK.BARN AK.BESE AK.CRQ AK.CTG AK.DOT AK.EYAK AK.GLB AK.HARP AK.JIS AK.MCAR AK.TGL AK.VRDI AK.YAH AT.SKAG AT.YKU2 CN.DAWY CN.DLBC CN.HYT CN.WHY US.WRAK Filtering commands used: cut a -30 a 180 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 7.76e+21 dyne-cm Mw = 3.86 Z = 18 km Plane Strike Dip Rake NP1 265 75 20 NP2 170 71 164 Principal Axes: Axis Value Plunge Azimuth T 7.76e+21 25 128 N 0.00e+00 65 300 P -7.76e+21 3 37 Moment Tensor: (dyne-cm) Component Value Mxx -2.54e+21 Mxy -6.82e+21 Mxz -2.13e+21 Myy 1.21e+21 Myz 2.08e+21 Mzz 1.33e+21 ###----------- ######---------------- #########---------------- P ##########---------------- - ###########----------------------- ############------------------------ #############------------------------- ##############-------------------------- ##############-------------------------- #############---#######################--- ######----------########################## ##--------------########################## -----------------######################### ----------------######################## ----------------######################## ----------------############## ##### ----------------############# T #### ---------------############# ### --------------################ --------------############## ------------########## ----------#### Global CMT Convention Moment Tensor: R T P 1.33e+21 -2.13e+21 -2.08e+21 -2.13e+21 -2.54e+21 6.82e+21 -2.08e+21 6.82e+21 1.21e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20140509180900/index.html |
Moment magnitude derived from a moment tensor inversion of complete waveforms at regional distances (less than ~8 degrees), generally used for the analysis of small to moderate size earthquakes (typically Mw 3.5-6.0) crust or upper mantle earthquakes. Moment 8.15e+14 N-m Magnitude 3.9 Percent DC 96% Depth 20.0 km Updated 2014-05-09 18:23:54 UTC Author us Catalog us Contributor us Code us_b000qfvj_mwr Principal Axes Axis Value Plunge Azimuth T 8.211 21 129 N -0.131 69 316 P -8.080 2 220 Nodal Planes Plane Strike Dip Rake NP1 172 77 163 NP2 266 73 14 |
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

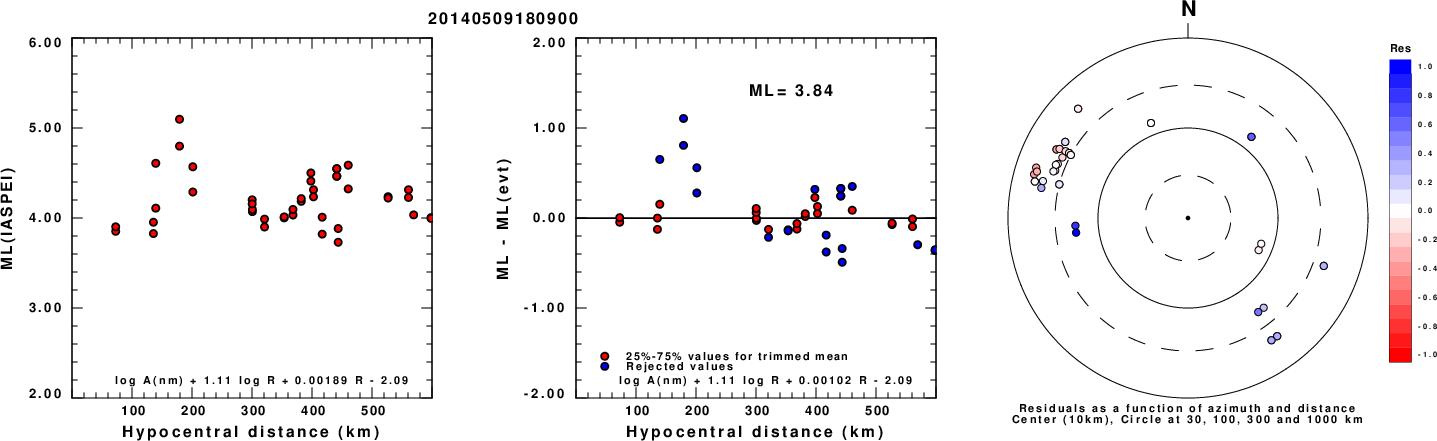

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

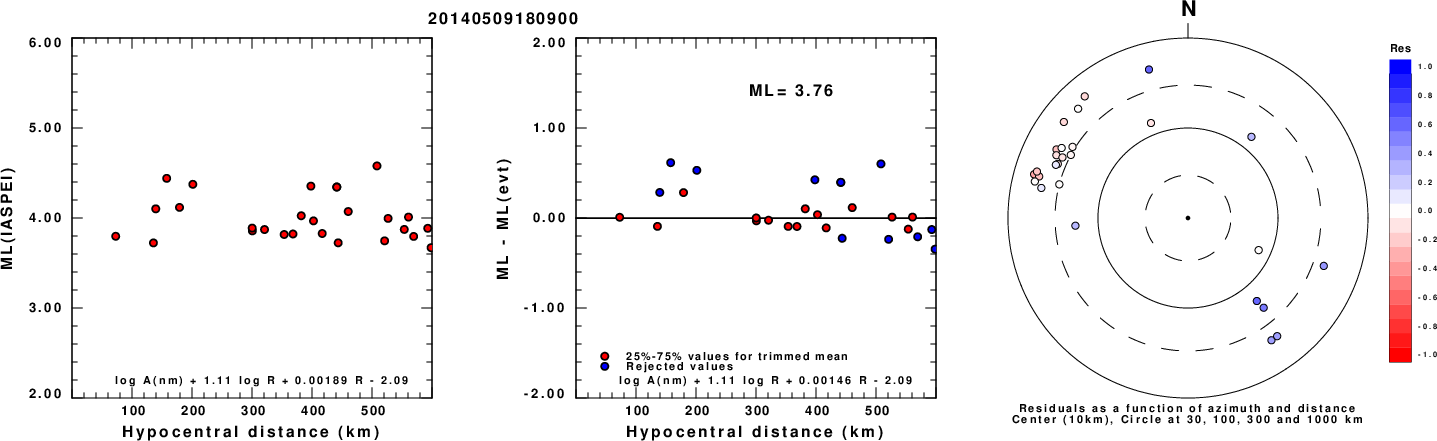

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |
The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut a -30 a 180 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 85 90 -5 3.41 0.2911 WVFGRD96 2.0 80 75 -20 3.52 0.3622 WVFGRD96 3.0 80 70 -20 3.58 0.3913 WVFGRD96 4.0 80 75 -25 3.62 0.3959 WVFGRD96 5.0 80 80 -25 3.64 0.3911 WVFGRD96 6.0 265 80 30 3.67 0.4074 WVFGRD96 7.0 265 65 15 3.69 0.4323 WVFGRD96 8.0 270 60 20 3.74 0.4597 WVFGRD96 9.0 270 60 20 3.76 0.4841 WVFGRD96 10.0 270 65 25 3.77 0.5056 WVFGRD96 11.0 270 65 25 3.79 0.5245 WVFGRD96 12.0 270 65 25 3.80 0.5398 WVFGRD96 13.0 265 70 20 3.82 0.5516 WVFGRD96 14.0 265 70 20 3.83 0.5617 WVFGRD96 15.0 265 70 20 3.83 0.5684 WVFGRD96 16.0 265 70 20 3.84 0.5726 WVFGRD96 17.0 265 70 20 3.85 0.5743 WVFGRD96 18.0 265 75 20 3.86 0.5743 WVFGRD96 19.0 265 75 20 3.87 0.5736 WVFGRD96 20.0 265 75 20 3.88 0.5712 WVFGRD96 21.0 265 75 25 3.88 0.5677 WVFGRD96 22.0 265 75 25 3.89 0.5631 WVFGRD96 23.0 265 75 25 3.90 0.5575 WVFGRD96 24.0 265 75 25 3.90 0.5510 WVFGRD96 25.0 265 75 25 3.91 0.5441 WVFGRD96 26.0 265 75 25 3.92 0.5367 WVFGRD96 27.0 265 75 25 3.92 0.5286 WVFGRD96 28.0 265 75 25 3.93 0.5201 WVFGRD96 29.0 265 75 25 3.94 0.5110
The best solution is
WVFGRD96 18.0 265 75 20 3.86 0.5743
The mechanism corresponding to the best fit is
![]() |
|

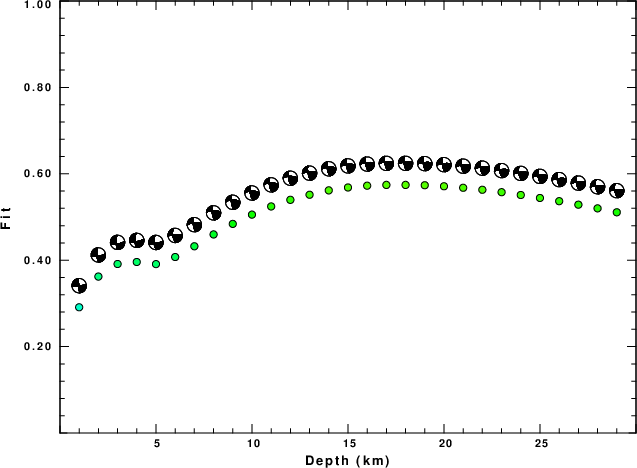

The best fit as a function of depth is given in the following figure:
![]() |
|

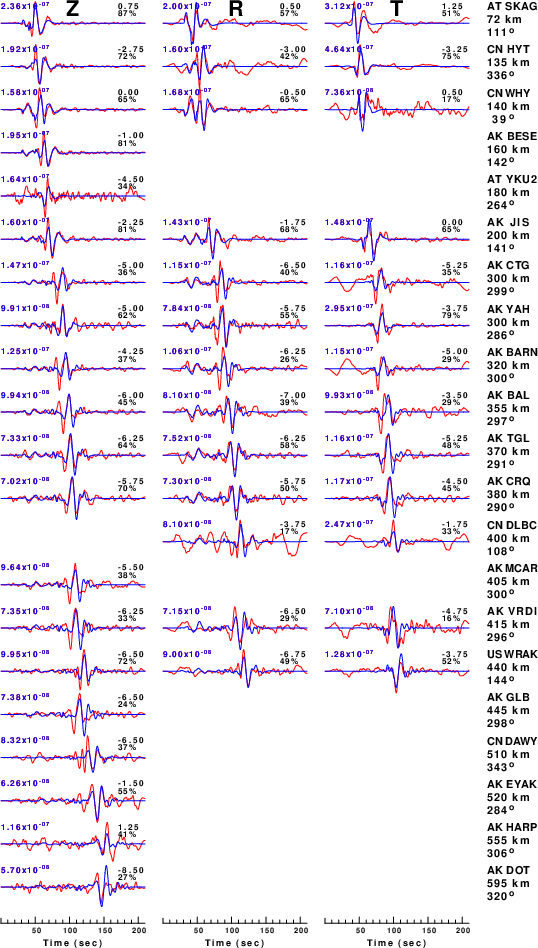

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut a -30 a 180 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

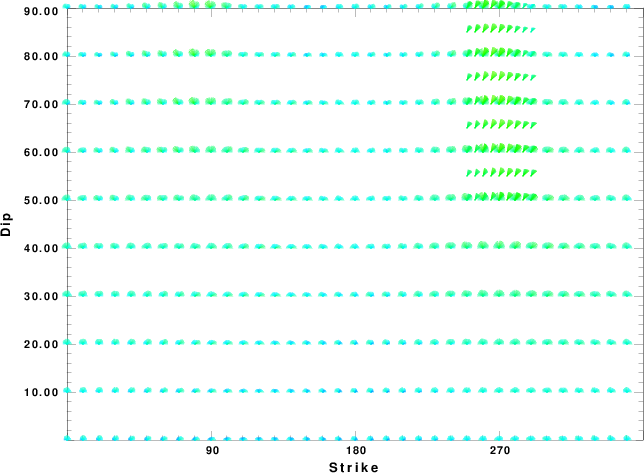

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

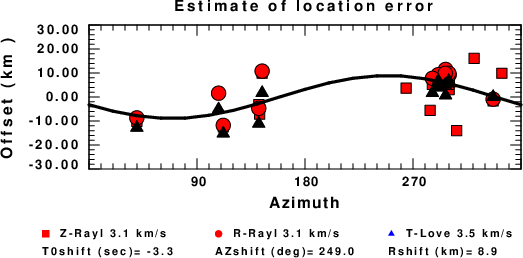

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
