The ANSS event ID is ak0145dpas9d and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak0145dpas9d/executive.
2014/04/27 12:46:55 63.815 -149.172 111.7 3.9 Alaska
USGS/SLU Moment Tensor Solution ENS 2014/04/27 12:46:55:0 63.81 -149.17 111.7 3.9 Alaska Stations used: AK.BPAW AK.CCB AK.HDA AK.KTH AK.MCK AK.NEA AK.PPD AK.RND AK.SAW AK.SCM AK.TRF AK.WRH AT.PMR IM.IL31 IU.COLA Filtering commands used: cut a -30 a 80 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.10e+22 dyne-cm Mw = 3.96 Z = 126 km Plane Strike Dip Rake NP1 306 54 110 NP2 95 40 65 Principal Axes: Axis Value Plunge Azimuth T 1.10e+22 72 268 N 0.00e+00 16 115 P -1.10e+22 7 23 Moment Tensor: (dyne-cm) Component Value Mxx -9.19e+21 Mxy -3.78e+21 Mxz -1.41e+21 Myy -5.92e+20 Myz -3.69e+21 Mzz 9.79e+21 ------------- ----------------- P -- -------------------- ----- ------------------------------ #############--------------------- ###################----------------- #######################--------------- ##########################-------------- ############################------------ ###############################----------- -############## ###############--------- -############## T ################-------- ---############ #################------# ---################################----# -----###############################-### ------############################-### ---------#####################-----# -------------##########----------- ------------------------------ ---------------------------- ---------------------- -------------- Global CMT Convention Moment Tensor: R T P 9.79e+21 -1.41e+21 3.69e+21 -1.41e+21 -9.19e+21 3.78e+21 3.69e+21 3.78e+21 -5.92e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20140427124655/index.html |
STK = 95 DIP = 40 RAKE = 65 MW = 3.96 HS = 126.0
The NDK file is 20140427124655.ndk The waveform inversion is preferred.
Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

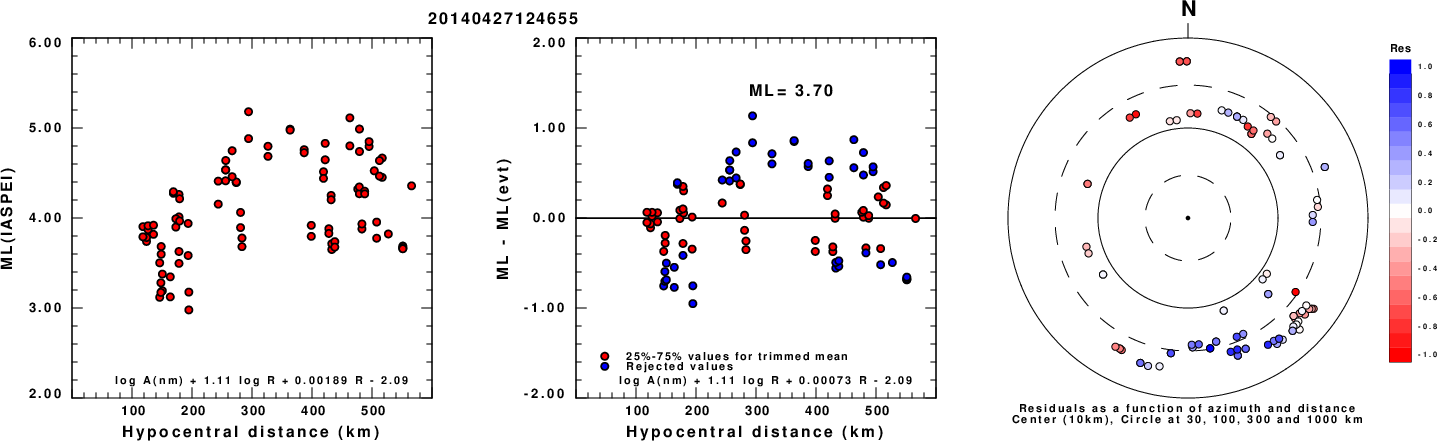

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.

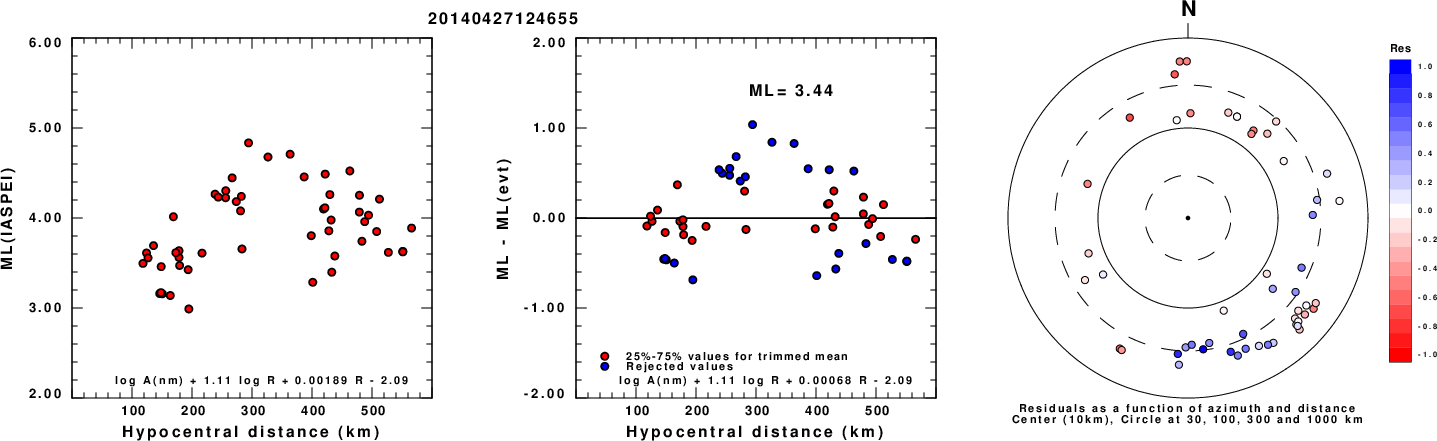

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Right: Residuals from new relation as a function of distance and azimuth.
![]() |

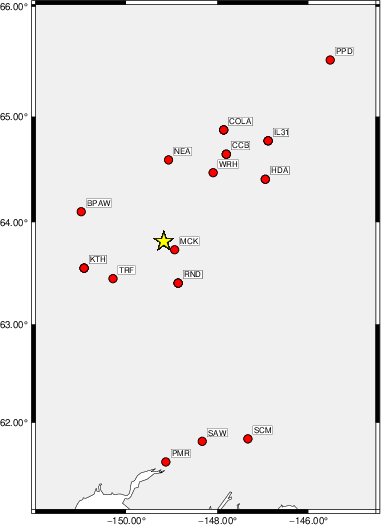

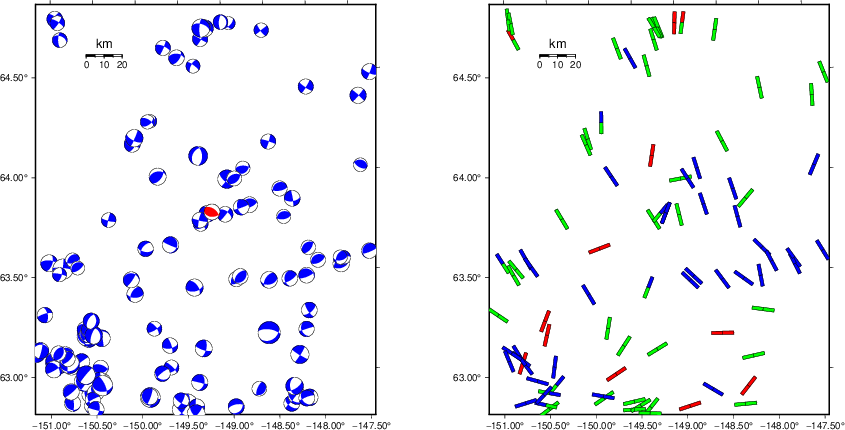

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut a -30 a 80 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3The results of this grid search are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 2.0 140 45 -85 3.25 0.4127 WVFGRD96 4.0 340 40 -55 3.32 0.3227 WVFGRD96 6.0 360 35 -20 3.30 0.3073 WVFGRD96 8.0 25 30 -30 3.35 0.3374 WVFGRD96 10.0 35 35 -15 3.35 0.3654 WVFGRD96 12.0 40 35 -10 3.36 0.3925 WVFGRD96 14.0 40 35 -10 3.38 0.4176 WVFGRD96 16.0 45 40 -5 3.40 0.4388 WVFGRD96 18.0 60 35 25 3.42 0.4577 WVFGRD96 20.0 65 30 30 3.43 0.4701 WVFGRD96 22.0 70 30 35 3.46 0.4816 WVFGRD96 24.0 70 30 35 3.48 0.4860 WVFGRD96 26.0 75 30 45 3.50 0.4902 WVFGRD96 28.0 75 30 45 3.51 0.4842 WVFGRD96 30.0 75 30 45 3.52 0.4779 WVFGRD96 32.0 75 30 45 3.53 0.4638 WVFGRD96 34.0 70 30 40 3.54 0.4501 WVFGRD96 36.0 30 40 -45 3.56 0.4335 WVFGRD96 38.0 35 45 -35 3.56 0.4235 WVFGRD96 40.0 30 40 -40 3.68 0.4166 WVFGRD96 42.0 30 40 -35 3.68 0.4086 WVFGRD96 44.0 30 40 -35 3.69 0.4039 WVFGRD96 46.0 35 45 -30 3.70 0.3978 WVFGRD96 48.0 45 30 0 3.69 0.3989 WVFGRD96 50.0 45 30 0 3.70 0.3984 WVFGRD96 52.0 45 30 0 3.71 0.3982 WVFGRD96 54.0 45 30 0 3.72 0.3988 WVFGRD96 56.0 45 30 0 3.73 0.3985 WVFGRD96 58.0 40 30 -5 3.74 0.3972 WVFGRD96 60.0 40 30 -5 3.75 0.3959 WVFGRD96 62.0 85 35 45 3.77 0.4018 WVFGRD96 64.0 90 35 50 3.78 0.4090 WVFGRD96 66.0 90 35 50 3.79 0.4148 WVFGRD96 68.0 90 35 50 3.79 0.4202 WVFGRD96 70.0 85 35 50 3.80 0.4302 WVFGRD96 72.0 85 35 50 3.81 0.4391 WVFGRD96 74.0 105 35 80 3.83 0.4549 WVFGRD96 76.0 295 55 95 3.84 0.4727 WVFGRD96 78.0 105 35 80 3.84 0.4905 WVFGRD96 80.0 105 35 80 3.85 0.5071 WVFGRD96 82.0 105 35 80 3.86 0.5228 WVFGRD96 84.0 105 35 80 3.87 0.5385 WVFGRD96 86.0 105 35 80 3.87 0.5527 WVFGRD96 88.0 105 35 80 3.88 0.5661 WVFGRD96 90.0 100 35 75 3.88 0.5789 WVFGRD96 92.0 100 35 75 3.89 0.5907 WVFGRD96 94.0 100 35 75 3.89 0.6011 WVFGRD96 96.0 100 35 75 3.90 0.6114 WVFGRD96 98.0 100 40 70 3.91 0.6204 WVFGRD96 100.0 100 40 70 3.92 0.6290 WVFGRD96 102.0 100 40 70 3.92 0.6371 WVFGRD96 104.0 100 40 70 3.92 0.6444 WVFGRD96 106.0 100 40 70 3.93 0.6503 WVFGRD96 108.0 100 40 70 3.93 0.6556 WVFGRD96 110.0 100 40 70 3.94 0.6601 WVFGRD96 112.0 100 40 70 3.94 0.6645 WVFGRD96 114.0 95 40 65 3.94 0.6677 WVFGRD96 116.0 95 40 65 3.95 0.6708 WVFGRD96 118.0 95 40 65 3.95 0.6725 WVFGRD96 120.0 95 40 65 3.95 0.6746 WVFGRD96 122.0 95 40 65 3.96 0.6754 WVFGRD96 124.0 95 40 65 3.96 0.6763 WVFGRD96 126.0 95 40 65 3.96 0.6766 WVFGRD96 128.0 95 40 65 3.97 0.6765 WVFGRD96 130.0 95 40 65 3.97 0.6755 WVFGRD96 132.0 95 40 65 3.97 0.6751 WVFGRD96 134.0 95 40 65 3.98 0.6742 WVFGRD96 136.0 95 40 65 3.98 0.6726 WVFGRD96 138.0 95 40 65 3.98 0.6711
The best solution is
WVFGRD96 126.0 95 40 65 3.96 0.6766
The mechanism corresponding to the best fit is
![]() |
|

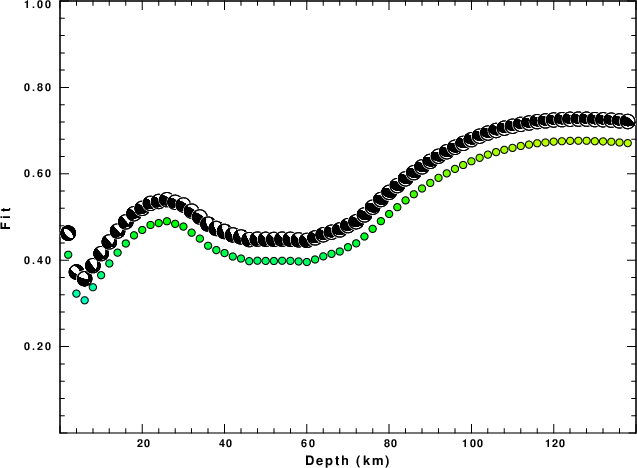

The best fit as a function of depth is given in the following figure:
![]() |
|

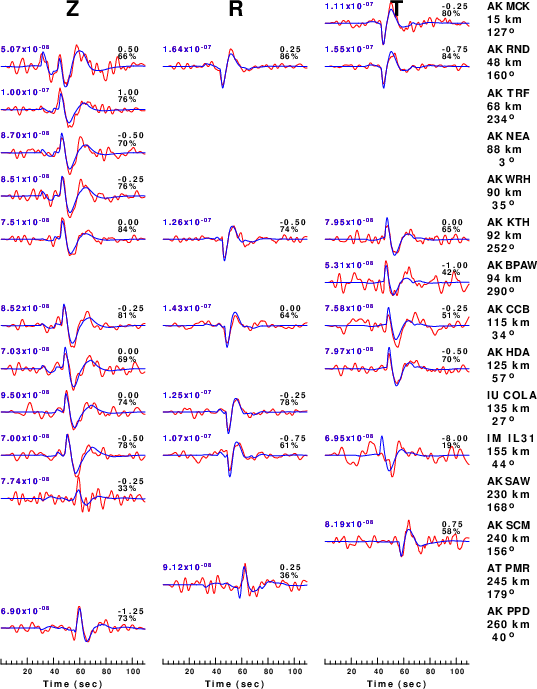

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut a -30 a 80 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3
![]() |
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample. |
![]() |

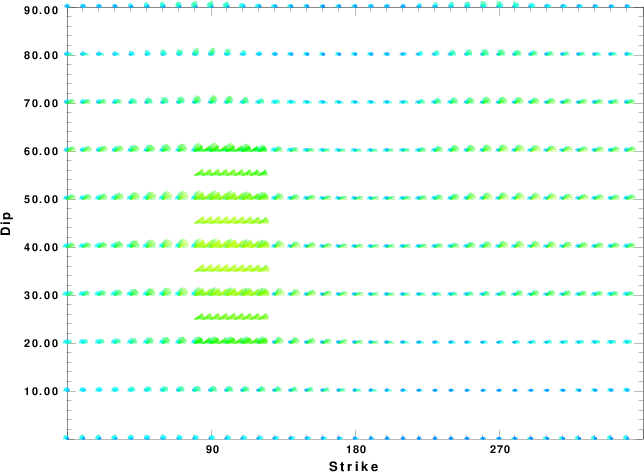

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

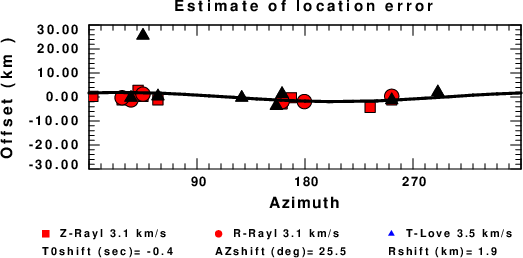

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
