Location

Location ANSS

The ANSS event ID is usc000pe6v and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/usc000pe6v/executive.

2014/04/10 12:21:34 44.591 -114.321 7.2 4 Idaho

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2014/04/10 12:21:34:0  44.59 -114.32   7.2 4.0 Idaho

 Stations used:
   IW.DLMT IW.FLWY IW.FXWY IW.IMW IW.MFID IW.REDW IW.SNOW
   IW.TPAW MB.JTMT TA.H17A US.AHID US.BMO US.BW06 US.DUG
   US.EGMT US.ELK US.HAWA US.LKWY US.MSO US.NEW US.RLMT
   US.WVOR UU.BGU UU.CTU UU.HVU UU.JLU UU.MPU UU.RDMU UU.SPU
   UU.TCU WY.YHB WY.YHH WY.YHL WY.YMP WY.YMR WY.YNM WY.YNR
   WY.YPP WY.YUF

 Filtering commands used:
   cut a -30 a 180
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 9.89e+21 dyne-cm
  Mw = 3.93
  Z  = 11 km
  Plane   Strike  Dip  Rake
   NP1      355    85   -40
   NP2       89    50   -173
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   9.89e+21     23      49
    N   0.00e+00     50     169
    P  -9.89e+21     31     304

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.32e+21
       Mxy     7.53e+21
       Mxz    -1.12e+20
       Myy    -2.15e+20
       Myz     6.29e+21
       Mzz    -1.10e+21




                     ------########
                 ----------############
              -------------###############
             ---------------###############
           -----------------###########   ###
          ----   -----------########### T ####
         ----- P -----------###########   #####
        ------   ------------###################
        ---------------------###################
       ----------------------####################
       ----------------------####################
       #---------------------###################-
       ##---------------------################---
        ###-------------------##############----
        ######----------------############------
         #########------------########---------
          ####################----------------
           ###################---------------
             #################-------------
              ################------------
                 #############---------
                     #########-----



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.10e+21  -1.12e+20  -6.29e+21
 -1.12e+20   1.32e+21  -7.53e+21
 -6.29e+21  -7.53e+21  -2.15e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20140410122134/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 355
      DIP = 85
     RAKE = -40
       MW = 3.93
       HS = 11.0

The NDK file is 20140410122134.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMT
 USGS/SLU Moment Tensor Solution
 ENS  2014/04/10 12:21:34:0  44.59 -114.32   7.2 4.0 Idaho

 Stations used:
   IW.DLMT IW.FLWY IW.FXWY IW.IMW IW.MFID IW.REDW IW.SNOW
   IW.TPAW MB.JTMT TA.H17A US.AHID US.BMO US.BW06 US.DUG
   US.EGMT US.ELK US.HAWA US.LKWY US.MSO US.NEW US.RLMT
   US.WVOR UU.BGU UU.CTU UU.HVU UU.JLU UU.MPU UU.RDMU UU.SPU
   UU.TCU WY.YHB WY.YHH WY.YHL WY.YMP WY.YMR WY.YNM WY.YNR
   WY.YPP WY.YUF

 Filtering commands used:
   cut a -30 a 180
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 9.89e+21 dyne-cm
  Mw = 3.93
  Z  = 11 km
  Plane   Strike  Dip  Rake
   NP1      355    85   -40
   NP2       89    50   -173
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   9.89e+21     23      49
    N   0.00e+00     50     169
    P  -9.89e+21     31     304

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.32e+21
       Mxy     7.53e+21
       Mxz    -1.12e+20
       Myy    -2.15e+20
       Myz     6.29e+21
       Mzz    -1.10e+21




                     ------########
                 ----------############
              -------------###############
             ---------------###############
           -----------------###########   ###
          ----   -----------########### T ####
         ----- P -----------###########   #####
        ------   ------------###################
        ---------------------###################
       ----------------------####################
       ----------------------####################
       #---------------------###################-
       ##---------------------################---
        ###-------------------##############----
        ######----------------############------
         #########------------########---------
          ####################----------------
           ###################---------------
             #################-------------
              ################------------
                 #############---------
                     #########-----



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.10e+21  -1.12e+20  -6.29e+21
 -1.12e+20   1.32e+21  -7.53e+21
 -6.29e+21  -7.53e+21  -2.15e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20140410122134/index.html

Regional Moment Tensor (Mwr)

Moment magnitude derived from a moment tensor inversion
of complete waveforms at regional distances
(less than ~8 degrees), generally used for the
analysis of small to moderate size earthquakes
(typically Mw 3.5-6.0) crust or upper mantle earthquakes.

Moment
1.28e+15 N-m
Magnitude
4.0
Percent DC
86%
Depth
8.0 km
Updated
2014-04-10 16:21:43 UTC
Author
us
Catalog
us
Contributor
us
Code
us_c000pe6v_mwr
Principal Axes

Axis	Value	Plunge	Azimuth
T	1.232	9	227
N	0.083	26	321
P	-1.315	62	120
Nodal Planes

Plane	Strike	Dip	Rake
NP1	158	59	-59
NP2	289	43	-131



Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

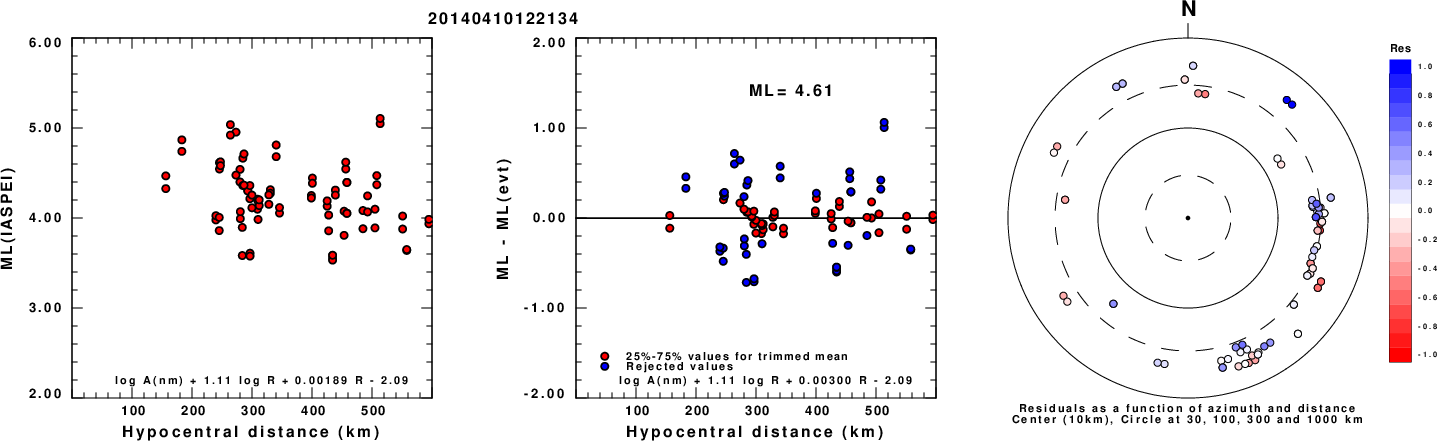

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

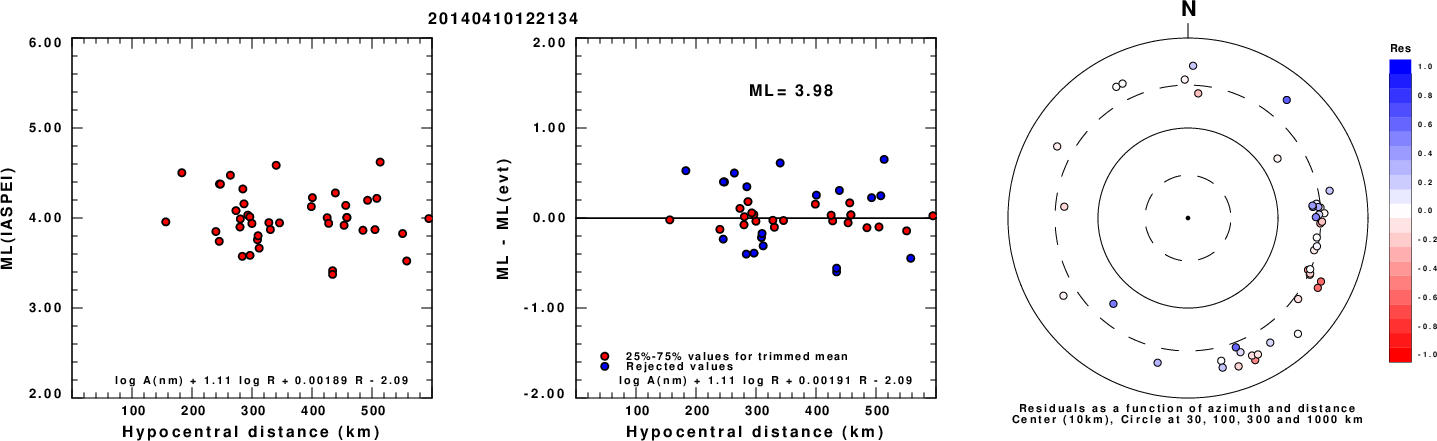

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

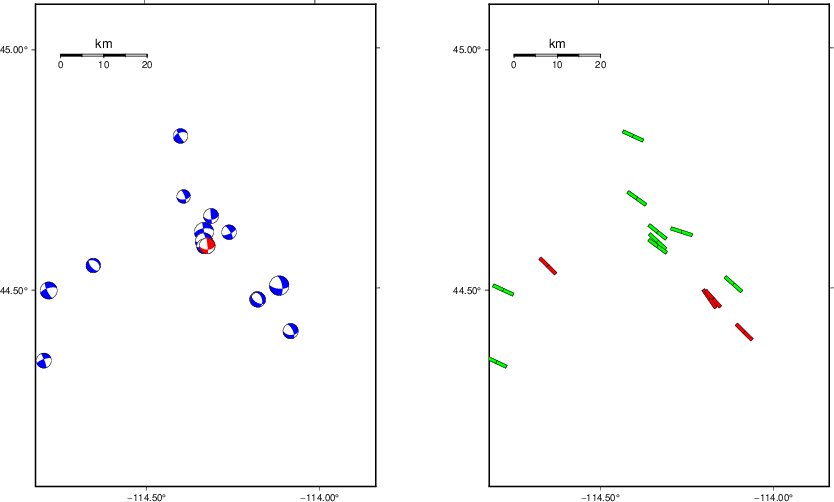

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

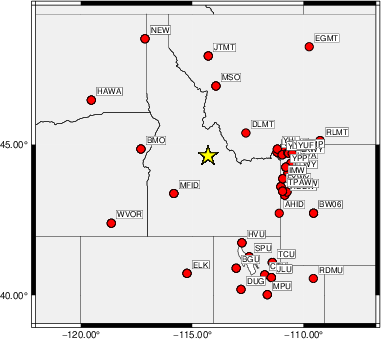

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut a -30 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   150    50   -80   3.72 0.3037
WVFGRD96    2.0   155    55   -75   3.81 0.3519
WVFGRD96    3.0   165    60   -60   3.85 0.3651
WVFGRD96    4.0    -5    85   -55   3.87 0.3875
WVFGRD96    5.0   180    90    50   3.86 0.4156
WVFGRD96    6.0   180    90    45   3.86 0.4364
WVFGRD96    7.0   180    90    45   3.87 0.4513
WVFGRD96    8.0    -5    85   -50   3.92 0.4630
WVFGRD96    9.0   355    85   -45   3.92 0.4720
WVFGRD96   10.0   350    75   -45   3.93 0.4773
WVFGRD96   11.0   355    85   -40   3.93 0.4799
WVFGRD96   12.0   355    85   -40   3.93 0.4795
WVFGRD96   13.0   185    75    40   3.95 0.4770
WVFGRD96   14.0   185    75    40   3.95 0.4740
WVFGRD96   15.0   180    80    35   3.96 0.4695
WVFGRD96   16.0    -5    85   -35   3.96 0.4638
WVFGRD96   17.0   180    80    35   3.97 0.4585
WVFGRD96   18.0   180    80    35   3.97 0.4518
WVFGRD96   19.0   180    80    30   3.98 0.4451
WVFGRD96   20.0   180    80    30   3.99 0.4382
WVFGRD96   21.0   180    80    30   4.00 0.4308
WVFGRD96   22.0   180    80    30   4.00 0.4231
WVFGRD96   23.0   180    80    30   4.01 0.4149
WVFGRD96   24.0   180    80    30   4.01 0.4062
WVFGRD96   25.0   180    80    30   4.02 0.3972
WVFGRD96   26.0   180    80    30   4.02 0.3879
WVFGRD96   27.0   180    80    30   4.03 0.3783
WVFGRD96   28.0   180    80    30   4.04 0.3683
WVFGRD96   29.0   180    80    25   4.04 0.3583

The best solution is

WVFGRD96   11.0   355    85   -40   3.93 0.4799

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

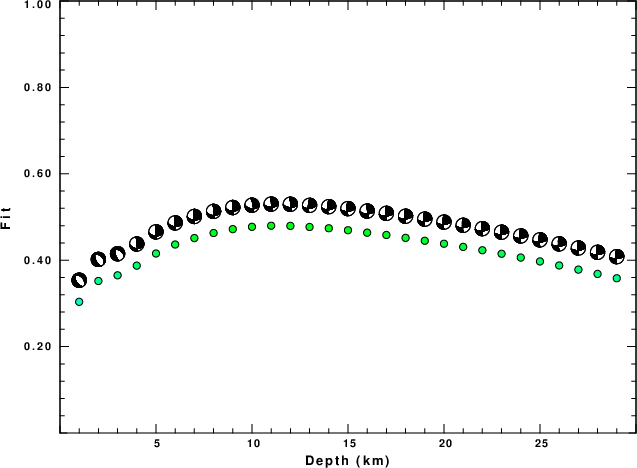

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

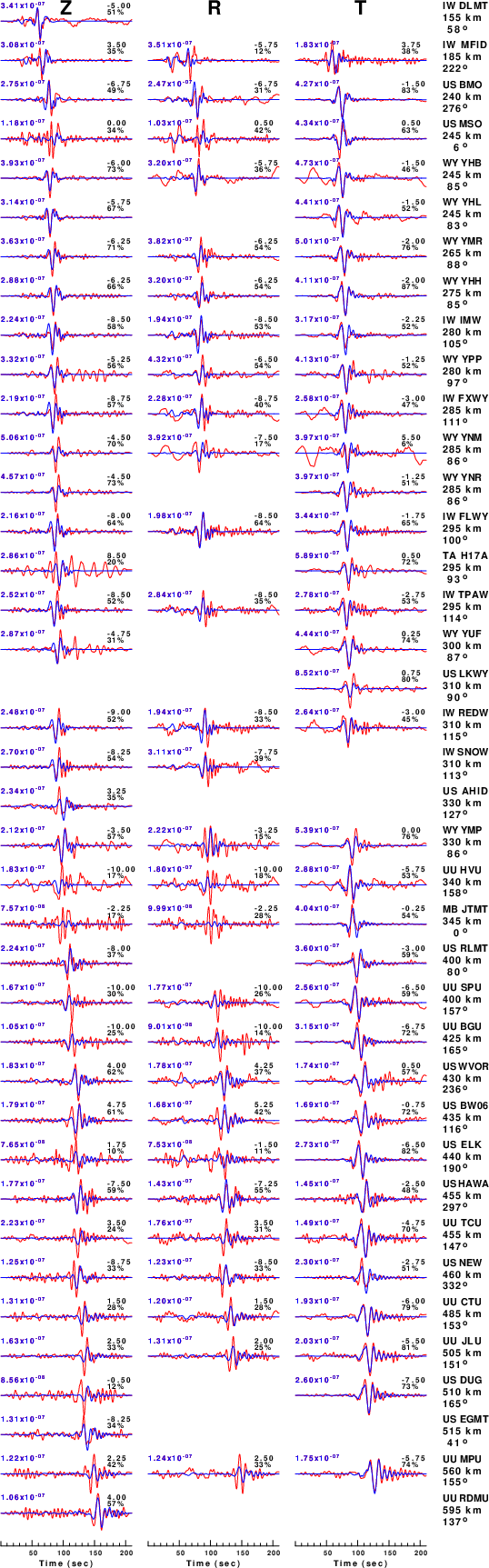

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut a -30 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

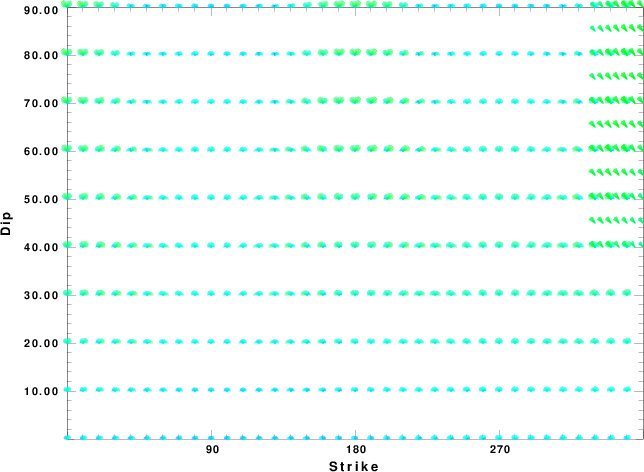

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

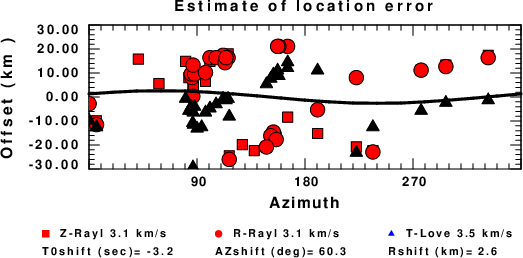

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
