Location

Location ANSS

The ANSS event ID is nn00432876 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00432876/executive.

2014/01/02 12:04:50 39.057 -118.108 6.4 3.9 Nevada

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2014/01/02 12:04:50:0 39.06 -118.11 6.4 3.9 Nevada Stations used: BK.CMB CI.CWC CI.GRA CI.MLAC CI.MPM CI.SHO CI.SLA CI.TIN CI.TUQ IM.NV31 LB.DAC NN.BEK NN.OMMB NN.PNT NN.RUB NN.RYN NN.SHP NN.VCN NN.WAK NN.YER TA.O03E TA.R11A US.DUG US.ELK US.TPNV US.WVOR UU.PSUT Filtering commands used: cut a -30 a 180 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.88e+21 dyne-cm Mw = 3.45 Z = 10 km Plane Strike Dip Rake NP1 80 80 45 NP2 340 46 166 Principal Axes: Axis Value Plunge Azimuth T 1.88e+21 38 311 N 0.00e+00 44 90 P -1.88e+21 22 203 Moment Tensor: (dyne-cm) Component Value Mxx -8.90e+20 Mxy -1.15e+21 Mxz 1.19e+21 Myy 4.35e+20 Myz -4.45e+20 Mzz 4.56e+20 #------------- ##########------------ ################------------ ###################----------- #######################----------- ####### ###############----------- ######## T ################----------- ######### #################----------- ##############################---------- ################################--------## ################################---####### #############################----######### ####################-------------######### --------------------------------######## --------------------------------######## -------------------------------####### ------------------------------###### ----------------------------###### ------- ----------------#### ------ P ---------------#### --- --------------## -------------- Global CMT Convention Moment Tensor: R T P 4.56e+20 1.19e+21 4.45e+20 1.19e+21 -8.90e+20 1.15e+21 4.45e+20 1.15e+21 4.35e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20140102120450/index.html

Preferred Solution

      STK = 80
      DIP = 80
     RAKE = 45
       MW = 3.45
       HS = 10.0

The NDK file is 20140102120450.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU	UNR
USGS/SLU Moment Tensor Solution ENS 2014/01/02 12:04:50:0 39.06 -118.11 6.4 3.9 Nevada Stations used: BK.CMB CI.CWC CI.GRA CI.MLAC CI.MPM CI.SHO CI.SLA CI.TIN CI.TUQ IM.NV31 LB.DAC NN.BEK NN.OMMB NN.PNT NN.RUB NN.RYN NN.SHP NN.VCN NN.WAK NN.YER TA.O03E TA.R11A US.DUG US.ELK US.TPNV US.WVOR UU.PSUT Filtering commands used: cut a -30 a 180 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.88e+21 dyne-cm Mw = 3.45 Z = 10 km Plane Strike Dip Rake NP1 80 80 45 NP2 340 46 166 Principal Axes: Axis Value Plunge Azimuth T 1.88e+21 38 311 N 0.00e+00 44 90 P -1.88e+21 22 203 Moment Tensor: (dyne-cm) Component Value Mxx -8.90e+20 Mxy -1.15e+21 Mxz 1.19e+21 Myy 4.35e+20 Myz -4.45e+20 Mzz 4.56e+20 #------------- ##########------------ ################------------ ###################----------- #######################----------- ####### ###############----------- ######## T ################----------- ######### #################----------- ##############################---------- ################################--------## ################################---####### #############################----######### ####################-------------######### --------------------------------######## --------------------------------######## -------------------------------####### ------------------------------###### ----------------------------###### ------- ----------------#### ------ P ---------------#### --- --------------## -------------- Global CMT Convention Moment Tensor: R T P 4.56e+20 1.19e+21 4.45e+20 1.19e+21 -8.90e+20 1.15e+21 4.45e+20 1.15e+21 4.35e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20140102120450/index.html	REVIEWED BY NSL STAFF Event ID:432876 Origin ID:1074894 Algorithm: Ichinose (2003) Long Period, Regional-Distance Waves Seismic Moment Tensor Solution 2014/01/02 (002) 12:04:52.00 39.0570 -118.1082 1074894 Depth = 8.0 (km) Mw = 3.44 Mo = 1.78x10^21 (dyne x cm) Percent Double Couple = 99 % Percent CLVD = 1 % no ISO calculated Epsilon=-0.00 Percent Variance Reduction = 58.44 % Total Fit = 31.02 Major Double Couple strike dip rake Nodal Plane 1: 346 43 -173 Nodal Plane 2: 251 85 -47 DEVIATORIC MOMENT TENSOR Moment Tensor Elements: Spherical Coordinates Mrr= -0.23 Mtt= -0.55 Mff= 0.77 Mrt= 1.25 Mrf= 0.33 Mtf= 1.02 EXP=21 Moment Tensor Elements: Cartesian Coordinates -0.55 -1.02 1.25 -1.02 0.77 -0.33 1.25 -0.33 -0.23 Eigenvalues: T-axis eigenvalue= 1.79 N-axis eigenvalue= -0.01 P-axis eigenvalue= -1.78 Eigenvalues and eigenvectors of the Major Double Couple: T-axis ev= 1.79 trend=308 plunge=27 N-axis ev= 0.00 trend=66 plunge=43 P-axis ev=-1.79 trend=197 plunge=35 Maximum Azmuithal Gap=240 Distance to Nearest Station= 59.3 (km) Number of Stations (D=Displacement/V=Velocity) Used=9 (defining only) RYN.NN.D NV31.IM.D YER.NN.D PNT.NN.D WAK.NN.D PAH.NN.D VCN.NN.D RUB.NN.D OMMB.NN.D #######---------- ###############---------- ###################---------- #######################---------- #######################---------- T ########################---------- -# #########################----------- ###############################---------- #################################--######## ########################################### #############################----########### #######################----------########### ##################----------------########## #############---------------------########## ########--------------------------######### ####------------------------------######### --------------------------------######### -------------------------------######### ------------------------------######### ----------------------------######## --------- --------------####### ------- P ------------####### ----- -----------###### -------------##### All Stations defining and nondefining: Station.Net Def Distance Azi Bazi lo-f hi-f vmodel (km) (deg) (deg) (Hz) (Hz) RYN.NN (D) Y 59.3 217 37 0.020 0.080 RYN.NN.wus.glib NV31.IM (D) Y 69.8 184 4 0.020 0.080 NV31.IM.wus.glib YER.NN (D) Y 98.0 266 85 0.020 0.080 YER.NN.wus.glib PNT.NN (D) Y 128.7 272 91 0.020 0.080 PNT.NN.wus.glib WAK.NN (D) Y 130.9 242 61 0.020 0.080 WAK.NN.wus.glib PAH.NN (D) Y 131.8 304 123 0.020 0.080 PAH.NN.wus.glib VCN.NN (D) Y 135.5 282 101 0.020 0.080 VCN.NN.wus.glib RUB.NN (D) Y 176.2 270 89 0.020 0.080 RUB.NN.wus.glib OMMB.NN (D) Y 178.6 206 26 0.020 0.080 OMMB.NN.wus.glib (V)-velocity (D)-Displacement Author: www-data Date: 2014/01/02 13:23:51 mtinv Version 2.1_DEVEL OCT2008

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

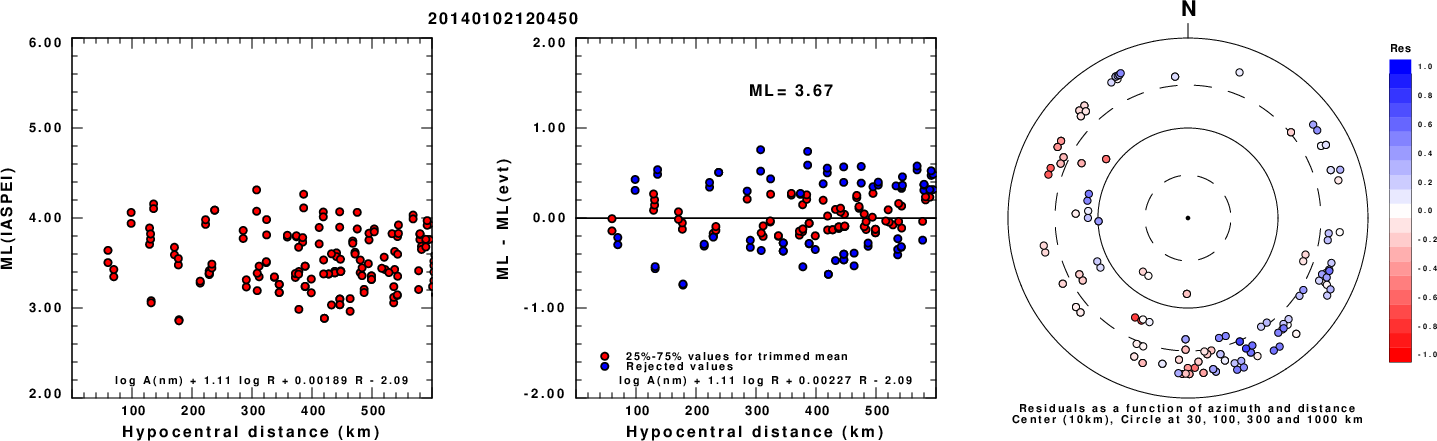

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

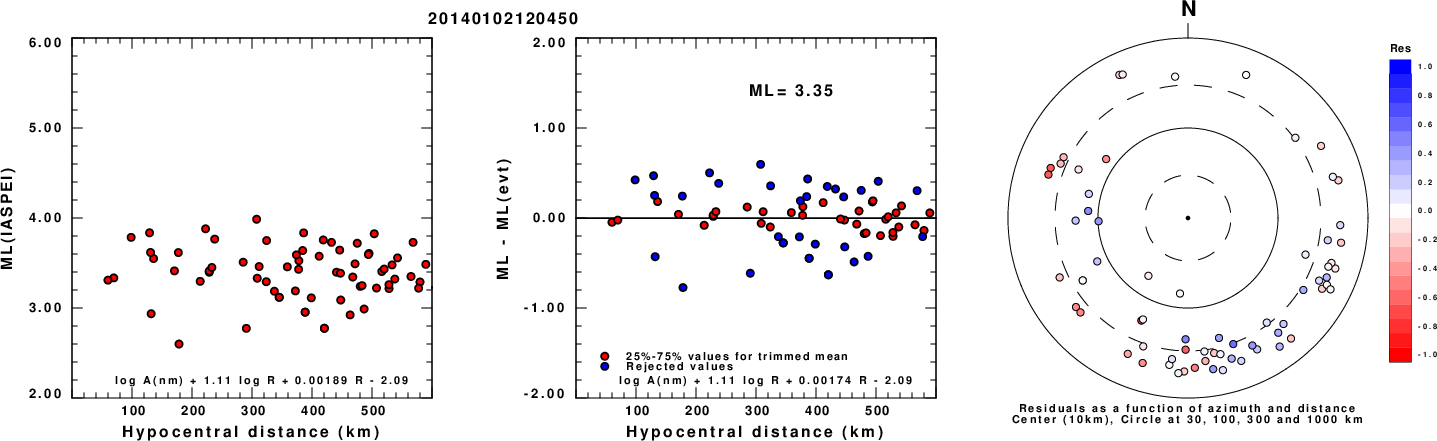

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

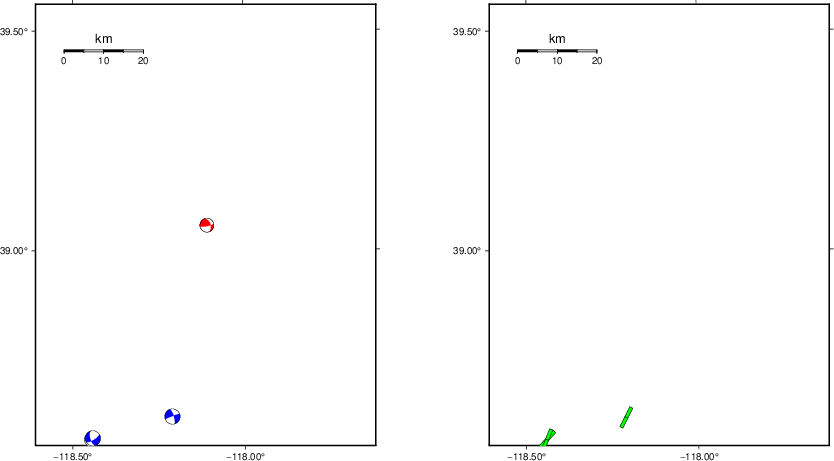

Waveform Inversion using wvfgrd96

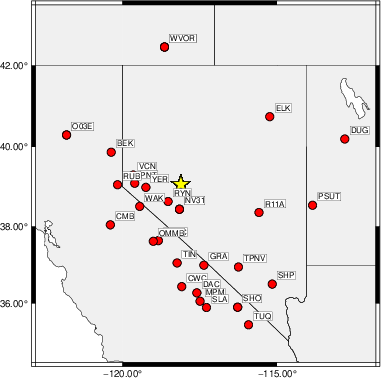

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut a -30 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   250    70    15   3.09 0.2530
WVFGRD96    1.0    65    90     5   3.12 0.2705
WVFGRD96    2.0    70    80    10   3.20 0.3360
WVFGRD96    3.0   250    90   -20   3.25 0.3509
WVFGRD96    4.0   250    85   -45   3.33 0.3729
WVFGRD96    5.0   250    85   -45   3.35 0.3953
WVFGRD96    6.0   250    85   -40   3.36 0.4139
WVFGRD96    7.0   250    85   -40   3.38 0.4271
WVFGRD96    8.0    75    85    45   3.43 0.4377
WVFGRD96    9.0    75    85    45   3.44 0.4444
WVFGRD96   10.0    80    80    45   3.45 0.4480
WVFGRD96   11.0    75    85    40   3.45 0.4472
WVFGRD96   12.0    80    80    40   3.45 0.4460
WVFGRD96   13.0    80    80    40   3.46 0.4407
WVFGRD96   14.0    75    85    35   3.47 0.4364
WVFGRD96   15.0    75    85    35   3.48 0.4310
WVFGRD96   16.0    75    85    35   3.48 0.4243
WVFGRD96   17.0   255    90   -35   3.48 0.4167
WVFGRD96   18.0   255    90   -35   3.49 0.4099
WVFGRD96   19.0   255    90   -35   3.49 0.4028
WVFGRD96   20.0   255    90   -30   3.50 0.3956
WVFGRD96   21.0   255    90   -35   3.51 0.3879
WVFGRD96   22.0   255    90   -35   3.51 0.3800
WVFGRD96   23.0   255    90   -30   3.52 0.3721
WVFGRD96   24.0   255    90   -30   3.52 0.3645
WVFGRD96   25.0   255    90   -30   3.52 0.3569
WVFGRD96   26.0   250    85   -30   3.54 0.3493
WVFGRD96   27.0   250    85   -30   3.55 0.3417
WVFGRD96   28.0   250    80   -30   3.55 0.3337
WVFGRD96   29.0   250    80   -30   3.55 0.3262

The best solution is

WVFGRD96   10.0    80    80    45   3.45 0.4480

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

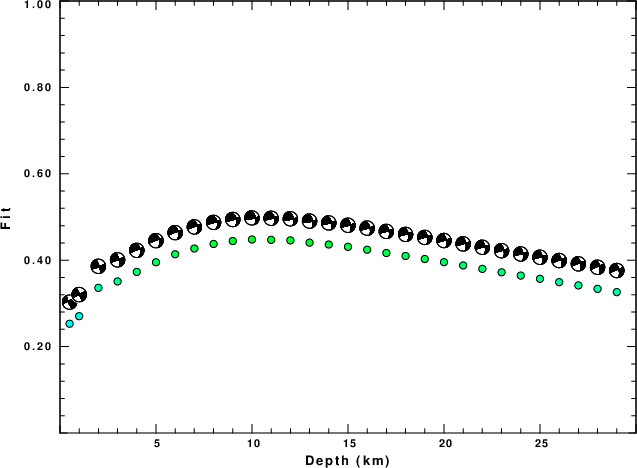

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

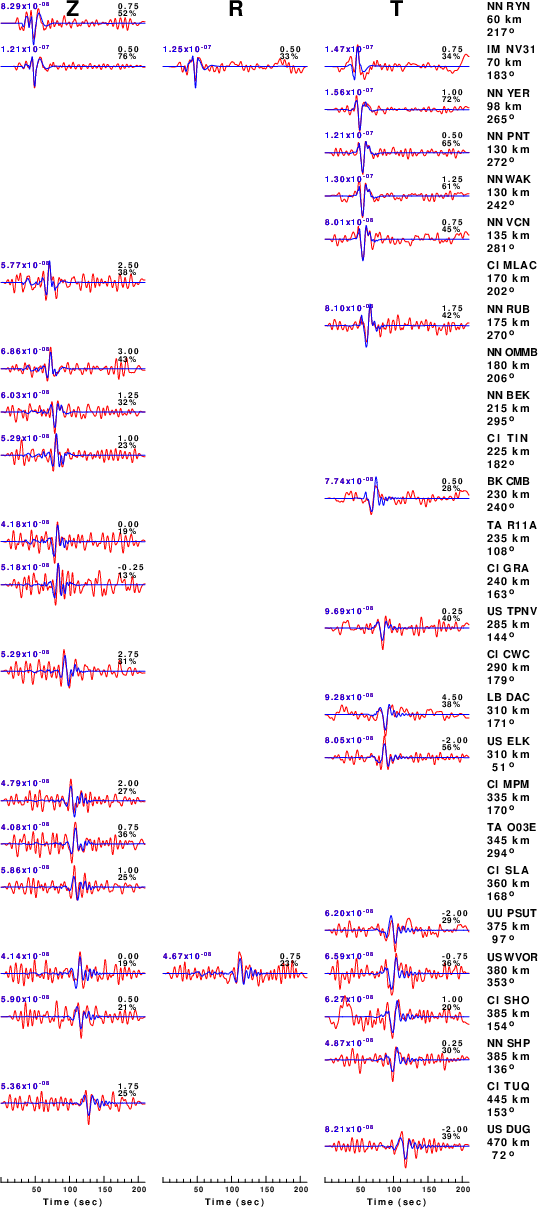

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut a -30 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

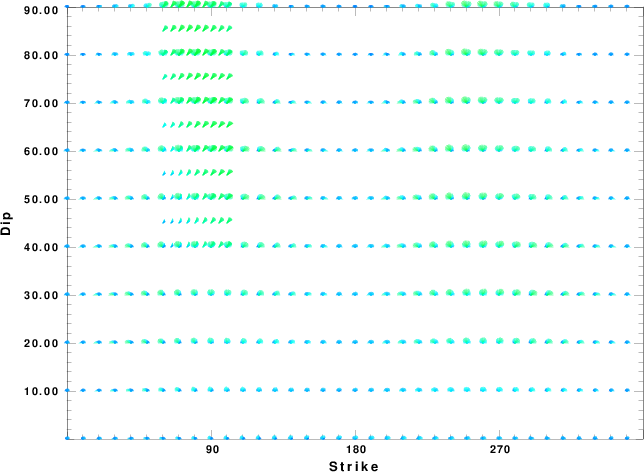

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

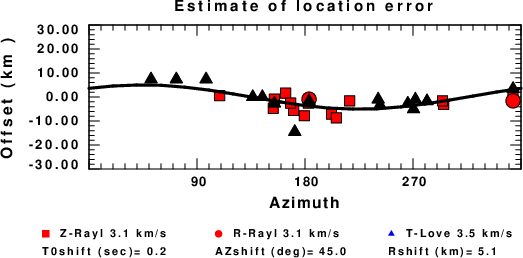

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
