2013/12/24 20:56:47 60.257 -141.671 10.8 3.9 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2013/12/24 20:56:47:0  60.26 -141.67  10.8 3.9 Alaska

 Stations used:
   AK.BAL AK.BARN AK.BGLC AK.BRLK AK.CCB AK.CRQ AK.CTG AK.DHY
   AK.DOT AK.EYAK AK.FID AK.GHO AK.GLB AK.GLI AK.GOAT AK.GRIN
   AK.GRNC AK.HIN AK.KHIT AK.KIAG AK.KTH AK.MCAR AK.PAX AK.PPD
   AK.PTPK AK.PWL AK.RIDG AK.RKAV AK.RND AK.SAMH AK.SCM
   AK.SCRK AK.SGA AK.SKN AK.SSP AK.SWD AK.TGL AK.VRDI AK.WAT6
   AK.WAX AT.MENT AT.PMR IM.IL31 IU.COLA TA.HDA TA.POKR
   US.EGAK

 Filtering commands used:
   cut a -30 a 180
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 1.40e+22 dyne-cm
  Mw = 4.03
  Z  = 11 km
  Plane   Strike  Dip  Rake
   NP1      103    71   107
   NP2      240    25    50
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.40e+22     60      37
    N   0.00e+00     16     277
    P  -1.40e+22     24     180

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -9.43e+21
       Mxy     1.65e+21
       Mxz     1.00e+22
       Myy     1.24e+21
       Myz     3.61e+21
       Mzz     8.19e+21




                     --------------
                 ----------------------
              -----------############-----
             -------######################-
           -------##########################-
          ------##############################
         -----#################   #############
        -----################## T ##############
        ---####################   ##############
       ###-######################################
       ###--#####################################
       ###------#################################
       ##-----------#############################
        #------------------#####################
        #---------------------------------------
         #-------------------------------------
          ------------------------------------
           ----------------------------------
             --------------   -------------
              ------------- P ------------
                 ----------   ---------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  8.19e+21   1.00e+22  -3.61e+21
  1.00e+22  -9.43e+21  -1.65e+21
 -3.61e+21  -1.65e+21   1.24e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20131224205647/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 240
      DIP = 25
     RAKE = 50
       MW = 4.03
       HS = 11.0

The NDK file is 20131224205647.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.
SLU
USGSMT
 USGS/SLU Moment Tensor Solution
 ENS  2013/12/24 20:56:47:0  60.26 -141.67  10.8 3.9 Alaska

 Stations used:
   AK.BAL AK.BARN AK.BGLC AK.BRLK AK.CCB AK.CRQ AK.CTG AK.DHY
   AK.DOT AK.EYAK AK.FID AK.GHO AK.GLB AK.GLI AK.GOAT AK.GRIN
   AK.GRNC AK.HIN AK.KHIT AK.KIAG AK.KTH AK.MCAR AK.PAX AK.PPD
   AK.PTPK AK.PWL AK.RIDG AK.RKAV AK.RND AK.SAMH AK.SCM
   AK.SCRK AK.SGA AK.SKN AK.SSP AK.SWD AK.TGL AK.VRDI AK.WAT6
   AK.WAX AT.MENT AT.PMR IM.IL31 IU.COLA TA.HDA TA.POKR
   US.EGAK

 Filtering commands used:
   cut a -30 a 180
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 1.40e+22 dyne-cm
  Mw = 4.03
  Z  = 11 km
  Plane   Strike  Dip  Rake
   NP1      103    71   107
   NP2      240    25    50
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.40e+22     60      37
    N   0.00e+00     16     277
    P  -1.40e+22     24     180

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -9.43e+21
       Mxy     1.65e+21
       Mxz     1.00e+22
       Myy     1.24e+21
       Myz     3.61e+21
       Mzz     8.19e+21




                     --------------
                 ----------------------
              -----------############-----
             -------######################-
           -------##########################-
          ------##############################
         -----#################   #############
        -----################## T ##############
        ---####################   ##############
       ###-######################################
       ###--#####################################
       ###------#################################
       ##-----------#############################
        #------------------#####################
        #---------------------------------------
         #-------------------------------------
          ------------------------------------
           ----------------------------------
             --------------   -------------
              ------------- P ------------
                 ----------   ---------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  8.19e+21   1.00e+22  -3.61e+21
  1.00e+22  -9.43e+21  -1.65e+21
 -3.61e+21  -1.65e+21   1.24e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20131224205647/index.html

Moment
    1.13e+15 N-m
Magnitude
    4.0
Percent DC
    94%
Depth
    10.0 km
Updated
    2013-12-24 21:29:47 UTC
Author
    us
Catalog
    ak
Contributor
    us
Code
    us_c000lr2t_mwr

Principal Axes
Axis	Value	Plunge	Azimuth
T	1.112	64	12
N	0.032	5	273
P	-1.144	25	180
Nodal Planes
Plane	Strike	Dip	Rake
NP1	94	70	95
NP2	260	20	77





Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

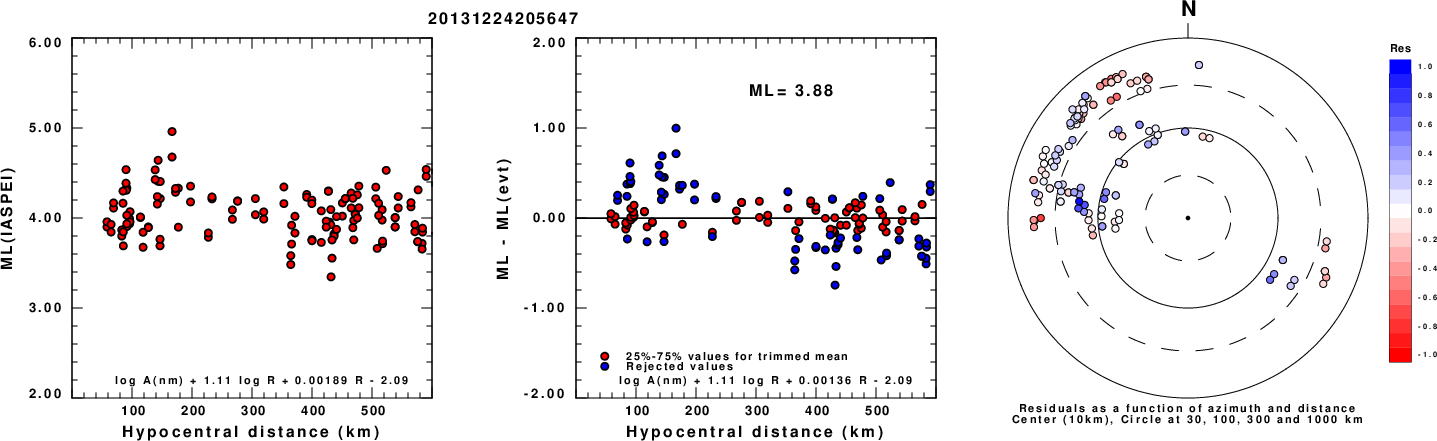

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

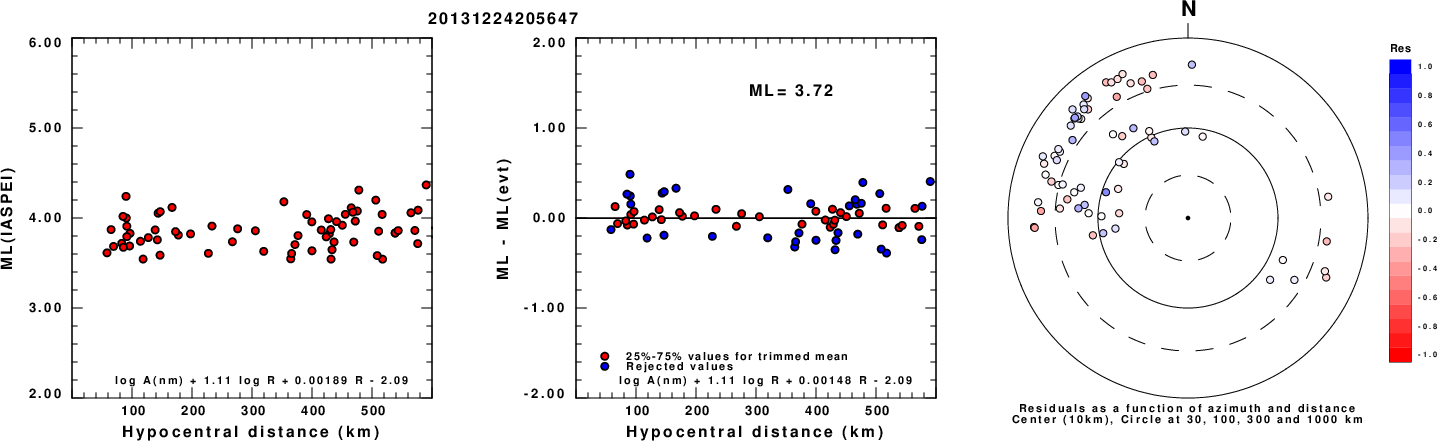

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

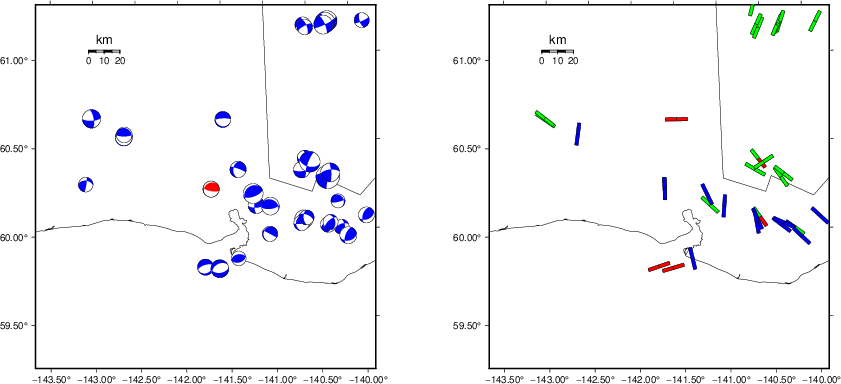

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

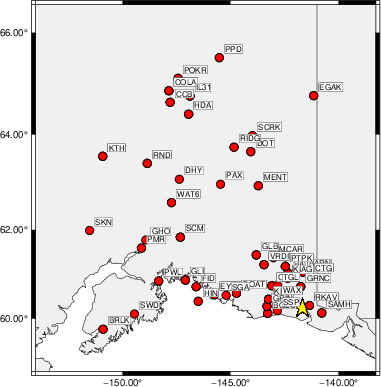

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut a -30 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   255    45    90   3.64 0.3073
WVFGRD96    1.0    75    45    95   3.66 0.2750
WVFGRD96    2.0   260    45   100   3.76 0.3165
WVFGRD96    3.0   220    80    50   3.80 0.2834
WVFGRD96    4.0   220    10    35   3.93 0.3526
WVFGRD96    5.0   220    15    25   3.94 0.4147
WVFGRD96    6.0   230    15    40   3.94 0.4610
WVFGRD96    7.0   230    20    40   3.94 0.4989
WVFGRD96    8.0   235    20    45   4.01 0.5183
WVFGRD96    9.0   240    20    50   4.02 0.5416
WVFGRD96   10.0   240    25    55   4.02 0.5571
WVFGRD96   11.0   240    25    50   4.03 0.5644
WVFGRD96   12.0   235    30    50   4.03 0.5642
WVFGRD96   13.0   240    30    50   4.03 0.5593
WVFGRD96   14.0   235    30    45   4.03 0.5503
WVFGRD96   15.0   235    30    45   4.03 0.5378
WVFGRD96   16.0   235    30    45   4.03 0.5228
WVFGRD96   17.0   235    30    40   4.03 0.5067
WVFGRD96   18.0   235    30    40   4.03 0.4902
WVFGRD96   19.0   230    35    35   4.03 0.4730
WVFGRD96   20.0   230    35    35   4.03 0.4563
WVFGRD96   21.0   240    30    40   4.04 0.4408
WVFGRD96   22.0   230    35    30   4.04 0.4246
WVFGRD96   23.0   230    35    30   4.04 0.4081
WVFGRD96   24.0   230    35    25   4.04 0.3936
WVFGRD96   25.0   230    35    25   4.05 0.3793
WVFGRD96   26.0   200    45   -25   4.03 0.3673
WVFGRD96   27.0   205    50   -20   4.03 0.3556
WVFGRD96   28.0   205    50   -20   4.04 0.3442
WVFGRD96   29.0   205    50   -20   4.04 0.3328

The best solution is

WVFGRD96   11.0   240    25    50   4.03 0.5644

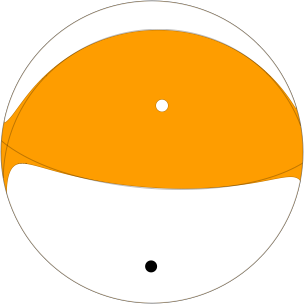

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

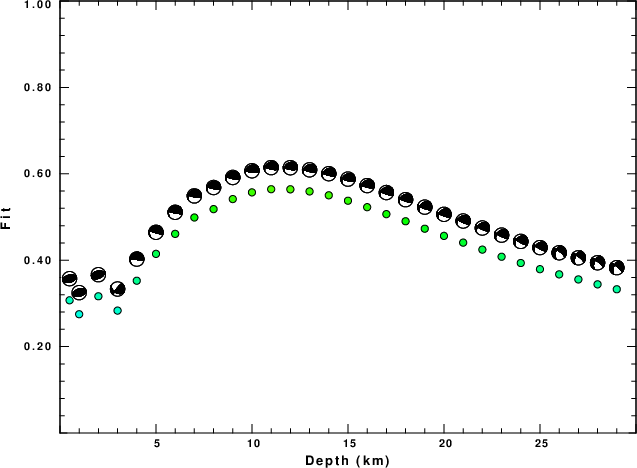

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

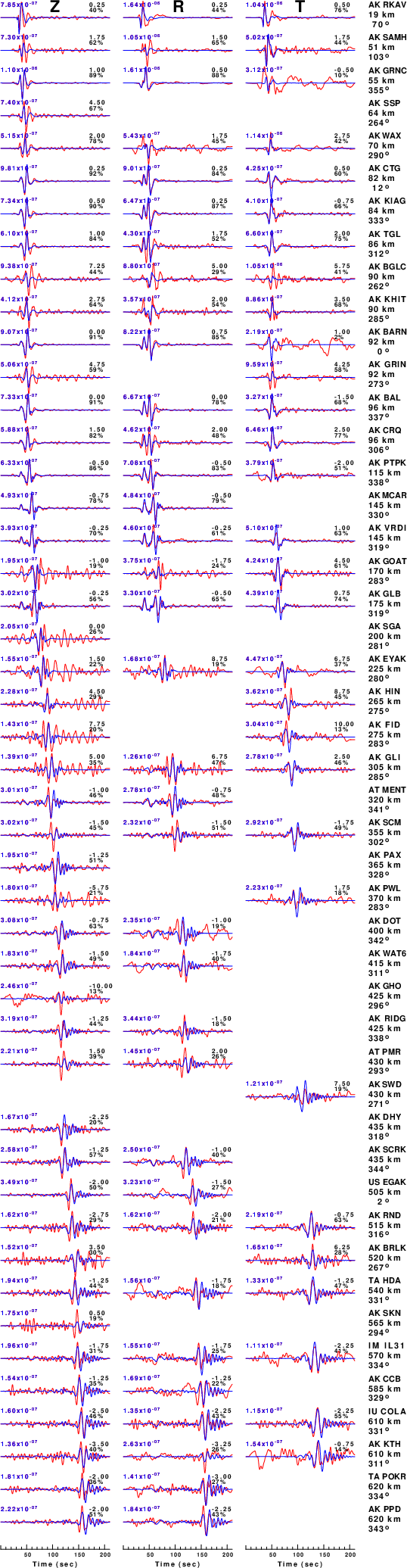

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut a -30 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

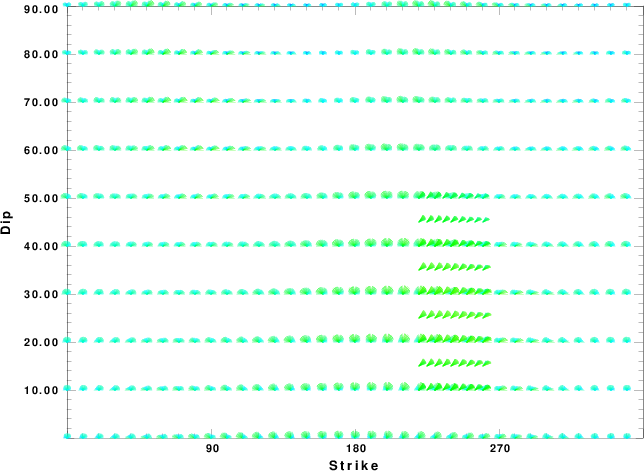

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

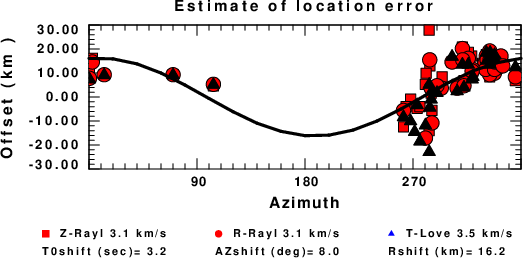

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
