The ANSS event ID is ak013eaf6wll and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak013eaf6wll/executive.

2013/11/07 05:13:09 62.032 -150.488 53.1 4.4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2013/11/07 05:13:09:0  62.03 -150.49  53.1 4.4 Alaska

 Stations used:
   AK.BAL AK.BARN AK.BPAW AK.BWN AK.CCB AK.CNP AK.CRQ AK.DHY
   AK.DOT AK.GHO AK.GLB AK.GLI AK.GOAT AK.GRNC AK.HDA AK.HIN
   AK.KHIT AK.KIAG AK.KNK AK.MCAR AK.MESA AK.PPD AK.PWL AK.RAG
   AK.RIDG AK.RND AK.SAMH AK.SAW AK.SCM AK.SGA AK.SKN AK.SSN
   AK.SUCK AK.SWD AK.TGL AK.VRDI AK.WAT1 AK.WAT2 AK.WAT3
   AK.WAT4 AK.WAT5 AK.WAT6 AK.WAT7 AK.WAX AK.YAH AT.PMR
   AT.SVW2 IM.IL31 IU.COLA TA.POKR US.EGAK YE.PIC2 YE.PIC4

 Filtering commands used:
   cut a -30 a 180
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.06 n 3

 Best Fitting Double Couple
  Mo = 4.37e+22 dyne-cm
  Mw = 4.36
  Z  = 64 km
  Plane   Strike  Dip  Rake
   NP1      160    81   -94
   NP2        5    10   -65
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.37e+22     36     253
    N   0.00e+00      4     160
    P  -4.37e+22     54      65

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -4.53e+20
       Mxy     1.98e+21
       Mxz    -1.49e+22
       Myy     1.40e+22
       Myz    -3.86e+22
       Mzz    -1.35e+22




                     -------------#
                 ####-----------------#
              #######-------------------##
             #########--------------------#
           ###########---------------------##
          ############----------------------##
         ##############----------------------##
        ###############------------   --------##
        ################----------- P --------##
       ##################----------   ---------##
       ##################----------------------##
       ###################---------------------##
       #######   ##########--------------------##
        ###### T ##########-------------------##
        ######   ###########------------------##
         ####################----------------##
          ####################--------------##
           ####################------------##
             ###################---------##
              ###################-------##
                 #################---##
                     ############--



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.35e+22  -1.49e+22   3.86e+22
 -1.49e+22  -4.53e+20  -1.98e+21
  3.86e+22  -1.98e+21   1.40e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20131107051309/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 5
      DIP = 10
     RAKE = -65
       MW = 4.36
       HS = 64.0

The NDK file is 20131107051309.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

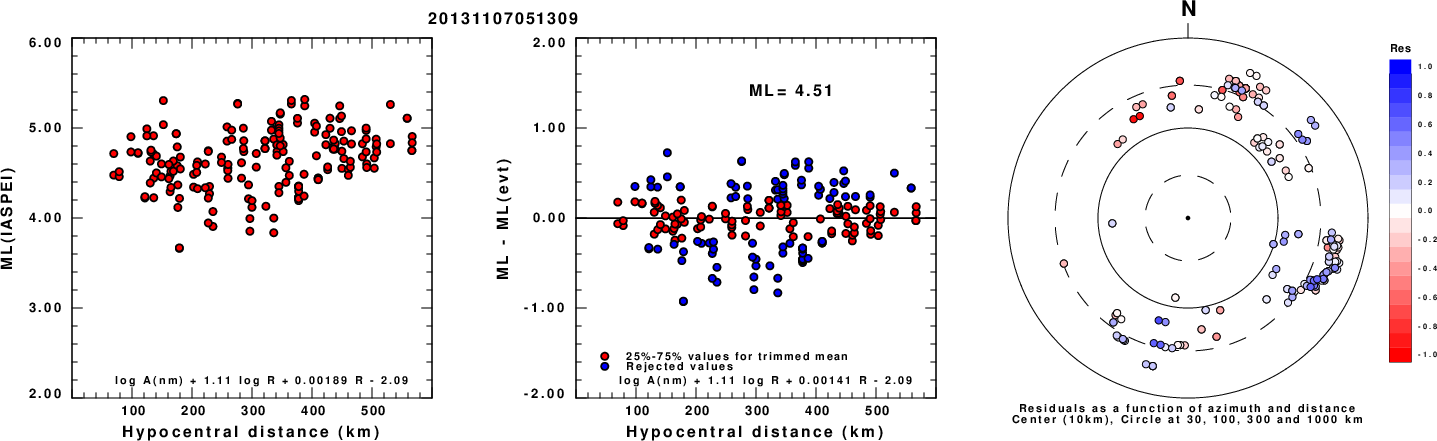

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

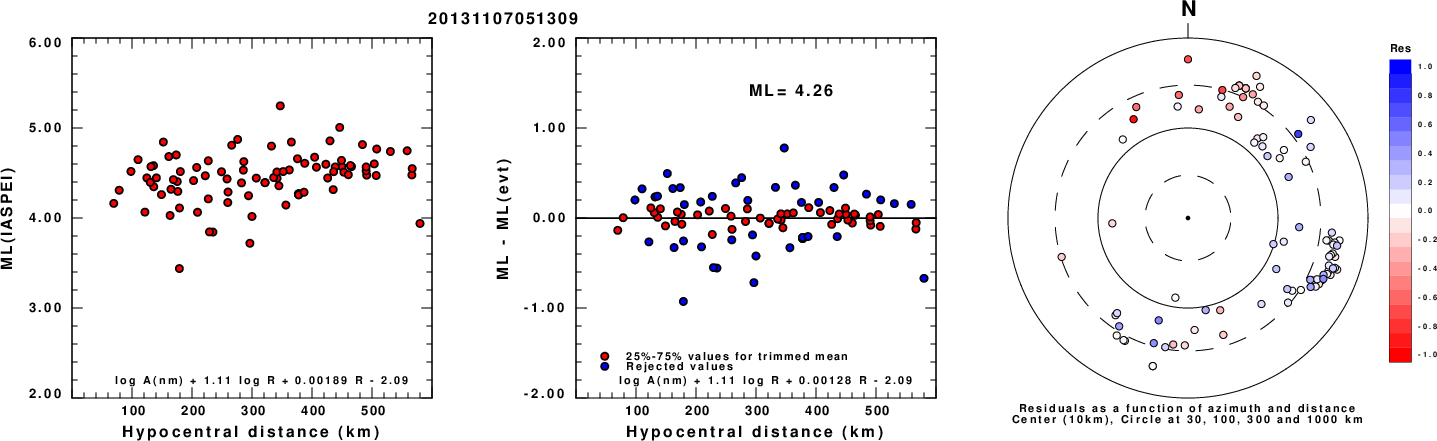

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

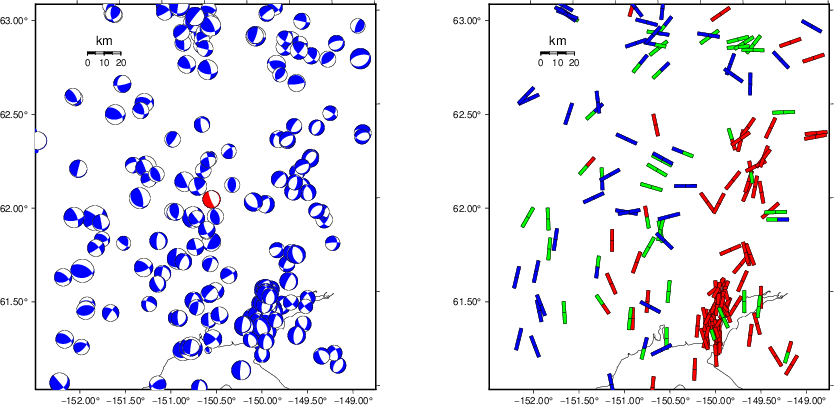

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

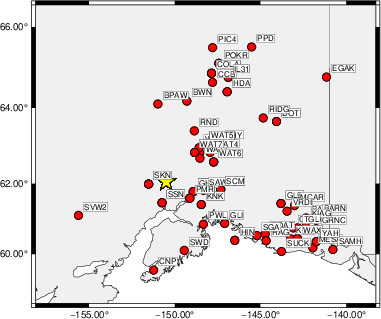

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut a -30 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0   165    40   -90   3.68 0.2153
WVFGRD96    4.0   165    45   -90   3.77 0.2064
WVFGRD96    6.0    15    60   -45   3.74 0.1766
WVFGRD96    8.0   155    50    85   3.85 0.1923
WVFGRD96   10.0   100    40   -35   3.83 0.2112
WVFGRD96   12.0    90    40   -35   3.84 0.2353
WVFGRD96   14.0   230    55    55   3.89 0.2644
WVFGRD96   16.0   230    50    55   3.91 0.2914
WVFGRD96   18.0   230    50    55   3.93 0.3130
WVFGRD96   20.0   130    30    60   3.91 0.3299
WVFGRD96   22.0   130    30    60   3.94 0.3491
WVFGRD96   24.0   130    30    60   3.96 0.3657
WVFGRD96   26.0   140    25    75   3.97 0.3790
WVFGRD96   28.0    55    25   -15   3.99 0.3937
WVFGRD96   30.0    50    20   -20   4.01 0.4149
WVFGRD96   32.0    45    20   -25   4.03 0.4358
WVFGRD96   34.0    45    20   -25   4.04 0.4551
WVFGRD96   36.0    45    20   -25   4.06 0.4725
WVFGRD96   38.0    40    20   -30   4.07 0.4864
WVFGRD96   40.0    30    15   -40   4.22 0.4983
WVFGRD96   42.0    30    15   -40   4.23 0.5078
WVFGRD96   44.0    30    15   -40   4.24 0.5179
WVFGRD96   46.0    30    15   -40   4.26 0.5284
WVFGRD96   48.0    30    15   -40   4.27 0.5386
WVFGRD96   50.0    30    15   -40   4.28 0.5474
WVFGRD96   52.0    30    15   -40   4.29 0.5557
WVFGRD96   54.0    30    15   -40   4.30 0.5622
WVFGRD96   56.0    30    15   -40   4.32 0.5673
WVFGRD96   58.0    10    10   -60   4.33 0.5715
WVFGRD96   60.0    10    10   -60   4.34 0.5748
WVFGRD96   62.0     5    10   -65   4.35 0.5768
WVFGRD96   64.0     5    10   -65   4.36 0.5773
WVFGRD96   66.0     0    10   -70   4.37 0.5763
WVFGRD96   68.0   355    10   -75   4.38 0.5739
WVFGRD96   70.0   345    10   -85   4.39 0.5704
WVFGRD96   72.0   160    80   -90   4.39 0.5656
WVFGRD96   74.0   165    80   -80   4.41 0.5603
WVFGRD96   76.0   165    80   -80   4.42 0.5538
WVFGRD96   78.0   165    80   -80   4.43 0.5459
WVFGRD96   80.0   165    80   -80   4.43 0.5367
WVFGRD96   82.0   160    85   -80   4.43 0.5274
WVFGRD96   84.0   160    85   -80   4.44 0.5185
WVFGRD96   86.0   165    85   -75   4.45 0.5085
WVFGRD96   88.0   165    85   -75   4.45 0.4981
WVFGRD96   90.0   160    85   -70   4.46 0.4881
WVFGRD96   92.0   335    90    70   4.46 0.4787
WVFGRD96   94.0   155    90   -70   4.46 0.4718
WVFGRD96   96.0   335    90    70   4.46 0.4646
WVFGRD96   98.0   155    90   -70   4.47 0.4567

The best solution is

WVFGRD96   64.0     5    10   -65   4.36 0.5773

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

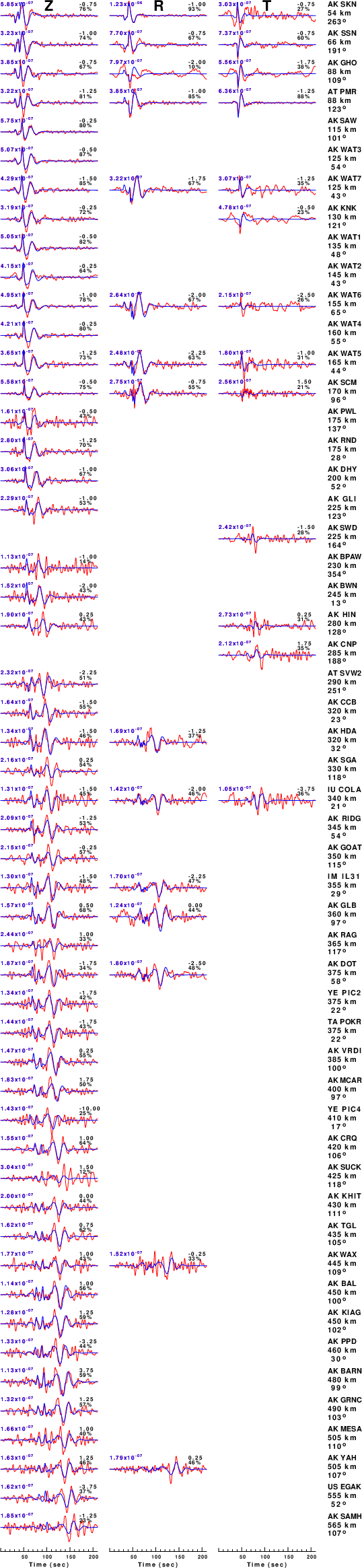

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut a -30 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

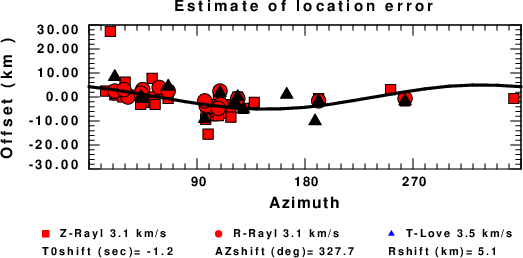

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
