Location

Location ANSS

The ANSS event ID is nn00402996 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/nn00402996/executive.

2013/02/13 22:20:16 38.035 -118.056 11.9 3.8 Nevada

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2013/02/13 22:20:16:0  38.03 -118.06  11.9 3.8 Nevada

 Stations used:
   CI.GSC CI.ISA CI.LDF CI.OSI CI.PASC II.PFO LB.DAC NC.AFD
   NC.GDXB NC.MDPB NN.BEK NN.KVN NN.OMMB NN.PAH NN.PNT NN.RUB
   NN.RYN NN.SHP NN.VCN NN.WAK NN.YER TA.R11A US.DUG US.ELK
   US.TPNV US.WVOR UU.BGU UU.LCMT UU.MPU UU.MTPU UU.NLU
   UU.PKCU UU.PSUT UU.SZCU

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.06 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 4.79e+21 dyne-cm
  Mw = 3.72
  Z  = 12 km
  Plane   Strike  Dip  Rake
   NP1      240    55   -45
   NP2      360    55   -135
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.79e+21      0     300
    N   0.00e+00     35      30
    P  -4.79e+21     55     210

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.57e+19
       Mxy    -2.76e+21
       Mxz     1.97e+21
       Myy     3.20e+21
       Myz     1.10e+21
       Mzz    -3.18e+21




                     #########-----
                 ##############--------
              ###################---------
             #####################---------
            #######################----------
          T #################------###########
            #############-----------###########
        ##############--------------############
        ###########------------------###########
       ##########--------------------############
       ########----------------------############
       #######-----------------------############
       ######------------------------############
        ####-------------------------###########
        ###-----------   -----------############
         #------------ P -----------###########
          ------------   ----------###########
           ------------------------##########
             ---------------------#########
              -------------------#########
                 --------------########
                     ---------#####



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.18e+21   1.97e+21  -1.10e+21
  1.97e+21  -1.57e+19   2.76e+21
 -1.10e+21   2.76e+21   3.20e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20130213222016/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 240
      DIP = 55
     RAKE = -45
       MW = 3.72
       HS = 12.0

The NDK file is 20130213222016.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU
UNR
 USGS/SLU Moment Tensor Solution
 ENS  2013/02/13 22:20:16:0  38.03 -118.06  11.9 3.8 Nevada

 Stations used:
   CI.GSC CI.ISA CI.LDF CI.OSI CI.PASC II.PFO LB.DAC NC.AFD
   NC.GDXB NC.MDPB NN.BEK NN.KVN NN.OMMB NN.PAH NN.PNT NN.RUB
   NN.RYN NN.SHP NN.VCN NN.WAK NN.YER TA.R11A US.DUG US.ELK
   US.TPNV US.WVOR UU.BGU UU.LCMT UU.MPU UU.MTPU UU.NLU
   UU.PKCU UU.PSUT UU.SZCU

 Filtering commands used:
   hp c 0.02 n 3
   lp c 0.06 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 4.79e+21 dyne-cm
  Mw = 3.72
  Z  = 12 km
  Plane   Strike  Dip  Rake
   NP1      240    55   -45
   NP2      360    55   -135
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   4.79e+21      0     300
    N   0.00e+00     35      30
    P  -4.79e+21     55     210

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.57e+19
       Mxy    -2.76e+21
       Mxz     1.97e+21
       Myy     3.20e+21
       Myz     1.10e+21
       Mzz    -3.18e+21




                     #########-----
                 ##############--------
              ###################---------
             #####################---------
            #######################----------
          T #################------###########
            #############-----------###########
        ##############--------------############
        ###########------------------###########
       ##########--------------------############
       ########----------------------############
       #######-----------------------############
       ######------------------------############
        ####-------------------------###########
        ###-----------   -----------############
         #------------ P -----------###########
          ------------   ----------###########
           ------------------------##########
             ---------------------#########
              -------------------#########
                 --------------########
                     ---------#####



 Global CMT Convention Moment Tensor:
      R          T          P
 -3.18e+21   1.97e+21  -1.10e+21
  1.97e+21  -1.57e+19   2.76e+21
 -1.10e+21   2.76e+21   3.20e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20130213222016/index.html

REVIEWED BY NSL STAFF

Event ID:402996
Origin ID:992577
Algorithm: Ichinose (2003) Long Period, Regional-Distance Waves
Seismic Moment Tensor Solution

2013/02/13 (044) 22:20:17.00 38.0313 -118.0400 992577
	Depth =   8.0 (km)
	Mw    =  3.72
	Mo    =  4.73x10^21 (dyne x cm)

	Percent Double Couple =  96 %
	Percent CLVD          =   4 %
	no ISO calculated
	Epsilon=0.02
	 Percent Variance Reduction =  60.77 %
	 Total Fit                  =  11.08
	Major Double Couple
		            strike dip   rake
		Nodal Plane 1: 358  51 -132
		Nodal Plane 2: 234  55  -50

	DEVIATORIC MOMENT TENSOR

	Moment Tensor Elements: Spherical Coordinates
		Mrr= -3.41 Mtt= -0.14 Mff=  3.55
		Mrt=  2.08 Mrf= -0.74 Mtf=  2.32 EXP=21


	Moment Tensor Elements: Cartesian Coordinates
		-0.14 -2.32  2.08
		-2.32  3.55  0.74
		 2.08  0.74 -3.41

	Eigenvalues:
		T-axis eigenvalue=  4.68
		N-axis eigenvalue=  0.11
		P-axis eigenvalue= -4.78

	Eigenvalues and eigenvectors of the Major Double Couple:
		T-axis ev= 4.68 trend=297 plunge=2
		N-axis ev= 0.00 trend=28 plunge=32
		P-axis ev=-4.68 trend=203 plunge=58

	Maximum Azmuithal Gap=171 Distance to Nearest Station= 78.6 (km)

	Number of Stations (D=Displacement/V=Velocity) Used=5 (defining only)

	 RYN.NN.D KVN.NN.D WAK.NN.D VCN.NN.D
	 DAC.LB.D


              ##########-------
          #################--------
        ####################---------
      #######################----------
     ####################################
    ########################-#############
 T ####################-------#############
   ################------------############
 ################--------------#############
 ##############-----------------############
 ############-------------------#############
 ##########---------------------#############
 #########----------------------#############
 ########-----------------------#############
 #######------------------------############
 ######-------------------------############
  ####---------   -------------############
   ###--------- P -------------############
   ###---------   ------------############
     #-----------------------############
      ----------------------###########
        -------------------##########
          ---------------##########
              ---------#########



All Stations defining and nondefining:
Station.Net 	Def 	Distance 	Azi    	Bazi  	lo-f 	hi-f vmodel
            	    	(km)     	(deg)  	(deg) 	(Hz) 	(Hz)
RYN.NN (D) 	Y 	    78.6  	328  	148  	0.020 	0.080 RYN.NN.wus.glib
KVN.NN (D) 	Y 	   113.3  	357  	177  	0.020 	0.080 KVN.NN.wus.glib
WAK.NN (D) 	Y 	   132.8  	294  	113  	0.020 	0.080 WAK.NN.wus.glib
VCN.NN (D) 	Y 	   198.4  	316  	135  	0.020 	0.080 VCN.NN.wus.glib
DAC.LB (D) 	Y 	   198.6  	168  	349  	0.020 	0.080 DAC.LB.wus.glib

 (V)-velocity (D)-Displacement

Author: www-data
Date: 2013/02/13 22:50:36

mtinv Version 2.1_DEVEL OCT2008

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

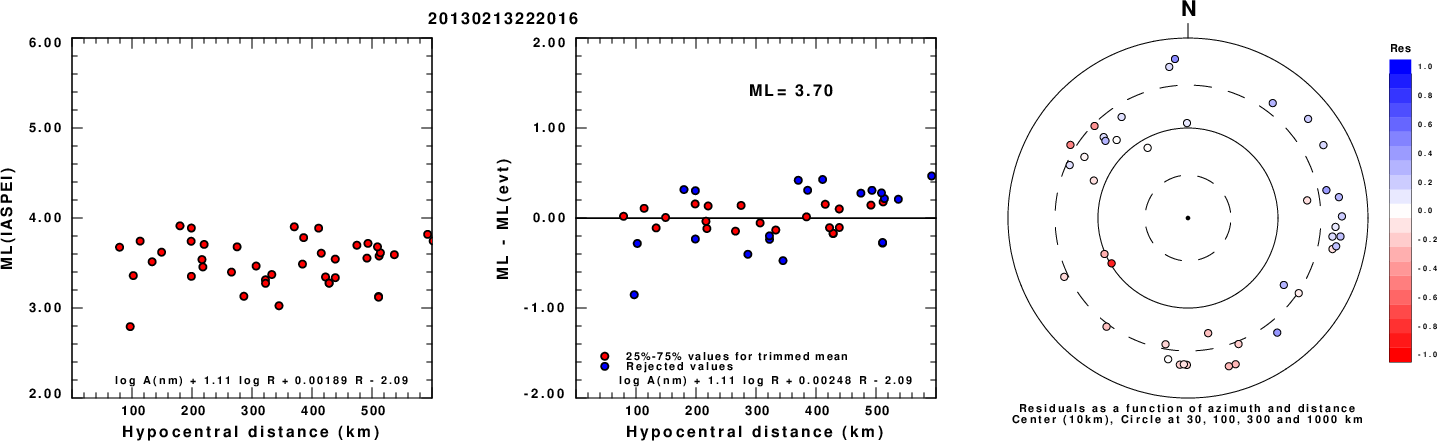

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

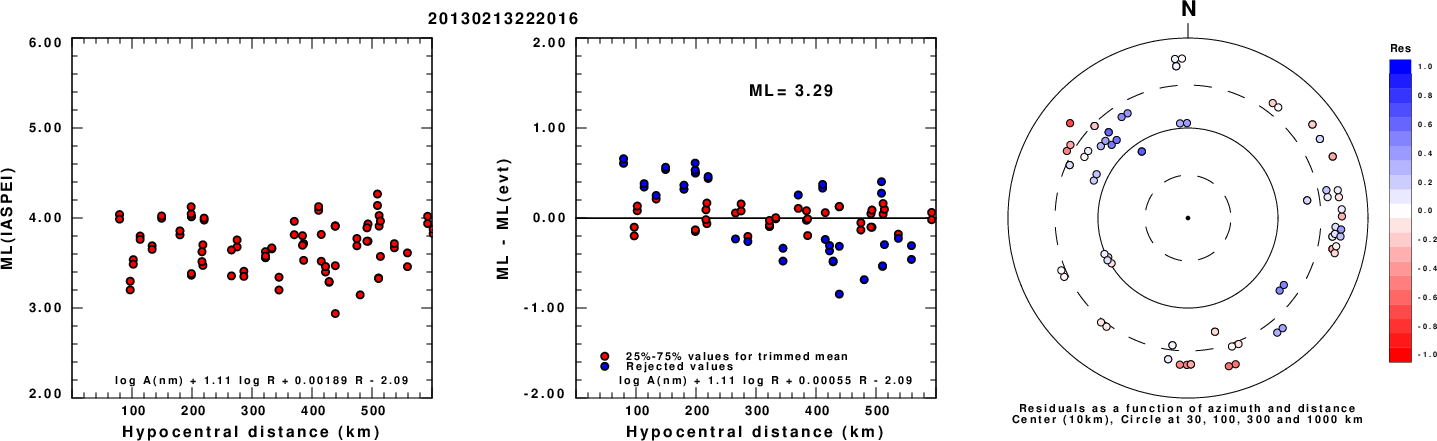

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

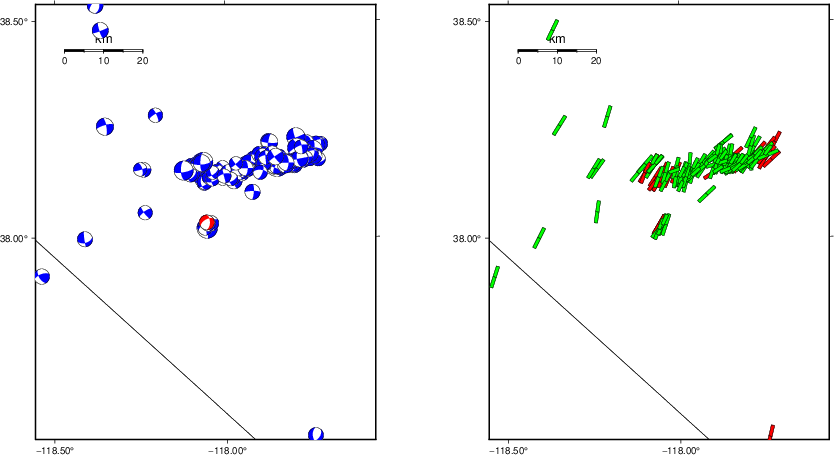

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

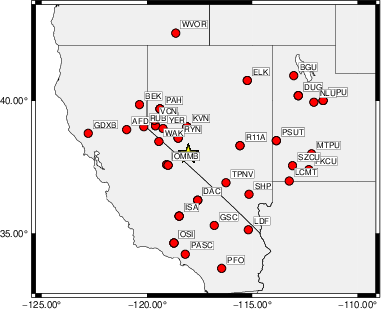

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   265    65    25   3.41 0.3255
WVFGRD96    1.0   260    75    20   3.41 0.3397
WVFGRD96    2.0   260    70    25   3.50 0.4130
WVFGRD96    3.0   260    75    35   3.55 0.4210
WVFGRD96    4.0    80    40    15   3.62 0.4347
WVFGRD96    5.0   250    80   -50   3.62 0.4554
WVFGRD96    6.0   245    70   -50   3.64 0.4762
WVFGRD96    7.0   240    65   -50   3.65 0.5016
WVFGRD96    8.0   240    65   -55   3.70 0.5049
WVFGRD96    9.0   230    55   -60   3.73 0.5339
WVFGRD96   10.0   235    55   -55   3.73 0.5540
WVFGRD96   11.0   230    50   -55   3.73 0.5621
WVFGRD96   12.0   240    55   -45   3.72 0.5638
WVFGRD96   13.0   240    55   -45   3.72 0.5614
WVFGRD96   14.0   240    55   -40   3.72 0.5570
WVFGRD96   15.0   245    60   -35   3.72 0.5523
WVFGRD96   16.0   245    60   -35   3.72 0.5462
WVFGRD96   17.0   245    60   -30   3.72 0.5396
WVFGRD96   18.0   245    60   -30   3.73 0.5324
WVFGRD96   19.0   250    65   -25   3.73 0.5252
WVFGRD96   20.0   250    65   -25   3.74 0.5179
WVFGRD96   21.0   250    65   -25   3.74 0.5102
WVFGRD96   22.0   250    65   -25   3.75 0.5015
WVFGRD96   23.0   250    65   -20   3.75 0.4928
WVFGRD96   24.0   250    65   -20   3.76 0.4845
WVFGRD96   25.0   250    65   -20   3.76 0.4762
WVFGRD96   26.0   250    65   -20   3.77 0.4675
WVFGRD96   27.0   250    65   -20   3.77 0.4585
WVFGRD96   28.0   250    65   -20   3.78 0.4494
WVFGRD96   29.0   250    65   -15   3.78 0.4408

The best solution is

WVFGRD96   12.0   240    55   -45   3.72 0.5638

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

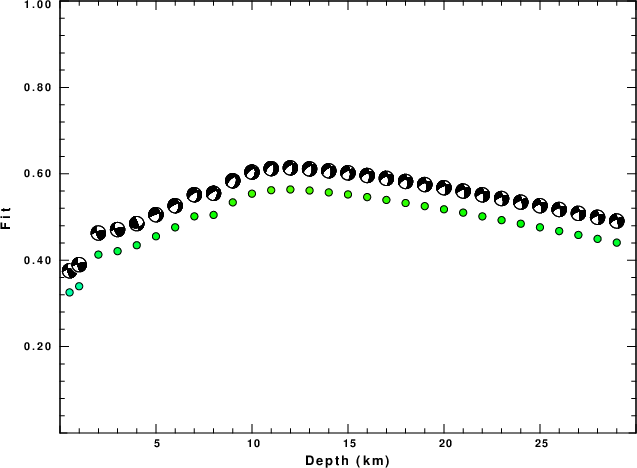

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2

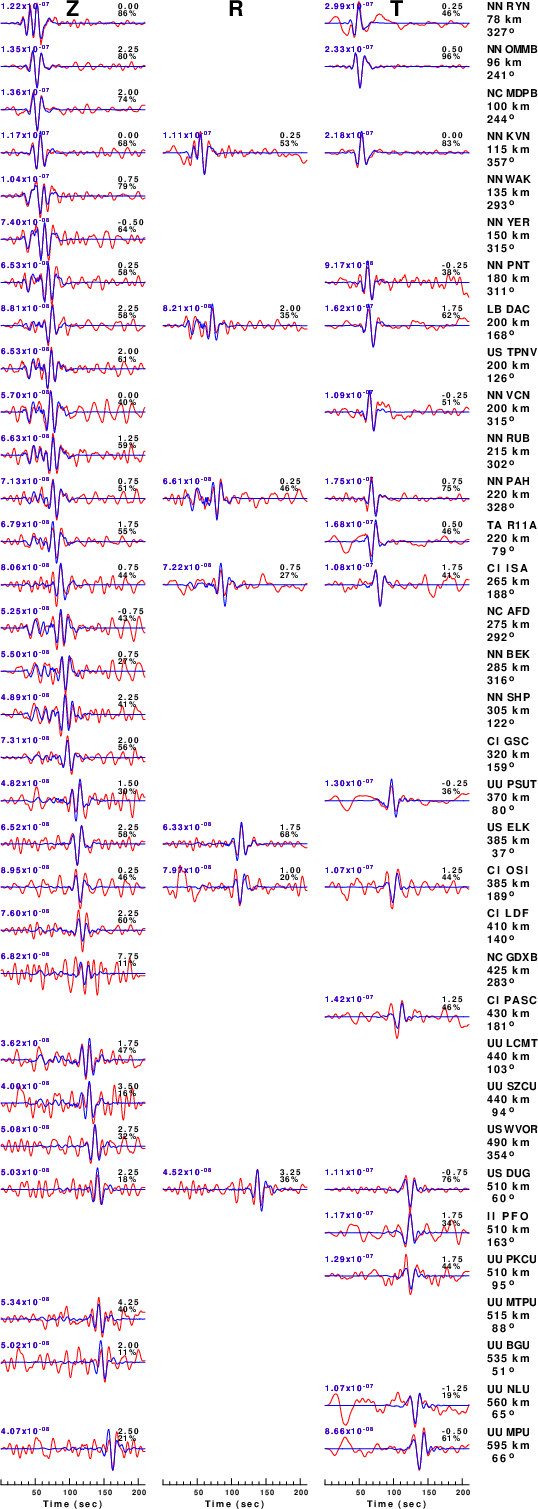

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

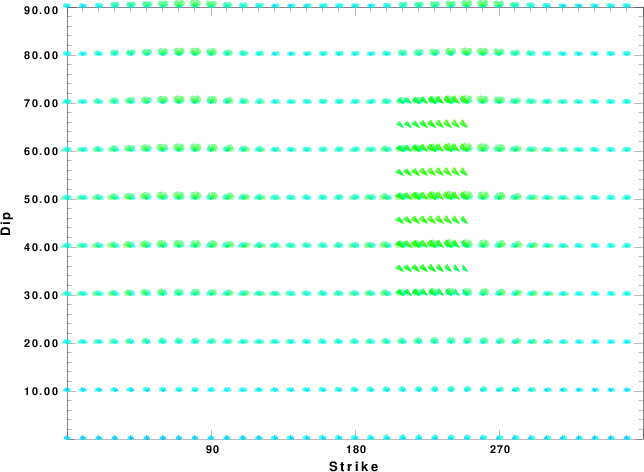

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

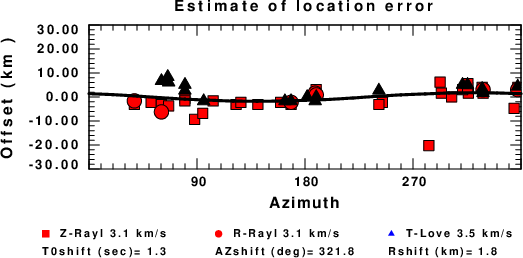

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
