Location

Location ANSS

The ANSS event ID is ak012e0gg0z0 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak012e0gg0z0/executive.

2012/10/31 02:57:43 62.0497 -146.5462 42.5 4.4 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2012/10/31 02:57:43:0  62.05 -146.55  42.5 4.4 Alaska

 Stations used:
   AK.BAL AK.BMR AK.DHY AK.DIV AK.DOT AK.EYAK AK.FID AK.GLI
   AK.HDA AK.HIN AK.HMT AK.KLU AK.KNK AK.MCK AK.PAX AK.PWL
   AK.RAG AK.RC01 AK.RIDG AK.RND AK.SAW AK.SCM AK.WAX AK.WRH
   XZ.BERG XZ.BGLC XZ.KHIT XZ.VRDI

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 2.04e+22 dyne-cm
  Mw = 4.14
  Z  = 72 km
  Plane   Strike  Dip  Rake
   NP1      240    75    20
   NP2      145    71   164
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   2.04e+22     25     103
    N   0.00e+00     65     275
    P  -2.04e+22      3      12

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.87e+22
       Mxy    -7.75e+21
       Mxz    -2.75e+21
       Myy     1.52e+22
       Myz     7.32e+21
       Mzz     3.49e+21




                     ---------- P -
                 --------------   -----
              ##--------------------------
             ###---------------------------
           ######----------------------------
          #######---------------------------##
         #########-------------------##########
        ###########-------------################
        ###########---------####################
       #############-----########################
       ##########################################
       #############---###################   ####
       ##########-------################## T ####
        #######----------#################   ###
        #####--------------#####################
         ##-----------------###################
          --------------------################
           ---------------------#############
             ---------------------#########
              -----------------------#####
                 ----------------------
                     --------------



 Global CMT Convention Moment Tensor:
      R          T          P
  3.49e+21  -2.75e+21  -7.32e+21
 -2.75e+21  -1.87e+22   7.75e+21
 -7.32e+21   7.75e+21   1.52e+22


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20121031025743/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 240
      DIP = 75
     RAKE = 20
       MW = 4.14
       HS = 72.0

The NDK file is 20121031025743.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

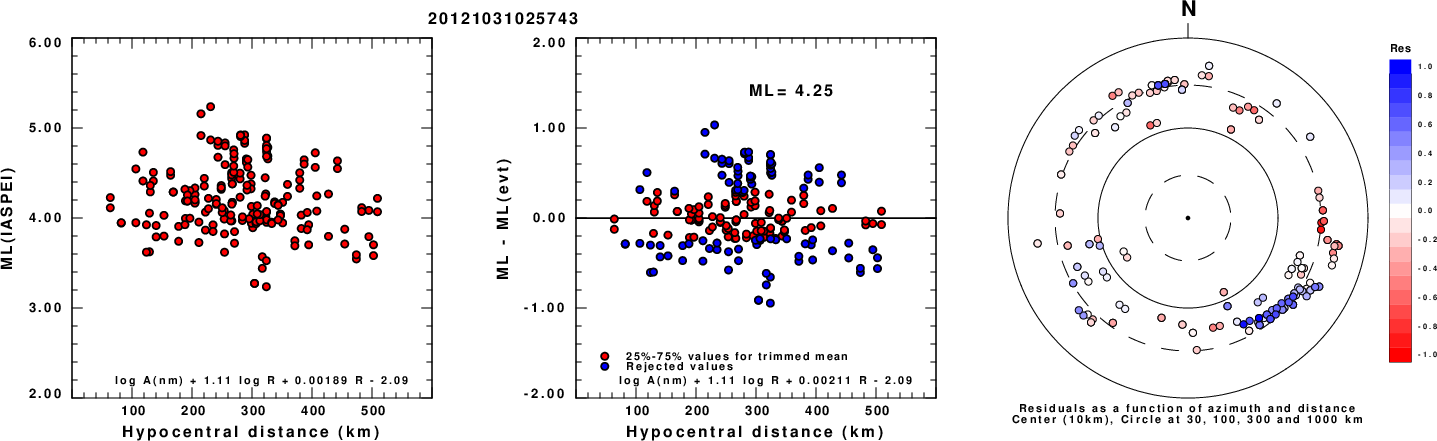

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

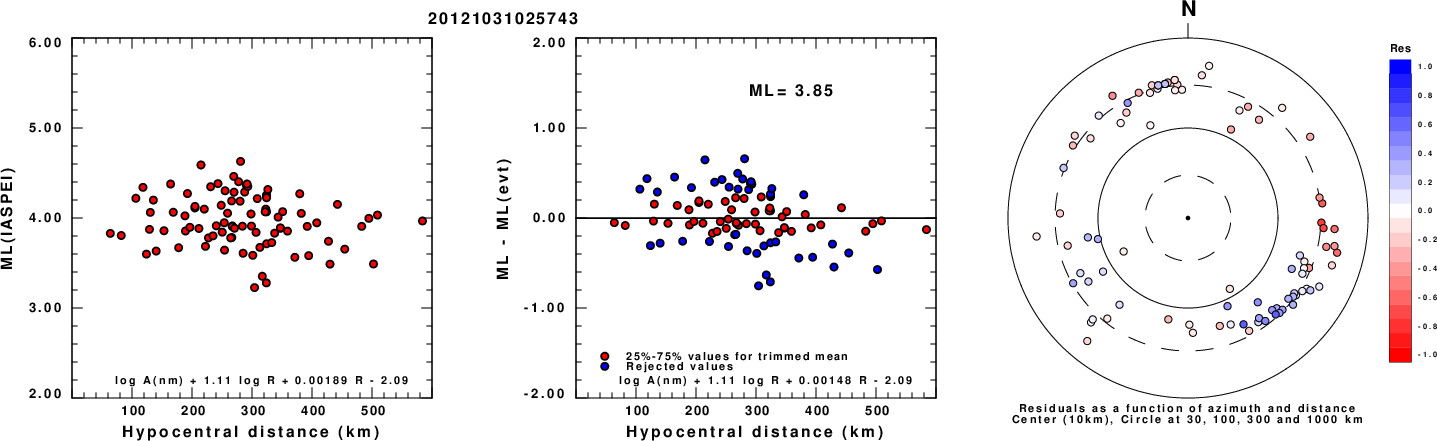

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

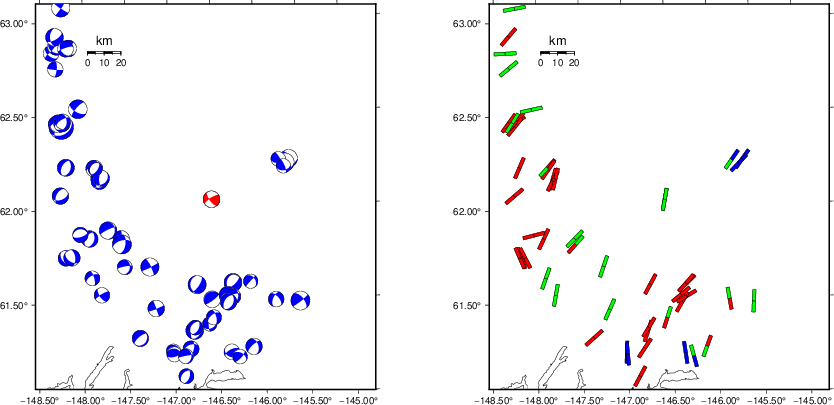

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

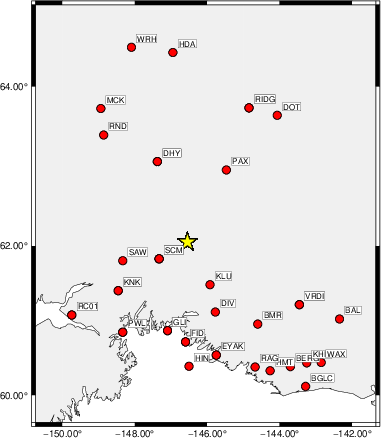

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    2.0    55    80   -10   3.35 0.3343
WVFGRD96    4.0    60    75     5   3.45 0.4211
WVFGRD96    6.0    60    75    10   3.50 0.4490
WVFGRD96    8.0    60    75     5   3.55 0.4583
WVFGRD96   10.0    65    75    20   3.59 0.4581
WVFGRD96   12.0    60    75    -5   3.61 0.4601
WVFGRD96   14.0    60    80    15   3.64 0.4641
WVFGRD96   16.0    60    75    15   3.67 0.4668
WVFGRD96   18.0    60    75    15   3.69 0.4699
WVFGRD96   20.0    60    75    15   3.71 0.4733
WVFGRD96   22.0    60    75    15   3.74 0.4748
WVFGRD96   24.0    60    75    15   3.75 0.4754
WVFGRD96   26.0    60    75    15   3.77 0.4739
WVFGRD96   28.0    60    75    15   3.79 0.4718
WVFGRD96   30.0    60    75    15   3.80 0.4742
WVFGRD96   32.0   240    80    10   3.81 0.4772
WVFGRD96   34.0   240    80    15   3.83 0.4803
WVFGRD96   36.0   240    75    10   3.86 0.4832
WVFGRD96   38.0   240    75    10   3.89 0.4923
WVFGRD96   40.0   240    70    10   3.95 0.5065
WVFGRD96   42.0   240    70    10   3.97 0.5137
WVFGRD96   44.0   240    70    15   4.00 0.5191
WVFGRD96   46.0   240    70    15   4.01 0.5245
WVFGRD96   48.0   240    70    15   4.03 0.5290
WVFGRD96   50.0   240    70    15   4.05 0.5324
WVFGRD96   52.0   240    70    15   4.06 0.5361
WVFGRD96   54.0   240    70    15   4.07 0.5389
WVFGRD96   56.0   240    70    15   4.08 0.5404
WVFGRD96   58.0   240    70    20   4.09 0.5420
WVFGRD96   60.0   240    70    20   4.10 0.5440
WVFGRD96   62.0   240    70    20   4.11 0.5453
WVFGRD96   64.0   240    70    20   4.12 0.5455
WVFGRD96   66.0   240    70    20   4.13 0.5455
WVFGRD96   68.0   240    70    20   4.13 0.5439
WVFGRD96   70.0   240    75    20   4.13 0.5455
WVFGRD96   72.0   240    75    20   4.14 0.5455
WVFGRD96   74.0   240    75    20   4.14 0.5449
WVFGRD96   76.0   240    75    20   4.15 0.5448
WVFGRD96   78.0   240    75    20   4.15 0.5439
WVFGRD96   80.0   240    75    20   4.15 0.5431
WVFGRD96   82.0   240    75    20   4.16 0.5433
WVFGRD96   84.0   240    75    20   4.16 0.5417
WVFGRD96   86.0   240    80    15   4.16 0.5417
WVFGRD96   88.0   240    80    15   4.16 0.5418
WVFGRD96   90.0   240    80    15   4.17 0.5412
WVFGRD96   92.0   240    80    15   4.17 0.5412
WVFGRD96   94.0   240    80    15   4.17 0.5400
WVFGRD96   96.0   240    80    15   4.18 0.5398
WVFGRD96   98.0   240    80    15   4.18 0.5386

The best solution is

WVFGRD96   72.0   240    75    20   4.14 0.5455

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

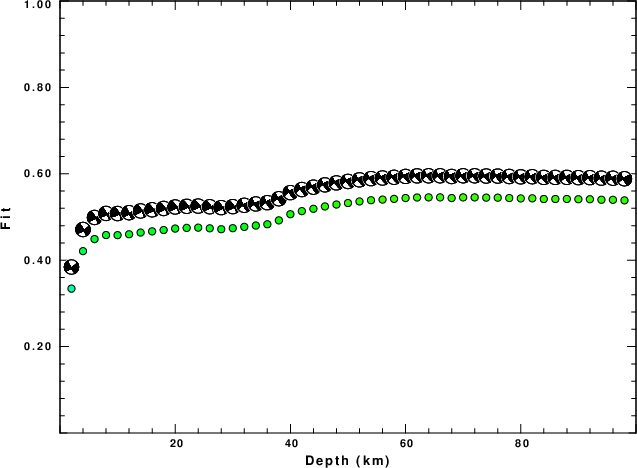

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2

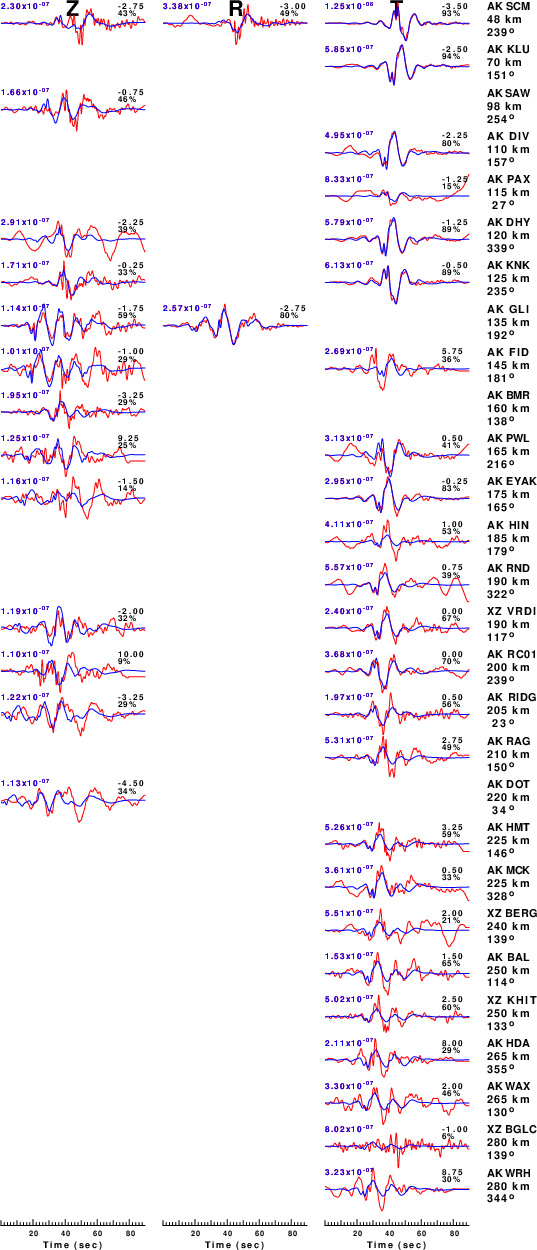

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

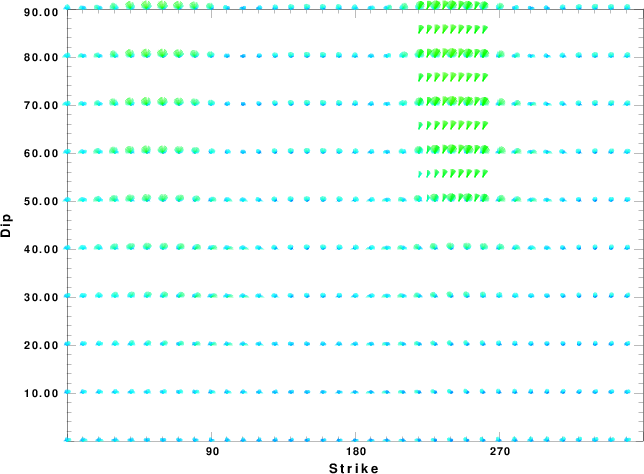

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

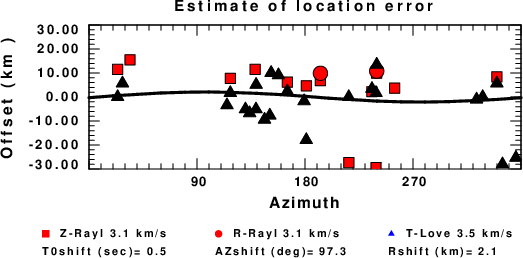

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
Last Changed Fri Apr 26 11:41:37 PM CDT 2024
