Location

Location ANSS

The ANSS event ID is ak012bt4fssk and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/ak012bt4fssk/executive.

2012/09/13 05:58:04 59.6219 -153.1592 104.1 4.2 Alaska

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2012/09/13 05:58:04:0  59.62 -153.16 104.1 4.2 Alaska

 Stations used:
   AK.BRLK AK.CNP AK.FIB AK.HOM AK.PPLA AK.PWL AK.RC01 AK.SSN
   AT.SVW2 II.KDAK

 Filtering commands used:
   cut o DIST/3.3 -40 o DIST/3.3 +50
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.08 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 1.72e+22 dyne-cm
  Mw = 4.09
  Z  = 122 km
  Plane   Strike  Dip  Rake
   NP1       65    65    55
   NP2      304    42   141
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.72e+22     55     289
    N   0.00e+00     31      81
    P  -1.72e+22     13     180

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx    -1.57e+22
       Mxy    -1.61e+21
       Mxz     6.44e+21
       Myy     4.92e+21
       Myz    -7.60e+21
       Mzz     1.08e+22




                     --------------
                 ----------------------
              ----------------------------
             ----########------------------
           -###################--------------
          ########################------------
         ############################----------
        ###############################-------##
        ##########   ###################----####
       ########### T #####################-######
       ###########   ####################--######
       ################################-----#####
       #############################---------####
        #########################------------###
        #####################----------------###
         ###############---------------------##
          -----------------------------------#
           ----------------------------------
             ------------------------------
              -------------   ------------
                 ---------- P ---------
                     ------   -----



 Global CMT Convention Moment Tensor:
      R          T          P
  1.08e+22   6.44e+21   7.60e+21
  6.44e+21  -1.57e+22   1.61e+21
  7.60e+21   1.61e+21   4.92e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20120913055804/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion or first motion observations is

      STK = 65
      DIP = 65
     RAKE = 55
       MW = 4.09
       HS = 122.0

The NDK file is 20120913055804.ndk The waveform inversion is preferred.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and ML by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for ML is adjusted to remove a linear distance trend in residuals to give a regionally defined ML. The defined ML uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

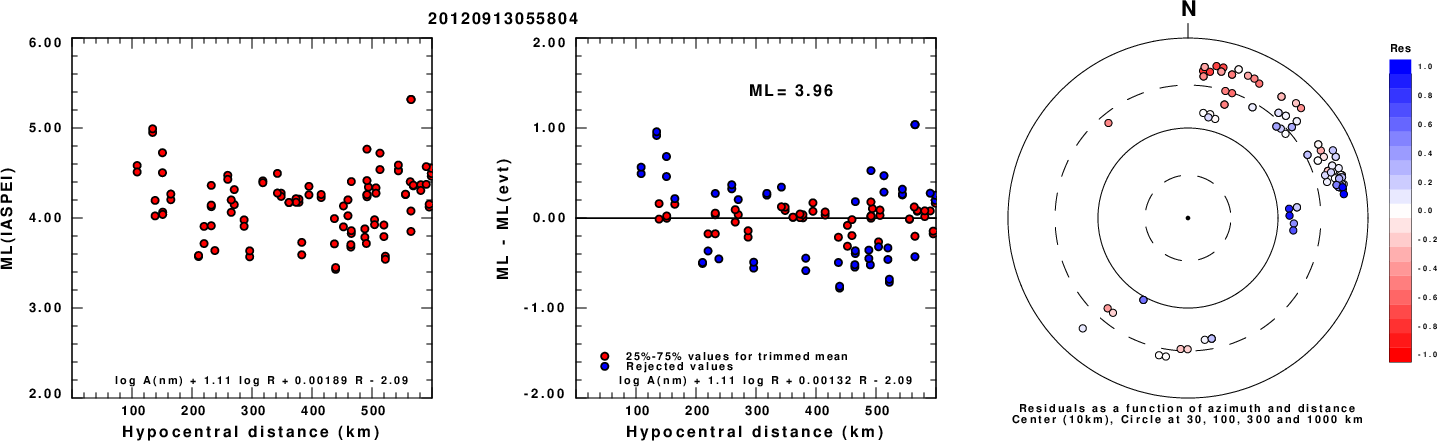

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

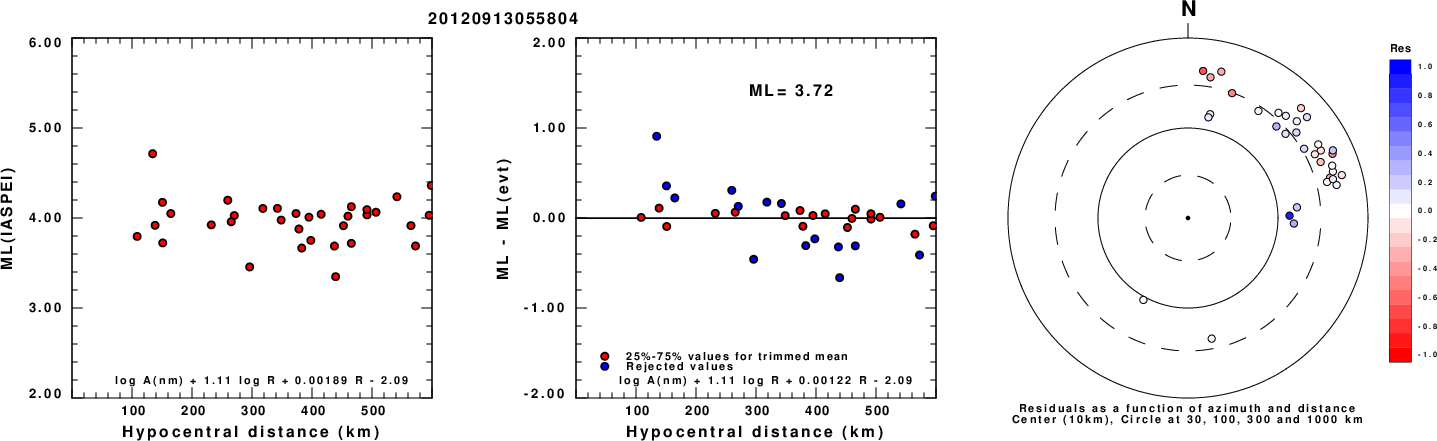

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

Context

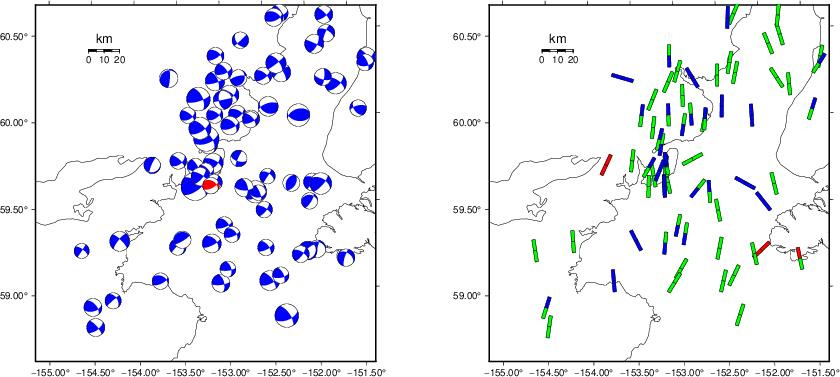

The left panel of the next figure presents the focal mechanism for this earthquake (red) in the context of other nearby events (blue) in the SLU Moment Tensor Catalog. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors). Thus context plot is useful for assessing the appropriateness of the moment tensor of this event.

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

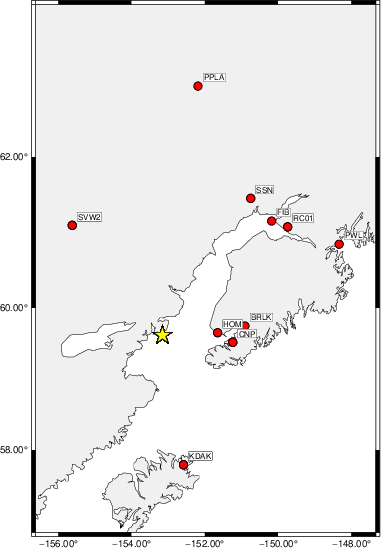

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96   30.0    65    70    15   3.62 0.3942
WVFGRD96   32.0    65    70    15   3.65 0.4045
WVFGRD96   34.0    65    70    10   3.66 0.4131
WVFGRD96   36.0    65    70    15   3.69 0.4199
WVFGRD96   38.0    65    70    10   3.72 0.4246
WVFGRD96   40.0    65    70    20   3.79 0.4351
WVFGRD96   42.0    65    70    20   3.81 0.4338
WVFGRD96   44.0    65    70    20   3.83 0.4318
WVFGRD96   46.0    65    70    20   3.84 0.4300
WVFGRD96   48.0    65    70    25   3.86 0.4293
WVFGRD96   50.0    65    70    25   3.87 0.4288
WVFGRD96   52.0    65    70    25   3.88 0.4283
WVFGRD96   54.0    60    70    15   3.92 0.4369
WVFGRD96   56.0    60    70    15   3.93 0.4474
WVFGRD96   58.0    60    70    20   3.95 0.4580
WVFGRD96   60.0    60    70    20   3.96 0.4682
WVFGRD96   62.0    60    70    20   3.97 0.4797
WVFGRD96   64.0    60    70    25   3.98 0.4908
WVFGRD96   66.0    60    70    25   3.99 0.5013
WVFGRD96   68.0    60    70    25   4.00 0.5118
WVFGRD96   70.0    60    70    30   4.01 0.5223
WVFGRD96   72.0    60    70    30   4.02 0.5321
WVFGRD96   74.0    60    70    30   4.02 0.5402
WVFGRD96   76.0    60    70    30   4.03 0.5473
WVFGRD96   78.0    60    70    35   4.04 0.5543
WVFGRD96   80.0    60    70    35   4.04 0.5602
WVFGRD96   82.0    60    70    35   4.04 0.5656
WVFGRD96   84.0    60    70    35   4.05 0.5699
WVFGRD96   86.0    60    70    40   4.05 0.5746
WVFGRD96   88.0    60    70    40   4.06 0.5785
WVFGRD96   90.0    60    70    40   4.06 0.5820
WVFGRD96   92.0    60    70    40   4.06 0.5848
WVFGRD96   94.0    60    70    45   4.06 0.5877
WVFGRD96   96.0    60    70    45   4.07 0.5902
WVFGRD96   98.0    60    70    45   4.07 0.5935
WVFGRD96  100.0    60    70    45   4.07 0.5962
WVFGRD96  102.0    60    70    50   4.07 0.5981
WVFGRD96  104.0    60    70    50   4.08 0.6007
WVFGRD96  106.0    60    70    50   4.08 0.6020
WVFGRD96  108.0    65    65    50   4.08 0.6049
WVFGRD96  110.0    65    65    50   4.08 0.6066
WVFGRD96  112.0    65    65    50   4.08 0.6071
WVFGRD96  114.0    65    65    50   4.08 0.6073
WVFGRD96  116.0    65    65    50   4.09 0.6086
WVFGRD96  118.0    65    65    55   4.09 0.6086
WVFGRD96  120.0    65    65    55   4.09 0.6088
WVFGRD96  122.0    65    65    55   4.09 0.6092
WVFGRD96  124.0    65    65    55   4.10 0.6079
WVFGRD96  126.0    65    65    55   4.10 0.6073
WVFGRD96  128.0    65    65    55   4.10 0.6069
WVFGRD96  130.0    65    65    55   4.10 0.6050
WVFGRD96  132.0    65    65    55   4.10 0.6041
WVFGRD96  134.0    65    65    55   4.10 0.6026
WVFGRD96  136.0    65    65    55   4.10 0.6002
WVFGRD96  138.0    65    65    55   4.10 0.5989

The best solution is

WVFGRD96  122.0    65    65    55   4.09 0.6092

The mechanism corresponding to the best fit is
Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

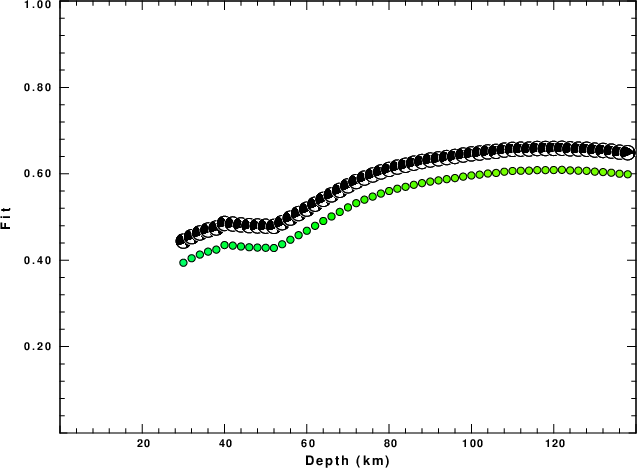

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.08 n 3
br c 0.12 0.25 n 4 p 2

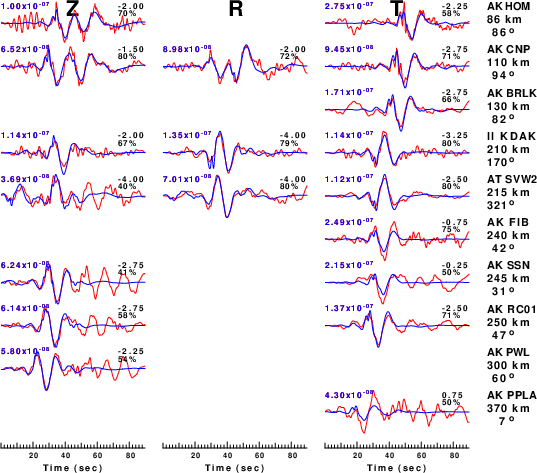

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

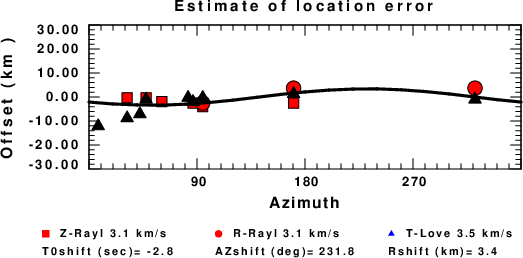

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00
